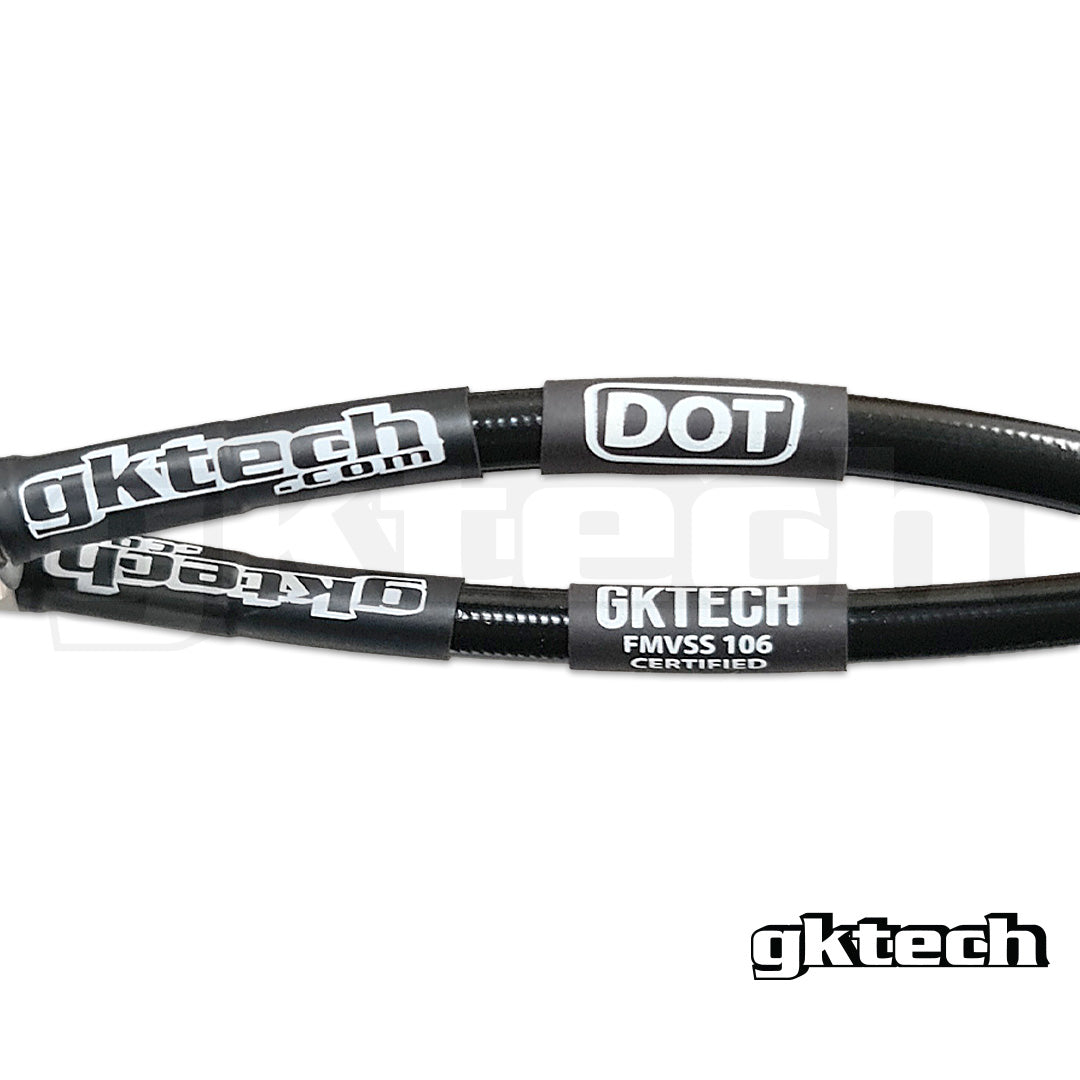

The GKTECH braided brake lines are assembled using stainless steel fittings and hose that consists of a Teflon inner tube wrapped in stainless steel braid and a PVC outer coating for protection. The brake lines have been independently tested to comply with FMVSS106 standards for brake hoses. This makes the lines ADR approved in Australia and they are marked as such on the brake line assemblies.
The FMVSS106 testing procedure that the lines have been tested against includes the following tests:
- 370lbs pull test
- 35 hour whip test
- 7000psi burst test
- -45degC to 146degC temperature tests
- 24 hour salt corrosion resistance test
We developed these kits so that the rear brake lines can be simply disengaged in the flick of a switch for your next victory burnout, without frying the rear brakes!
Our kit is super easy to install, simply remove the single hard line and connect our braided line to the master cylinder, running the lock off valve where ever you desire in the cabin, and then the braided line back to the rear brake line block in the engine bay. Total install time should be around 30 minutes.
For race cars only however no permanent modifications are required.
NOTE: Will fit both LHD and RHD vehicles
NOTE: Will NOT fit with the ABS unit, ABS would need to be deleted for this kit to work
GKTECH
Rear Brake Line Locker Kit
What is a Backorder?
Q: What is backorder?
When a product is on backorder, it means that we have sold out and we are opening a back order due to popular demand. This is essentially a queue, when new stock arrives from production, we’ll send your order.Q: Will items in my order that are in stock be shipped out first?
We will send your order altogether once your backorder item is ready! You may wish to place separate orders if you want an item before the other is due back in stock.The GKTECH braided brake lines are assembled using stainless steel fittings and hose that consists of a Teflon inner tube wrapped in stainless steel braid and a PVC outer coating for protection. The brake lines have been independently tested to comply with FMVSS106 standards for brake hoses. This makes the lines ADR approved in Australia and they are marked as such on the brake line assemblies.
The FMVSS106 testing procedure that the lines have been tested against includes the following tests:
- 370lbs pull test
- 35 hour whip test
- 7000psi burst test
- -45degC to 146degC temperature tests
- 24 hour salt corrosion resistance test
We developed these kits so that the rear brake lines can be simply disengaged in the flick of a switch for your next victory burnout, without frying the rear brakes!
Our kit is super easy to install, simply remove the single hard line and connect our braided line to the master cylinder, running the lock off valve where ever you desire in the cabin, and then the braided line back to the rear brake line block in the engine bay. Total install time should be around 30 minutes.
For race cars only however no permanent modifications are required.
NOTE: Will fit both LHD and RHD vehicles
NOTE: Will NOT fit with the ABS unit, ABS would need to be deleted for this kit to work
Choose options
FAQs
Will this fit my car?We can only confirm fitment for the vehicles listed above under vehicle compatibility. If your car is not listed there, then we don't know if it will fit.
Do you make these to suit other cars?
We only sell the parts listed on our website. If it's not listed on our website, then we don't sell it. Sorry.
What's the advantage of using the GKTech rear brake line locker kit?
When the vehicle is doing a burnout, the rear brakes tend to cause friction resulting in fried pads and discs (even sometimes catching fire). This small yet effective device allows you to shut off the rear brakes avoiding any pressure getting to the rear calipers. This results in a resistance-free rear brake setup.
What modifications are required, is this hard to fit?
No modifications are required, just remove the OEM hardline that goes from the master cylinder to the rear brake line block on the chassis rail, and replace it with our kit.
Is there anything else needed for installation?
You will need to supply brake fluid only. In terms of the kit, it will arrive as shown in the product photo.
Can I install this myself? If so how long will installation take?
Yes, the kit is super easy to install. Simply remove your old lines and replace them with your new lines, then tighten the lines referencing the OEM torque specs.
You will then need to top up the brake fluid and bleed the brake system. However, being the brake system we recommend only a trained professional to install this product.
VEHICLE COMPATIBILITY
Nissan
R32 SKYLINE GTRR32 SKYLINE GTS-T
R33 SKYLINE GTR
R33 SKYLINE GTS-T
R34 SKYLINE GT-T
S13 CA18 180SX
S13 CA18 SILVIA
S13 SR20 180SX
S13 SR20 SILVIA
S14 200SX/SILVIA
S15 200SX/SILVIA
Z32 300ZX
USER GUIDE(S)
Install Videos
Very helpful with my questions to confirm it would be fit for purpose in my muscle car. Delivered quickly and good quality product.
Lines and fittings are neat and work great.
Thanks to the crew at Gk Tech, there rear break line locker kit works a treat. Not to mention how fast the crew was at getting it out to me
Very happy will buy again.
Thanks
Still the car in the garage but hardly they are trying to fix it, the reason why there is no info about this product for 350z specifically.
Hi Omar, this product is not listed as fitting a 350z and it won't work on a 350z without completely re-routing your OEM lines and deleting your ABS unit. We list the models that this kit works with and the 350z is not listed (for the above reason)
Quick, easy and perfect all round.
Fitting can become an easy task and requires the ability of foresight to make it work and be able to get to easily but quality is 2nd to non mint products
so simple! Work great with my all my gktech delete kit and ebrake hydro! Only issue I've run into is u need high temp brake fluid sealant.
