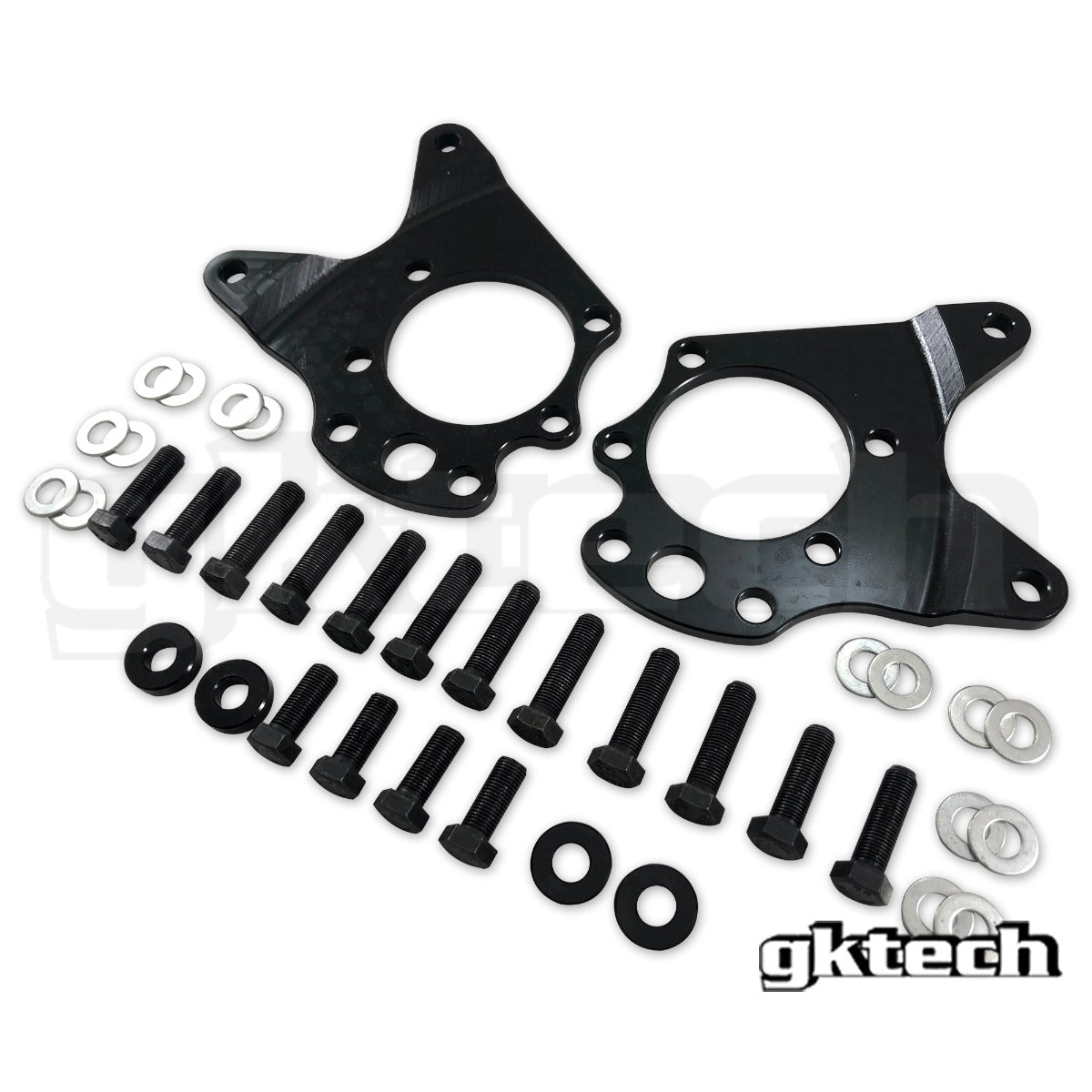

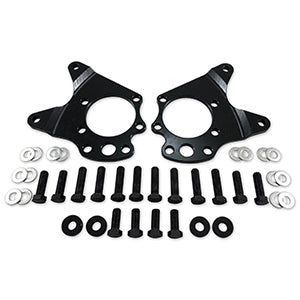

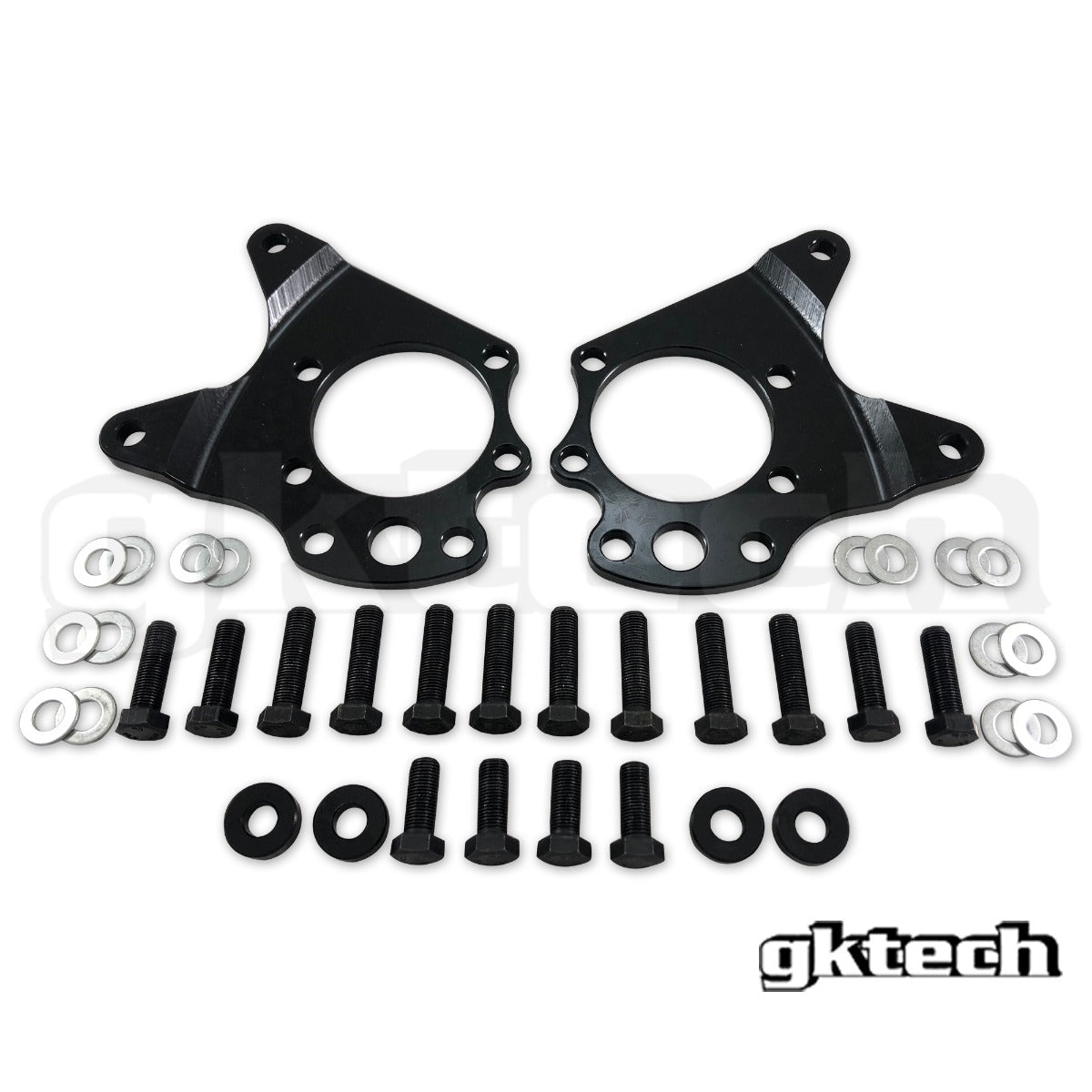

Bolt on dual caliper brackets
What is a Backorder?
Q: What is backorder?
When a product is on backorder, it means that we have sold out and we are opening a back order due to popular demand. This is essentially a queue, when new stock arrives from production, we’ll send your order.Q: Will items in my order that are in stock be shipped out first?
We will send your order altogether once your backorder item is ready! You may wish to place separate orders if you want an item before the other is due back in stock.Free Shipping on orders over $250
Checking Dispatch Times...
Order and get upto 1995 reward points
Earn points by signing up for our rewards program
The GKTECHZ33/Z34/V35/V36 dual caliper brackets feature CNC machined 6061-T6 aluminium and allow the use of either Brembo or non-Brembocalipersfor use as a standalone hydraulic handbrake. This includes Akebono calipers.
They only space the hub out 8mm and do not require any modifications to fit and also allow the use of the drum handbrake.
We have also added the option of purchasing axle spacers to this kit as the plate spaces the hub out 8mm, this meaning the driveshaft is essentially being stretched that 8mm to compensate for the thickness of the plate. This can now be taken up with the use of an axle spacer.
We have different sized options available as it is also a good opportunity to select a different size axle spacer if you were running a different diff/driveshafts combination or have a very low vehicle
The brackets are available on their own, however, if you want to avoid wasting time shopping around for all the individual parts, getting custom brake lines made up or running generic parts that may or may not work then we suggest having a look at our complete kit.
FAQs
What calipers do I have to use?Whichever calipers you have now, you need another set of the same calipers. Calipers can not be mixed between models. Ie. you can't run 1 Brembo caliper and 1 OEM Nissan caliper
Will this kit work with aftermarket knuckles?
These brackets are designed to be used with the OEM knuckles. They can NOT be used with aftermarket knuckles.
Will these work with any Wilwood calipers?
No sorry, the bracket has only been designed to be used with the OEM fitment calipers.
Should I run an axle spacer and if so, what size??
By installing this bracket you are spacing the hub out 8mm, this is taken up by the driveshaft. This causes the bearings inside the driveshaft to run on the edge of the cup, which can lead to premature failures. We suggest adding axle spacers to put the stretched amount back into the driveshaft to ensure it runs further inside the cup and in turn is stronger and more reliable.
We recommend checking which size you need by jacking your car up and dropping it down on ramps, this will load the suspension to its normal operating height. From there, disconnect the diff to driveshaft bolts and with the driveshaft in a relaxed position measure the gap. Keep in mind the distance of the plate that is supplied with this kit and factor that into the final number, that will tell you what size axle spacer you need. Simple answer for 99% of setups is 5mm if your car isn't super low / 10mm if your car is super low.
VEHICLE COMPATIBILITY
Nissan
V35 SKYLINEV36 SKYLINE
Z33 350Z
Z34 370Z
