Z34 370z/V36 dual caliper brackets

The GKTECH 370z/V36 dual caliper brackets feature CNC machined 6061-T6 aluminium and allow the use of either AKebono or non-Akebono calipers for use as a standalone hydraulic handbrake.

They only space the hub out 8mm and do not require any modifications to fit and also allow the use of the drum handbrake.

We also include extended handbrake studs, which are a unique product in themselves to us and ensures you have enough thread overlap on the nuts securing them down, due to being spaced out from the plate.

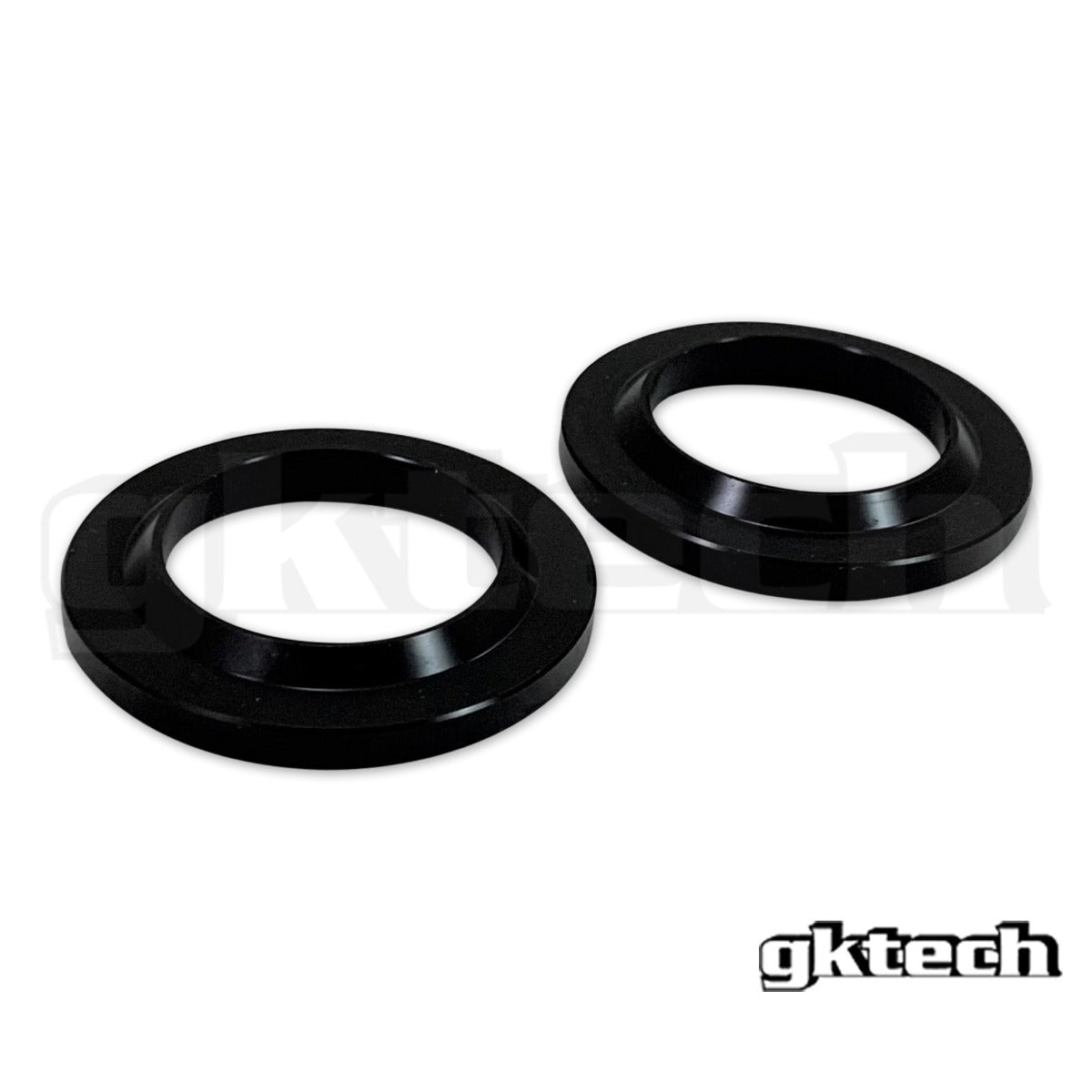

There is also the added option of purchasing axle spacers to this kit as the plate spaces the hub out 8mm, this meaning the driveshaft is essentially being stretched that 8mm to compensate for the thickness of the plate. This can now be taken up with the use of an axle spacer.

We have different sized options available as it is also a good opportunity to select a different size axle spacer if you were running a different diff/driveshafts combination or have a very low vehicle



What calipers do I have to use?
Whichever calipers you have now, you need another set of the same calipers. Calipers can not be mixed between models. Ie. you can't run 1 Akebono caliper and 1 non Akebono caliper

Will this kit work with aftermarket knuckles?
These brackets are designed to be used with the OEM knuckles. They can NOT be used with aftermarket knuckles.

Will these work with any Wilwood calipers?
No sorry, the bracket has only been designed to be used with the OEM fitment calipers.

Install Videos

Assembly Guides

Download Z33X-BRKT- Customer ASM

Engineering Certificates

Download Z33X-BRKT Cert
