ZD8 BRZ High Misalignment Tie rod Ends
What is a Backorder?
Q: What is backorder?
When a product is on backorder, it means that we have sold out and we are opening a back order due to popular demand. This is essentially a queue, when new stock arrives from production, we’ll send your order.Q: Will items in my order that are in stock be shipped out first?
We will send your order altogether once your backorder item is ready! You may wish to place separate orders if you want an item before the other is due back in stock.Free Shipping on orders over $250
Checking Dispatch Times...
Order and get upto 1145 reward points
Earn points by signing up for our rewards program

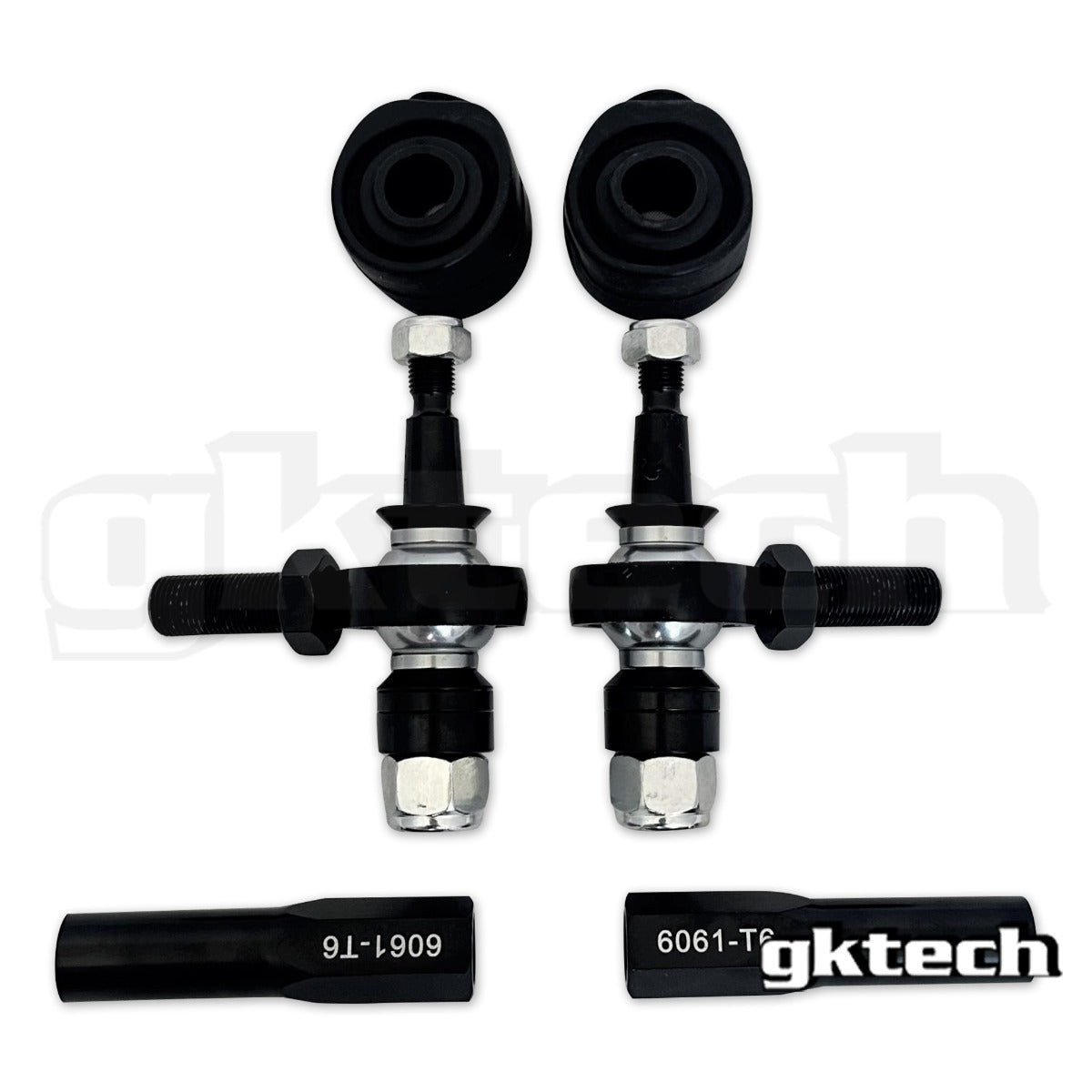

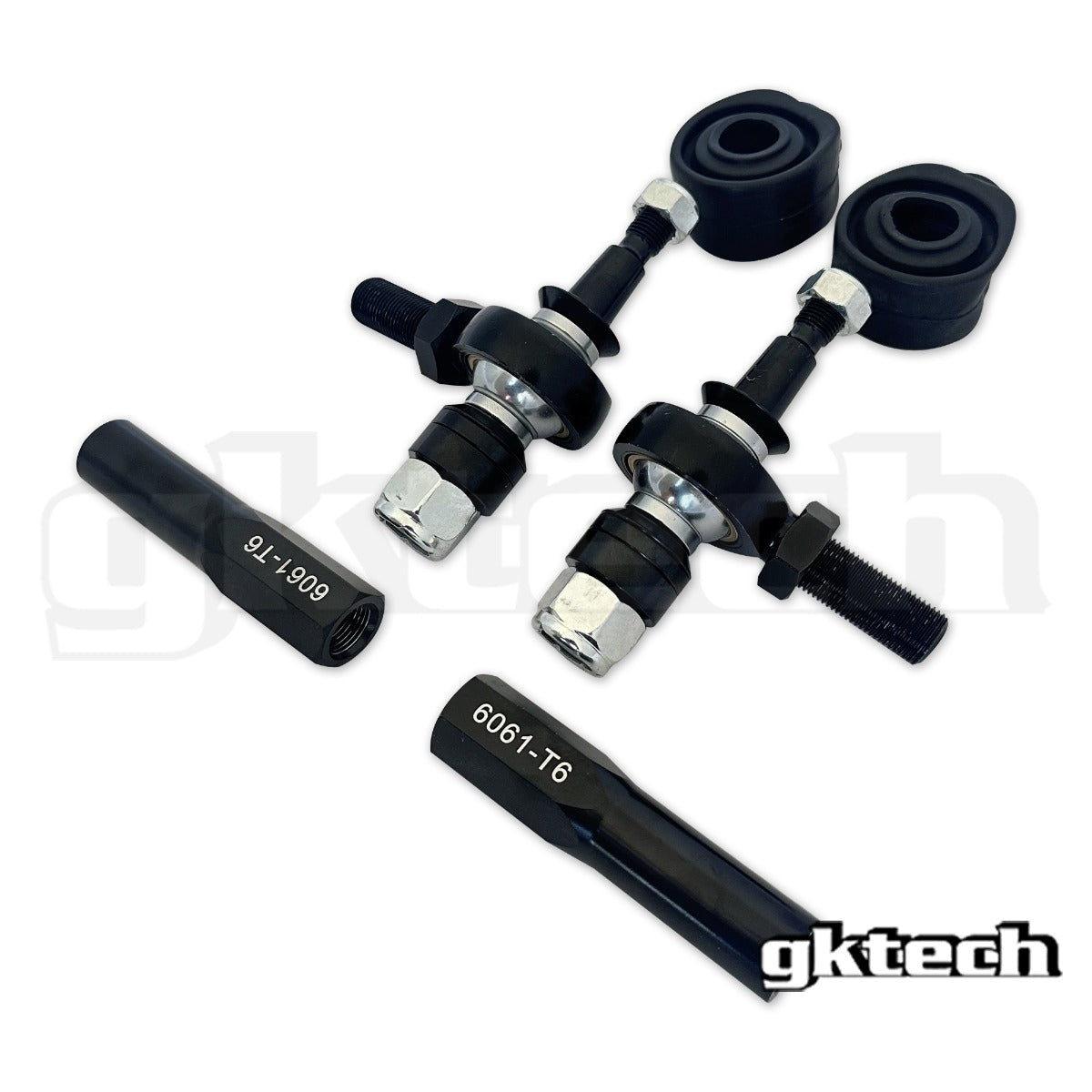

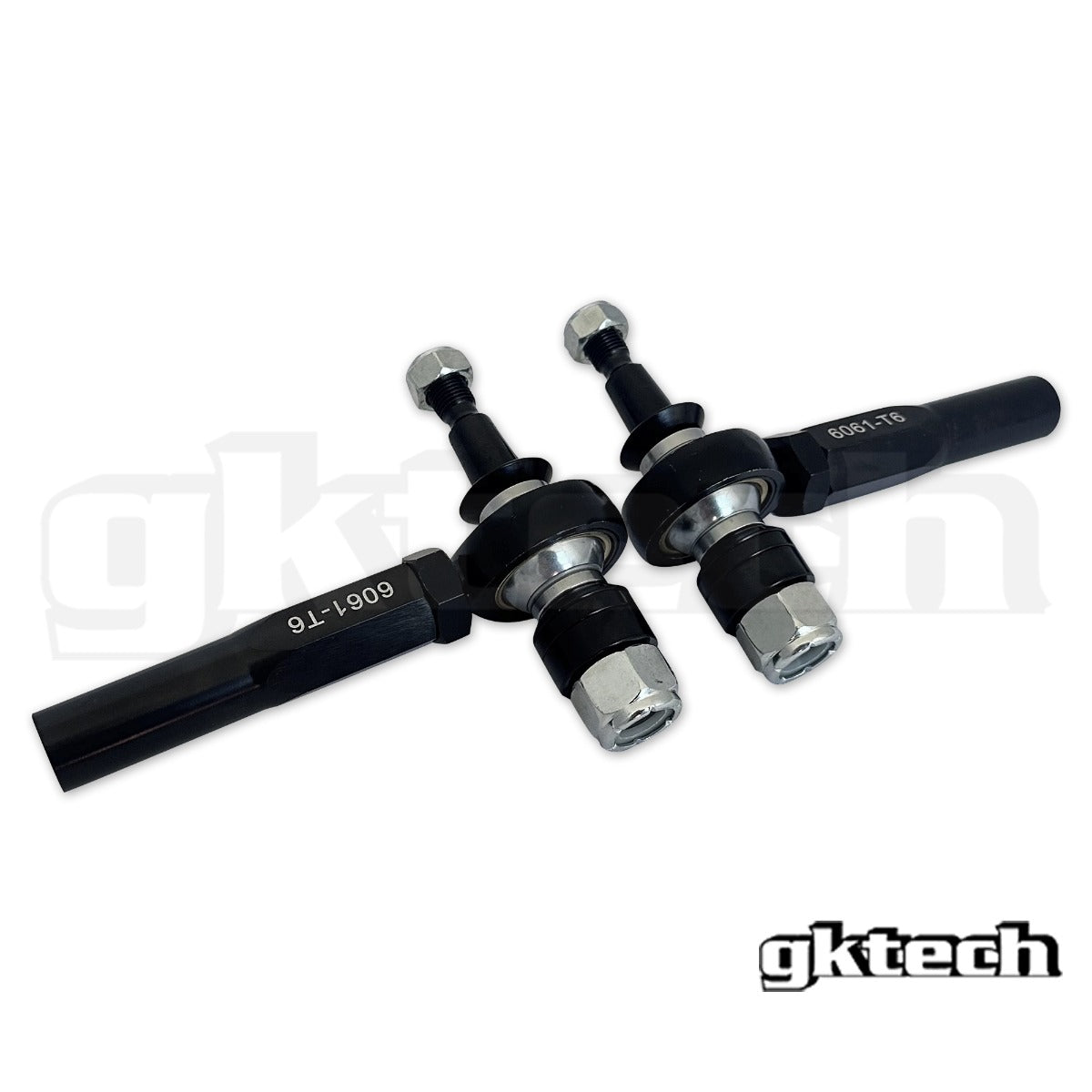

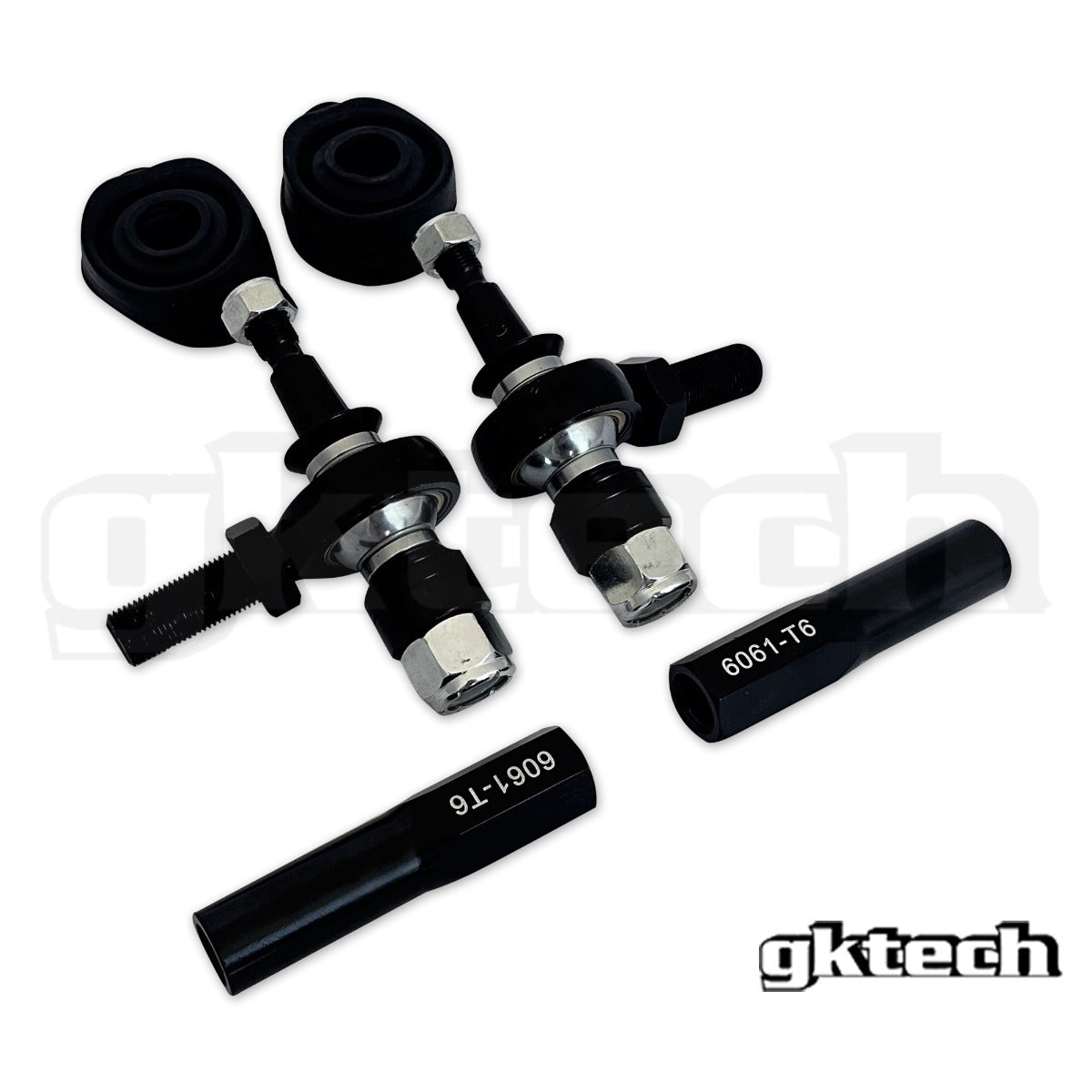

The GKTECH high misalignment tie rods have 64 degrees of misalignment and also up to 15mm of bump steer correction built in.
Although these may look pretty similar to other tie rod ends on the market, don't be fooled as they are different (in a good way). Almost all tie rod ends on the market that use rose joints are NOT using high misalignment bearings and wear out in no time at all. OEM type tie rod ends provide around 60 degrees of misalignment and it is critical that around this level of misalignment is kept.
Another common issue with most aftermarket style tie rod ends is that there is no protection from dust and dirt. We've developed dust boots specifically to suit the PCYML10T rose joints that we use in our kit. It's also pretty common for shanks to bend under high loads, our shanks have a tensile strength of 176ksi (class 12.9)
Bump steer correction is altered through the use of 5mm shims.
- Corrects bump steer up to 15mm
- Uses high quality PTFE lined 1 5/8" high misalignment rose joints
- Dust boots included
- Can be used within OEM wheels
FAQs
How hard are these to install?Remove your old tie rod ends and install these. It's a very self explanatory install and shouldn't take longer than 30 minutes.
Will this fit my car?
If your car is listed above then this is a straight fit.
Why do these not fit the ZC6 BRZ?
The alloy knuckles used on the ZD8 are a little taller than the other variants. As such, the ZD8 requires a specific tie rod end. The ZC6 tie rod ends can be seen/purchased here: https://au.gktech.com/products/zn6-86-brz-high-misalignment-tie-rod-ends
Do I need a wheel alignment after installing these?
Unless you get the length spot on perfect, you will need a wheel alignment after installation.
Are there any special tools required?
No, a spanner set will do the job which we do sell separately here - https://au.gktech.com/open-ended-spanners
Do you carry spare parts for this product?
Yes we carry the following spare parts for this product;
Replacement Pcyml10Ts Tie Rod End Bearing
Tie Rod End Extenders
VEHICLE COMPATIBILITY
Subaru
BRZ ZD8Customer Reviews

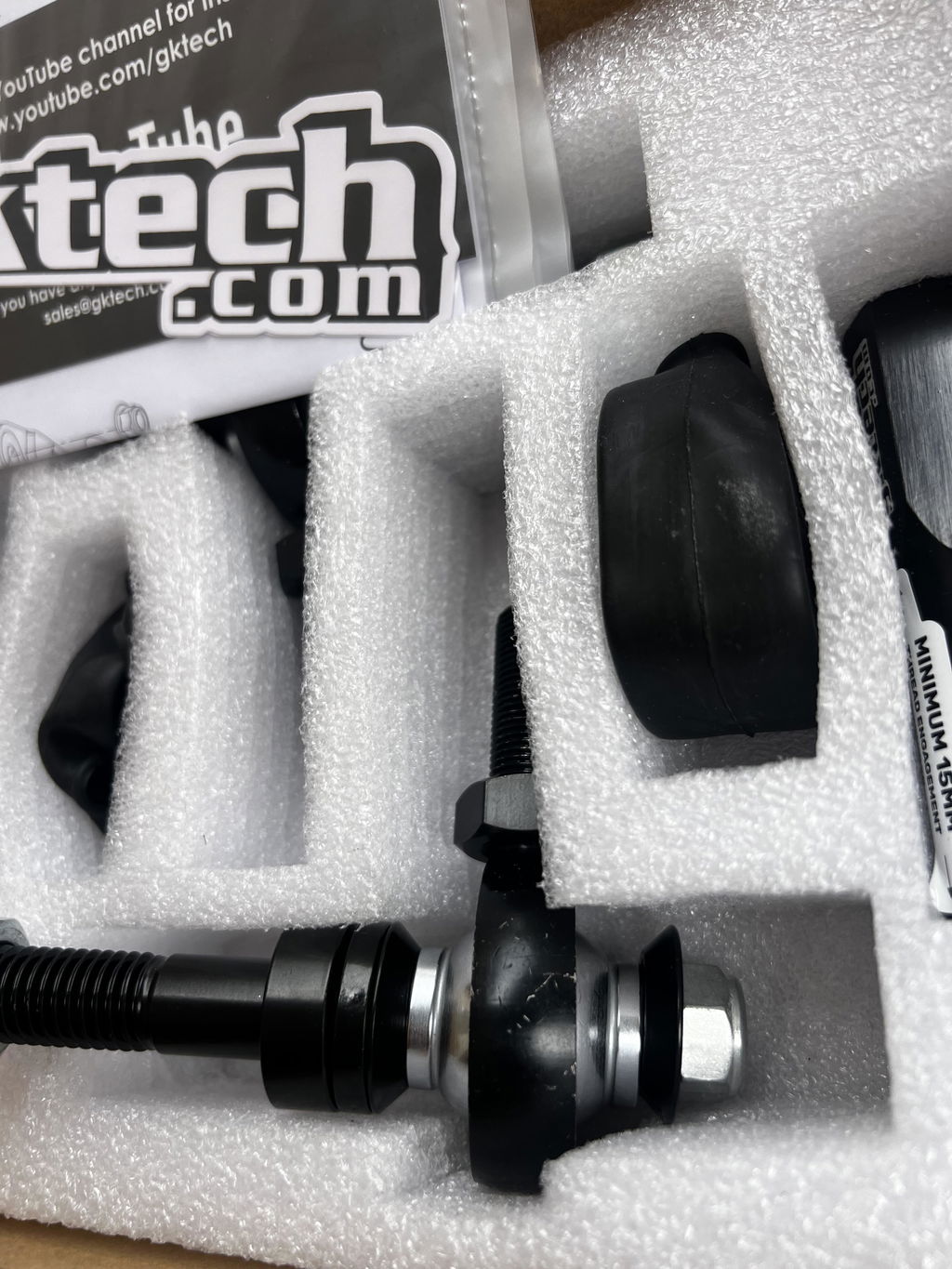

looks like it been dropped or used, not really sure but it isn’t new
