86 / GR86 / BRZ HIGH TENSILE OFFSET STEERING RACK EXTENDERS
What is a Backorder?
Q: What is backorder?
When a product is on backorder, it means that we have sold out and we are opening a back order due to popular demand. This is essentially a queue, when new stock arrives from production, we’ll send your order.Q: Will items in my order that are in stock be shipped out first?
We will send your order altogether once your backorder item is ready! You may wish to place separate orders if you want an item before the other is due back in stock.Free Shipping on orders over $250
Checking Dispatch Times...
Order and get upto 795 reward points
Earn points by signing up for our rewards program

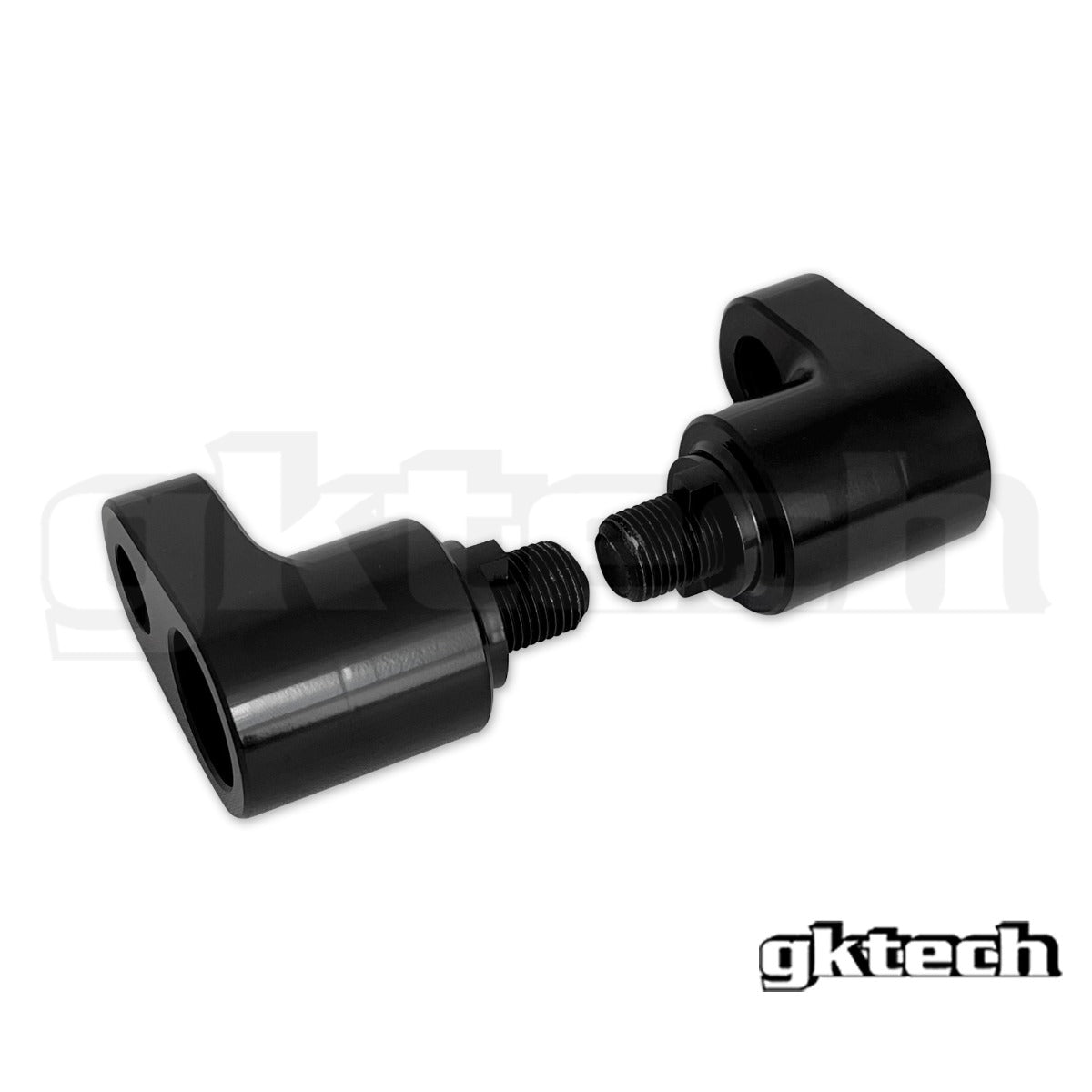

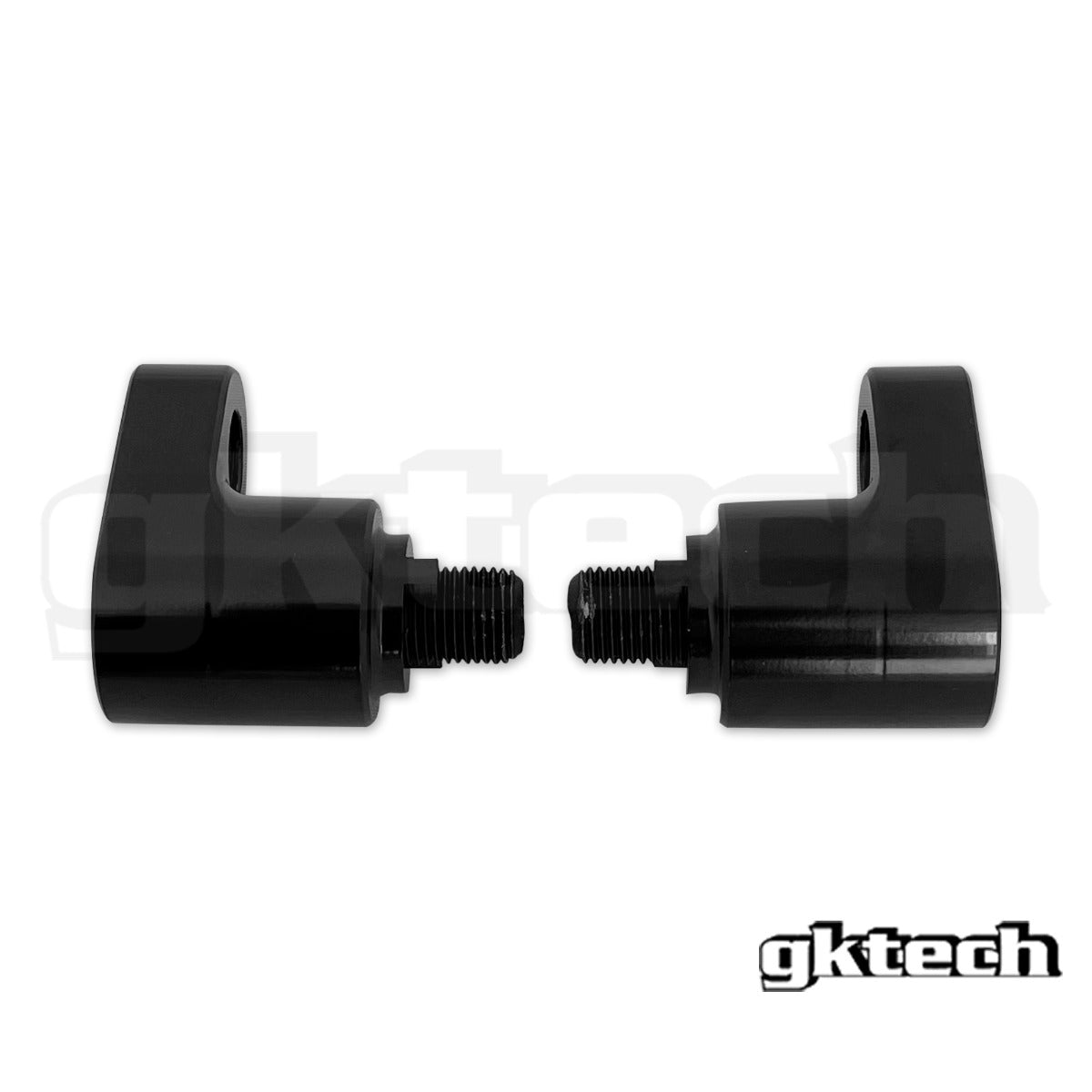

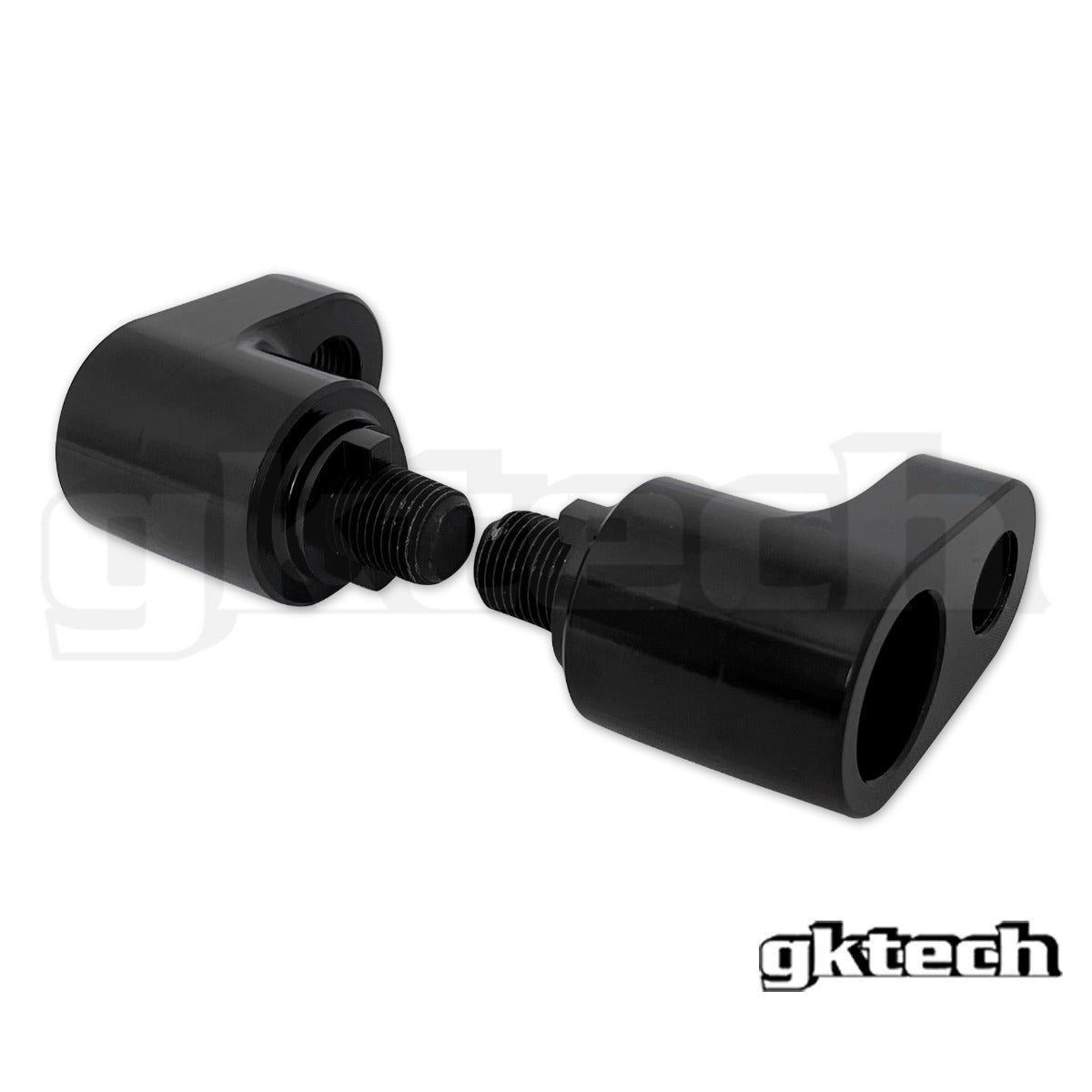

The GKTECH high tensile offset rack extenders offer 2 primary benefits; offset rack spacer moving the rack forward to eliminate steering bind on high lock setups and they offer more steering rack travel which in turn gives more steering lock.
Offset rack spacers are a great alternative to moving the steering rack forward. Relocating the steering rack is expensive and in some cases just not possible.
In addition to relocating the pickup point this rack spacer set offers a grand total of 10mm of rack travel equating to around 5 degrees of extra lock without compromising on the amount of thread left in the steering rack.
SOLD AS A PAIR
- DIY installation
- CNC machined high tensile zinc coated 4130 chromoly steel
NOTE: Modification of the cross member is required. We make a weld in kit with cutting guide to suit which can be purchased here:
86/GR86/BRZ Weld in front subframe high clearance kit
FAQs
How do these steering rack spacers work?By moving the mounting point of the inner tie rod forward 30mm steering bind is eliminated. In addition, it allows the steering rack to travel an extra 10mm. That extra 10mm of rack travel gives approximately 5 degrees more lock (assuming you have adequate clearance elsewhere)
I've installed the rack spacer and I've got a heap of toe in, what happened?
After you have centred your rack (this is CRUCIAL) you will need a wheel alignment. You may also need need to either trim your inner tie rods down to counteract the length that you've just put into the length of the rack or go to an inner with more adjustment. Whether you need to trim the tie rods down depends on your setup. Do NOT trim too much off or else you'll need to get a new tie rod and only trim down once you've centered the rack.
VEHICLE COMPATIBILITY
Zn6 86 BRZ weld in front subframe high clearance kit
Subaru
BRZ ZC6BRZ ZD8
Toyota
GR86 ZN8GT86 ZN6
