V3 Z33 350z/V35 Steering Angle Kit - Now with ackerman adjustment
What is a Backorder?
Q: What is backorder?
When a product is on backorder, it means that we have sold out and we are opening a back order due to popular demand. This is essentially a queue, when new stock arrives from production, we’ll send your order.Q: Will items in my order that are in stock be shipped out first?
We will send your order altogether once your backorder item is ready! You may wish to place separate orders if you want an item before the other is due back in stock.Free Shipping on orders over $250
Checking Dispatch Times...
Order and get 5% back in reward points
That's 2625 for this item

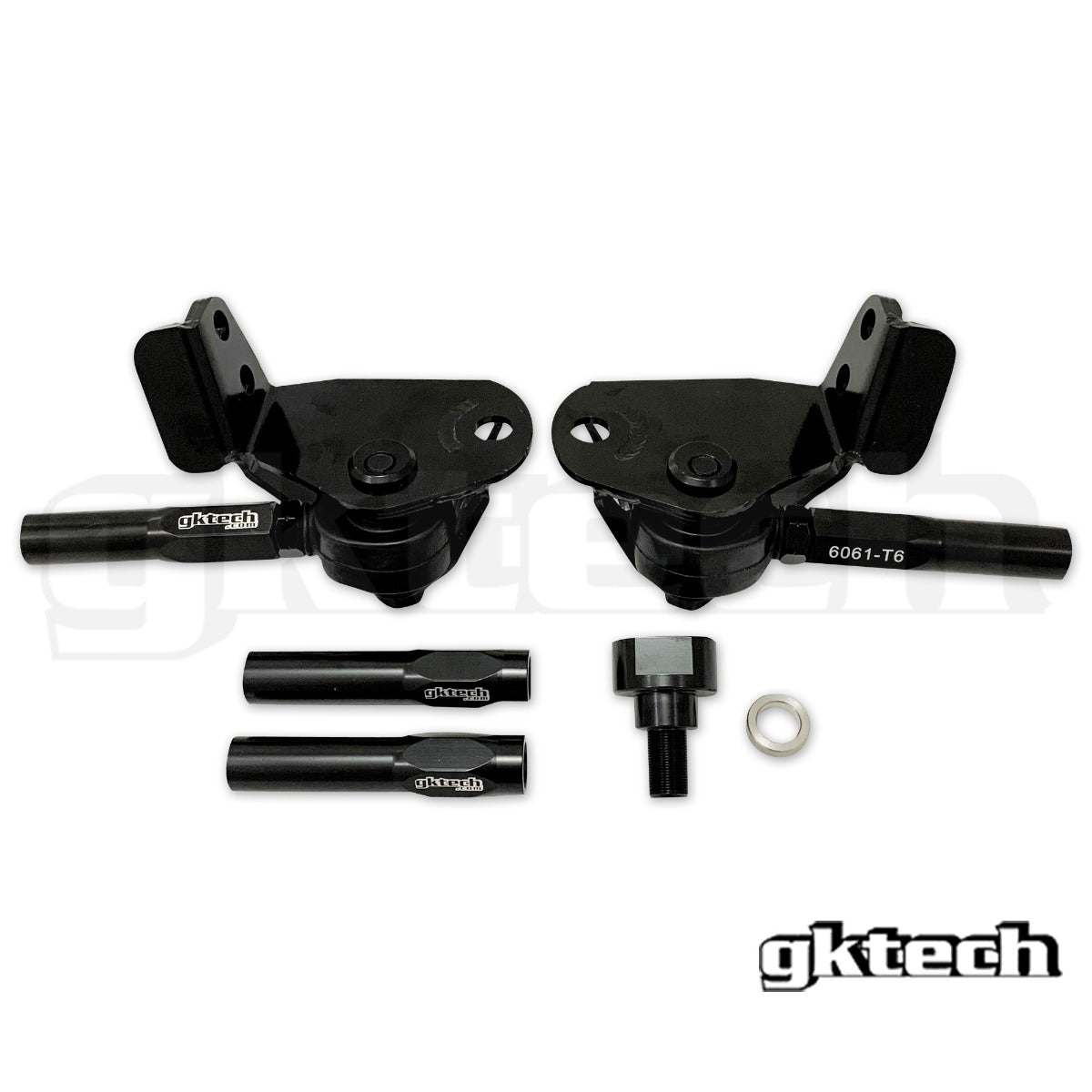

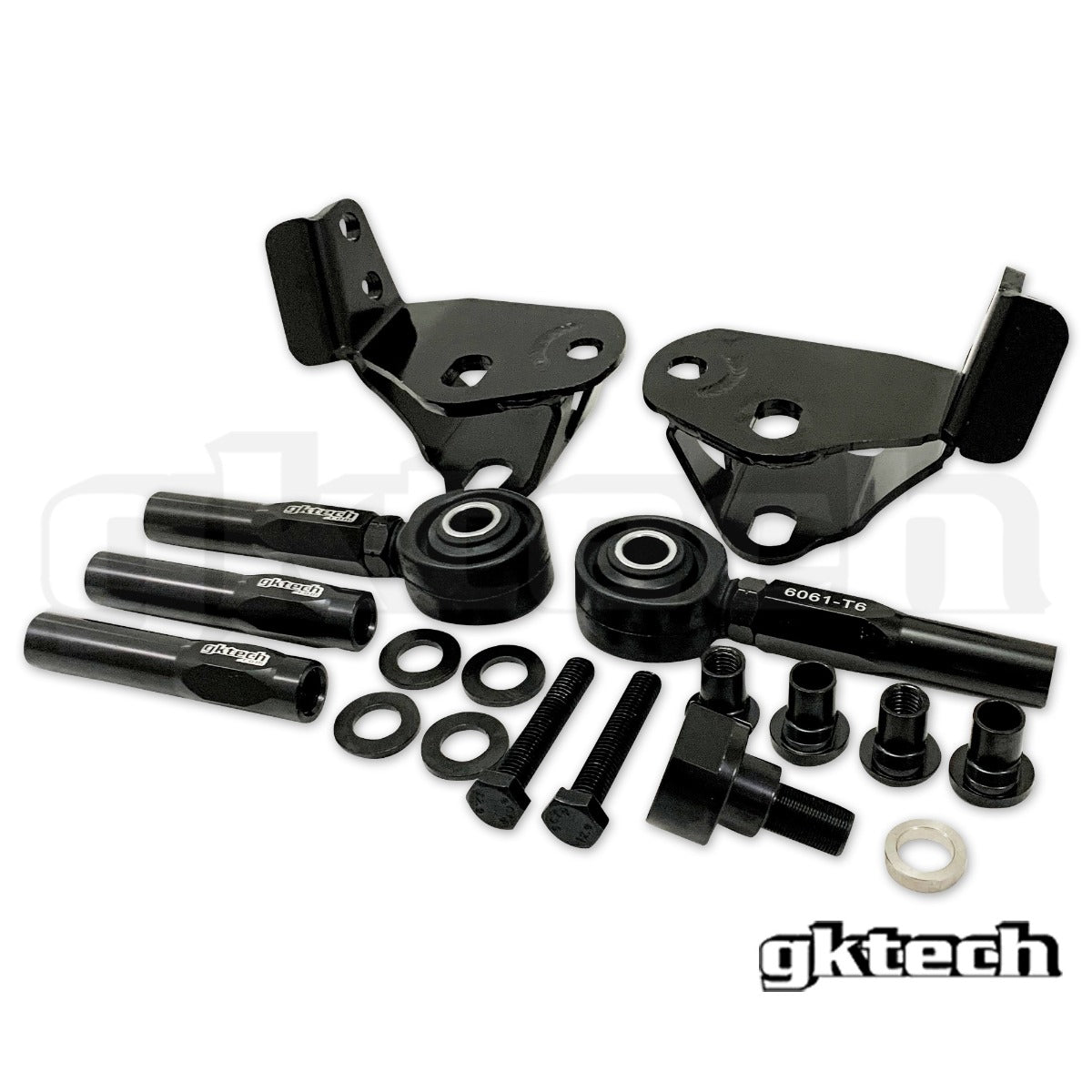

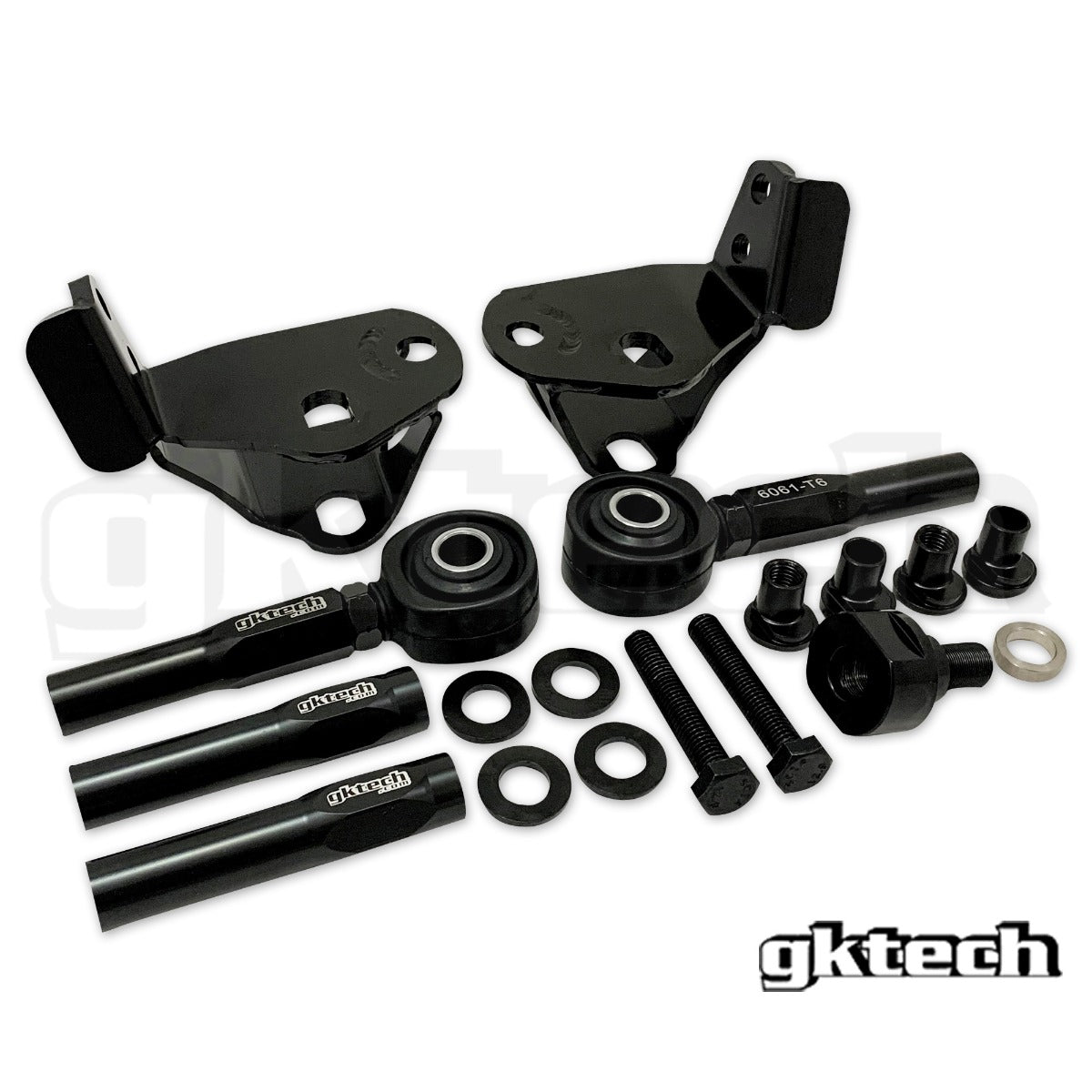

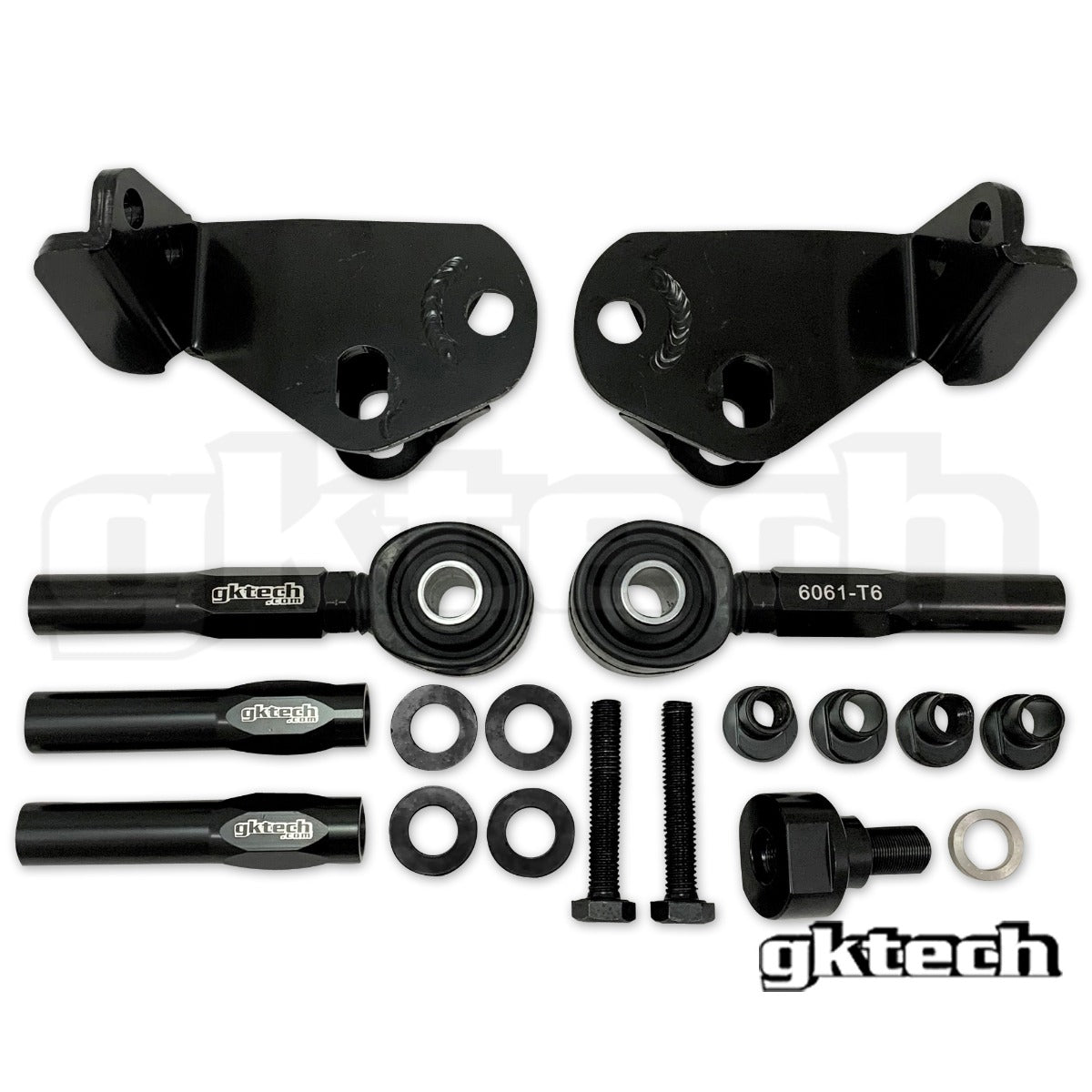

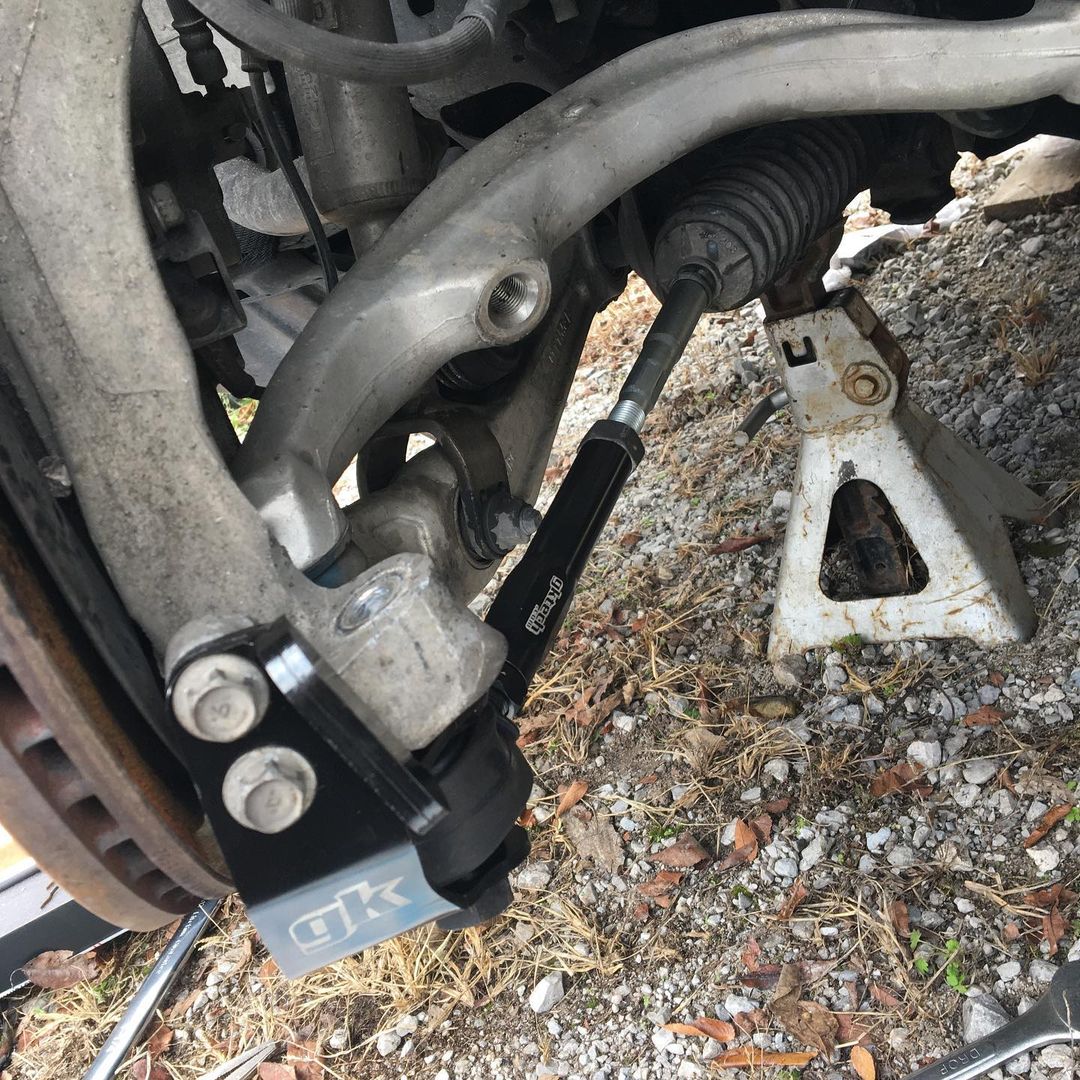

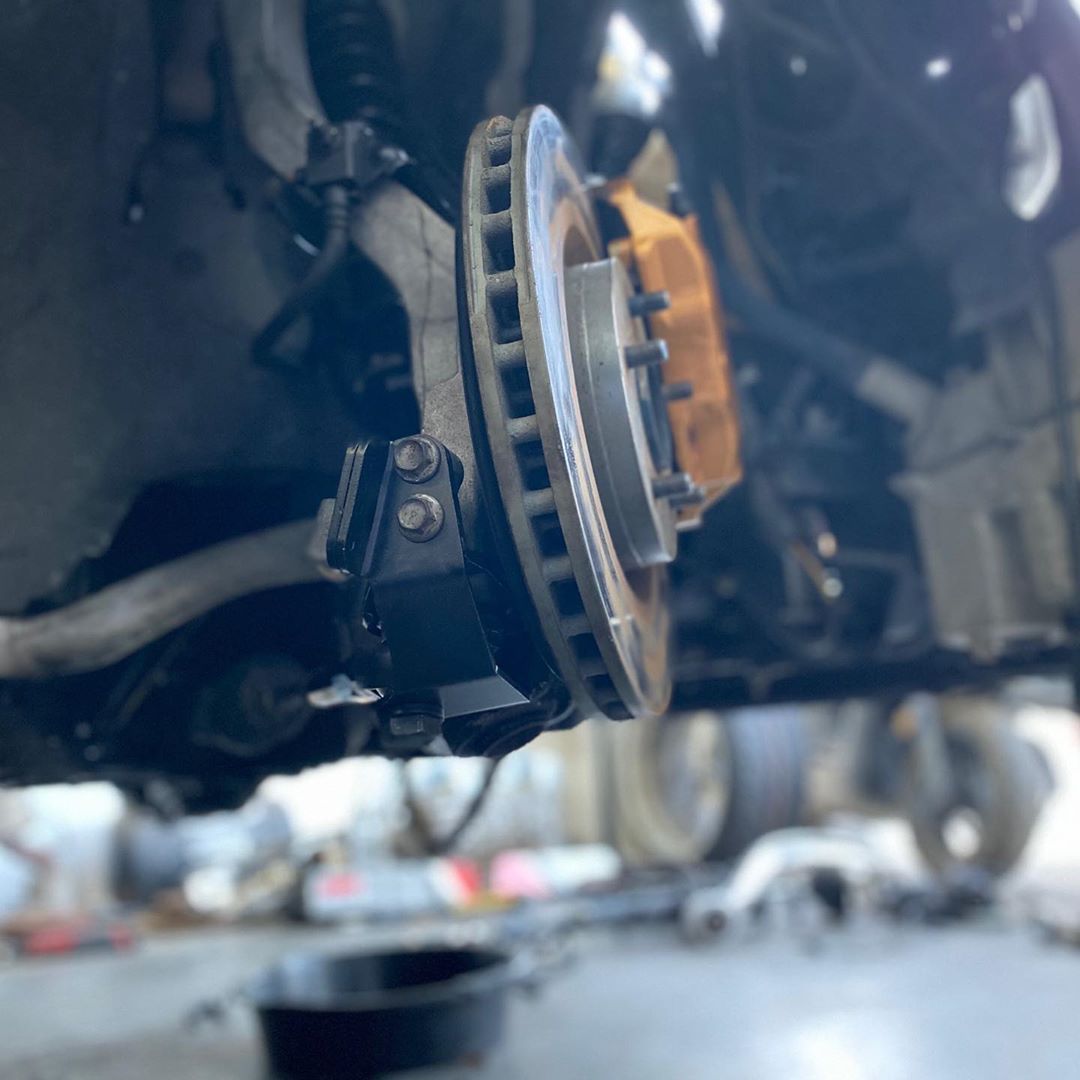

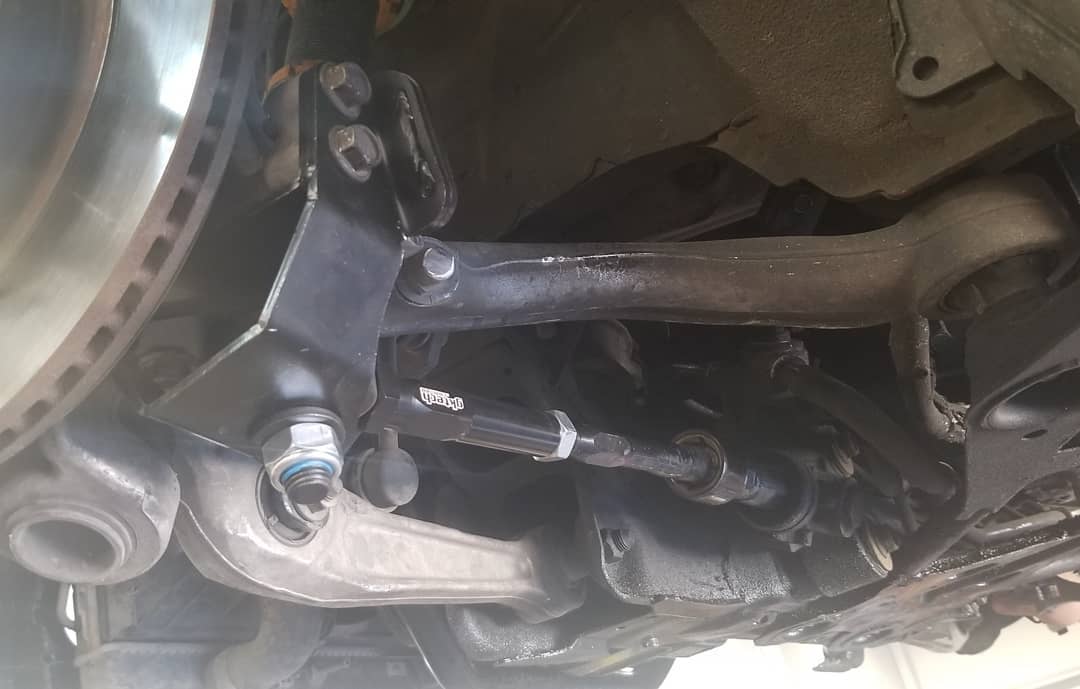

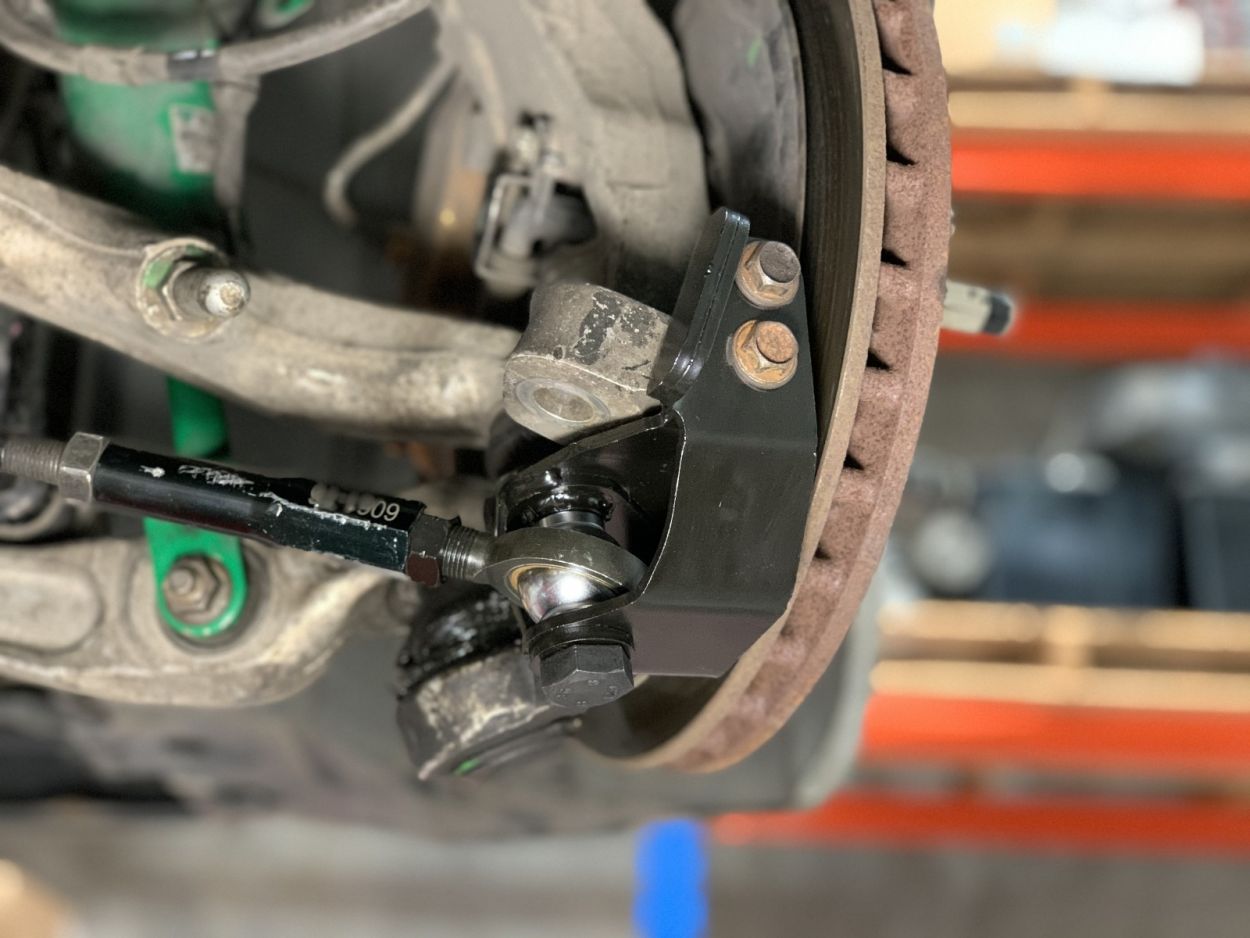

The GKTECH V3 Z33 350z/V35 angle kit is a simple, lightweight, yet super effective bolt on steering kit.

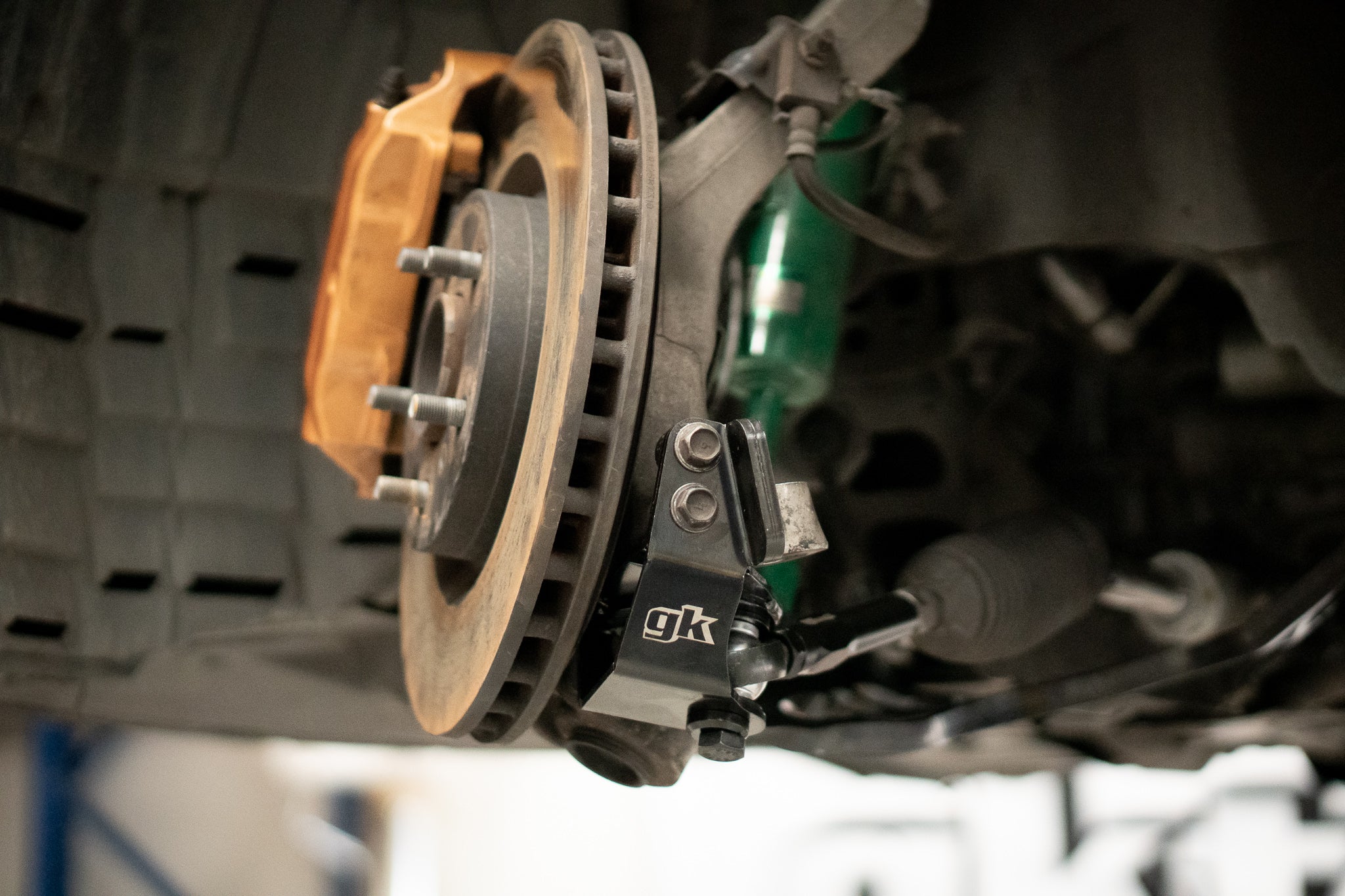

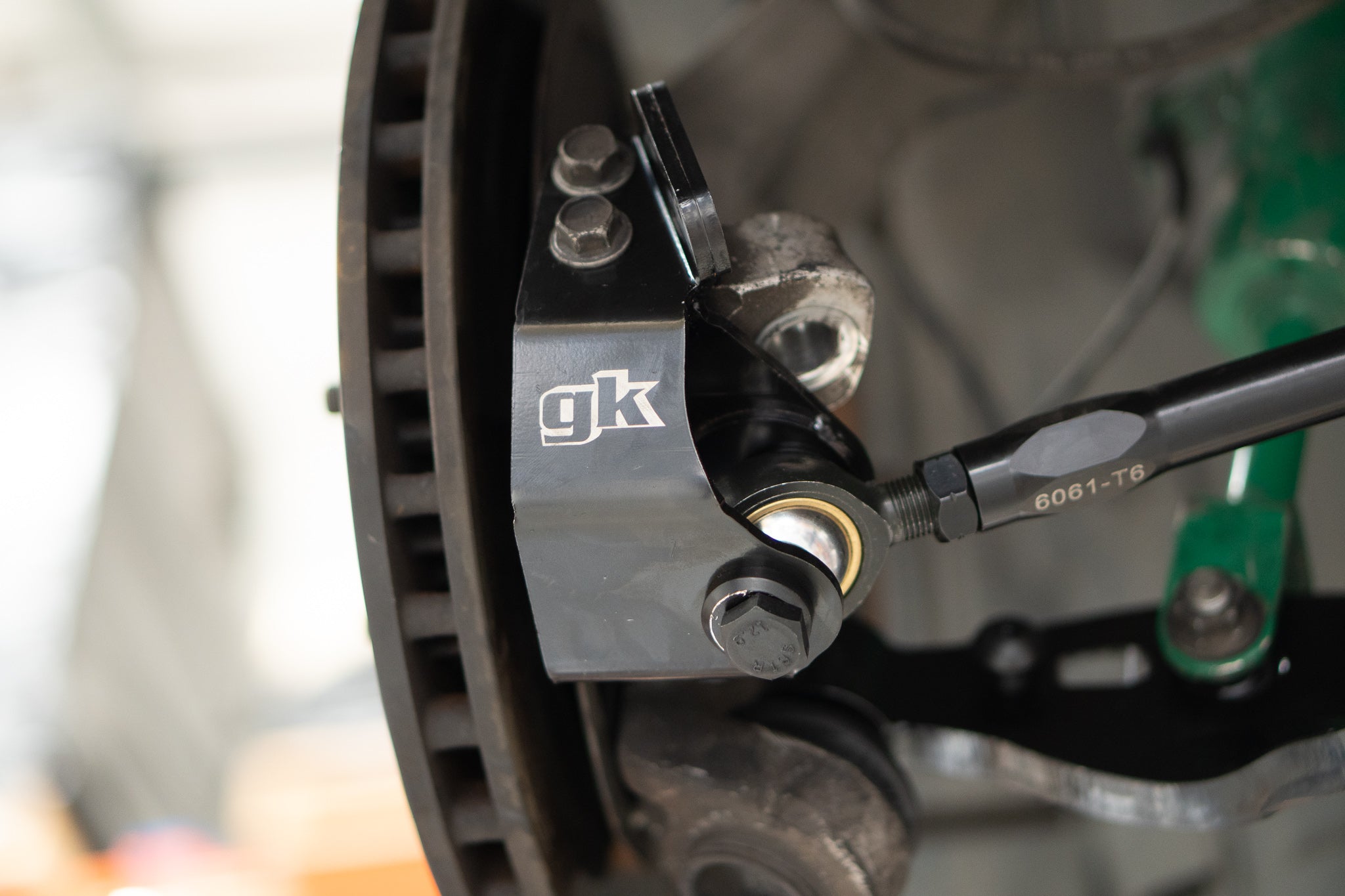

It is a bolt on kit, meaning it can be fitted and removed with no modifications. A completely reversible install, even when used with our Super Lock Lower Control Arms!
With 30% faser steering these are suitable for both the dedicated drift cars whilst working equally as well for a grip/street car looking to speed your steering up.

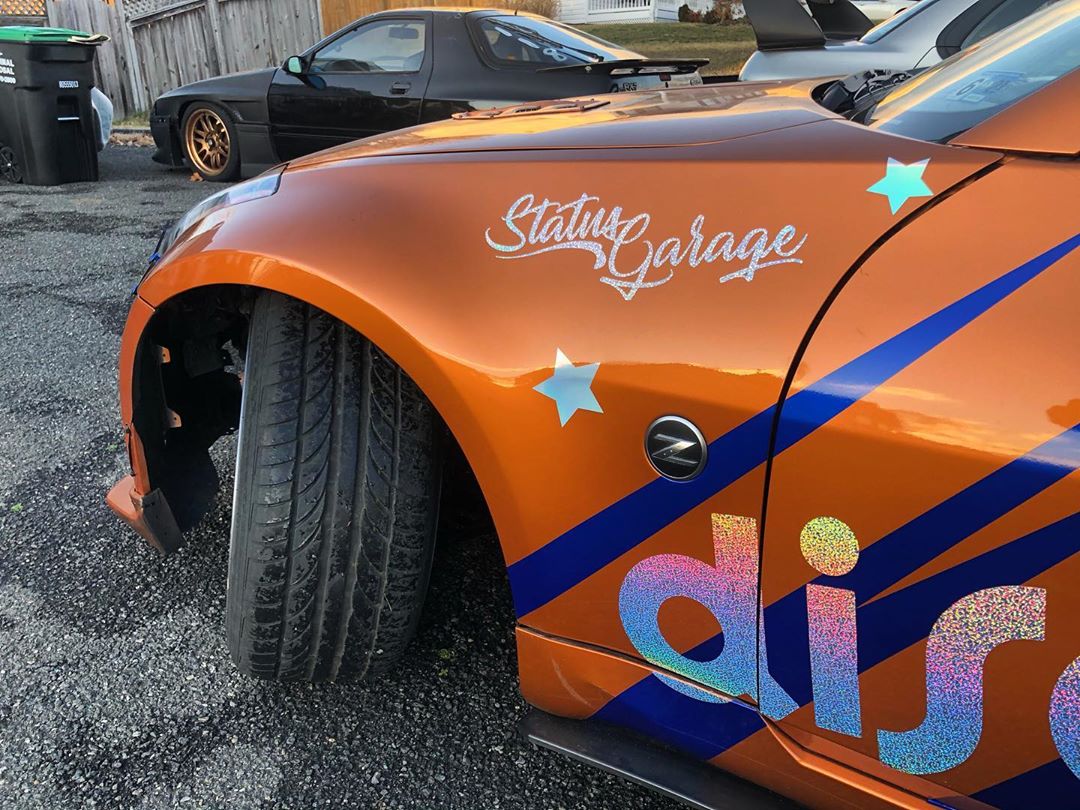

If you own one of these vehicles, you would know the OEM steering angle on the Z/V chassis sucks! We measured them to having around 37 degrees lead wheel and even less trailing. This kit will allow you to get around 60 degrees of lock lead wheel and with adjustable ackerman you can acheive near parallel front steering.
We strongly recommend our bolt on rack spacer to make the most of the kit but they are an optional item as some people may already have a rack spacer. (SOLD SEPARATELY).
To get the most out of your 350Z/V35 angle kit and to correct the poor geometry of the OEM 2pc lower control arm, we recommend our Super Lock Lower Control Arms as seen here: V2 Z33 350Z / V35 4130 Chromoly super lock lower control arms
More information on this can be seen in the FAQ below.
- 30% faster steering
- Adjustable ackerman
- Circa 60 degrees of steering lock
FAQs
Does installing this kit require a wheel alignment?Yes, it alters both toe so a wheel alignment will be required after installation.
Will this fit my car?
We can only confirm fitment for the vehicles listed above under "vehicle compatibility". If your car is not listed there, then we don't know if it will fit.
Is there anything else needed for installation?

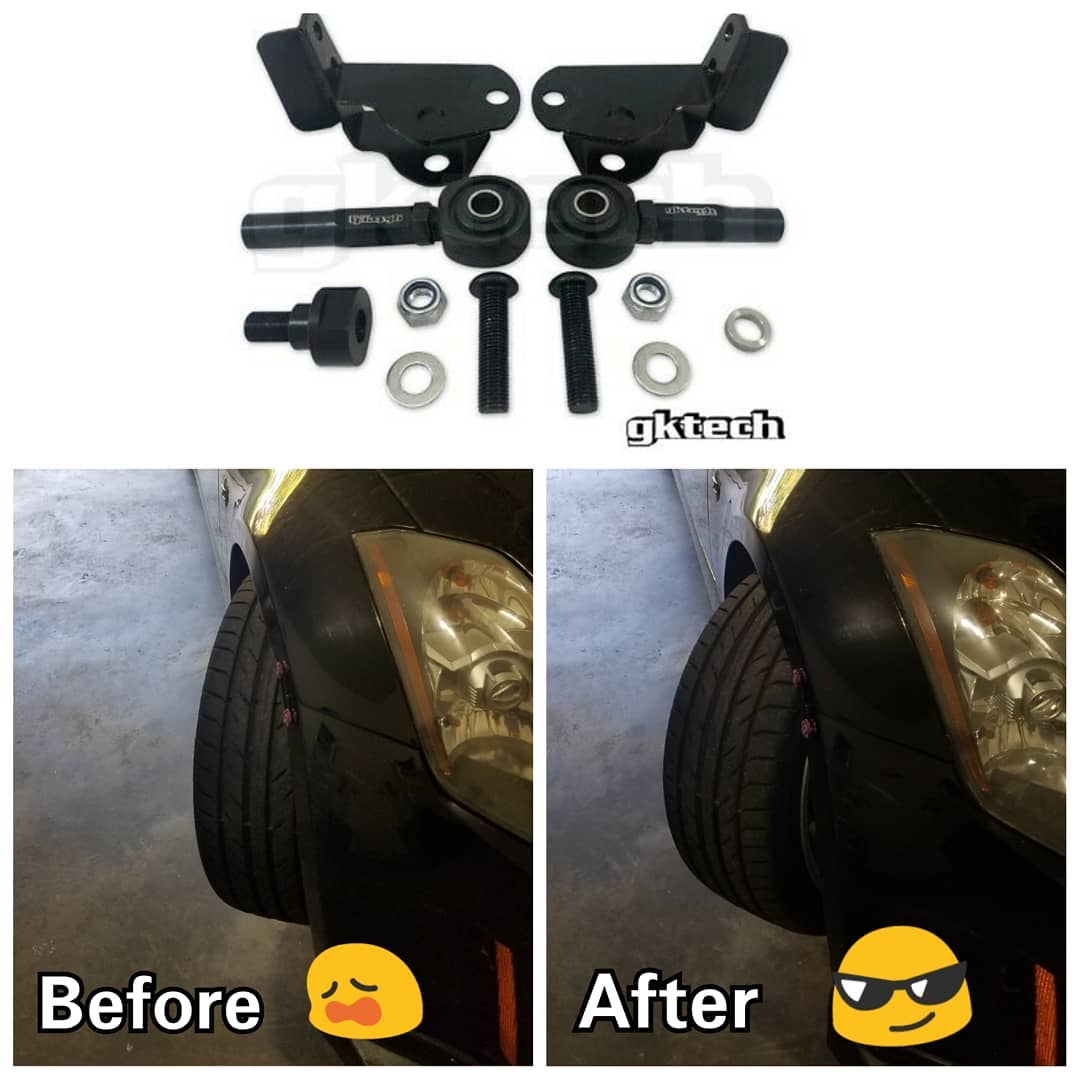

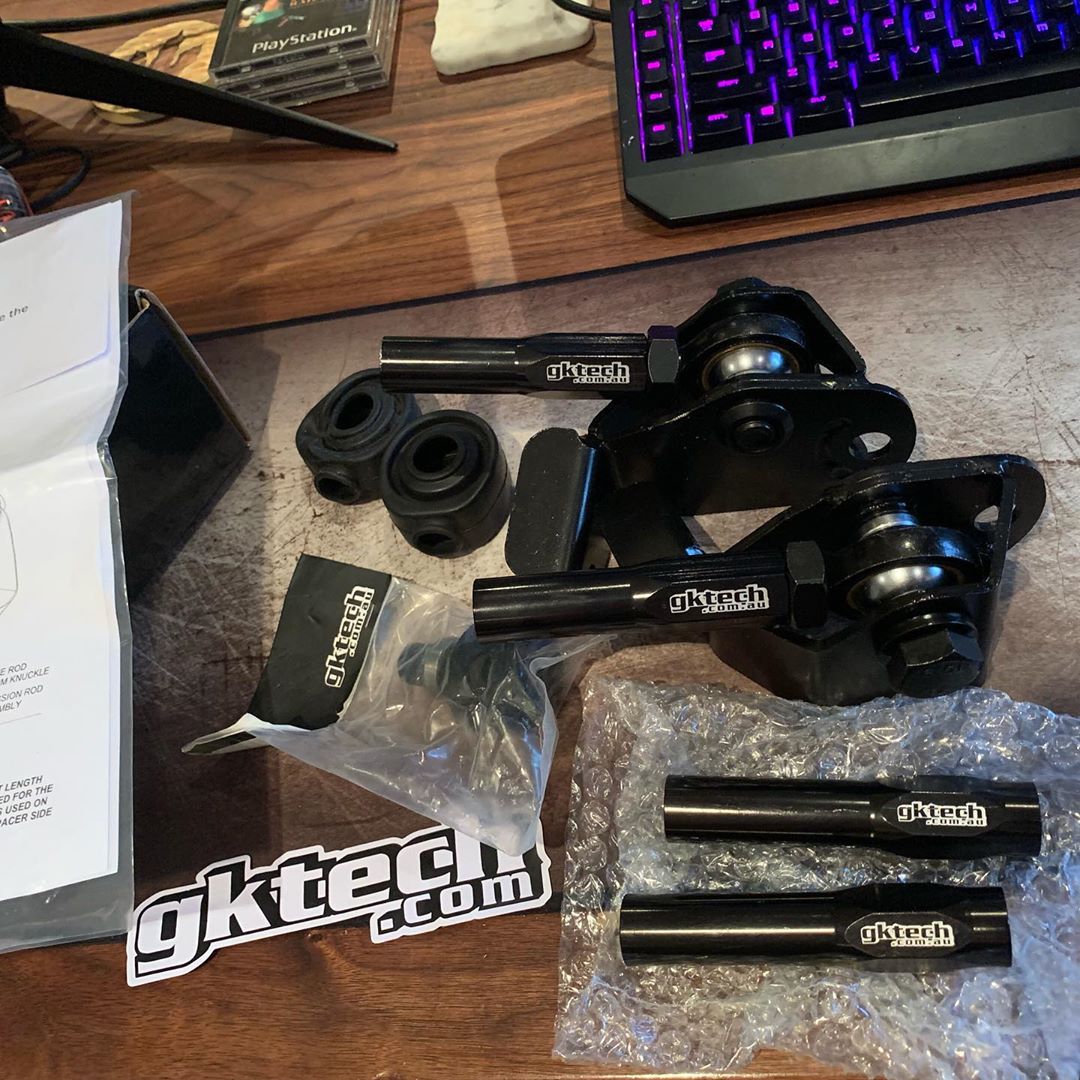

There is not, however, in terms of the kit itself it will arrive as shown in the product photo.
Can I install this myself? If so how long will installation take?
Yes, provided you have general mechanical knowledge as they are relitively straightforward. Installation time should be around 30 minutes. However, being a suspension component we recommend only a trained professional to install this product
Am I going to have any problems with an increase in lock with this steering kit?
Being that the steering kit increases steering angle and changes the ackerman this in turn may cause a light to appear on the dash along with the engagement of VDC.
To circumvent this, we recommend to bypass the factory YAW sensor or you can unplug it entirely.
Note that disabling the YAW sensor may not be legal for road use, please contact your local RTA if this is a concern for you and or effects your intention of use.
What size wheel specs should I use for the best clearance?
Whilst this usually has a really large number of variables (Tyre size, ride height, shock stiffness, wheel spacers, LCA length and more!) it's very simple with the Z33 350Z/G35! Answer: Any! Well, within reason. But we've tested all the way from 9.5 -17 on an 18" wheel and up to a 19x10 with a 255! My recommendation is an 18x9.5 +12/20 with a 235/40/18, these are very popular wheel and tyre sizes with HEAPS of clearance. By using a common wheel and tyre size, it keeps it affordable and it keeps it easy to get spares/access to more at the track (in case of emergency!).
If you have a crazy wheel spec and still have clearance, get in touch! We'll share it here!
Although, whilst there is no reason to bash the chassis. The 350z/V35's have a HUGE swaybar up front which is not ideal. Some customers choose to remove this which certainly helps with clearance on set ups using OEM lower control arms.
Do I need bolt on rack spacers?
It is not completely neccessary, if you are chasing lock, then we do recommend the bolt on rack spacers this will allow for more travel of the rack, which results in more steering lock.
If you are not chasing steering lock and just want to have faster steering, then the bolt on rack spacers are not a requirement.
Should I get offset rack spacers or bolt on rack spacers?
This boils down to your setup, if you have low offset wheels and adjustable arms already and feel as if, if you had more lock the steering may over center, then we recommend the offset rack spacers, as they still provide adequate rack travel while also mitigating over-centering.
If your setup is fairly standard and you just want to obtain more steering lock, then I would just recommend the bolt on rack spacers, which to date is adequate.
What size wheel specs should I use for the best clearance?
Whilst this usually has a really large number of variables (Tyre size, ride height, shock stiffness, wheel spacers, LCA length and more!) it's very simple with the Z33 350Z/G35! Answer: Any! Well, within reason. But we've tested all the way from 9.5 -17 on an 18" wheel and up to a 19x10 with a 255! My recommendation is an 18x9.5 +12/20 with a 235/40/18, these are very popular wheel and tyre sizes with HEAPS of clearance. By using a common wheel and tyre size, it keeps it affordable and it keeps it easy to get spares/access to more at the track (in case of emergency!).
If you have a crazy wheel spec and still have clearance, get in touch! We'll share it here!
I already have inner tie rod ends that have rack spacers built in, should I get your bolt on rack spacers?
The aim of the game is to unlock the full potential of the steering rack through rack spacers. If you inner tie rod ends already have them built in, thats fine and they still can be used, but we do recommend checking if that is a limiting factor (assuming they are shorter then the ones we recommend) if they are then we suggest the bolt on rack spacers, because who doesn't like more lock right? ...... right!
What is the difference between the V2 and V3?
The V2 was a great design and had near zero ackerman which a lot of people liked. Some people would prefer more ackerman and as such we have now introduced the ability to easily adjust ackerman.
Are there any special tools required?
No, a spanner set will do the job which we do sell separately here - double open ended spanners
Do you carry spare parts for this product?
Yes we carry the following spare parts for this product;
Replacement Pcyml10Ts Tie Rod End Bearing
Tie Rod End Extenders
VEHICLE COMPATIBILITY
2003-2008 Z33 350z
2003-2007 V35 (G35)
Sedan
2003-2006 V35 (G35)
Note - 2007-2008 V35 (G35) SEDAN uses Z34 370z/ V36 (G37) suspension
Nissan
V35 SKYLINEZ33 350Z
Customer Reviews
It does what it’s meant to do. I’m in stock lcas and granted that does prevent what I fully wanted. You must purchase these understanding this. It’s not going to give you full 90* lock like a formula drift car, but it’s a good start to go with
This angle kit hands down is the best on the market. Learned how to drift with this kit and then paired with the uppers and lowers you get even more incredible angle and at an amazing price. You can’t go wrong with this solid setup 🔥🔥
I noticed a vibration in my wheel which was diagnosed as a DESTROYED v1 outer tie rod end. Picked up the V2 and swapped it over in about 5 mins, tossed on some toe plates for an alignment and ripped all weekend at NSB XIII. Really enjoy the new design and would like to take advantage of the Ackerman adjustment, but I just don’t know enough about suspension setup to notice!

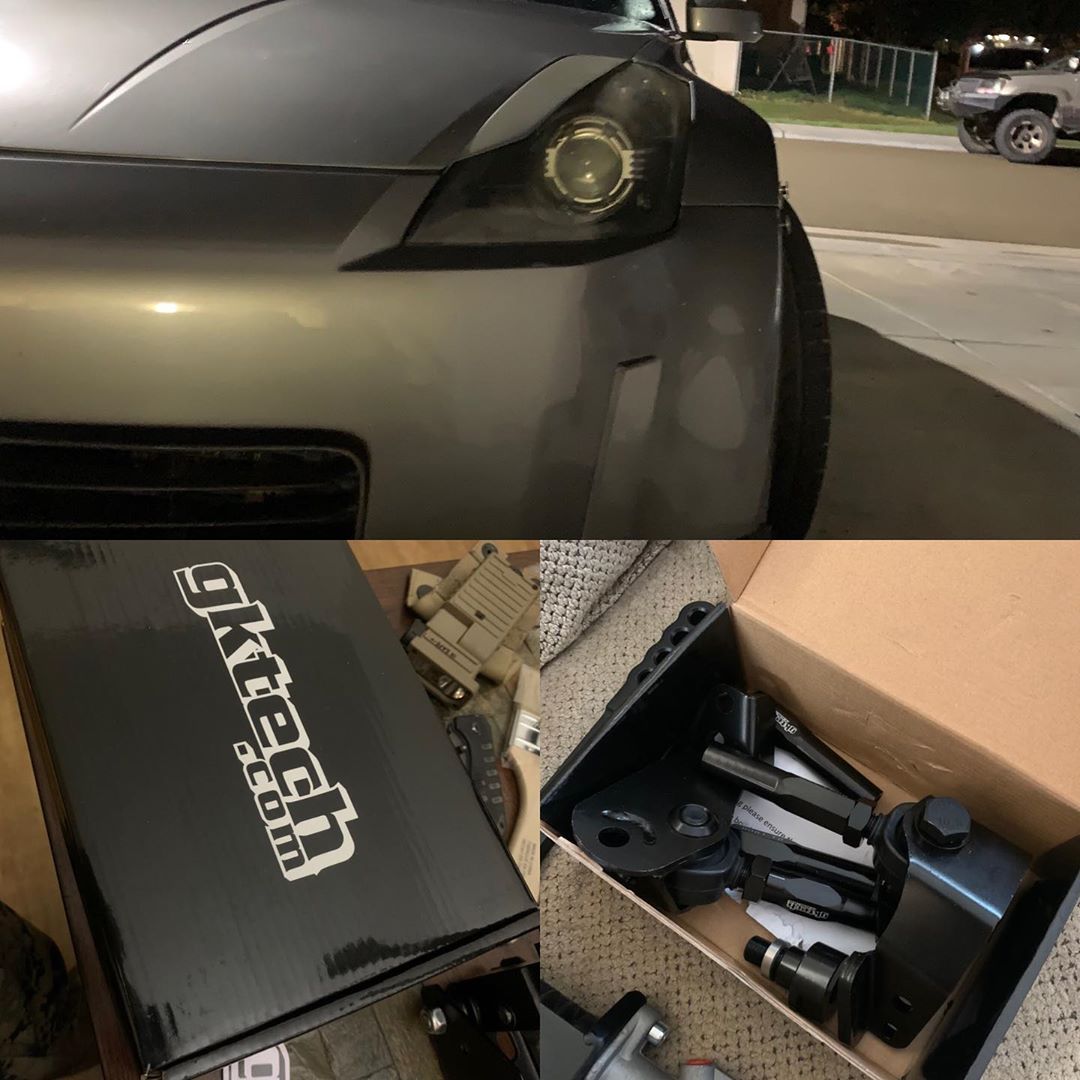

Super easy install, fantastic quality, great for the price. Will definitely be buying more parts in the future.
