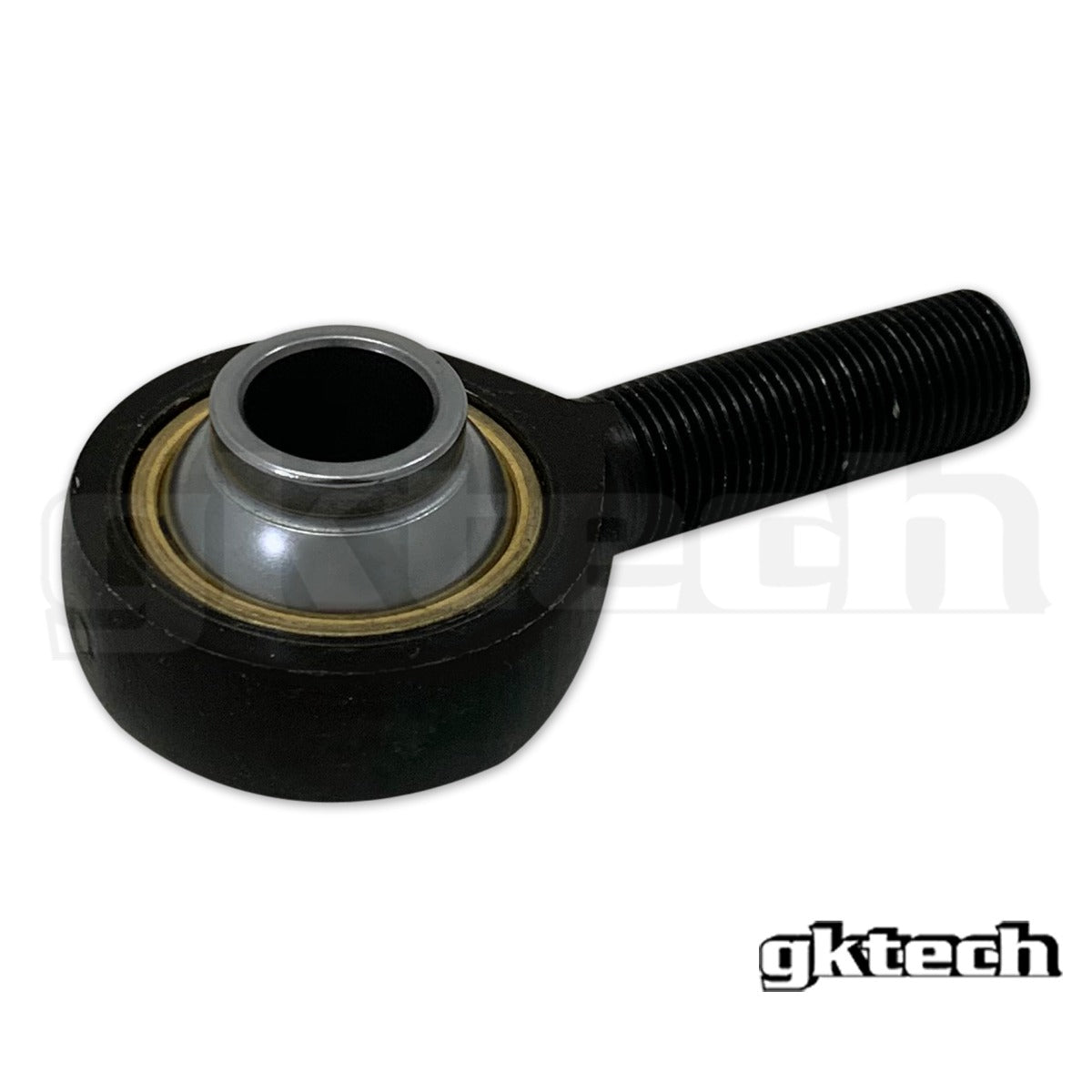

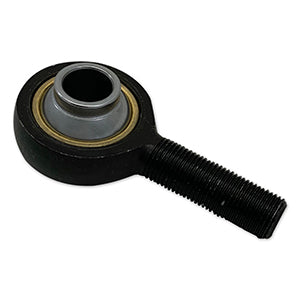

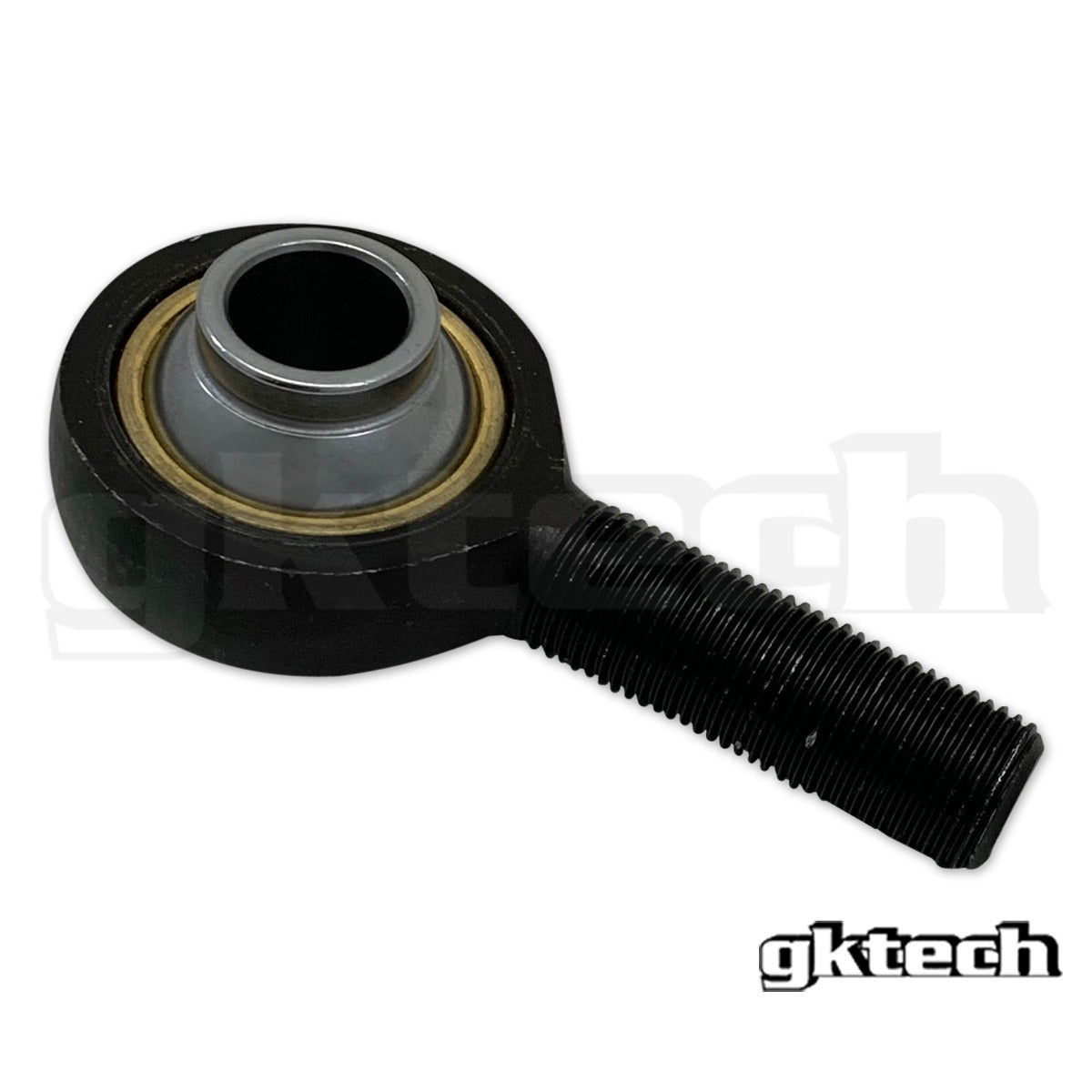

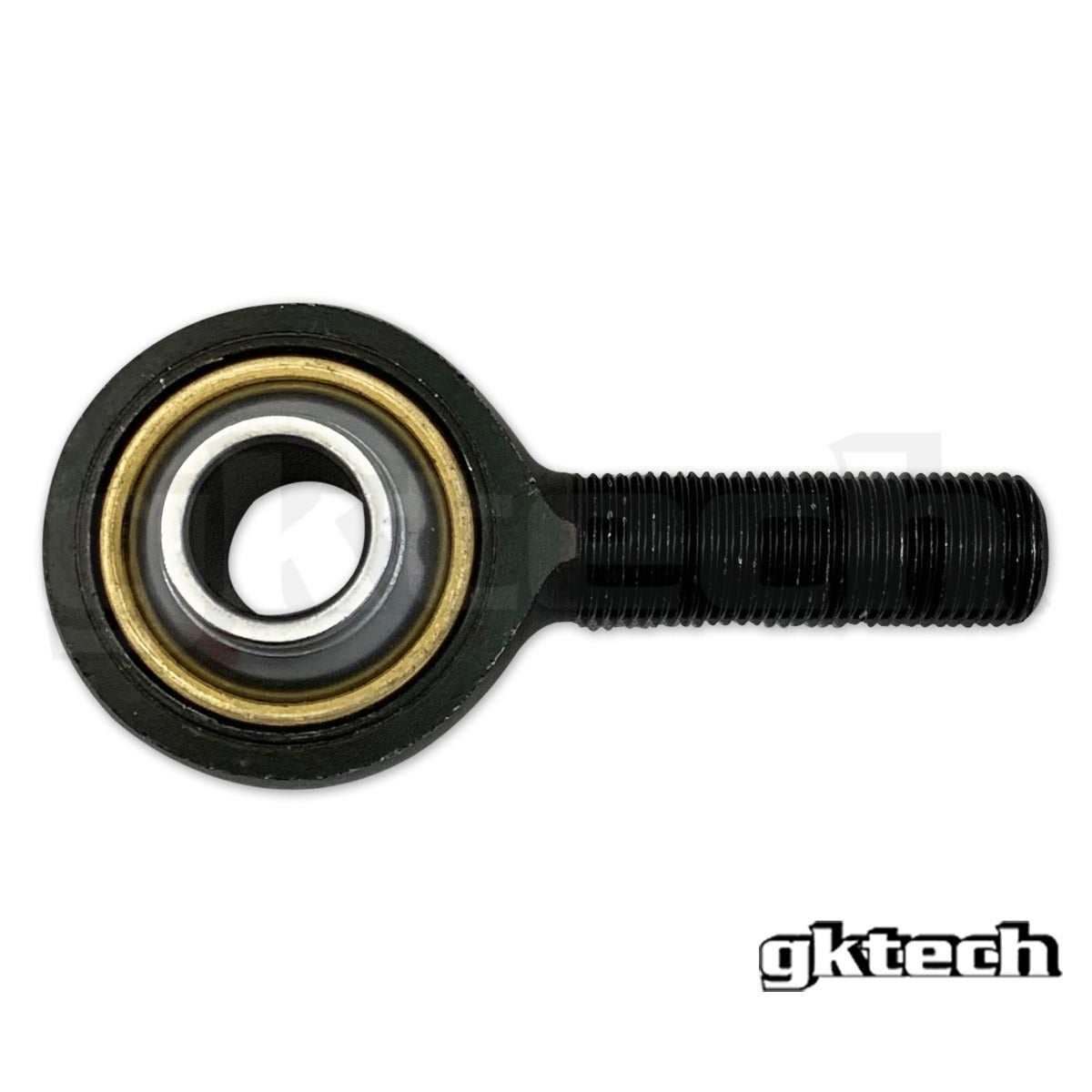

Replacement PCYML10TS tie rod end bearing
Quantity:
What is a Backorder?
Q: What is backorder?
When a product is on backorder, it means that we have sold out and we are opening a back order due to popular demand. This is essentially a queue, when new stock arrives from production, we’ll send your order.Q: Will items in my order that are in stock be shipped out first?
We will send your order altogether once your backorder item is ready! You may wish to place separate orders if you want an item before the other is due back in stock.Pickup available at Sunshine West, VIC 3020
Usually ready in 2 hours
Replacement PCYML10TS tie rod end bearing
Sunshine West, VIC 3020
Pickup available, usually ready in 2 hours
Unit 11/94 Boundary Road
Sunshine West VIC 3020
Australia
📦
Free Shipping on orders over $250
Checking Dispatch Times...Replacement PCYML10TS tie rod end bearing Used in the following GKTECH products:
M12/M14 tie rod ends (SKU = M125-TROD, M145-TROD, Z33X-SSTR, Z34X-SSTR, Z33X-TROD, GTRX-TROD, GT86-SSTR)
Sold individually
PCYML10TS
| IMPERIAL | METRIC |
|---|---|
| ROD END BALL BORE SIZE | ROD END BALL BORE SIZE |
| 0.6250 in | 15.8750 mm |
| ROD END BALL WIDTH | ROD END BALL WIDTH |
| 1.3750 in | 34.9250 mm |
| THREAD LENGTH | THREAD LENGTH |
| 2.0000 in | 50.8000 mm |
| THREAD SIZE | THREAD SIZE |
| 5/8 - 18 UNF LH | 5/8 - 18 UNF LH |
| ROD END HEAD DIAMETER | ROD END HEAD DIAMETER |
| 2.0000 in | 50.8000 mm |
| ROD END MISALIGNMENT ANGLE | ROD END MISALIGNMENT ANGLE |
| 64 degrees | 64 degrees |
| ROD END STATIC LOAD CAPACITY (lbs) | ROD END STATIC LOAD CAPACITY (kg) |
| 30,290 lbs | 13,739 kg |
| ROD END MATERIAL | ROD END MATERIAL |
| Chromoly | Chromoly |
| LUBRICATION | LUBRICATION |
| PTFE lined | PTFE lined |
VEHICLE COMPATIBILITY
Nissan
R32 SKYLINE GTRR32 SKYLINE GTS-T
R33 SKYLINE GTR
R33 SKYLINE GTS-T
R34 SKYLINE GT-T
S13 CA18 180SX
S13 CA18 SILVIA
S13 SR20 180SX
S13 SR20 SILVIA
S14 200SX/SILVIA
S15 200SX/SILVIA
V35 SKYLINE
V36 SKYLINE
Z32 300ZX
Z33 350Z
Z34 370Z
