We have developed an OEM replacement inner tie rods with more adjustment than any other tie rods available. After setting up our own cars we quickly discovered that there are a heap of factors that determine the tie rod length required such as whether you are running rack spacers or not, the knuckles (or steering kit) that you're running and then the length of your LCA.

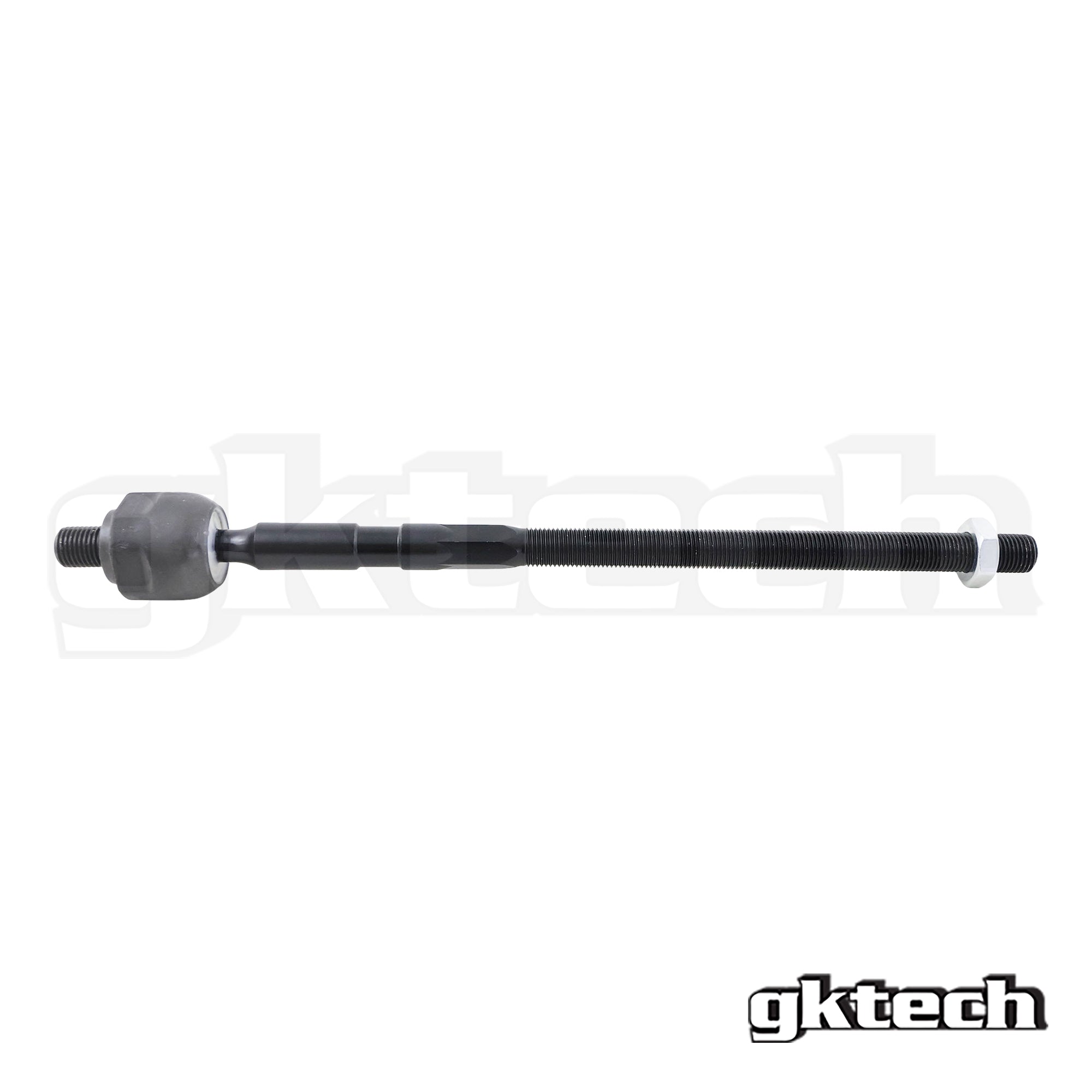

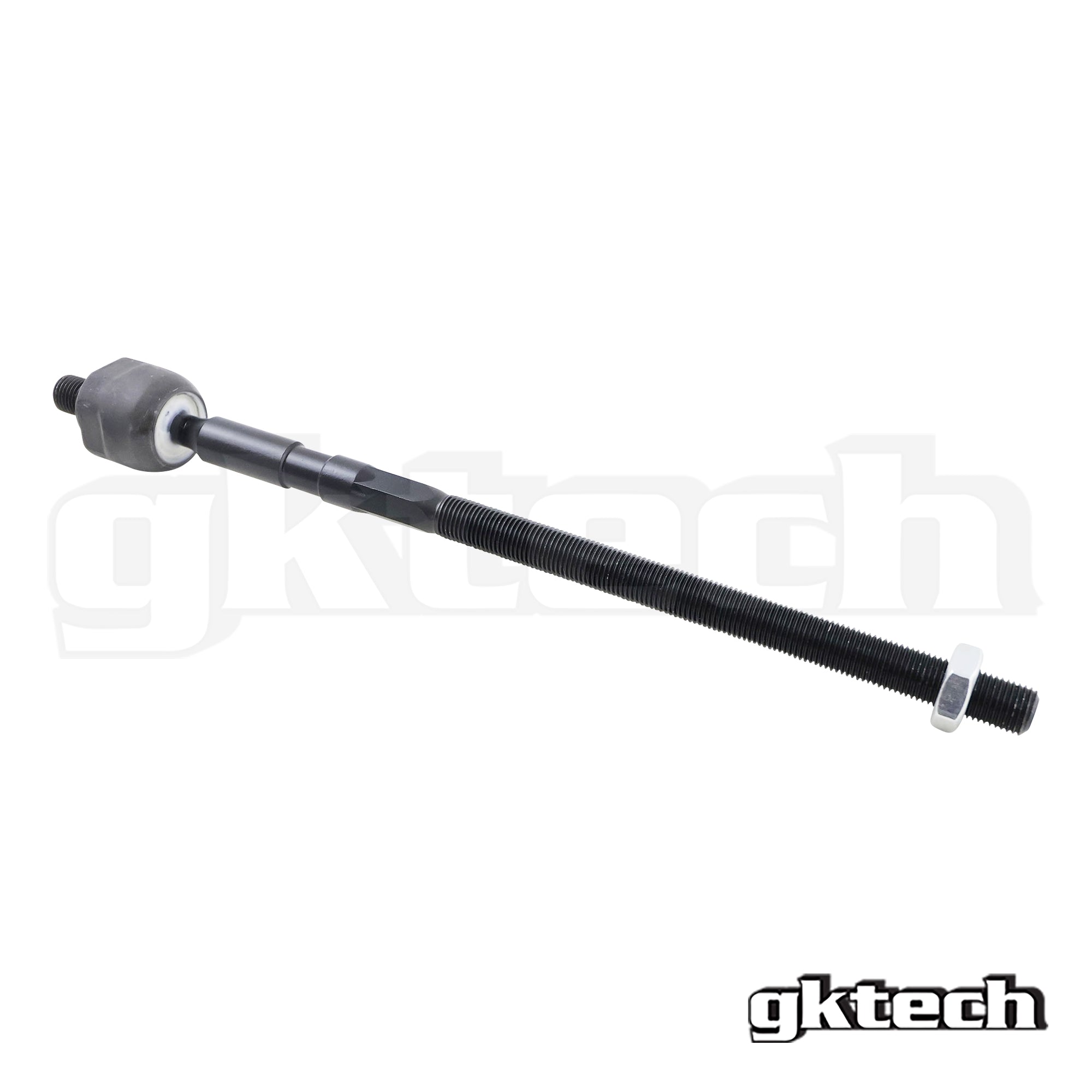

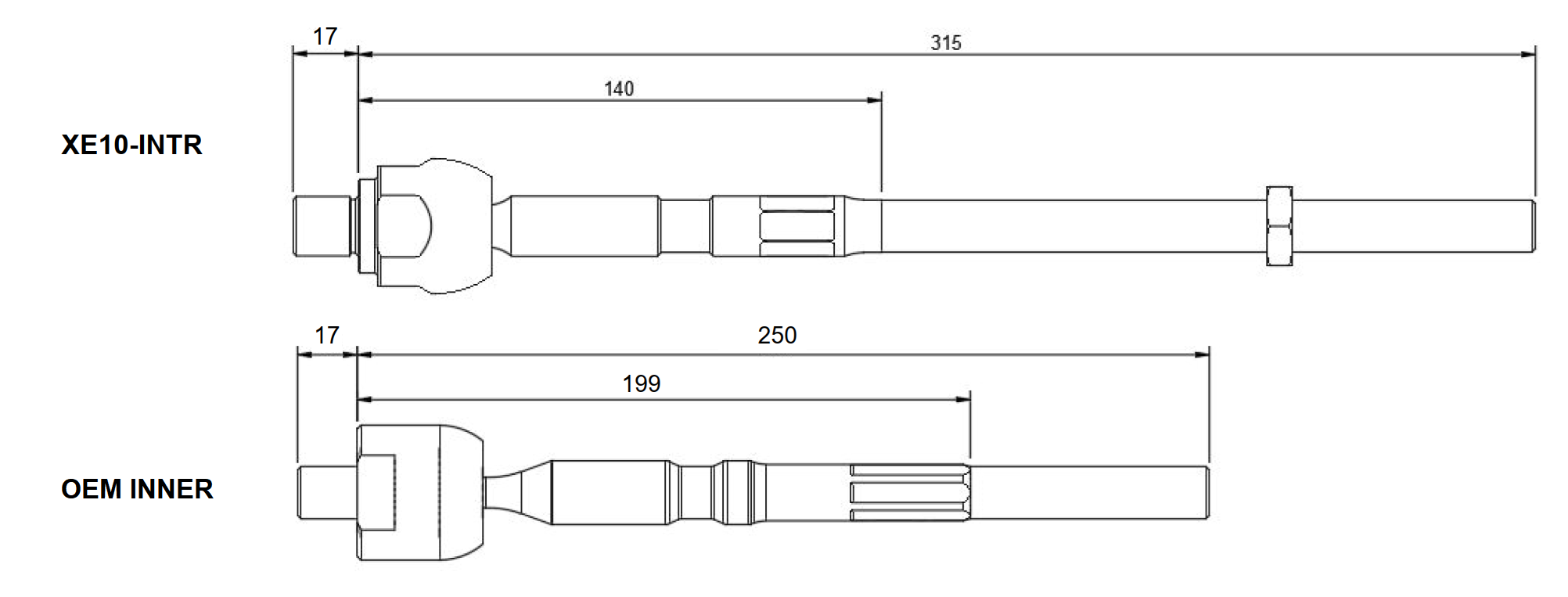

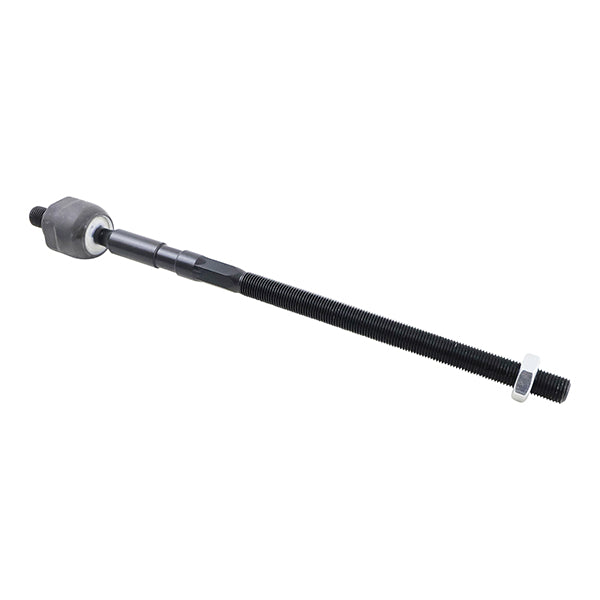

These variables create a near endless amount of variables that we narrowed down to two different length tie rods and we also included adjustment for those needing to reduce the length of the tie rod. The final two options as shown in the photos compared to the OEM unit.
- Adjustable from 140mm to 315mm
- Rod is manufactured from HRC 25-28 Steel with PTFE (Teflon) lined maintenance free bearing
- 50 degrees range of motion (25 degrees misalignment)
- 5mm Lock washer built in to allow for more steering lock
- Sold individually
NOTE: It's not uncommon for the tie rod needing to be cut down. This is very easy to do and very much a DIY install.
GKTECH
Lexus IS200/IS300 Super Lock Replacement Inner Tie Rod - SOLD INDIVIDUALLY
What is a Backorder?
Q: What is backorder?
When a product is on backorder, it means that we have sold out and we are opening a back order due to popular demand. This is essentially a queue, when new stock arrives from production, we’ll send your order.Q: Will items in my order that are in stock be shipped out first?
We will send your order altogether once your backorder item is ready! You may wish to place separate orders if you want an item before the other is due back in stock.We have developed an OEM replacement inner tie rods with more adjustment than any other tie rods available. After setting up our own cars we quickly discovered that there are a heap of factors that determine the tie rod length required such as whether you are running rack spacers or not, the knuckles (or steering kit) that you're running and then the length of your LCA.
These variables create a near endless amount of variables that we narrowed down to two different length tie rods and we also included adjustment for those needing to reduce the length of the tie rod. The final two options as shown in the photos compared to the OEM unit.
- Adjustable from 140mm to 315mm
- Rod is manufactured from HRC 25-28 Steel with PTFE (Teflon) lined maintenance free bearing
- 50 degrees range of motion (25 degrees misalignment)
- 5mm Lock washer built in to allow for more steering lock
- Sold individually
NOTE: It's not uncommon for the tie rod needing to be cut down. This is very easy to do and very much a DIY install.
Choose options
FAQs
How hard are these to install?Remove your old tie rods, measure where these need to be cut in length and install them. It's a very self explanatory install and shouldn't take longer than 30 minutes.
Will this fit my car?
If your car is listed above then the tie rods will fit however they may also fit other setups not listed but we can't be sure.
Do I need a wheel alignment after installing these?
Unless you get the length spot on perfect, you will need a wheel alignment after installation.
What thread pitch is the rack end?
The inner tie rod is M14x1.5 on both the inside and outside.
VEHICLE COMPATIBILITY
Lexus
IS200 GXE10IS200 SXE10
IS300 JCE10
