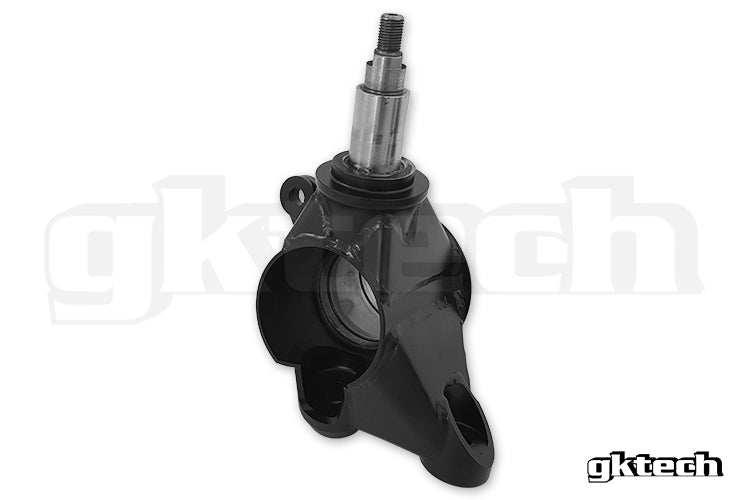

R32/Z32/R33/R34 Knuckle
What is a Backorder?
Q: What is backorder?
When a product is on backorder, it means that we have sold out and we are opening a back order due to popular demand. This is essentially a queue, when new stock arrives from production, we’ll send your order.Q: Will items in my order that are in stock be shipped out first?
We will send your order altogether once your backorder item is ready! You may wish to place separate orders if you want an item before the other is due back in stock.Free Shipping on orders over $250
Checking Dispatch Times...
Order and get upto 5445 reward points
Earn points by signing up for our rewards program

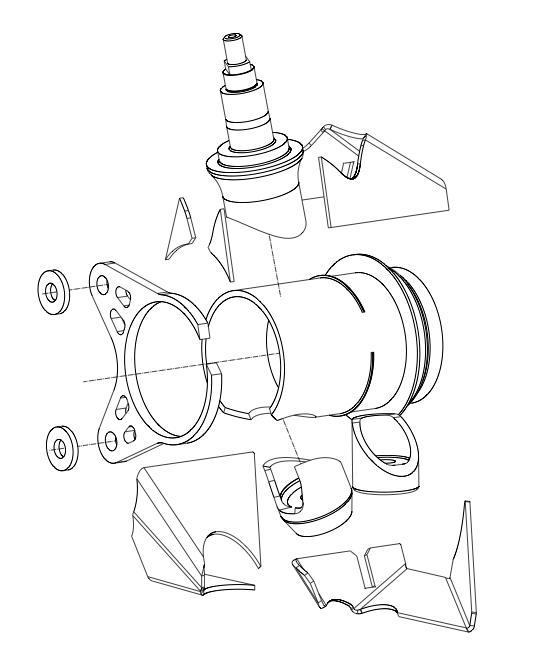

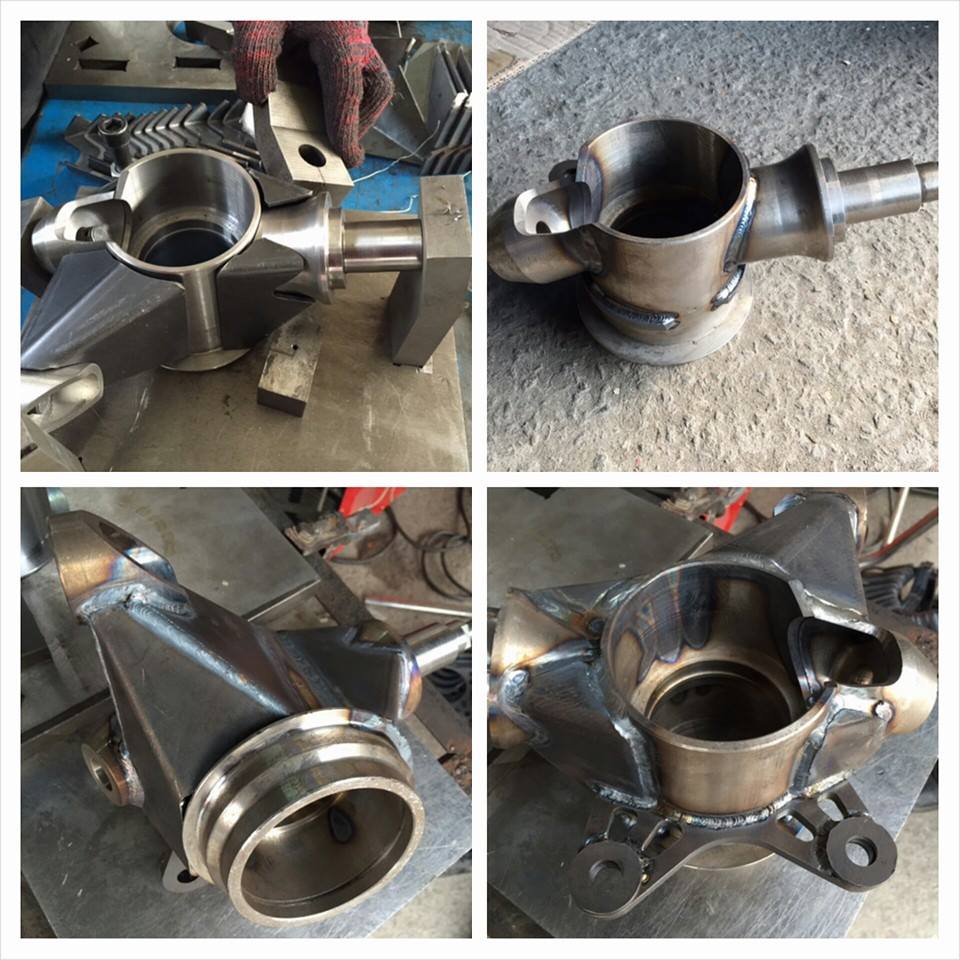

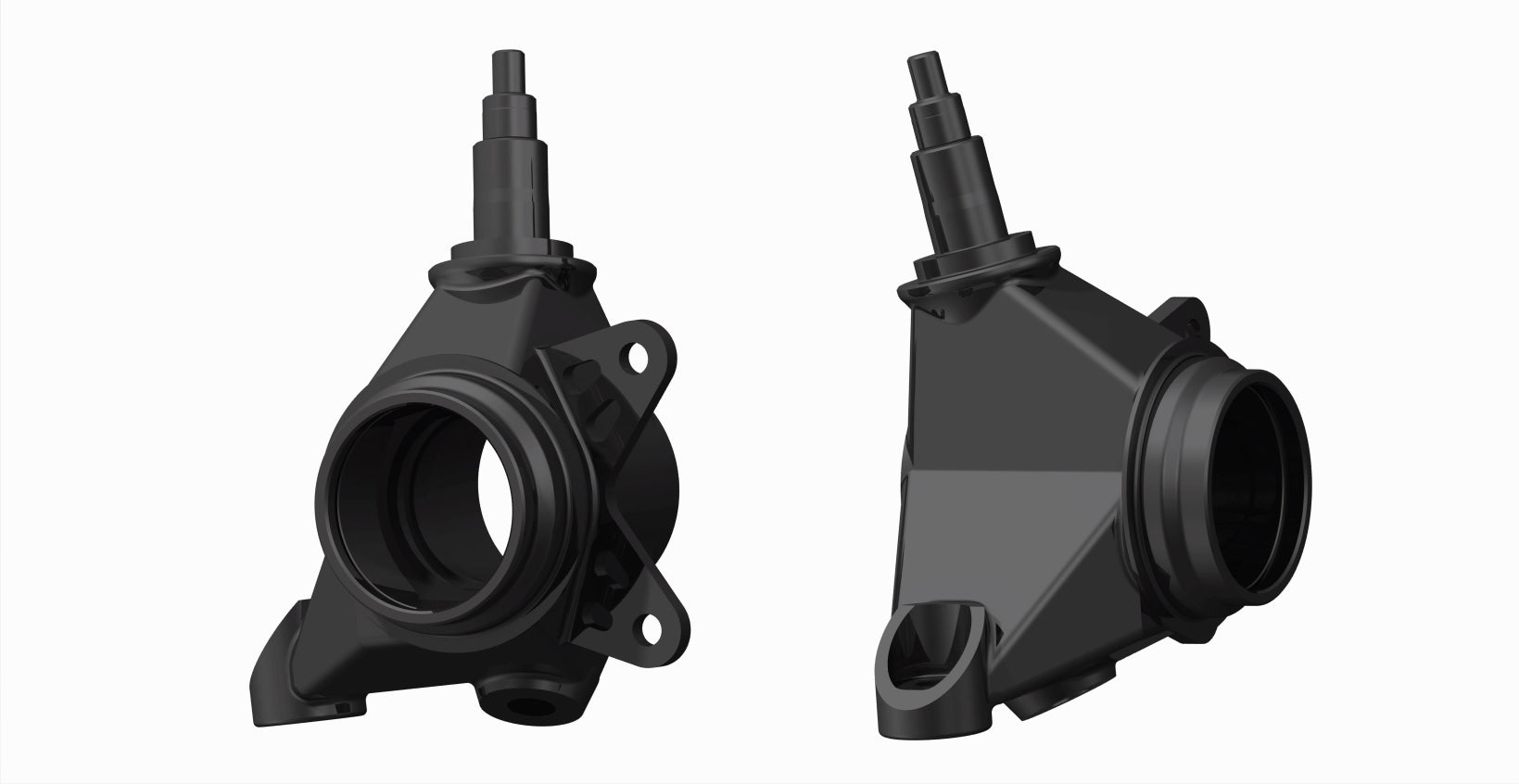

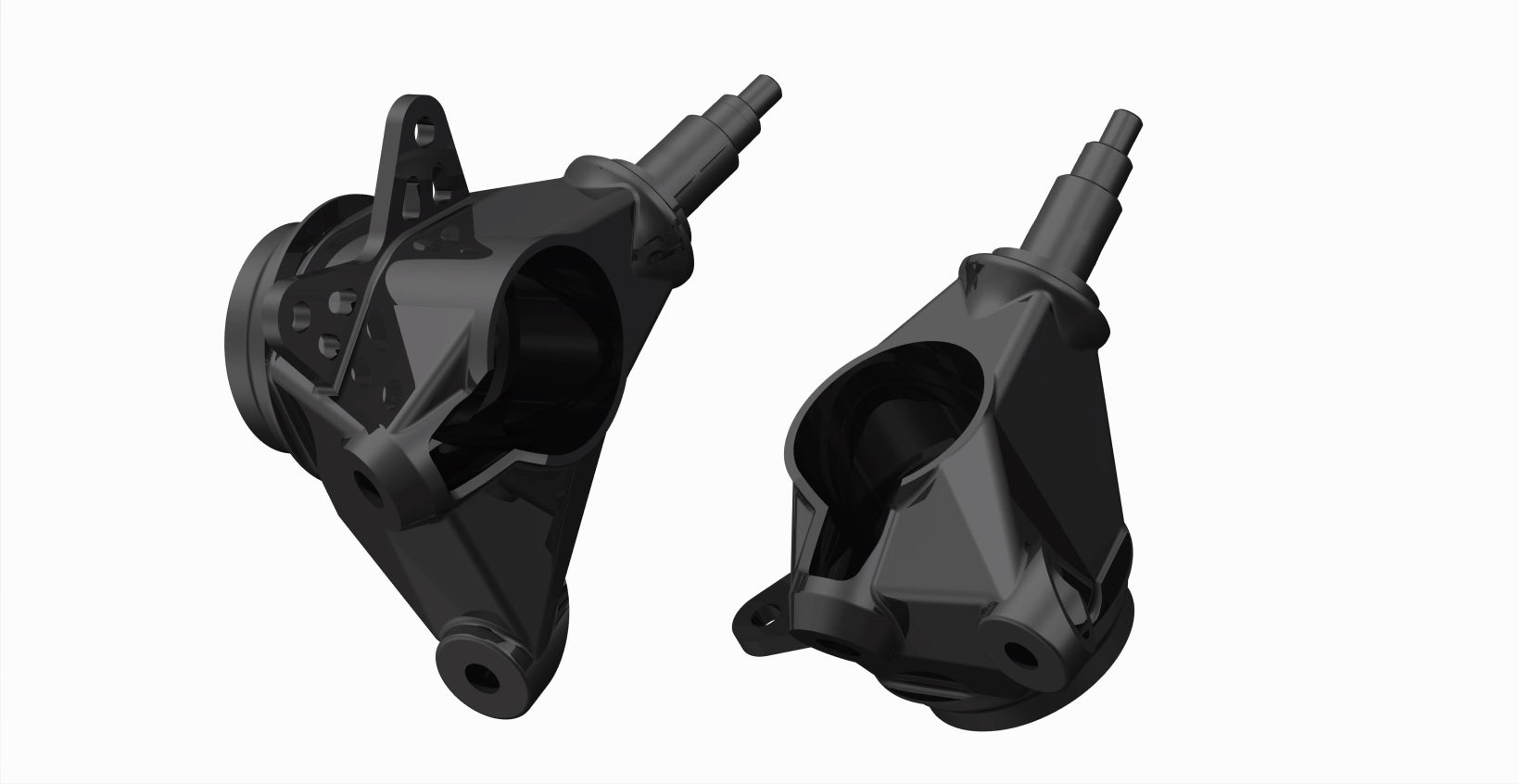

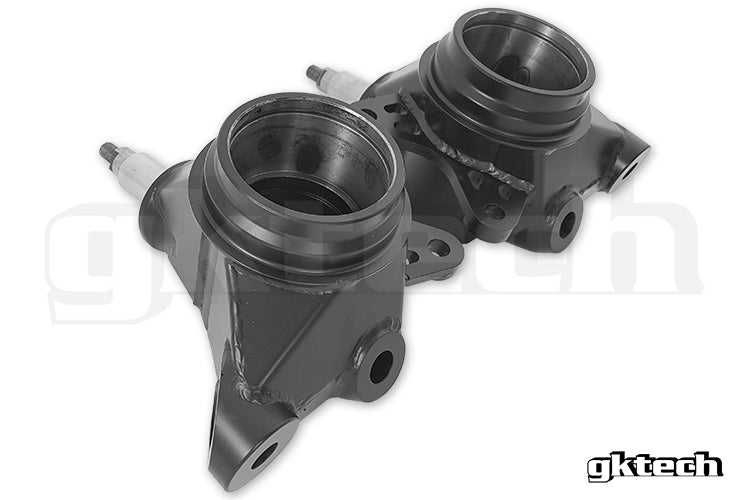

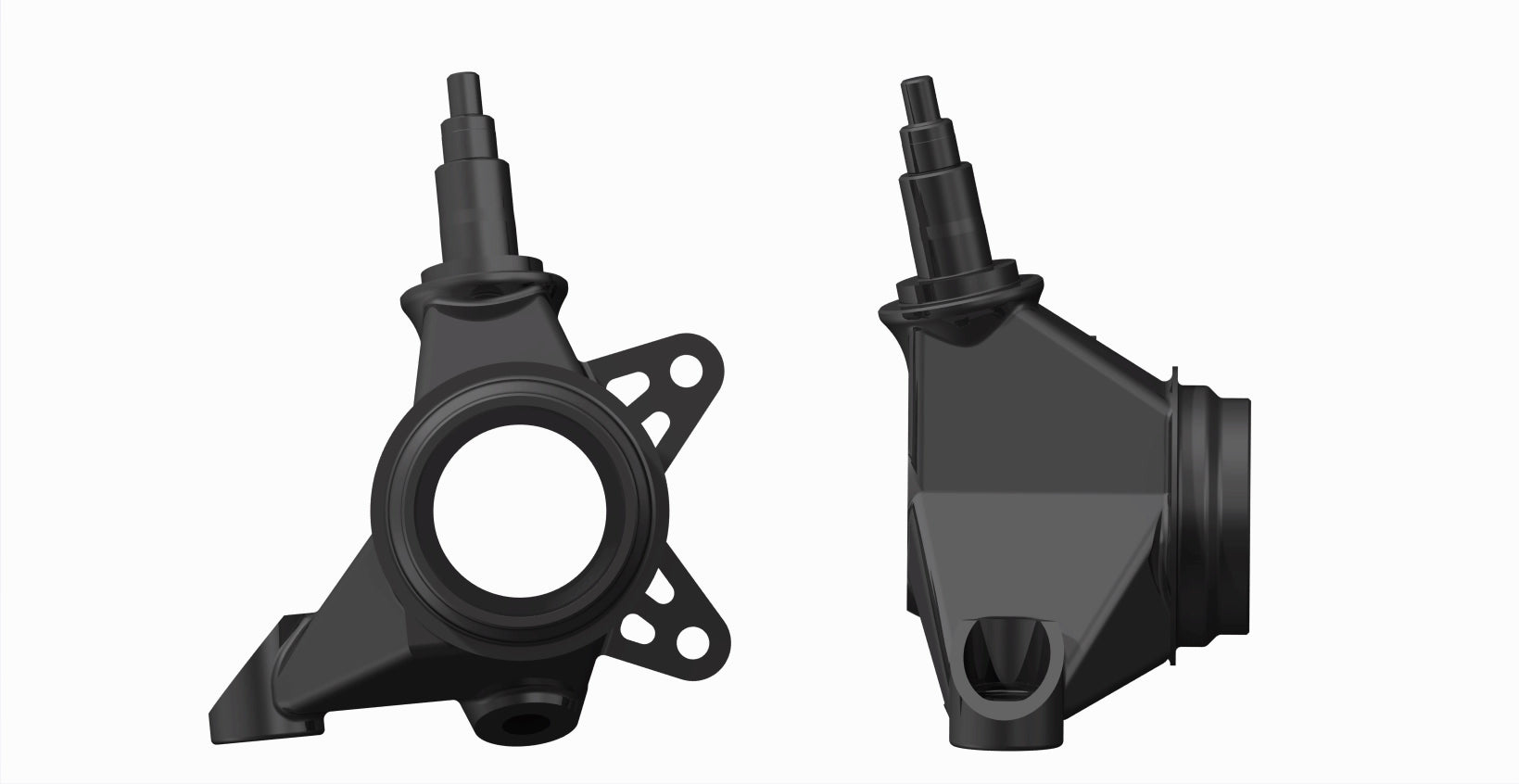

The V2 GKTECHSuper Lock R32/R33/R34/Z32 Front knuckles have been developed with the learnings from our previous V1 aluminium knuckles and we now present alight weight, sheet metal design after hundreds of hours of FEA (Finite Element Analysis) to improve the strength of the product but also keep the weight down. With 65+ degrees of steering lock being able to be achieved with ease whilst keeping a linear steering response these knuckles are suited to drift or circuit racers.
Featuring:
- spindle height raised for roll center and bump steer correction
- 65+ degrees of steering lock
- lightweight (3.08lbs lighter EACH)
- linear steering response for optimal drive
Installation notes
- Our offset steering rack spacers are recommended to eliminate the chance of steering bind.

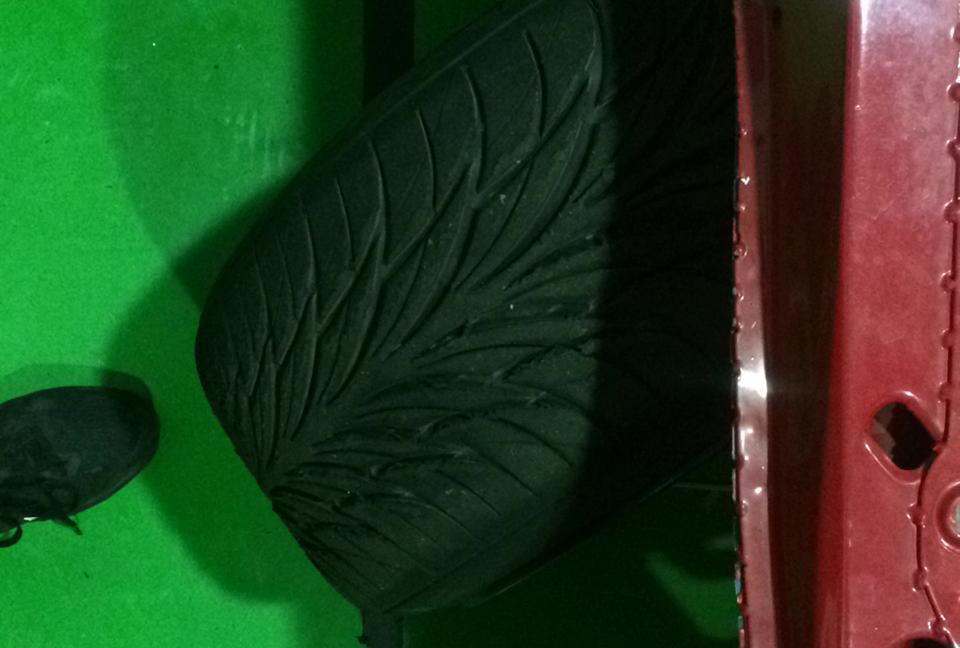

- Steering lock of 65+ degrees quoted is based on having wheel clearance. If you have high offset wheels and your wheel hits the chassis then you may get less than this amount of steering lock.
- Only suits RWD steering setups. GTS-4 and GTR front suspension setups are different and these knuckles will NOT work with them.
- When using R34 front brake calipers the mounting holes need to be drilled out from 12mm to 14mm (there is enough material to cater for the increase in hole diameter).
- Does NOT have a provision for ABS
FAQs
How hard are these to fit?They are quite easy to install but mechanical knowledge is certainly required.Remove your standard knuckles, press out the old hubs, press the hubs into the new knuckles and the knuckles will bolt straight in.
Do you make knuckles for other cars?
We make knuckles for S and R chassis Nissans, we don't make them for any other cars.
How much angle can I get from these knuckles?

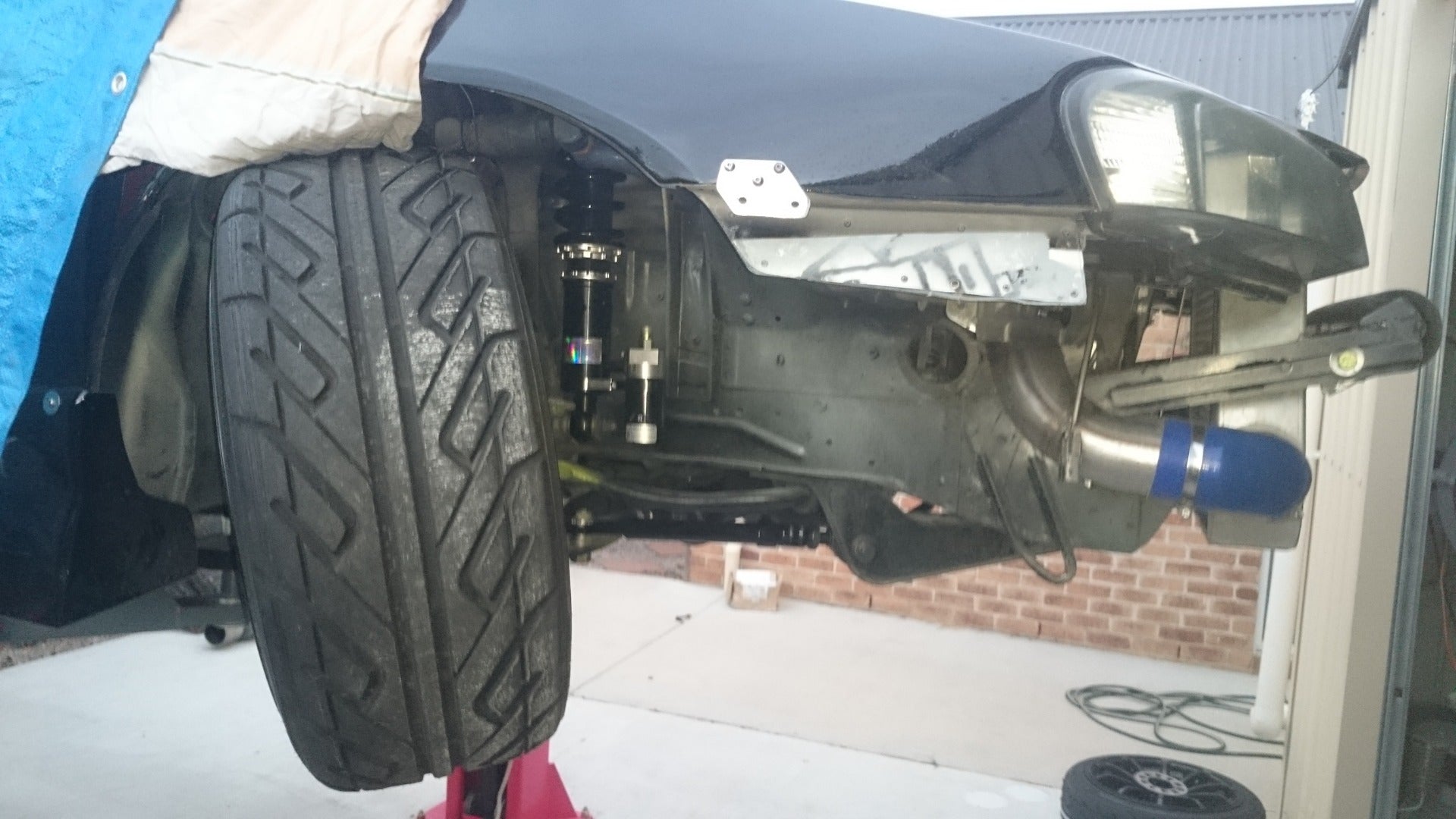

Depending on the width and offset of your rims, and whether you're running standard lower control arms or notched/modified lower control arms (or standard) you will see between 60 degrees - 70 degrees of steering lock.
Are these suited to circuit/grip racing?
Yes, absolutely. The weight saving and the roll center and bump steer correction is great for additional front end grip and the steering arm length means quite linear steering.
Do I need to do any other modifications to get the most from these knuckles?
Yes, notched lower control arms or atleast modified bump stops will help. Rack spacers are recommended or alternatively longer tie rods or some of our tie rod ends (adjustable length). Note that of all of the steering racks, the R33 steering rack provides the least amount of travel so if you are chasing every last degree of angle, swapping to an R32 steering rack will give a few more degrees of lock.
VEHICLE COMPATIBILITY
Nissan
R32 SKYLINE GTS-TR33 SKYLINE GTS-T
R34 SKYLINE GT
