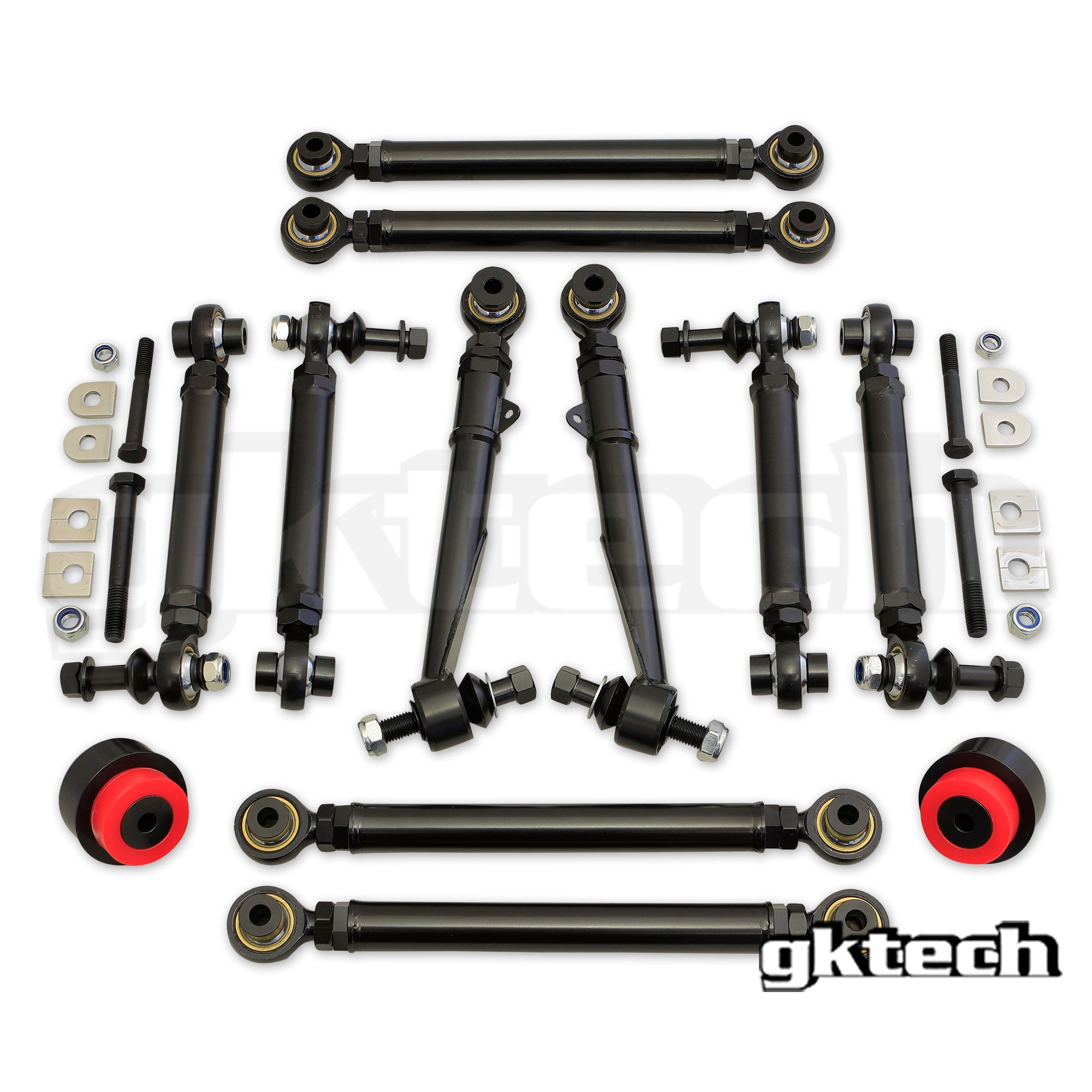

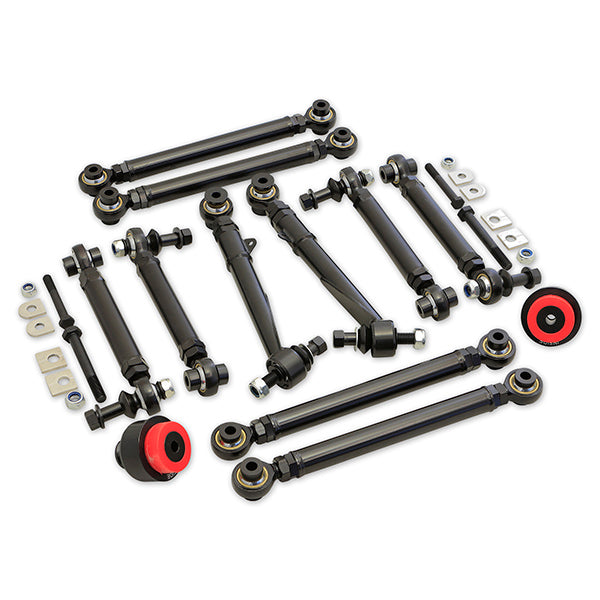

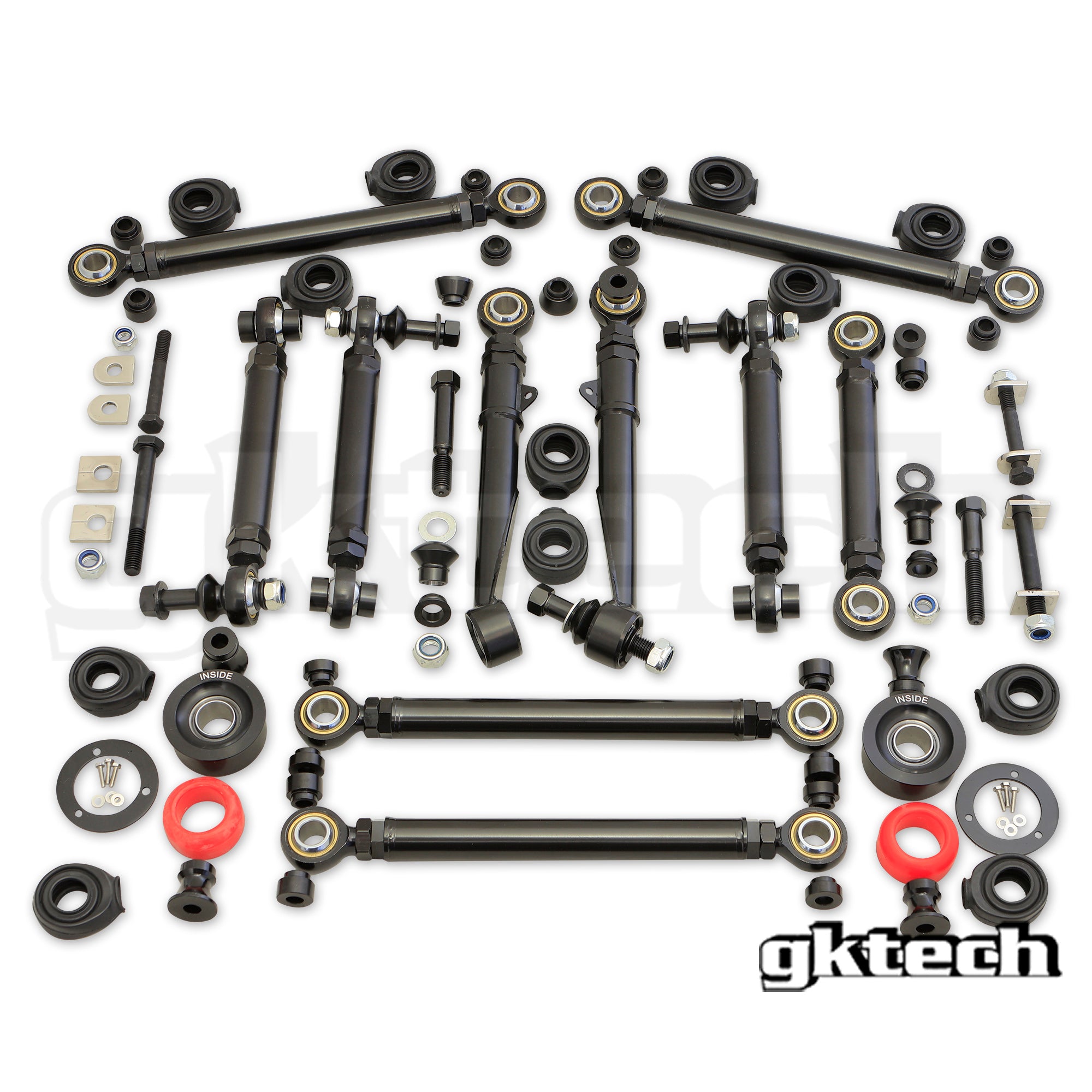

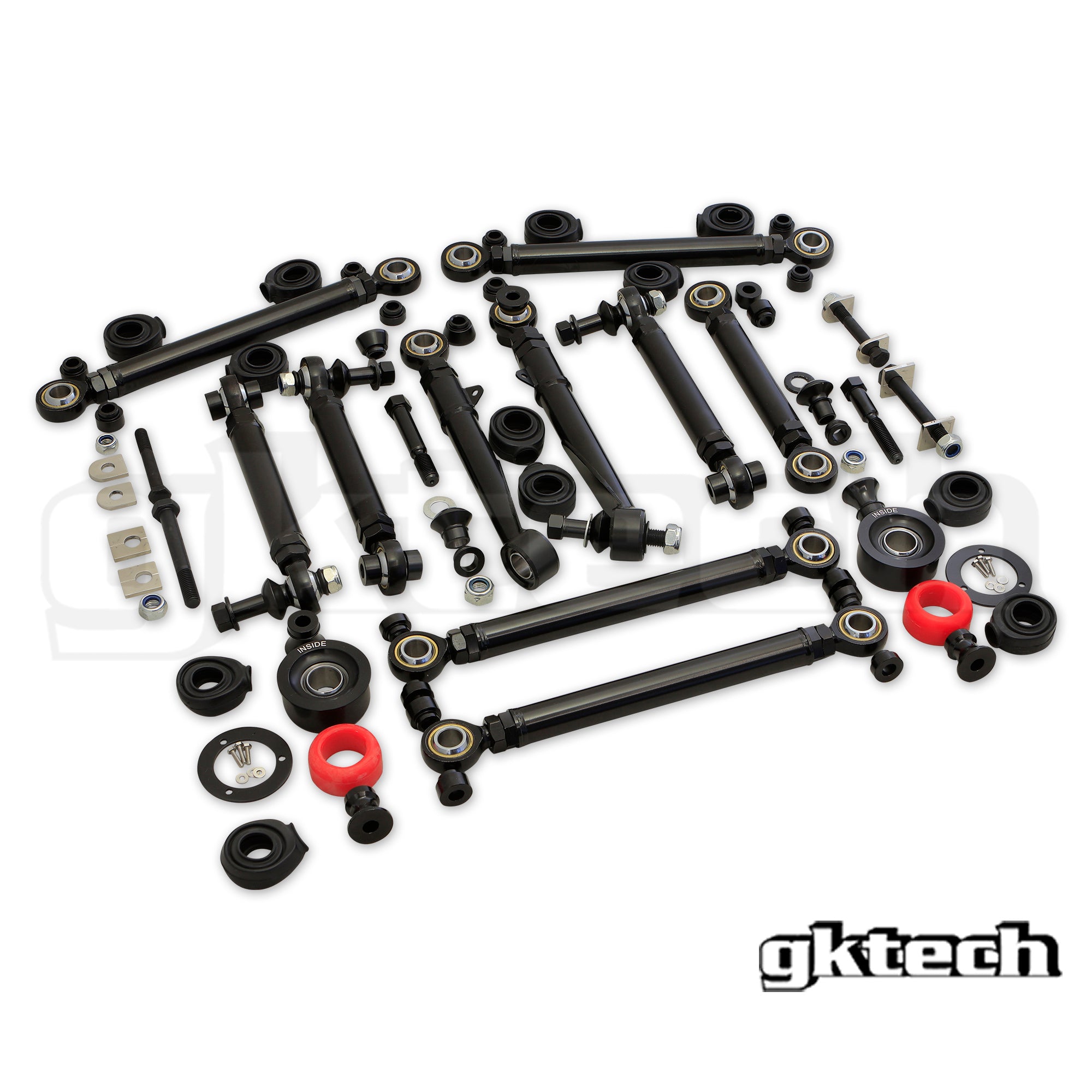

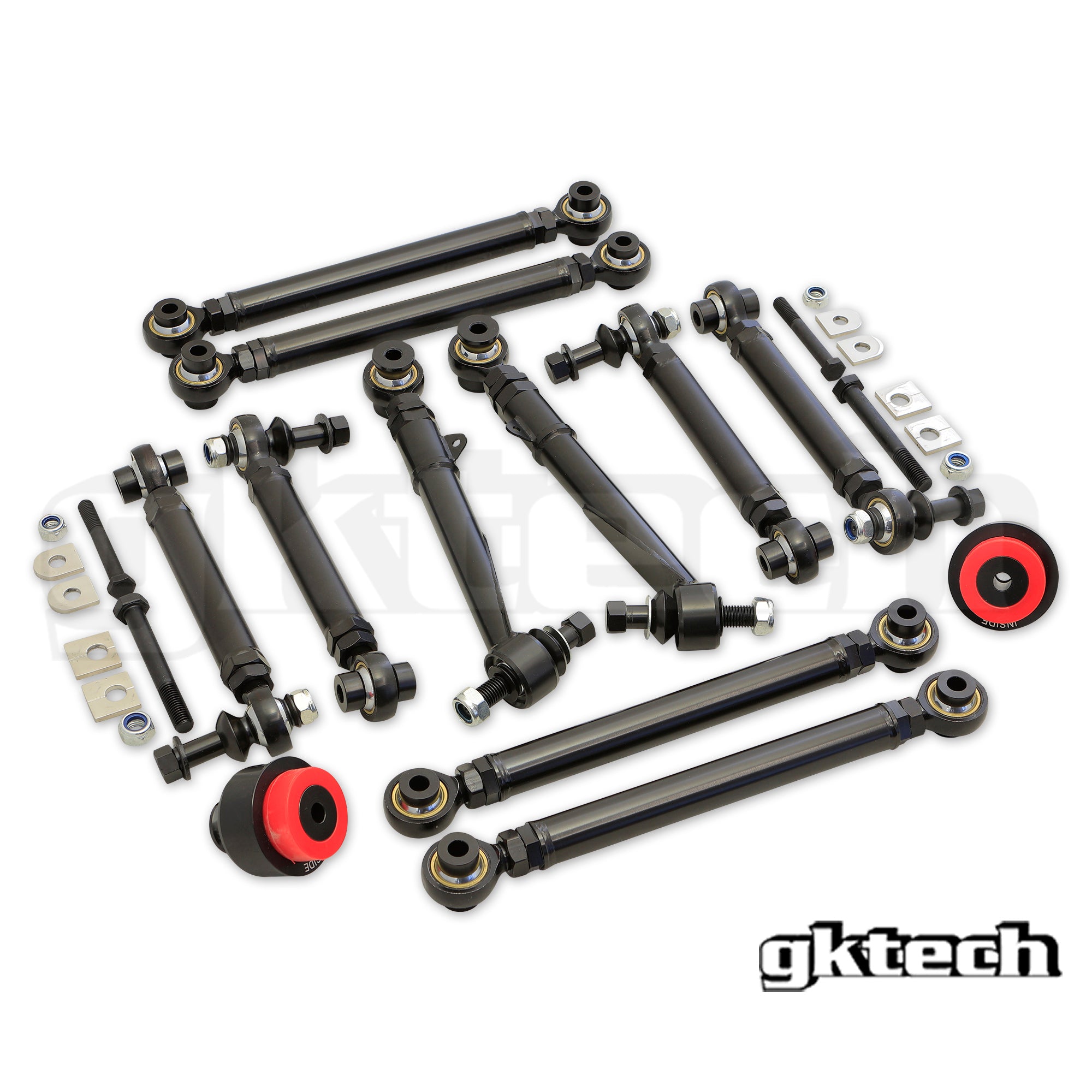

This listing is for the 6 main adjustable arms and we are offering these as a package deal which comes at an additional 15% off our listed price for the items when sold on their own.
All our arms feature high quality 5/8" Teflon lined pillow ball rod ends which eliminate the flex found in factory rubber bushing offering a more direct and predictable feel.
Our arms are unlike any other suspension arms on the market and they're manufactured to a standard not made available to the average motorsport enthusiast being;
CAD designed, FEA tested, CNC machined ends, CNC tube notched (camber and LCA's) and TIG welded and to finish the arms off they're E-coated (aka electrophoresis coating) for rust prevention.
TRACTION ARMS

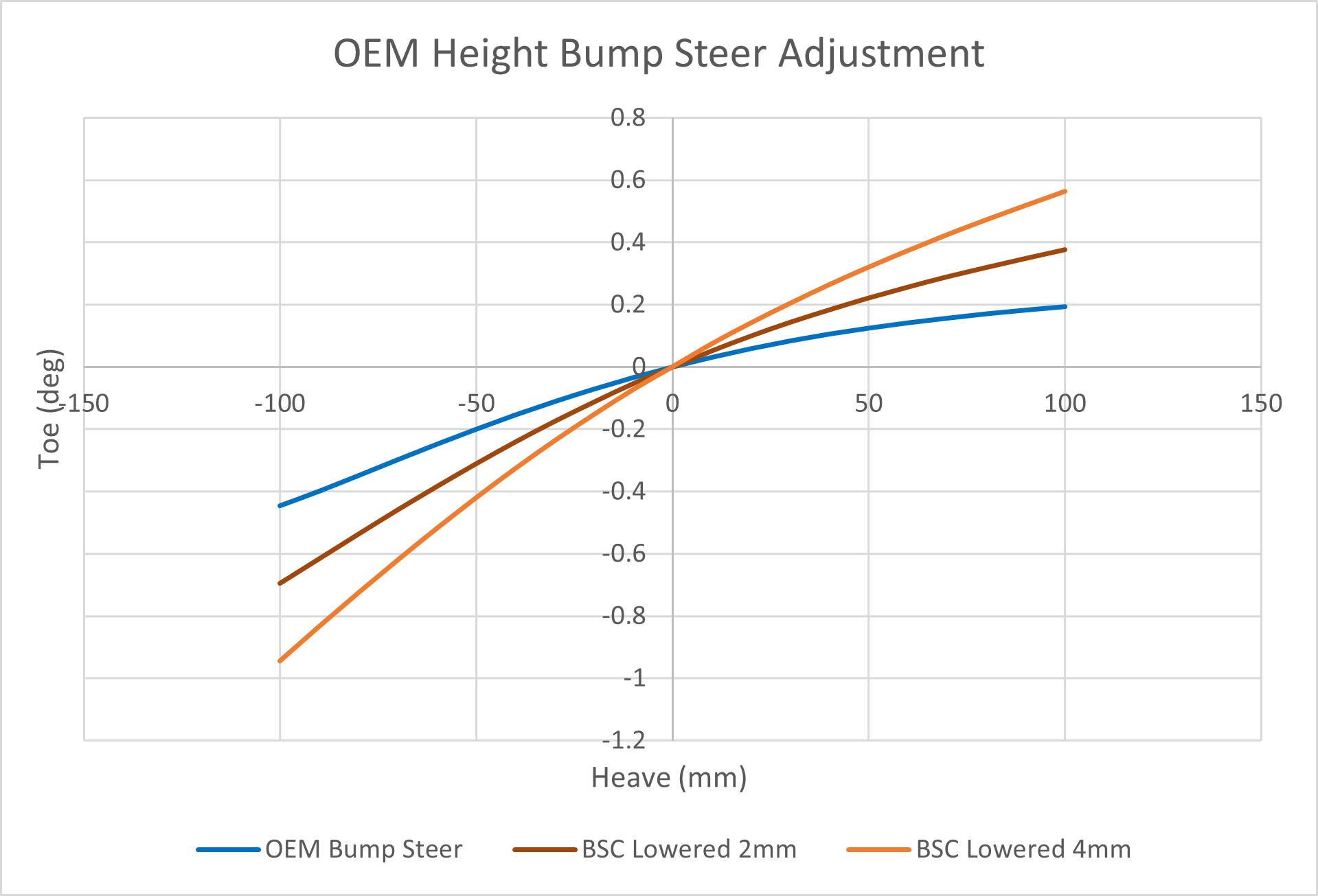

Traction arms give you the ability to adjust the arms to eliminate bump steer and alter other rear suspension traction settings to improve suspension response. The lengths on these arms are fully adjustable and with the right adjustments, you can change the position and pitch of which the suspension rotates on, along with the amount of "anti-squat" of the rear.
For more information click HERE
TOE ARMS
The lengths on these rear toe arms are fully adjustable to your specs when doing an alignment and with the right adjustments, straight line and cornering of your vehicle will be improved.
We have also included shims that allow you to space the arm upwards or downwards, for further fine tuning!
For more information click HERE
REAR UPPER CONTROL ARMS
The adjustable rear upper arms are used to adjust your camber. Adjustable arms give you the ability to tune your vehicle's camber to perfection.
The lengths on these arms are fully adjustable to your specs when doing an alignment and with the right adjustments, straight line and cornering of your vehicle will be improved.
For more information click HERE
NOTE: In some cases the edge of the brake line mount needs to be trimmed to give clearance to the arm, this does not effect the function/position of the mount.
ECCENTRIC TOE LOCKOUT KIT
The eccentric lockout kit replaces the adjustable toe bolts that are prone to slipping under hard driving conditions and ensures that your wheel alignment stays where it was set.
For more information click HERE
REAR ADJUSTABLE CAMBER SHIMS
The adjustable camber shims replace the OEM eccentric bolts that are prone to slipping under hard driving conditions and ensures that your wheel alignment stays where it was set.
For more information click HERE
FRONT LOWER TRAILING ARMS
The front trailing arms are used to adjust your camber and track width. Adjustable arms give you the ability to tune your vehicle front suspension to perfection.
For more information click HERE

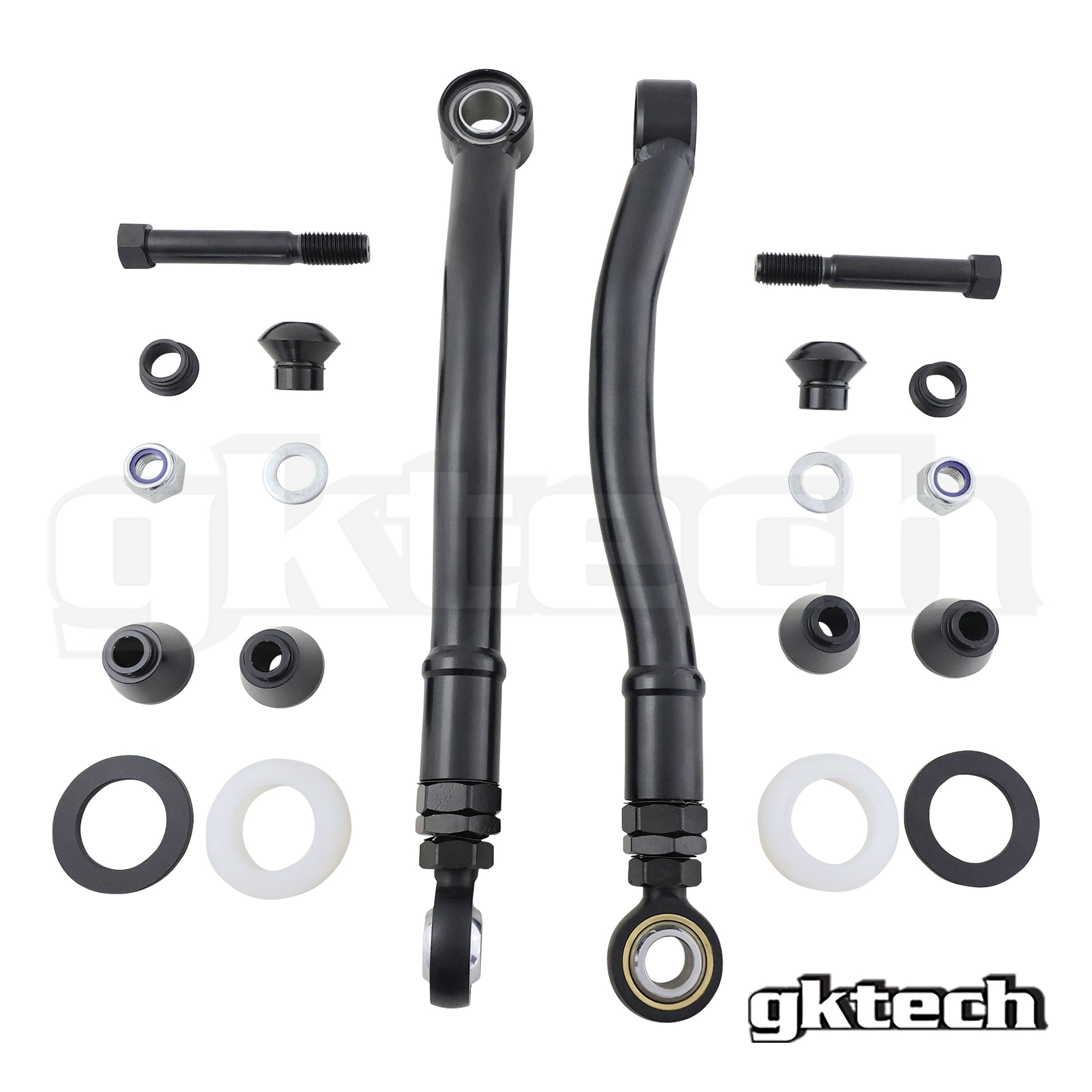

FRONT CASTER ARMS SPHERICALS UPGRADE
The Front Caster arms spherical bearing replacements are designed to replace the factory OEM rubber bush.
We have chosen to use a common (COM16T) spherical bearing which is PTFE lined and self lubricating for increased longevity. Simply press out the OEM bush and press the replacement unit in it's place.
For more information click HERE
FRONT CASTER ARMS
The Front Caster Arms give the ability to replace the OEM arm completely and and are used to adjust your caster. Adjustable arms give you the ability to tune your vehicle's caster to perfection.
For more information click HERE
GKTECH
BMW F8X M2/M3/M4 Suspension arm bundle - (15% combo discount)
What is a Backorder?
Q: What is backorder?
When a product is on backorder, it means that we have sold out and we are opening a back order due to popular demand. This is essentially a queue, when new stock arrives from production, we’ll send your order.Q: Will items in my order that are in stock be shipped out first?
We will send your order altogether once your backorder item is ready! You may wish to place separate orders if you want an item before the other is due back in stock.This listing is for the 6 main adjustable arms and we are offering these as a package deal which comes at an additional 15% off our listed price for the items when sold on their own.
All our arms feature high quality 5/8" Teflon lined pillow ball rod ends which eliminate the flex found in factory rubber bushing offering a more direct and predictable feel.
Our arms are unlike any other suspension arms on the market and they're manufactured to a standard not made available to the average motorsport enthusiast being;
CAD designed, FEA tested, CNC machined ends, CNC tube notched (camber and LCA's) and TIG welded and to finish the arms off they're E-coated (aka electrophoresis coating) for rust prevention.
TRACTION ARMS
Traction arms give you the ability to adjust the arms to eliminate bump steer and alter other rear suspension traction settings to improve suspension response. The lengths on these arms are fully adjustable and with the right adjustments, you can change the position and pitch of which the suspension rotates on, along with the amount of "anti-squat" of the rear.
For more information click HERE
TOE ARMS
The lengths on these rear toe arms are fully adjustable to your specs when doing an alignment and with the right adjustments, straight line and cornering of your vehicle will be improved.
We have also included shims that allow you to space the arm upwards or downwards, for further fine tuning!
For more information click HERE
REAR UPPER CONTROL ARMS
The adjustable rear upper arms are used to adjust your camber. Adjustable arms give you the ability to tune your vehicle's camber to perfection.
The lengths on these arms are fully adjustable to your specs when doing an alignment and with the right adjustments, straight line and cornering of your vehicle will be improved.
For more information click HERE
NOTE: In some cases the edge of the brake line mount needs to be trimmed to give clearance to the arm, this does not effect the function/position of the mount.
ECCENTRIC TOE LOCKOUT KIT
The eccentric lockout kit replaces the adjustable toe bolts that are prone to slipping under hard driving conditions and ensures that your wheel alignment stays where it was set.
For more information click HERE
REAR ADJUSTABLE CAMBER SHIMS
The adjustable camber shims replace the OEM eccentric bolts that are prone to slipping under hard driving conditions and ensures that your wheel alignment stays where it was set.
For more information click HERE
FRONT LOWER TRAILING ARMS
The front trailing arms are used to adjust your camber and track width. Adjustable arms give you the ability to tune your vehicle front suspension to perfection.
For more information click HERE
FRONT CASTER ARMS SPHERICALS UPGRADE
The Front Caster arms spherical bearing replacements are designed to replace the factory OEM rubber bush.
We have chosen to use a common (COM16T) spherical bearing which is PTFE lined and self lubricating for increased longevity. Simply press out the OEM bush and press the replacement unit in it's place.
For more information click HERE
FRONT CASTER ARMS
The Front Caster Arms give the ability to replace the OEM arm completely and and are used to adjust your caster. Adjustable arms give you the ability to tune your vehicle's caster to perfection.
For more information click HERE
Choose options
FAQs
Do you sell arms for my car?We only sell the items listed on our website. If it's not listed on our website, then we don't sell it. Unfortunately, we don't do any custom work. Sorry
Will these fit my car?
We can only confirm fitment for the vehicles listed above under "confirmed fitment".
How long is the warranty on these arms?
All GKTECH suspension arms come with a lifetime warranty against manufacturing defects and the Teflon lined rose joints come with a 1 year replacement warranty. We stock spare bearings so even after the 12 months is up we can still help with replacements, worse case scenario all of the arms mentioned here run a 5/8" rose joint and are readily available through your local autoshop.
Are these suspension arms legal for use on street cars?
Our understanding is that any suspension arm with a rose joint is not legal for street use in Australia. However, we do recommend that you contact your local RTA for clarification/confirmation. Whether you use a suspension arm with a rose joint on public roads is at your discretion.
Are there any special tools required?
No, a spanner set will do the job which we do sell separately here - Open ended spanners
Do you carry spare parts for this product?
Yes we carry the following spare parts for this product.
For the suspension arms the replacement PCML12TES and PCMR12TES Bearings can be used.
For the spherical bearings the replacement COM14T Bearing can be used or the COM16T bearing.
