86 / GR86 / BRZ SUSPENSION ARM PACKAGE (10% COMBO DISCOUNT)

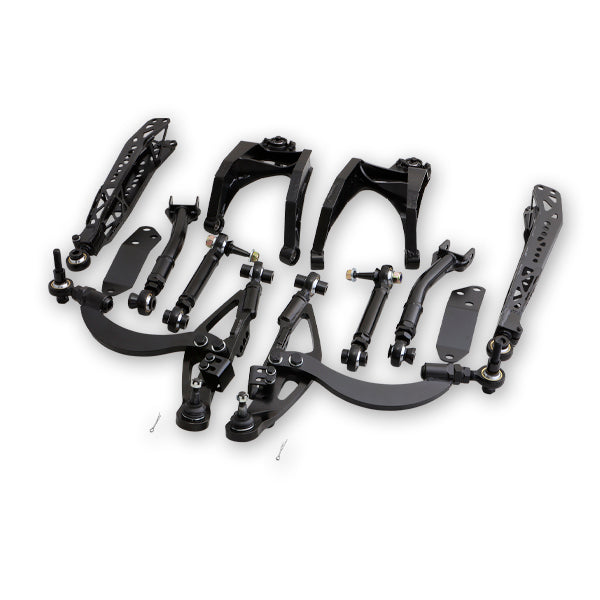

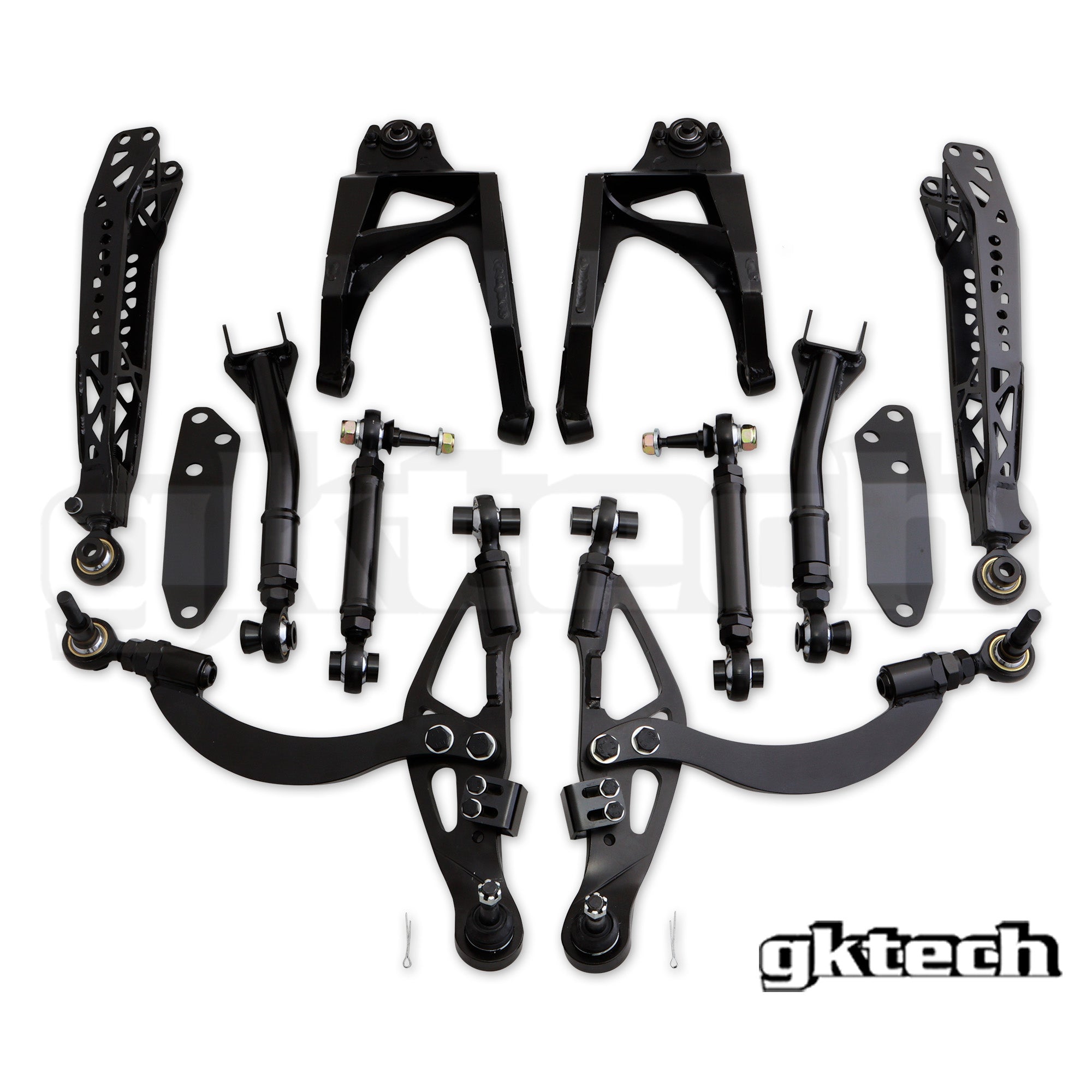

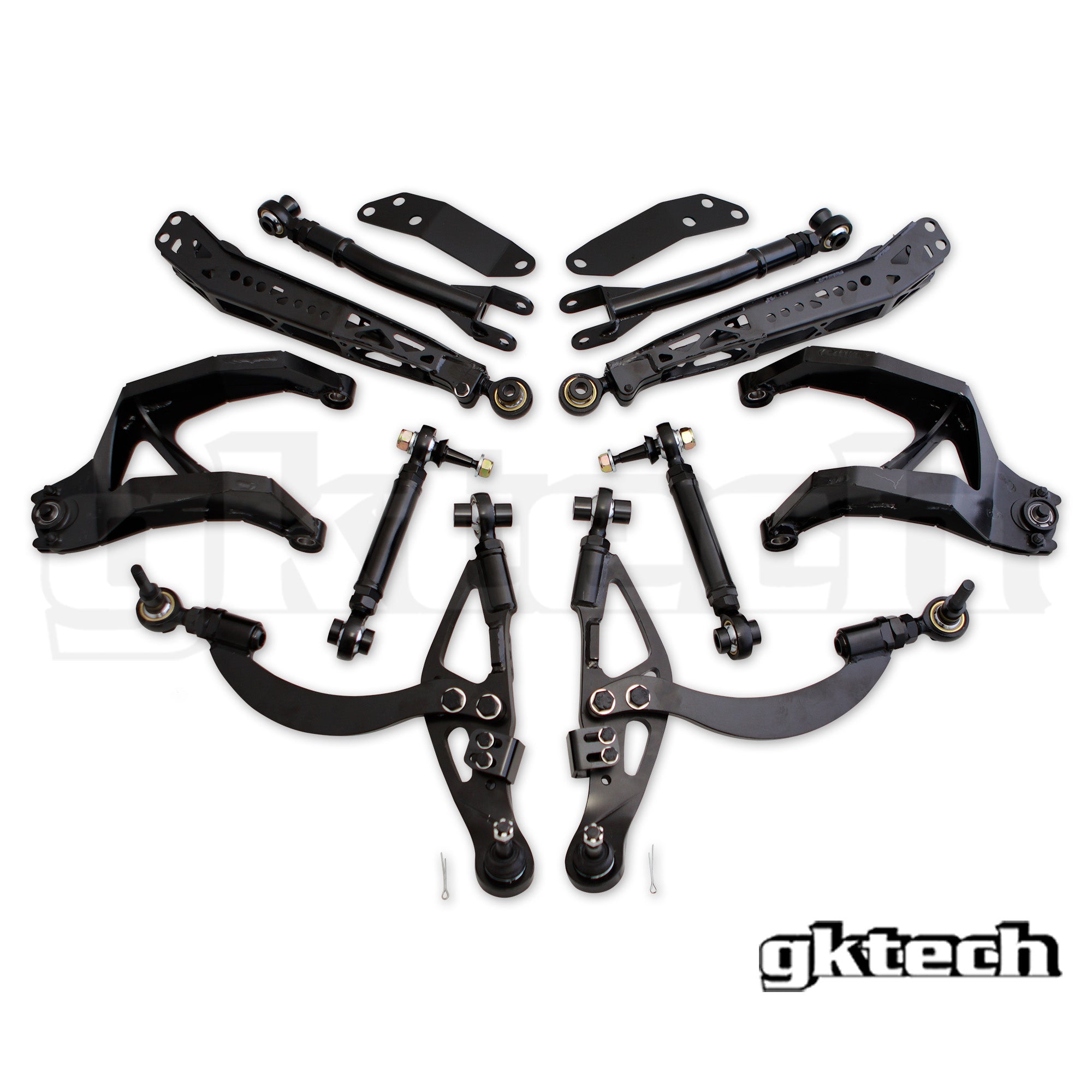

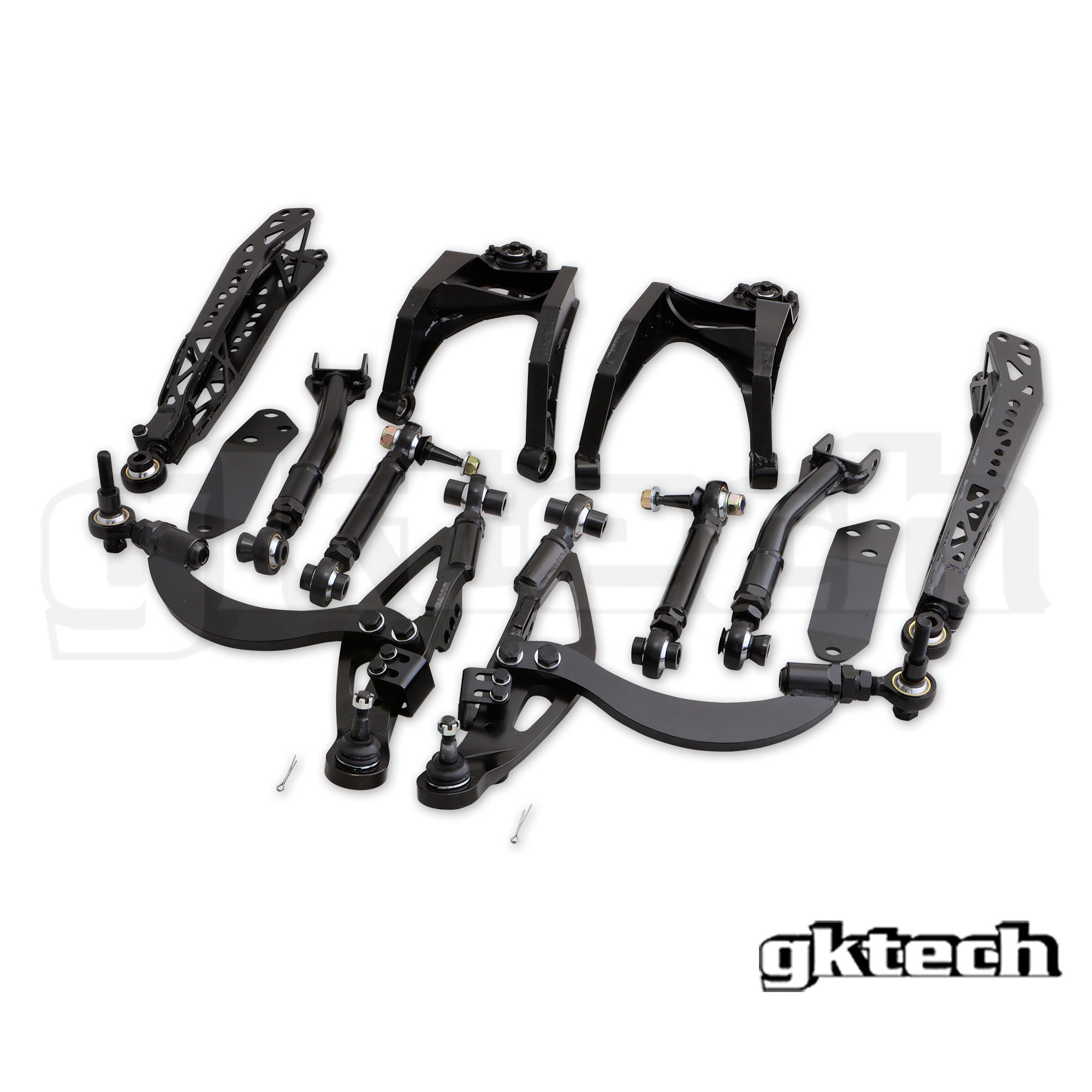

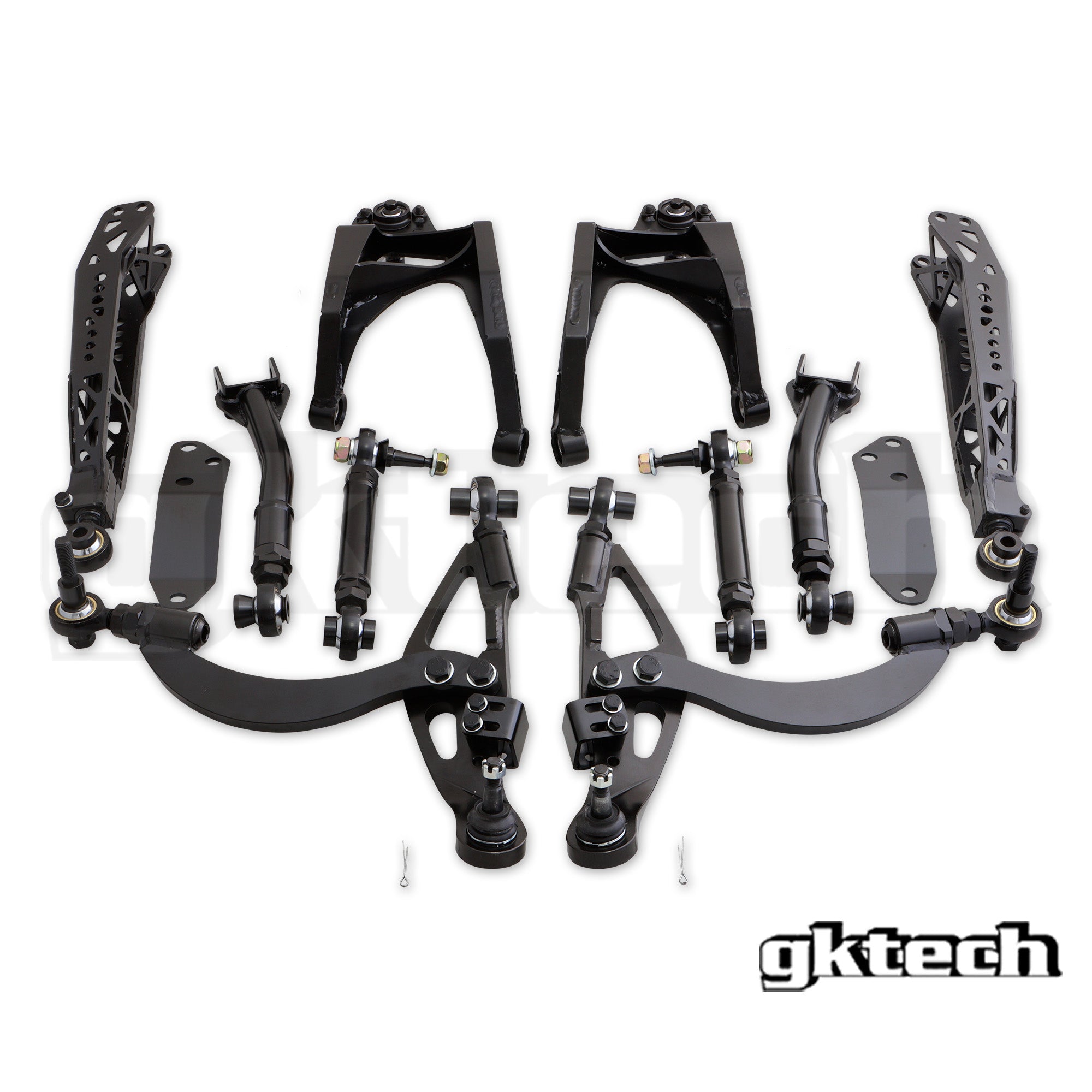

This listing is for the 5 main adjustable arms being the front lower control arms, rear lower control arms, rear upper camber arms, toe and traction arms.

We are offering these as a package deal which comes at an additional 10% off our listed price for the items when sold on their own.

FRONT LOWER CONTROL ARMS

The front lower control arms simplify, improve and replace the front lower control arm and caster rods on the FR-S / GR86 or BRZ, while also supporting around 65+ degrees of steering lock.

They are CAD designed, FEA tested, have CNC machined ends and the main body is laser cut and bent from 4130 Chromoly Steel. Adjustable, with 2 different length options; OEM length and adjust out to +30mm from OEM or; +40mm through to +70mm over OEM length.

For more information
au.gktech.com/products/86-gr86-brz-front-lower-control-arms


REAR LOWER CONTROL ARMS

Our on car adjustable Rear Lower Control Arms (RLCA's) allow for 55mm of track adjustment, motion ratio adjustment and can be used to lower your car 25mm.

Adjustable rear lower control arms allow adjustment of the rear multi-link suspension. Typically, adjustable LCA's can be adjusted to alter camber however we have incorporated some extra features.

For more information
au.gktech.com/products/86-gr86-brz-rear-lower-control-arms-rlcas


REAR UPPER CAMBER ARMS
Our upper camber arms allow adjustment of the upper arm, fixing the issue of camber change when lowering the vehicle. As well as eliminating the OEM rubber bushes, which allow zero flex and have zero chill when in operation. These are replaced with super smooth spherical joints, allowing the arm to operate on its correct pane! Our design is unique in that the arm can be adjusted insitu and there are no rod ends in bending.

Designed with the MOST amount of driveshaft clearance, a common issue found when using rear drop knuckles on these cars!

For more information
au.gktech.com/products/gt86-ruca


REAR TOE ARMS

Adjustable rear toe arms give you the ability to adjust and tune your vehicle's rear toe.

The lengths on these rear toe arms are fully adjustable to your specs when doing an alignment and with the right adjustments, straight line and cornering of your vehicle will be improved.

For more information
au.gktech.com/products/zn6-86-brz-rear-toe-arm


REAR TRACTION ARMS + TRACTION MOD
The  traction mod + arm combo is a great way to gain more traction under throttle. Our combo includes an easy to bolt on double sheer relocation bracket in addition to an adjustable traction arm to fine tune your alignment.

Rear traction rods allow adjustment of the rear multi-link suspension. They can be adjusted to eliminate bump steer and alter other rear suspension traction settings to improve suspension response.

For more information
au.gktech.com/products/86-gr86-brz-traction-mod-arm-combo
