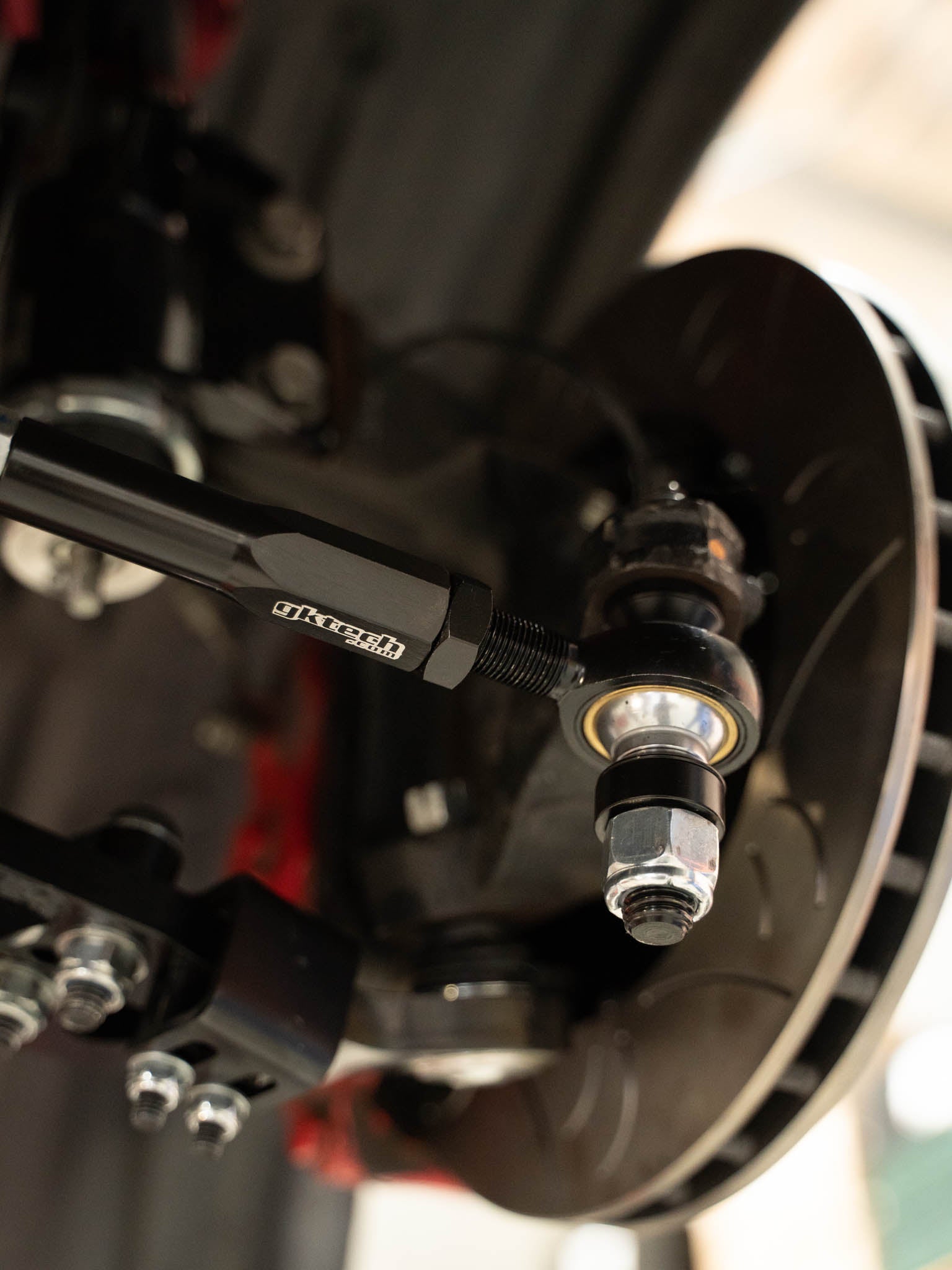

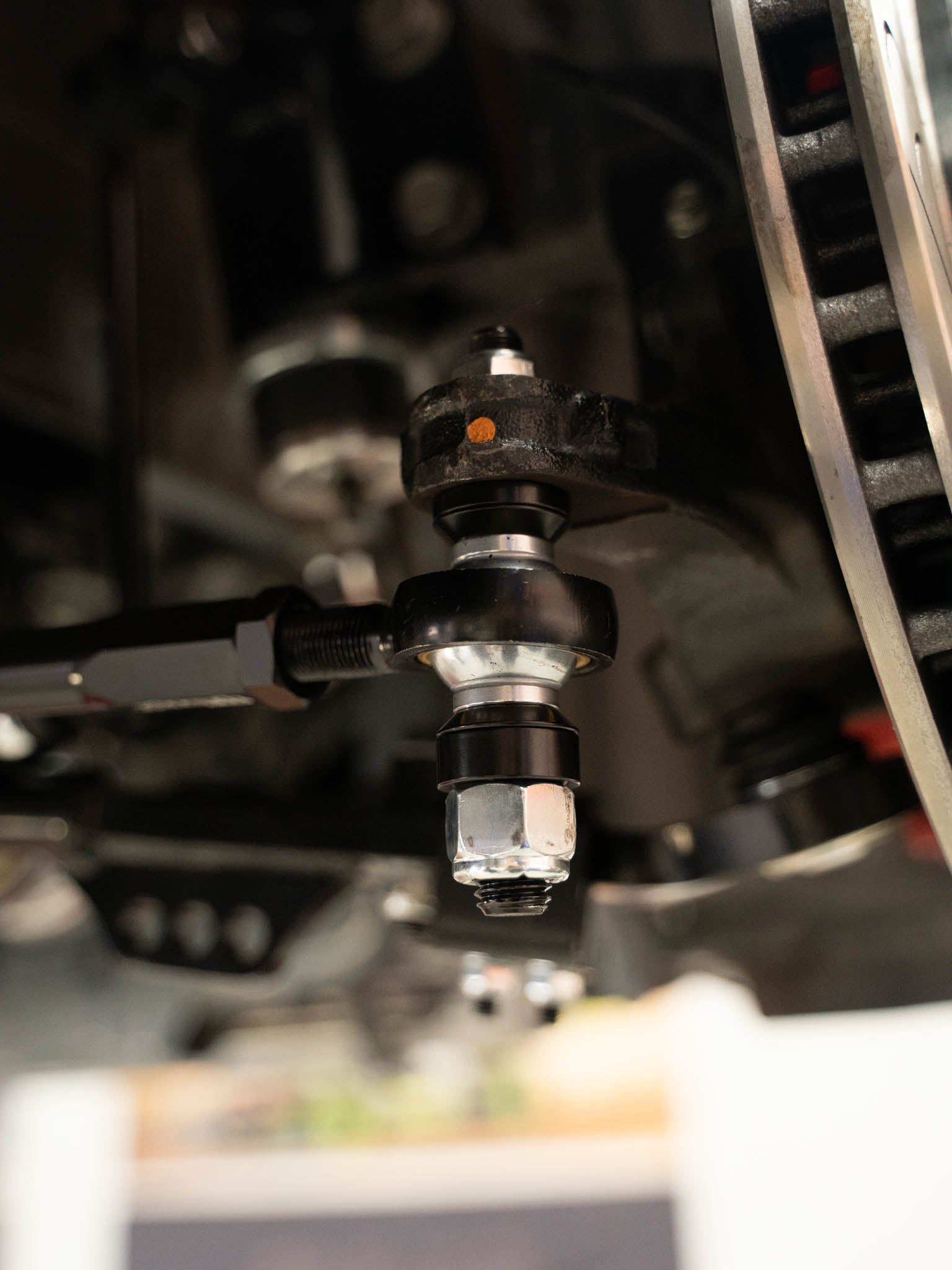

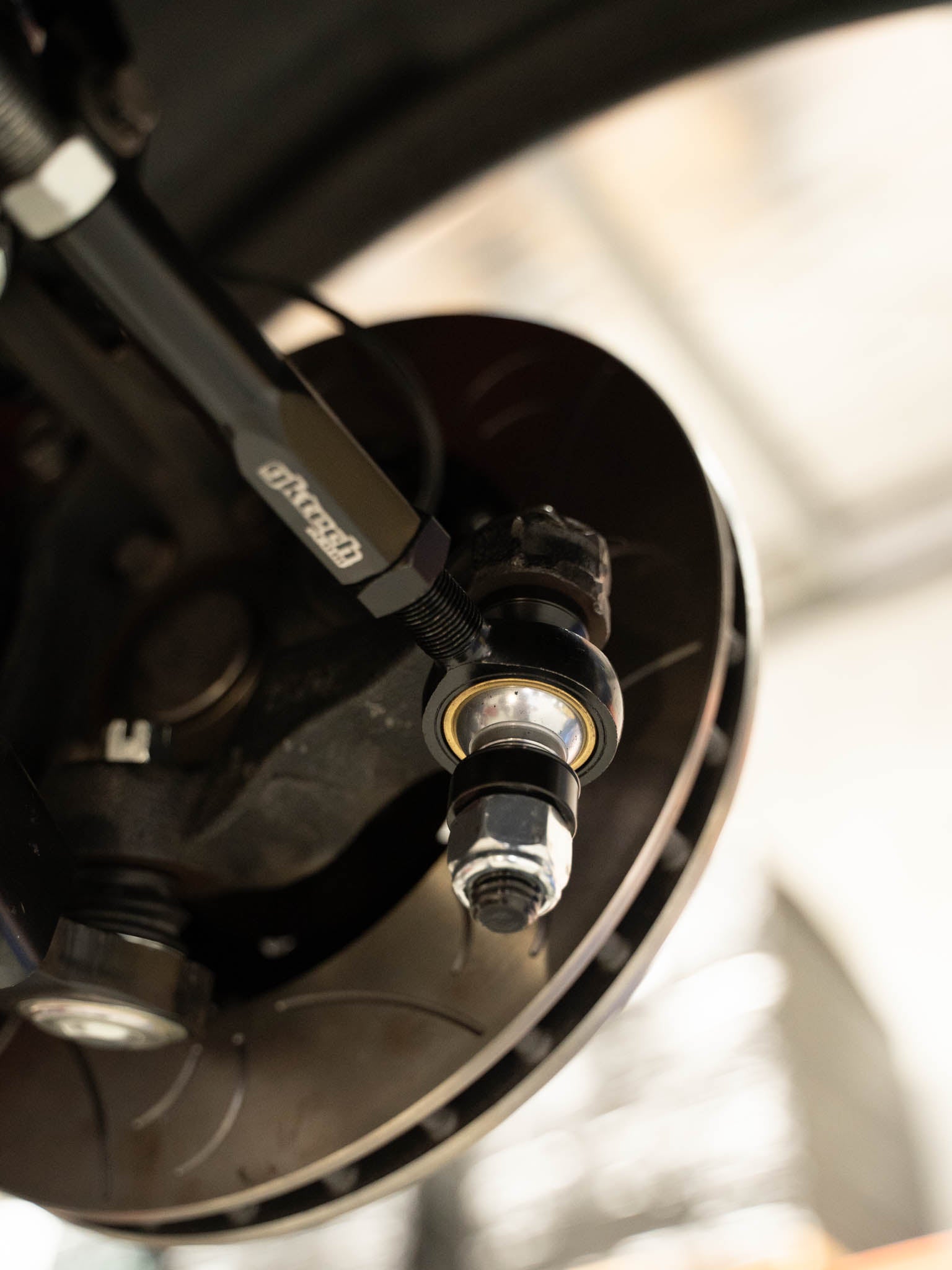

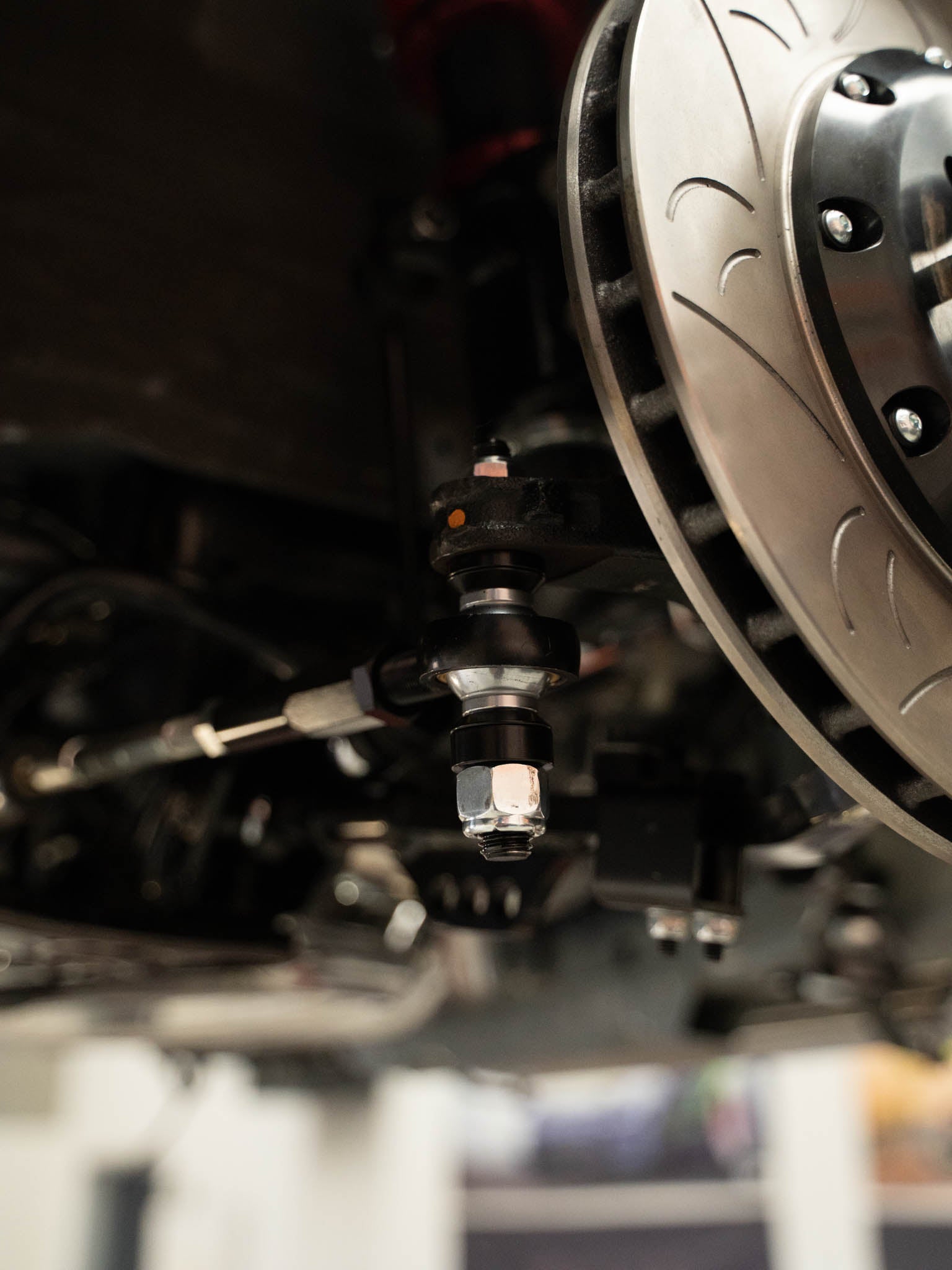

ZN6 86 / BRZ High Misalignment Tie rod Ends

The GKTECH high misalignment tie rods have 64 degrees of misalignment and also up to 15mm of bump steer correction built in.

Although these may look pretty similar to other tie rod ends on the market, don't be fooled as they are different (in a good way). Almost all tie rod ends on the market that use rose joints are NOT using high misalignment bearings and wear out in no time at all. OEM type tie rod ends provide around 60 degrees of misalignment and it is critical that around this level of misalignment is kept.

Another common issue with most aftermarket style tie rod ends is that there is no protection from dust and dirt. We've developed dust boots specifically to suit the PCYML10T rose joints that we use in our kit. It's also pretty common for shanks to bend under high loads, our shanks have a tensile strength of 176ksi (class 12.9)

Bump steer correction is altered through the use of 5mm shims.

- Corrects bump steer up to 15mm
- Uses high quality PTFE lined 1 5/8" high misalignment rose joints
- Dust boots included
- Can be used within OEM wheels

How hard are these to install?
Remove your old tie rod ends and install these. It's a very self explanatory install and shouldn't take longer than 30 minutes.

Will this fit my car?
If your car is listed above then this is a straight fit.

Do I need a wheel alignment after installing these?
Unless you get the length spot on perfect, you will need a wheel alignment after installation.

Are there any special tools required?
No, a spanner set will do the job which we do sell separately here - https://au.gktech.com/open-ended-spanners

Do you carry spare parts for this product?
Yes we carry the following spare parts for this product;

Replacement Pcyml10Ts Tie Rod End Bearing

Tie Rod End Extenders

Install Videos

Assembly Guides

Download GT86-TROD - Customer ASM

Engineering Certificates

Download M125-M145-GTRX-Z33X-Z34X-TROD Cert
