Z33 350z/V35 bolt on anti squat kit
Quantity:
What is a Backorder?
Q: What is backorder?
When a product is on backorder, it means that we have sold out and we are opening a back order due to popular demand. This is essentially a queue, when new stock arrives from production, we’ll send your order.Q: Will items in my order that are in stock be shipped out first?
We will send your order altogether once your backorder item is ready! You may wish to place separate orders if you want an item before the other is due back in stock.📦
Free Shipping on orders over $250
Checking Dispatch Times...*
We do aim to achieve this every day, but please note that this is not a guarantee and is subject to daily order volumes.
Order and get 5% back in reward points
That's 845 for this item

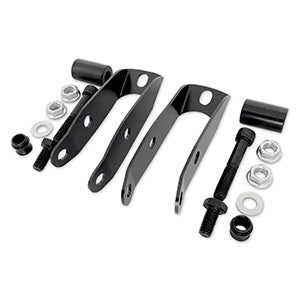

Bolt in product and completely reversible with high clearance bracket that can be easily installed and removed without the need to drop the subframe.
This bracket is designed to be used alongside the rear knuckles to increase anti-squat back to a desired value on a lowered car.
The anti-squat change also has additional benefits such as ensuring the suspension is not overused and as a result keeps the camber gain in check.
The characteristics of the bump steer curve have been completely changed as a result of the relocation bracket, now under both extension and compression the car will now toe in to increase forward bite and grip both on and off throttle.
Some additional benefit can be found in conjunction with reduced spring rates in the rear as a result of the additional anti-squat
- Raises upper arm pickup by 45mm
- Constructed from high strength 4130 chromoly steel
- No subframe modifications or chassis clearance required (unless the car is low with subframe risers)
- Optimised bump steer for additional grip
- Slight reduction in camber gain
- Correction to roll centre
NOTE: Must be used in conjunction with the GKTECH RUCA's. The OEM RUCA's will not work with this relocation bracket.
FAQs
Does the anti-squat kit work with OEM rear knuckles?We definitely recommend using our RUCA's, if not using the anti-squat will put the OEM bushes under constant tension due to the angle change and will likely lead to premature wear on the bushes.
The RUCAs can be seen here;
https://au.gktech.com/products/z33-350z-rear-upper-camber-arm-ruca?_pos=2&_psq=ruca&_ss=e&_v=1.0
The anti-squat kit can be used on OEM knuckles.
VEHICLE COMPATIBILITY
Coupe
2003-2008 Z33 350z
2003-2007 V35 (G35)
Sedan
2003-2006 V35 (G35)
Note - 2007-2008 V35 (G35) SEDAN uses Z34 370z/ V36 (G37) suspension
2003-2008 Z33 350z
2003-2007 V35 (G35)
Sedan
2003-2006 V35 (G35)
Note - 2007-2008 V35 (G35) SEDAN uses Z34 370z/ V36 (G37) suspension
