N-Style S14/S15 to Z32/Skyline conversion braided brake lines
What is a Backorder?
Q: What is backorder?
When a product is on backorder, it means that we have sold out and we are opening a back order due to popular demand. This is essentially a queue, when new stock arrives from production, we’ll send your order.Q: Will items in my order that are in stock be shipped out first?
We will send your order altogether once your backorder item is ready! You may wish to place separate orders if you want an item before the other is due back in stock.Free Shipping on orders over $250
Checking Dispatch Times...
Order and earn 5% back in reward points
That's 1145 for this item
The GKTECH V Naoki Nakamura N-Style conversion brake lines are to suit S14/S15's that are using Z32/GTST/GTR/GT/GTT brakes and are a direct replacement of the factory lines and are stronger (read: more reliable) than the factory rubber lines which are prone to breaking but they also eliminate the spongy feel of the standard brake lines.
The front lines are also longer to compensate for big brake setups or cars with more steering lock (which would see stretching with the factory line)

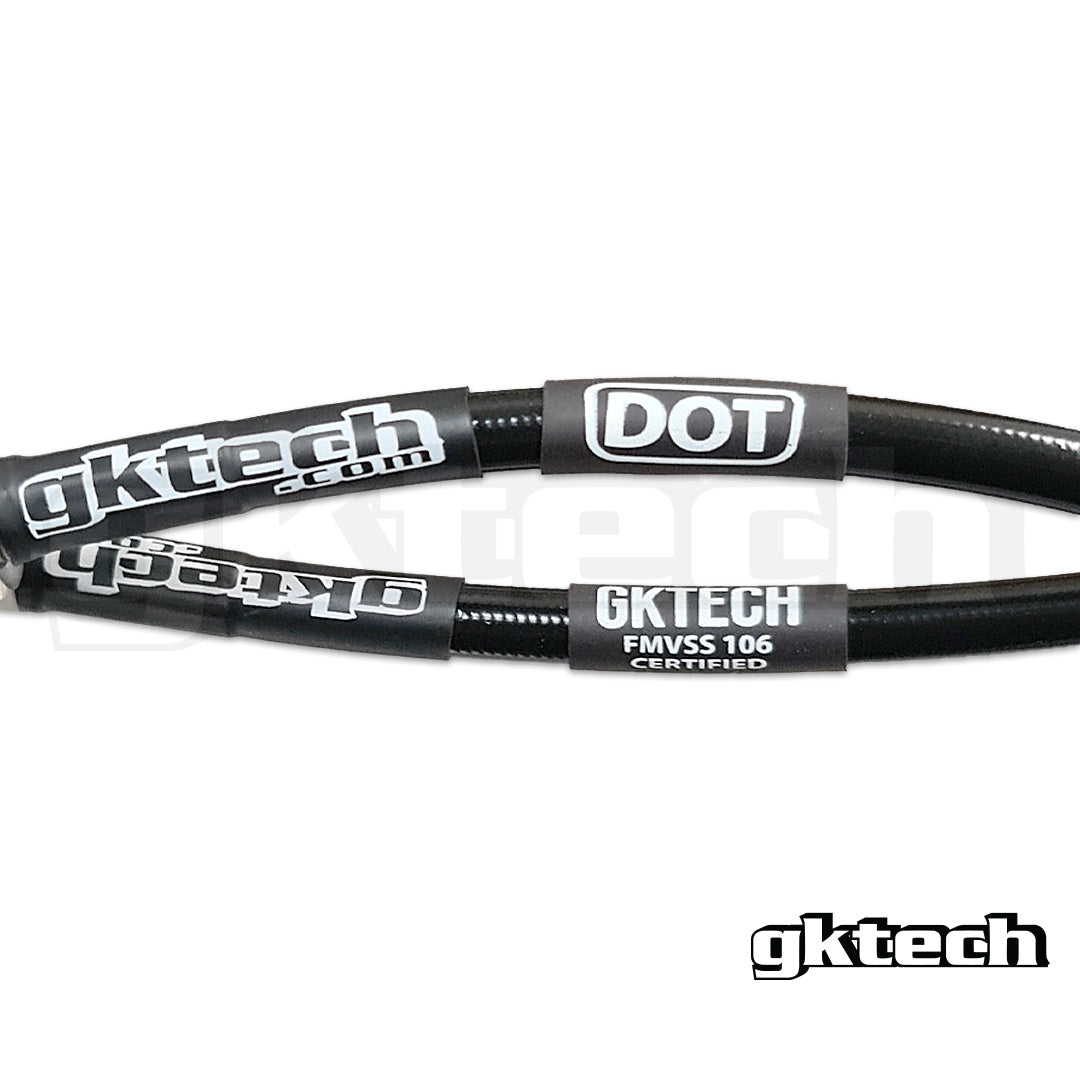

The GKTECH braided brake lines are assembled using stainless steel fittings and hose that consists of a Teflon inner tube wrapped in stainless steel braid and a PVC outer coating for protection. The brake lines have been independently tested to comply with FMVSS106 standards for brake hoses. This makes the lines ADR approved in Australia and they are marked as such on the brake line assemblies.
The FMVSS106 testing procedure that the lines have been tested against includes the following tests:
- 370lbs pull test
- 35 hour whip test
- 7000psi burst test
- -45degC to 146degC temperature tests
- 24 hour salt corrosion resistance test
FAQs
Will this fit my car?We can only confirm fitment for the vehicles listed above under "vehicle compatibility". If your car is not listed there, then we don't know if it will fit.
These lines are to suit an S14/S15 running Z32/GTS-T/GTR brakes only.
If you have OEM S14/S15 brakes and need brake lines they can be seen here: https://au.gktech.com/products/brakes/brake-lines/s14-s15-200sx-braided-brake-lines
Do you make these to suit other cars?
We only sell the parts listed on our website. If it's not listed on our website, then we don't sell it. Sorry.
What's the advantage of using the GKTech brake lines?
Our lines are an OEM replacement and are stronger and more reliable than OEM. They also do not flex and swell as the OEM rubber lines do.
What modifications are required, are these hard to fit?
No modifications are required, simply just remove and refit.
Is there anything else needed for installation?

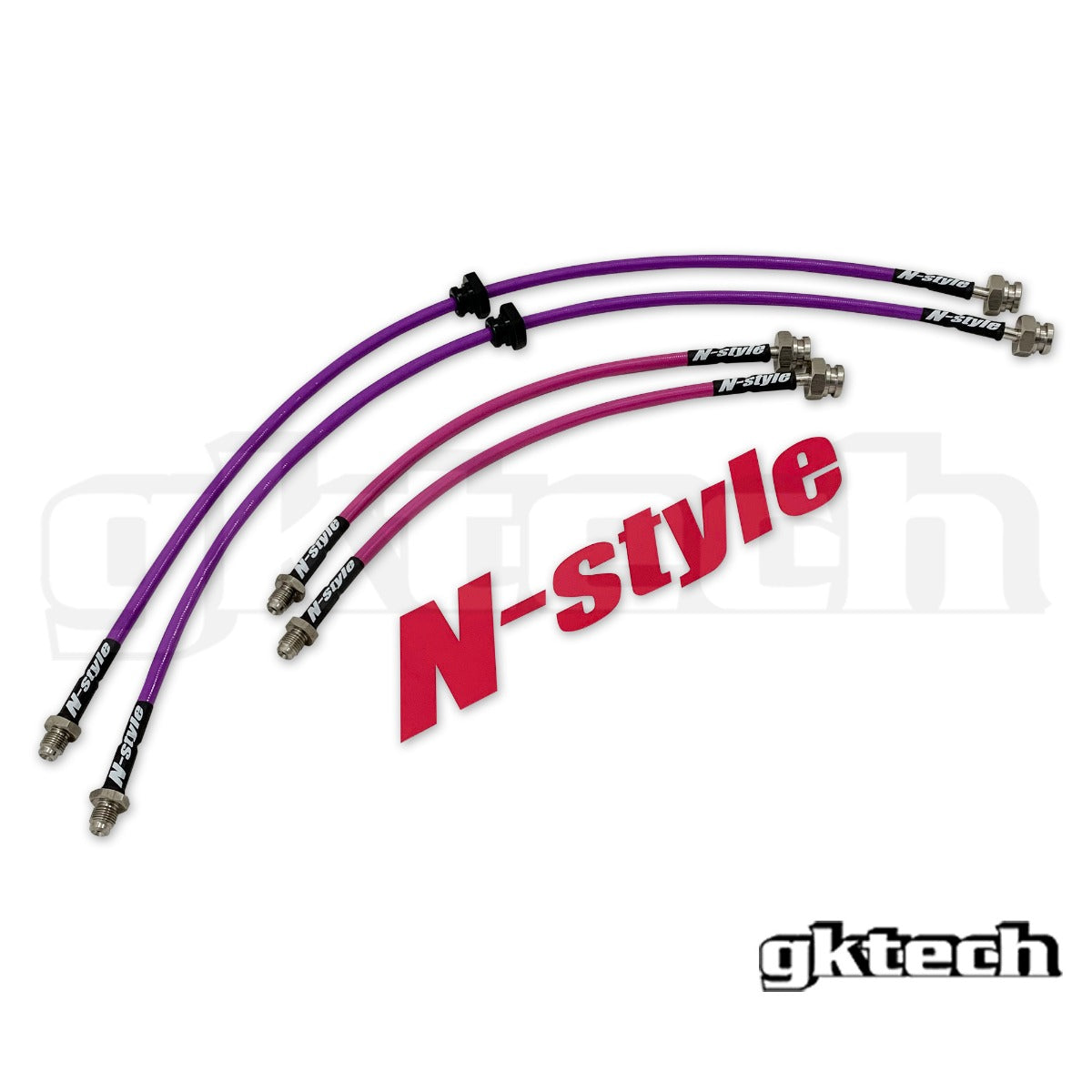

You will need to re-bleed your brakes, so you will need tools and brake fluid, in terms of the lines they will arrive as shown in the product photo.
Can I install this myself? If so how long will installation take?
Yes, the brake lines are easy to install. Simply remove your old lines and replace them with your new lines, then tighten the lines referencing the OEM torque specs.
You will then need to top up the brake fluid and bleed the brake system. However, being the brake system we recommend only a trained professional to install this product.
I have Z33 brakes on my S-Chassis, would these lines suit?
Yes, sir!
VEHICLE COMPATIBILITY
Nissan S14 200SX (with R32, R33, R34 or Z32 rear calipers)
Nissan S15 200SX (with R32, R33, R34 or Z32 rear calipers)
Nissan
S14 200SX/SILVIAS15 200SX/SILVIA
