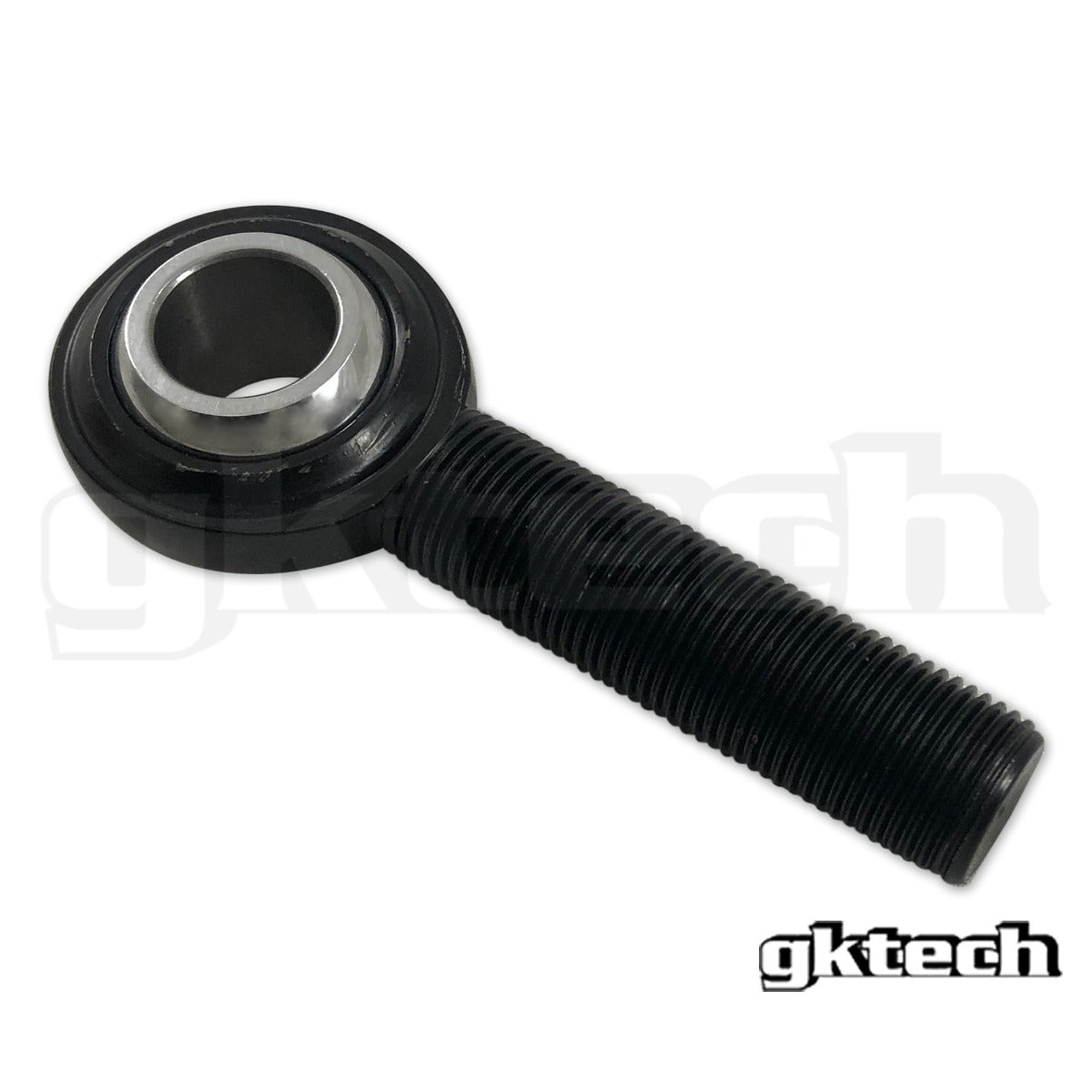

Checking Dispatch Times...Replacement PCML12TE bearing (can also be replaced with PCML12T, non extended version)
Used in the following GKTECH products:
V3 and V4 Rear traction rods (SKU = REAR-TRTN when used in S13/R32 subframe) If running REAR-TRTN in S14, S15, R33 or R34 subframe use the PCML12TES
PCML12TE
| IMPERIAL | METRIC |
|---|---|
| ROD END BALL BORE SIZE | ROD END BALL BORE SIZE |
| 0.7500 in | 19.0500 mm |
| ROD END BALL WIDTH | ROD END BALL WIDTH |
| 0.8750 in | 22.2250 mm |
| THREAD LENGTH | THREAD LENGTH |
| 1.7500 in | 44.4500 mm |
| THREAD SIZE | THREAD SIZE |
| 3/4 - 16 UNF LH | 3/4 - 16 UNF LH |
| ROD END HEAD DIAMETER | ROD END HEAD DIAMETER |
| 1.8700 in | 47.4980 mm |
| ROD END MISALIGNMENT ANGLE | ROD END MISALIGNMENT ANGLE |
| 24 degrees | 24 degrees |
| ROD END STATIC LOAD CAPACITY (lbs) | ROD END STATIC LOAD CAPACITY (kg) |
| 30,290 lbs | 13,739 kg |
| ROD END MATERIAL | ROD END MATERIAL |
| Chromoly | Chromoly |
| LUBRICATION | LUBRICATION |
| PTFE lined | PTFE lined |
VEHICLE COMPATIBILITY
Nissan
R32 SKYLINE GTRR32 SKYLINE GTS-T
R33 SKYLINE GTR
R33 SKYLINE GTS-T
R34 SKYLINE GT-T
S13 CA18 180SX
S13 CA18 SILVIA
S13 SR20 180SX
S13 SR20 SILVIA
S14 200SX/SILVIA
S15 200SX/SILVIA
V35 SKYLINE
V36 SKYLINE
Z32 300ZX
Z33 350Z
Z34 370Z
