V4 - S13/180sx/R32/A31/Z32 Rear toe arms
V4 - S13/180sx/R32/A31/Z32 Rear toe arms
V4 - S13/180sx/R32/A31/Z32 Rear toe arms
V4 - S13/180sx/R32/A31/Z32 Rear toe arms


V4 - S13/180sx/R32/A31/Z32 Rear toe arms

Sale price$309.00 AUD
SKU: s13x-toex
In stock

What is a Backorder?

Q: What is backorder?

When a product is on backorder, it means that we have sold out and we are opening a back order due to popular demand. This is essentially a queue, when new stock arrives from production, we’ll send your order.

Q: Will items in my order that are in stock be shipped out first?

We will send your order altogether once your backorder item is ready! You may wish to place separate orders if you want an item before the other is due back in stock.
Pickup available at Sunshine West, VIC 3020 Usually ready in 2 hours

V4 - S13/180sx/R32/A31/Z32 Rear toe arms

Sunshine West, VIC 3020

Pickup available, usually ready in 2 hours

Unit 11/94 Boundary Road
Sunshine West VIC 3020


Free Shipping on orders over $250

Checking Dispatch Times...

Product enquiry

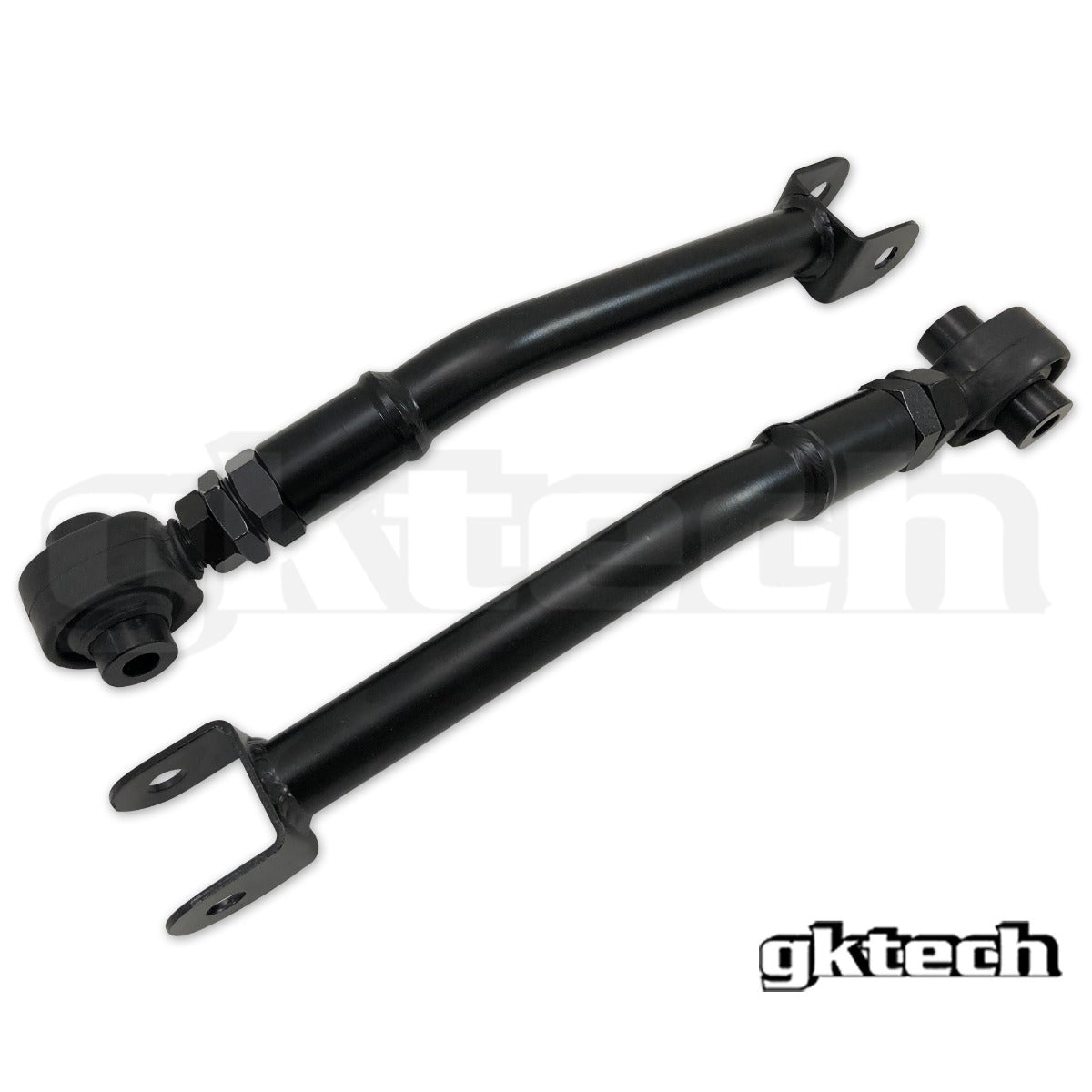

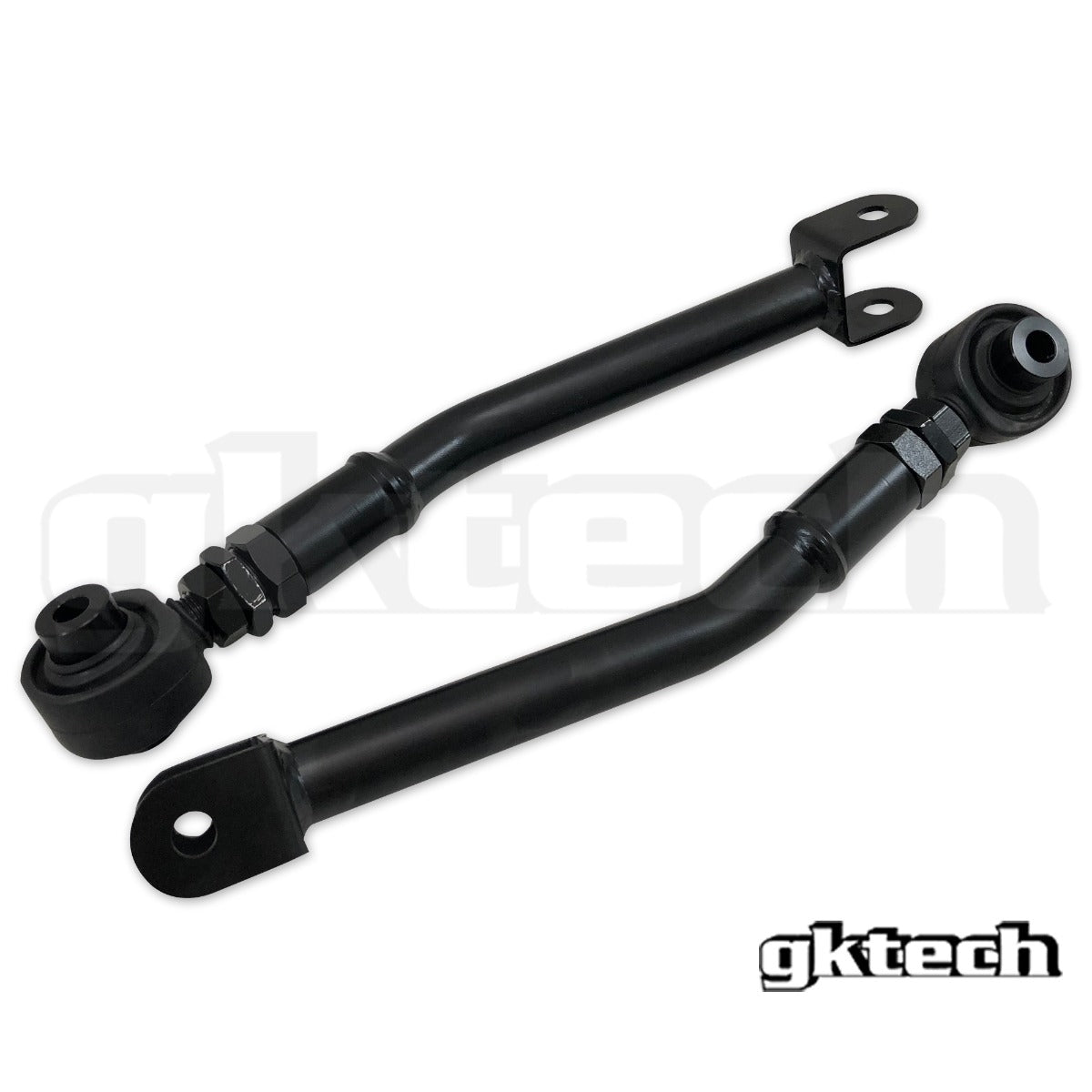

The new V4 GKTECH suspension arms are an even further improved version of our popular V3 Chromoly arms. The new V4's now have even more adjustment. Rear toe arms give you the ability to adjust and tune your vehicle's rear toe.

The lengths on these rear toe arms are fully adjustable to your specs when doing an alignment and with the right adjustments, straight line and cornering of your vehicle will be improved.

- V4 arms feature high quality 5/8" Teflon lined pillow ball rod ends which eliminate the flex found in factory rubber bushing offering a more direct and predictable feel.
- V4 arms are manufactured from chromoly 28mm OD (3mm wall) tube with billet CNC machined ends with recessed ends for additional strength.
- CAD designed, FEA tested, CNC machined ends, CNC mandrel bent arms (toe arms, camber and rear LCA's), CNC tube notched (camber and LCA's) and TIG welded.

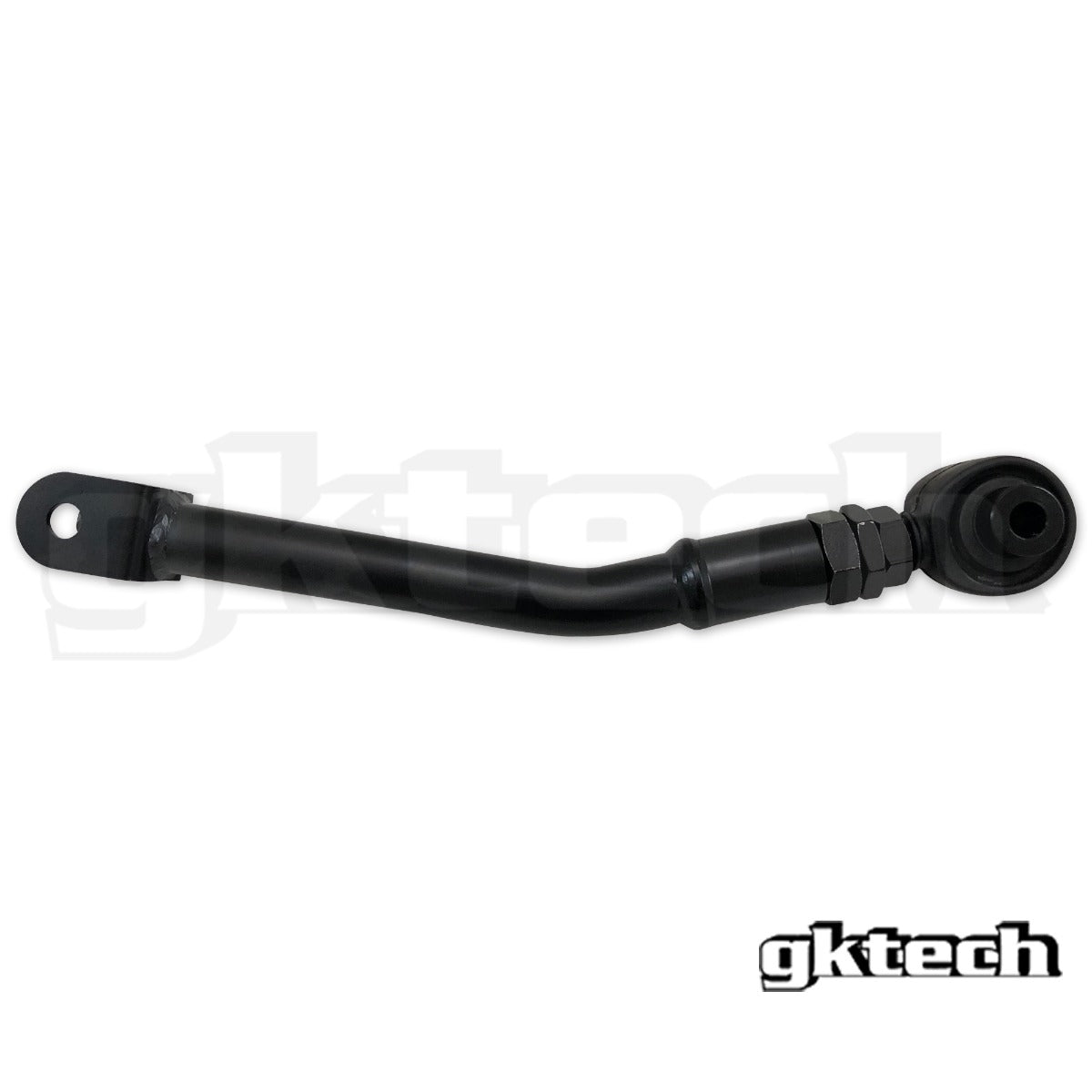

-20 degree bend in the end of the arm to clear chassis rails on lowered vehicles

NOTE: Will NOT suit cars with HICAS previously installed unless you use our lockout bar withclevisto suit. NOTE#2: If you require S14, S15 or R33 Skyline rear toe arms please refer to our other listing to suit.


What is the difference between the S13/180sx toe arms and the S14/S15 version?
The S14/S15/R33/R34 version used 10mm rose joint inserts where as the S13/180sx/R32 version uses 5mm inserts. Besides that they're the same. If you're running an S14/S15 subframe in your S13/180sx you will need to order S14/S15 toe arms.

Will these fit my car?
We can only confirm fitment for the vehicles listed above under confirmed fitment.

How long is the warranty on these arms?
All GKTECH suspension arms come with a lifetime warranty against manufacturing defects.

The Teflon lined rose joints come with a 1 year replacement warranty.

We stock spare bearings so even after the 12 months is up we can still help with replacements, worse case scenario they're a 5/8 rose joint for the inner bearings and a 3/4 for the outer (ball joint) and are readily available through your local autoshop.

Are these suspension arms legal for use on street cars?
Our understanding is that any suspension arm with a rose joint is not legal for street use in Australia. However we do recommend that you contact your local RTA for clarification/confirmation. Whether you use a suspension arm with a rose joint on public roads is at your discretion.

Are there any special tools required?
No, a spanner set will do the job which we do sell separately here - Open ended spanners

Do you carry spare parts for this product?
Yes we carry the following spare parts for this product, PCML12TES - https://au.gktech.com/replacement-pcml12tes-bearing


Nissan 300ZX (non-hicas only)


S13 CA18 180SX
S13 SR20 180SX
Z32 300ZX
