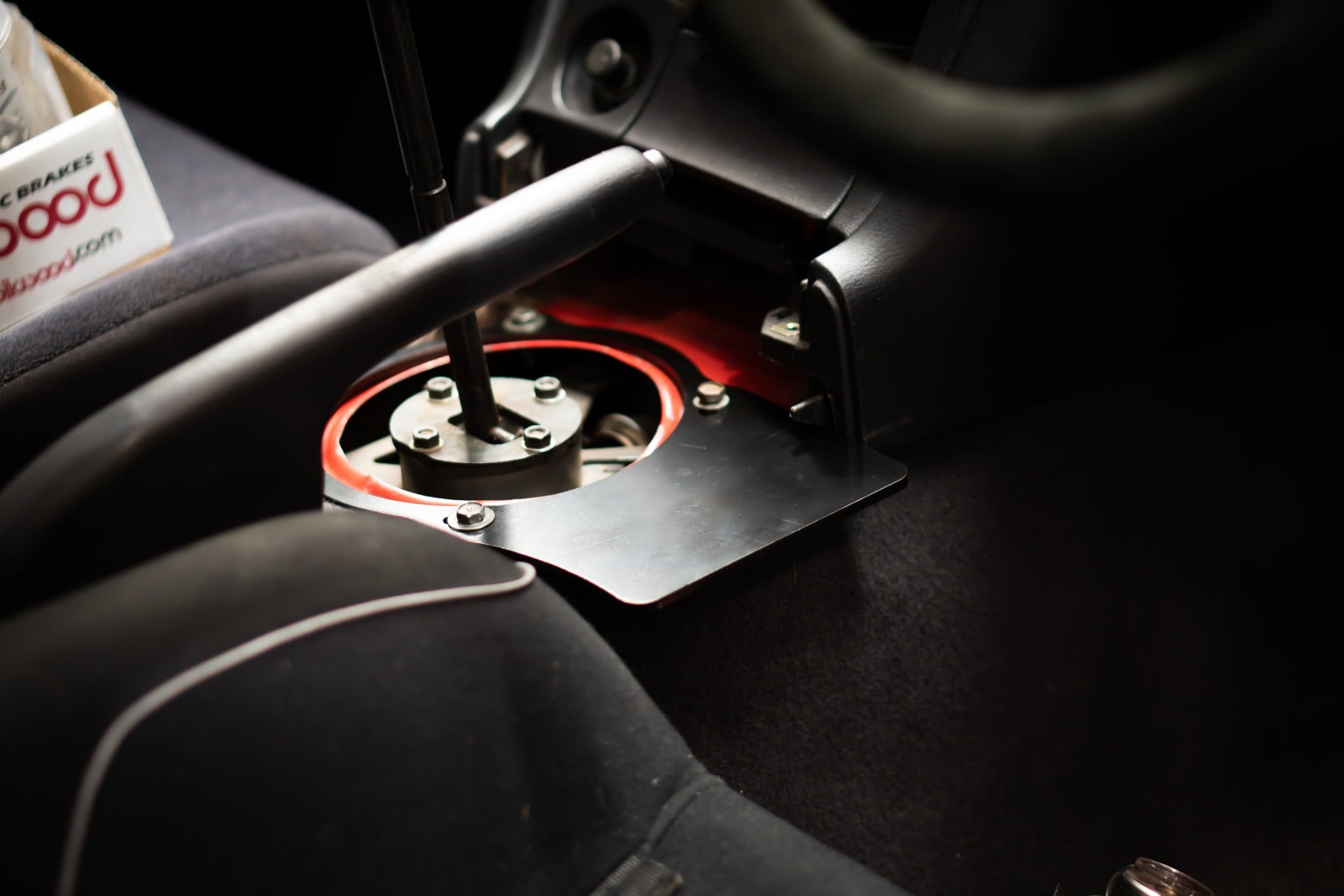

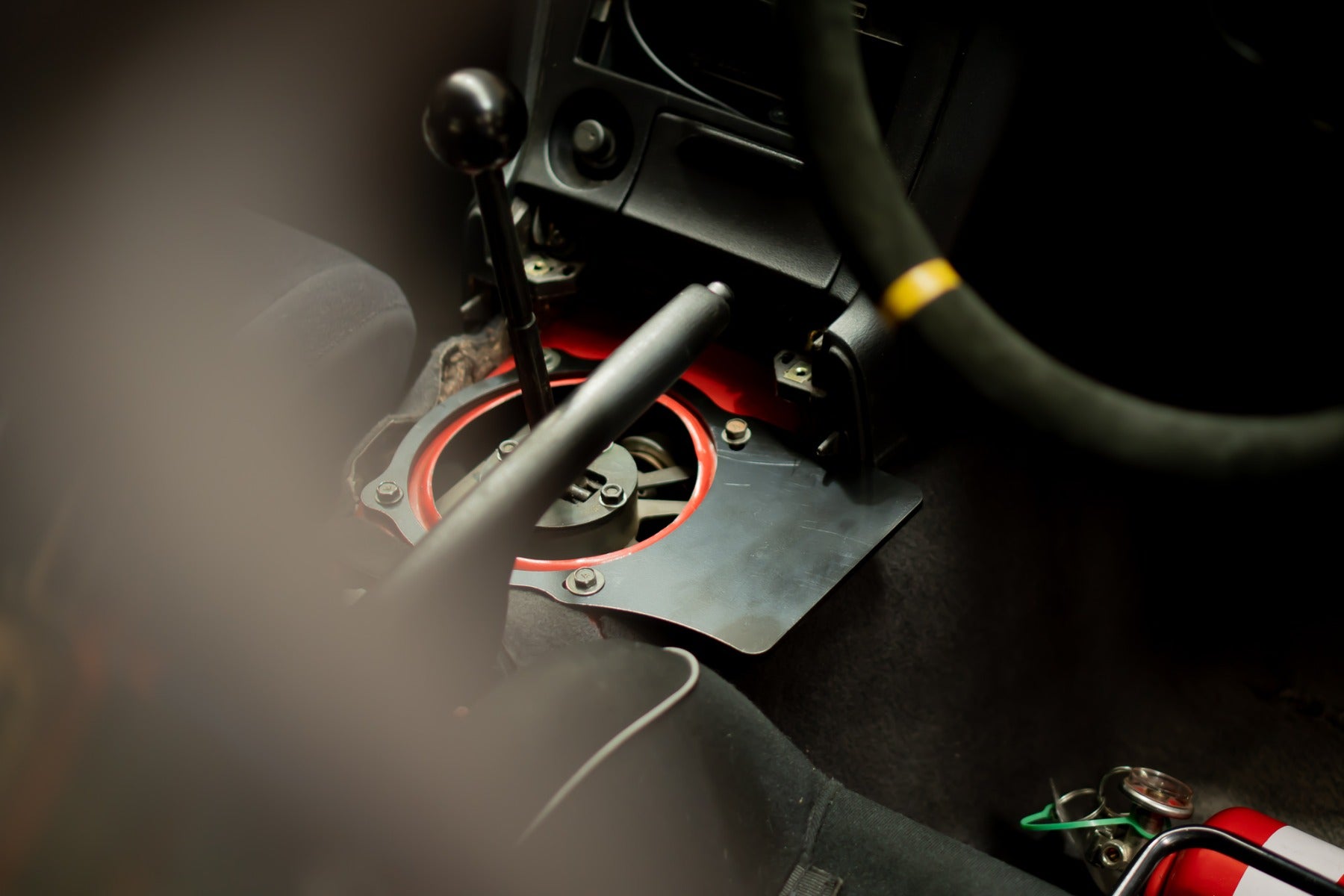

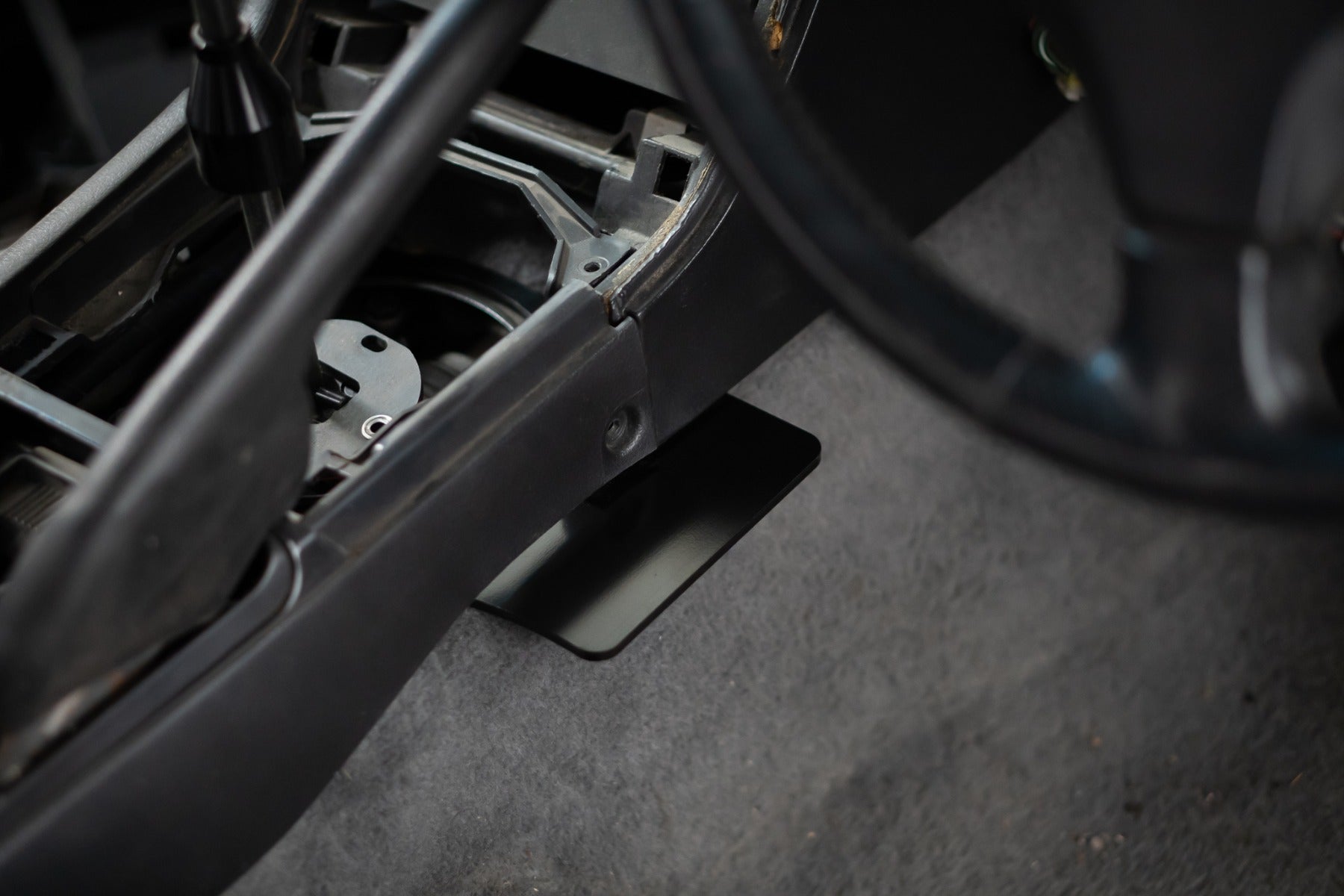

When installing a hydraulic handbrake in your car, you'd typically have to drill holes or weld a bracket in place. With the value of S-chassis' on the increase and the desire for people to not want to have to chop/cut/drill/weld to their cars, we have made these brackets. This bracket bolts to the stock gearbox shifter hole and allows you to fit just about any hydraulic handbrake setup without significant modifications.
- 100% direct fit with no further modifications required
- Fits both S13/180sx and S14 200sx's/240sx's, S15 in either LHD or RHD configurations

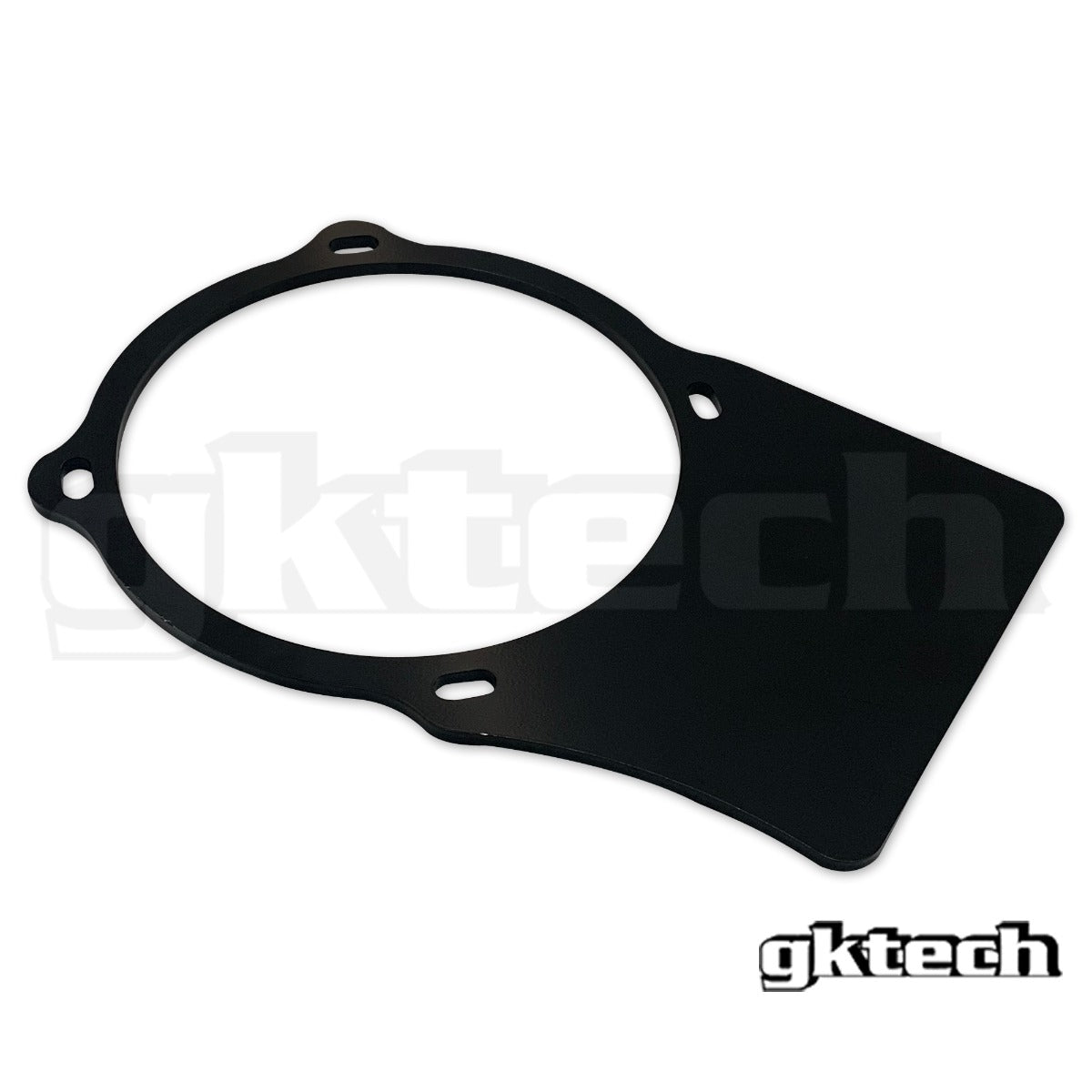

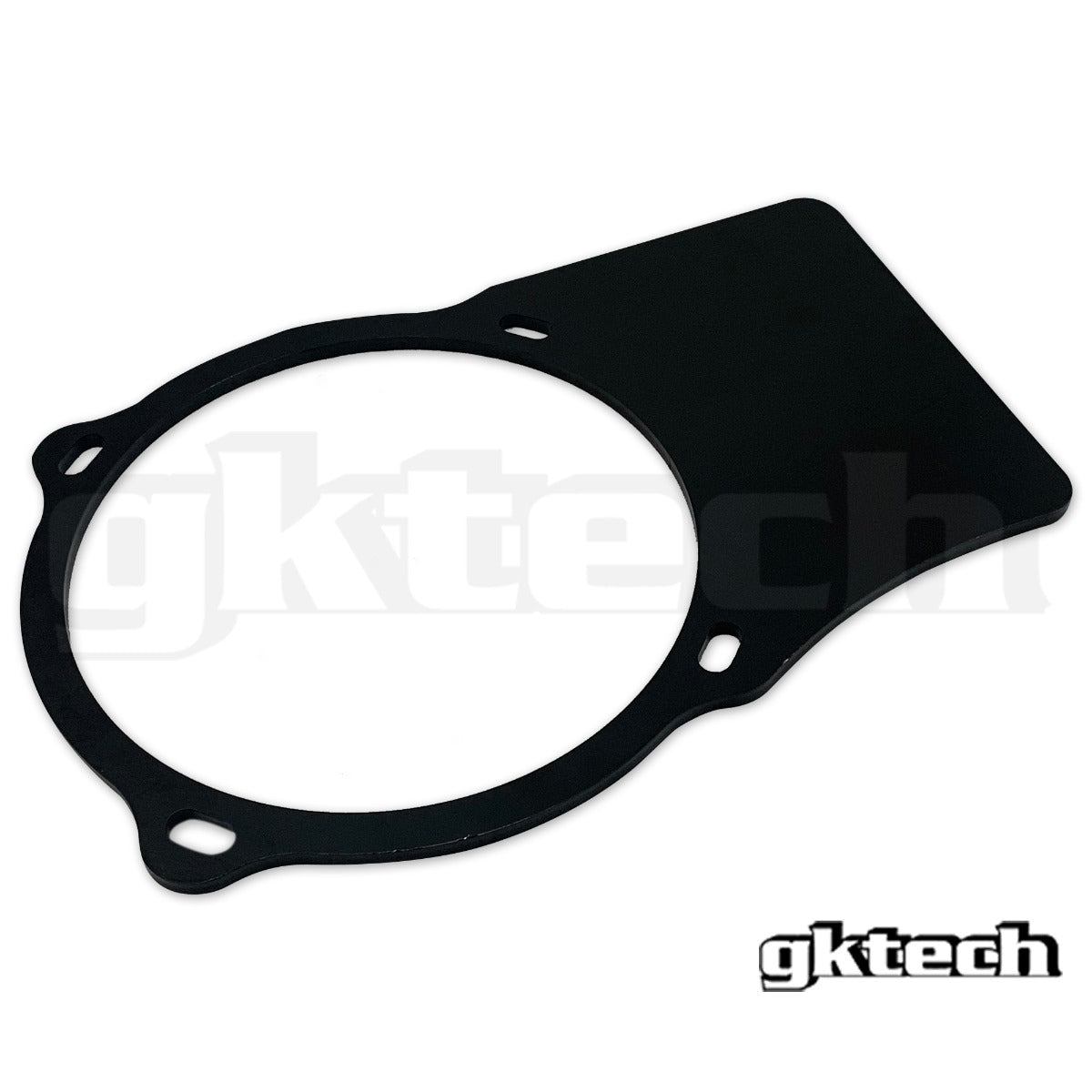

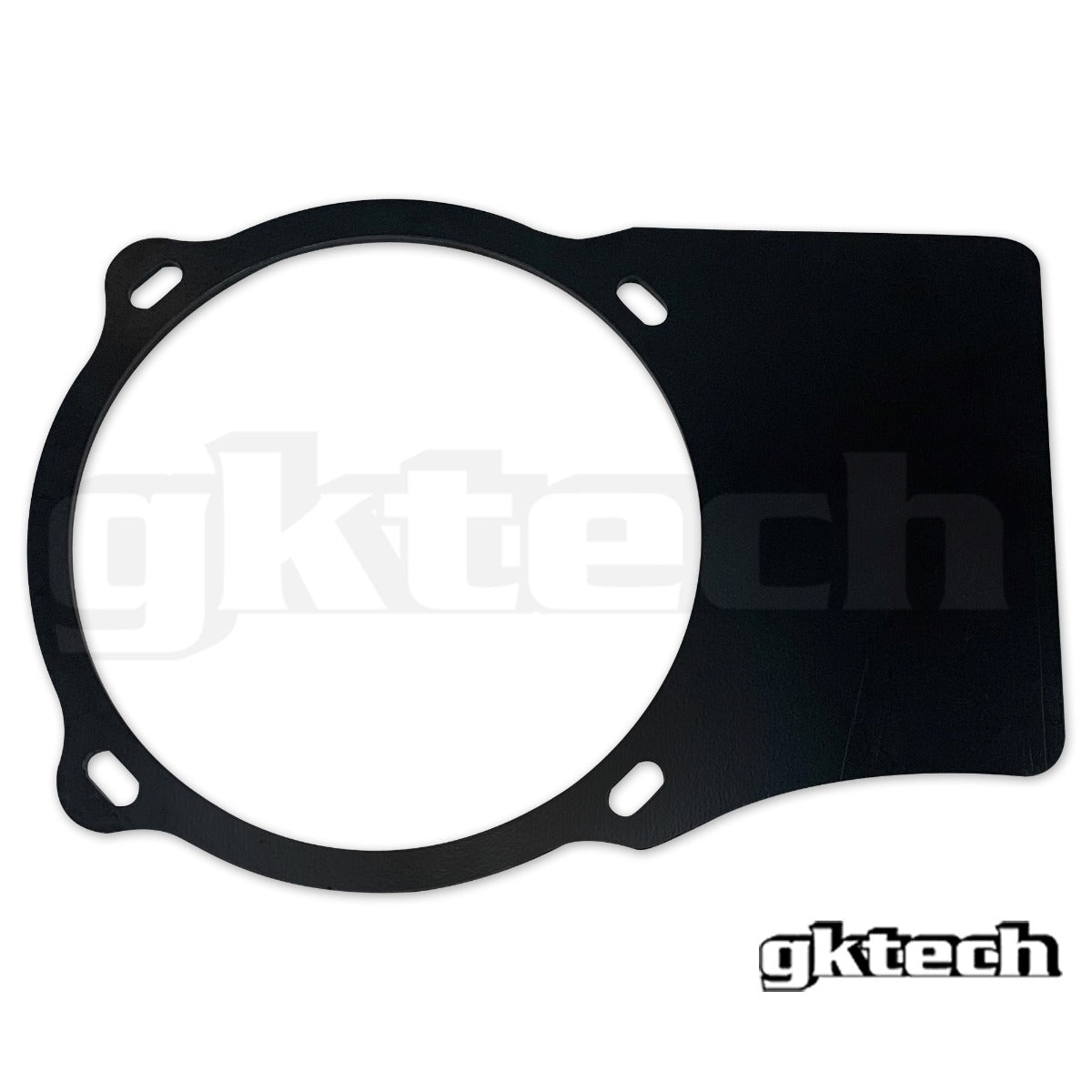

- Laser cut from 5mm thick 4130 Chromoly sheet and zinc coated for longevity
- Includes 4x replacement M6x20mm bolts
FAQsWill this work with insert brand of hydraulic hyandbrake here?

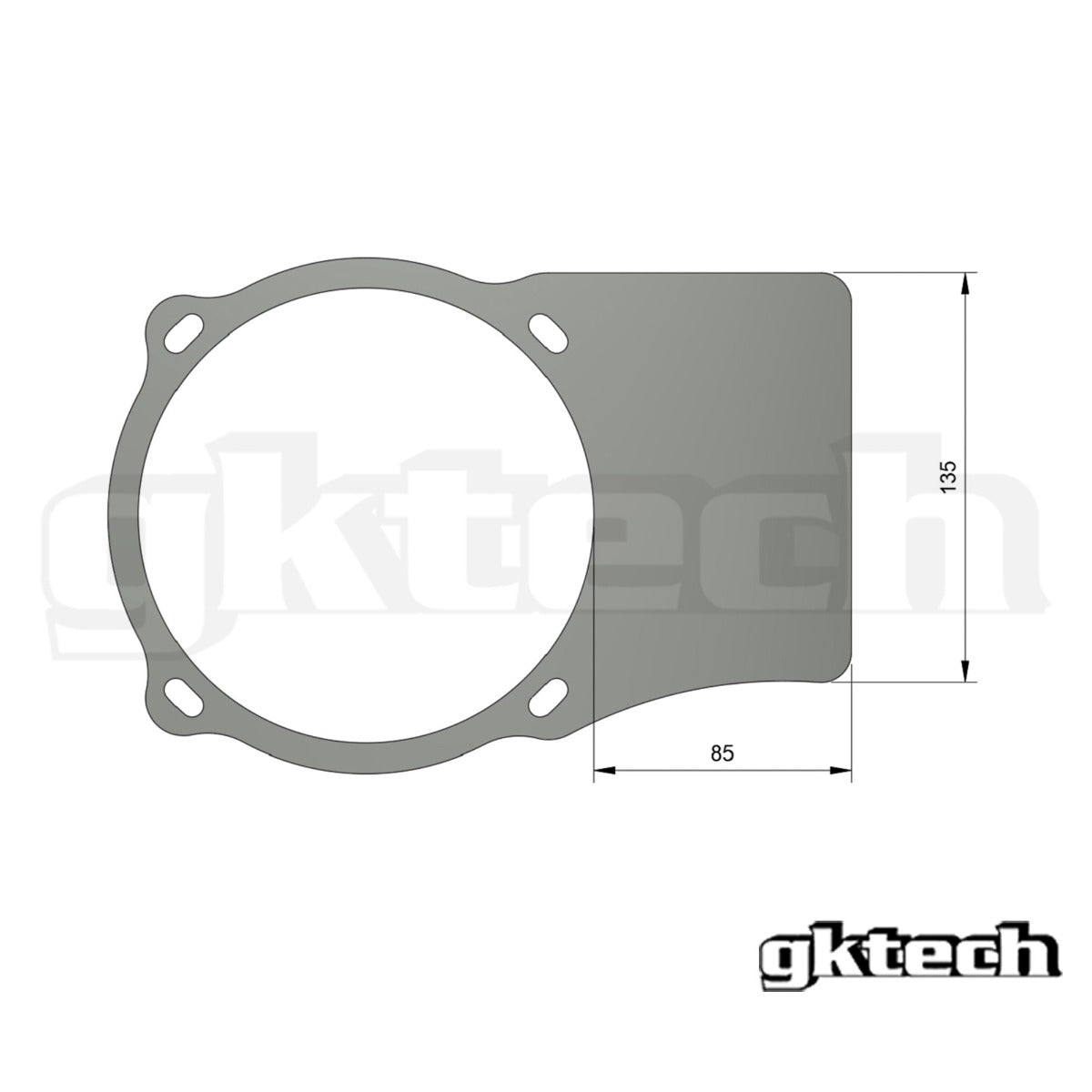

Unfortunatley, we can't guarantee fitment with every brand of hydraulic handbrake on the market. What we can say is that we do show the dimensions of the bracket here so please refer to it to gauge whether you think it will work with your setup or not. For those using our hydro we have 240sx car specific mounts as seen here: https://au.gktech.com/s-chassis-car-specific-handbrake-mount/
Are any permanent modifications required to fit this bracket?
No, you do not need to make any permanent modifications to your vehicle to fit this bracket. Depending on the hydraulic handbrake assembly that you use, you may need to cut or trim the center console or have to remove it entirely but the bracket itself does not require any permanent modifications.
NissanS13 CA18 180SX
S13 CA18 SILVIA
S13 SR20 180SX
S13 SR20 SILVIA
