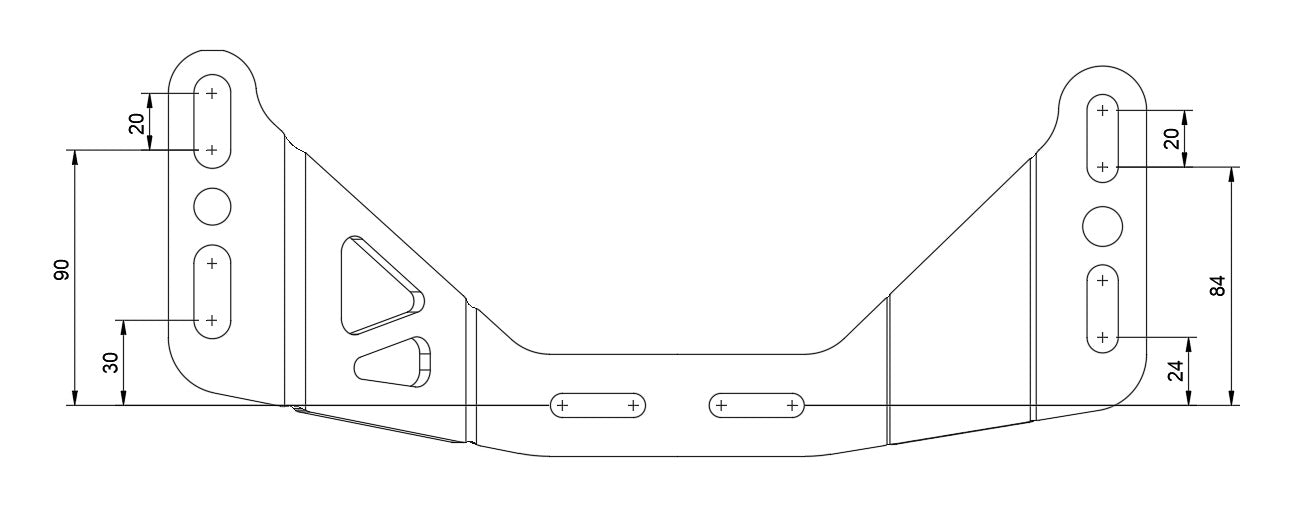

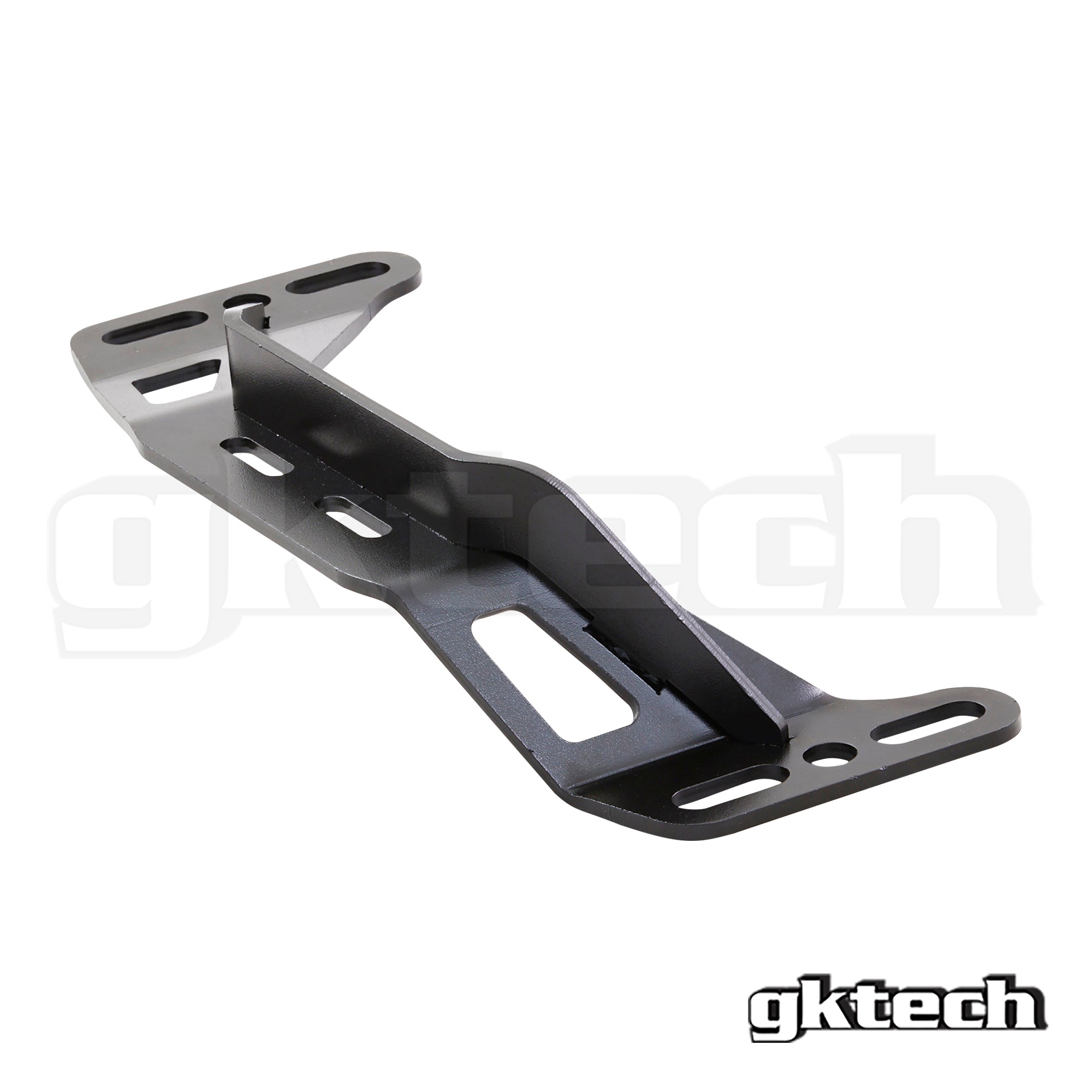

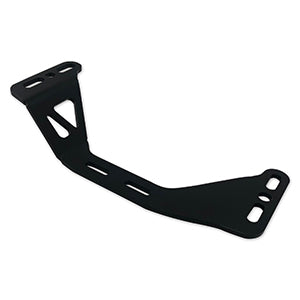

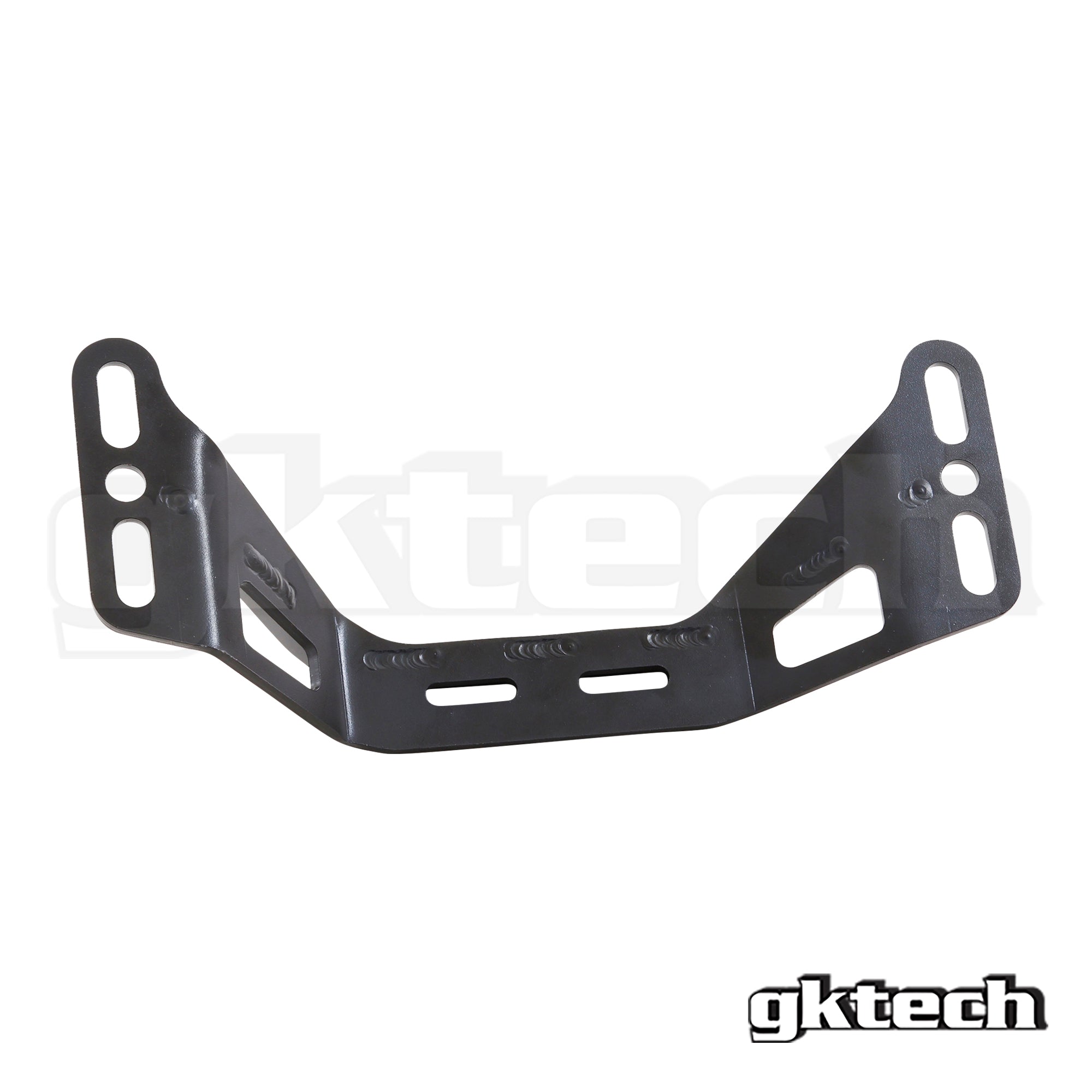

The GKTECH Z33 350Z/Z34 370z gearbox cross member has been designed as a bolt on solution when fitting these gearboxes to an S chassis when running either an SR20/KA24 motor.
The gearbox cross member has been designed to use an OEM S13/S14 gearbox mount such as our polyurethane/ solid mount that we also make, seen here;
Solid - S13/S14/S15/ R32 GTS-T SKYLINE BILLET ALUMINIUM SOLID GEARBOX MOUNT
Polyurethane - V2 POLYURETHANE GEARBOX MOUNT
- 6mm steel plate, laser cut and press bent
- CAD designed
- 20mm of adjustment to suit modified setups
- Weighs 980grams
NOTE: Fitment is based on running an SR20 or KA24. If you're running an engine that sits further back then the cross member most likely won't work.
We can't confirm every possible configuration but we can confirm that if you are using an adapter plate with an SR20 or KA24 in an S13, S14 or S15 with a Z33 or Z34 gearbox that our cross member will fit provided the gearbox has been machined down to suit.If you are using a kit that pushes the setup further back and does not require machining, we cannot gaurantee fitment. Which also means ifyou're running an engine that sits further back then the cross member most likely won't work.
Do you sell adapter plates or other conversion parts?
At this point in time we are only making shifters and gear box cross members.
Do you sell a gearbox mount to suit this cross member?
We do sell a direct OEM replacement gearbox mount that does fit, however, you will need to shave one side of the mount slightly, both variants can be seen here;
S13/S14/S15/R32 GTS-T Skyline billet aluminium solid gearbox mount
V2 Polyurethane gearbox mount
S13 CA18 180SX
S13 CA18 SILVIA
S13 SR20 180SX
S13 SR20 SILVIA
Super impressed on the fit, lots of room for adjustment, and made the trans sit higher, compared to mazworx mount. Highly recommend for SR20 with CD009 trans.
Thanks guys every time I have purchased from your website its always come on time and the parts have been at the highest of quality. I have been buying parts from these boys for 14 years and have never had a issue! Ps. thanks heaps for making a Gtr and Silvia banner they look amazing in my garage cheers!
Did not work with my S15 as the box sat further back, had to have cross member modified at extra cost
Hi Layne, as you had mentioned in your review for the shifter the cross member didn't line up as intended due to your dual mass flywheel.
Used in my R32 as i had fitted a th400 auto into it. Allowed me to make the mounts up a lot easier
I am Extatic with this product GKTECH is Awsome I would truly recommend them #2jz w/ nismo370z trans
