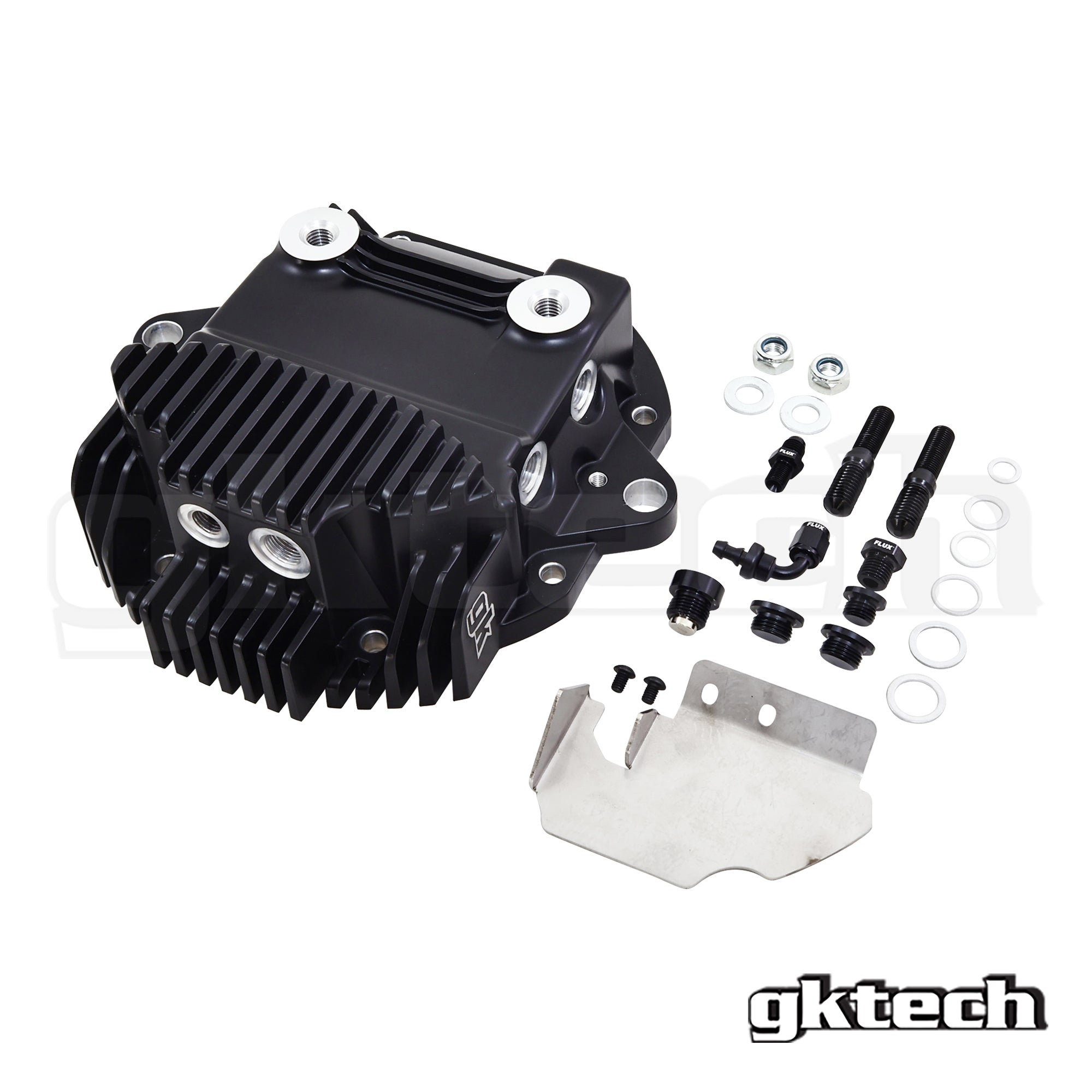

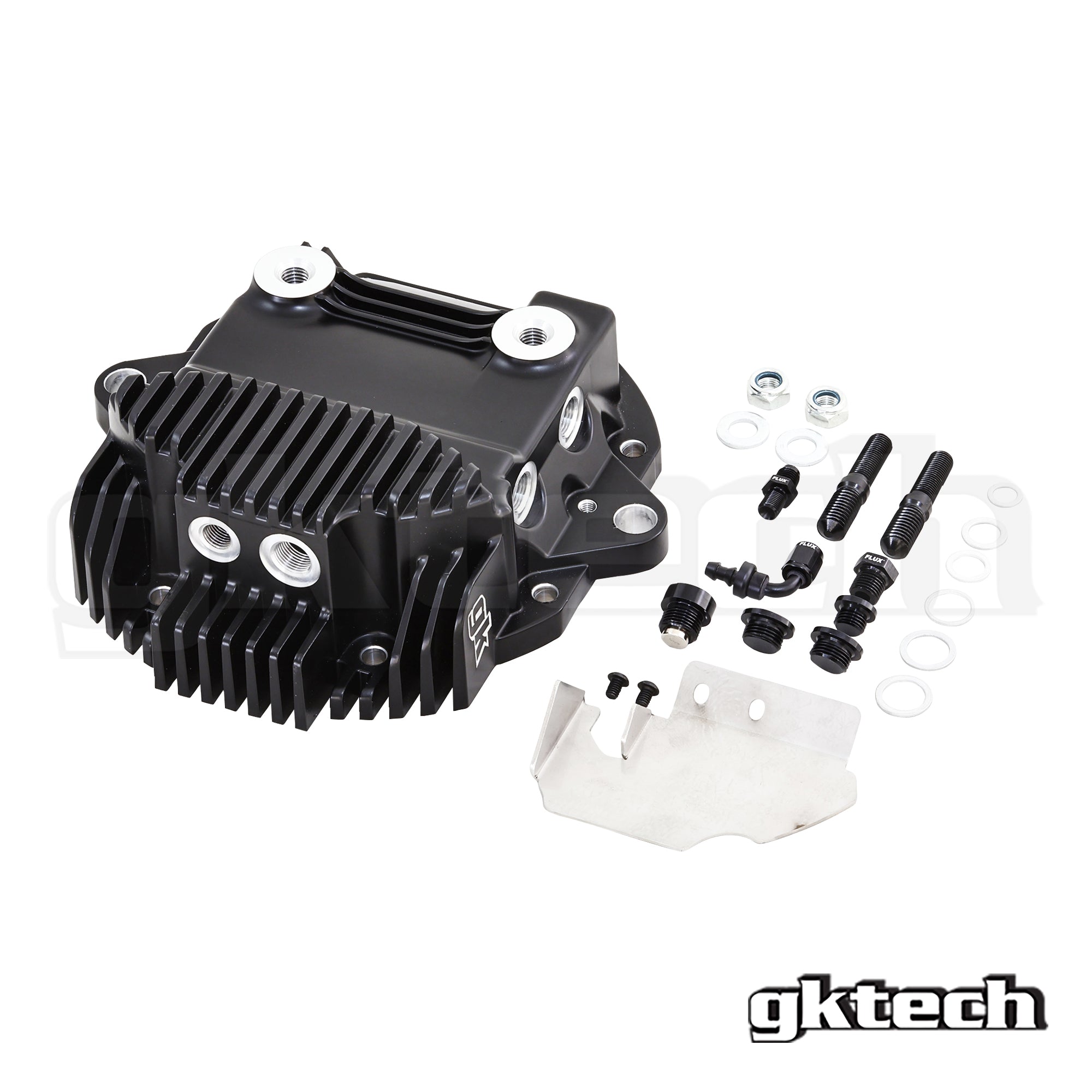

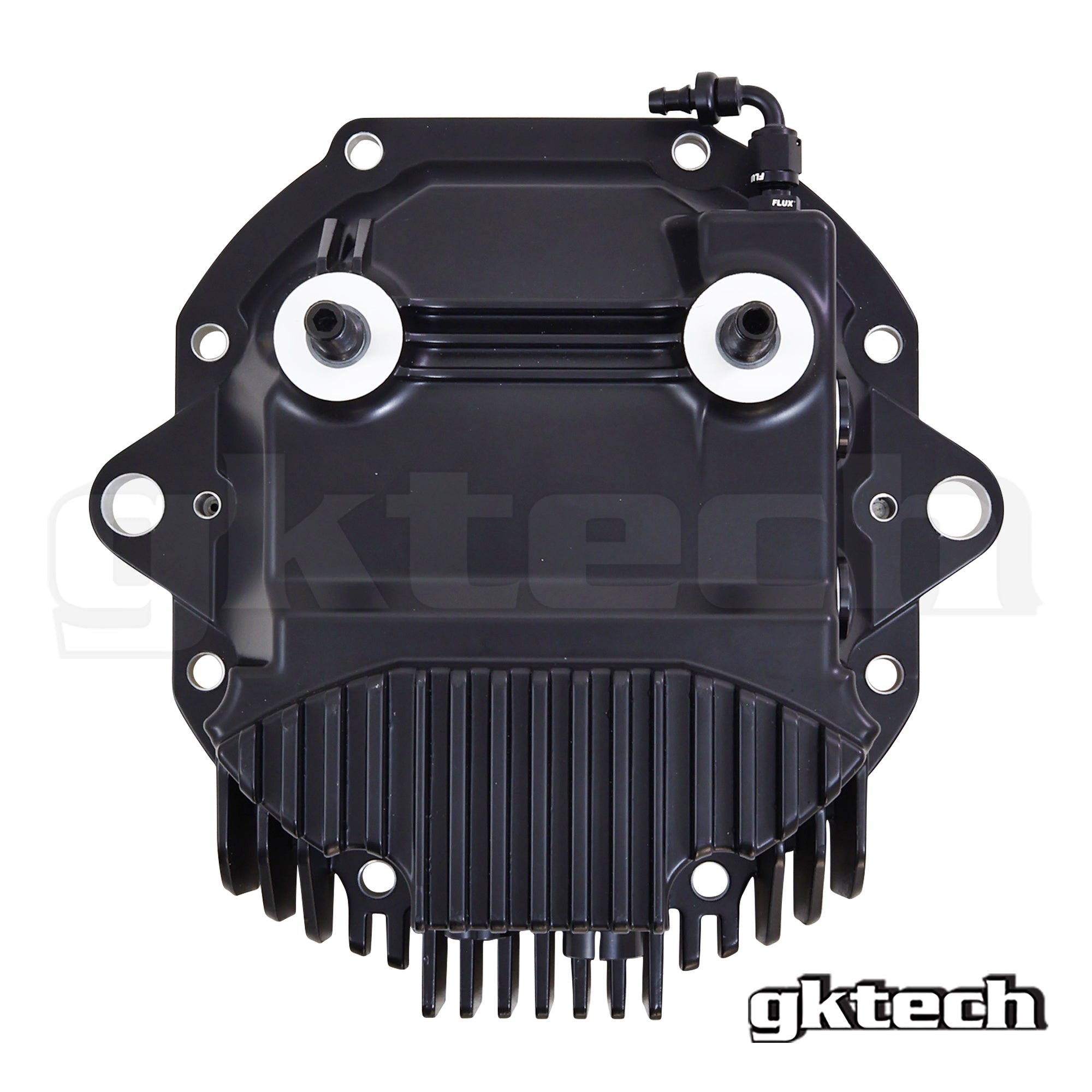

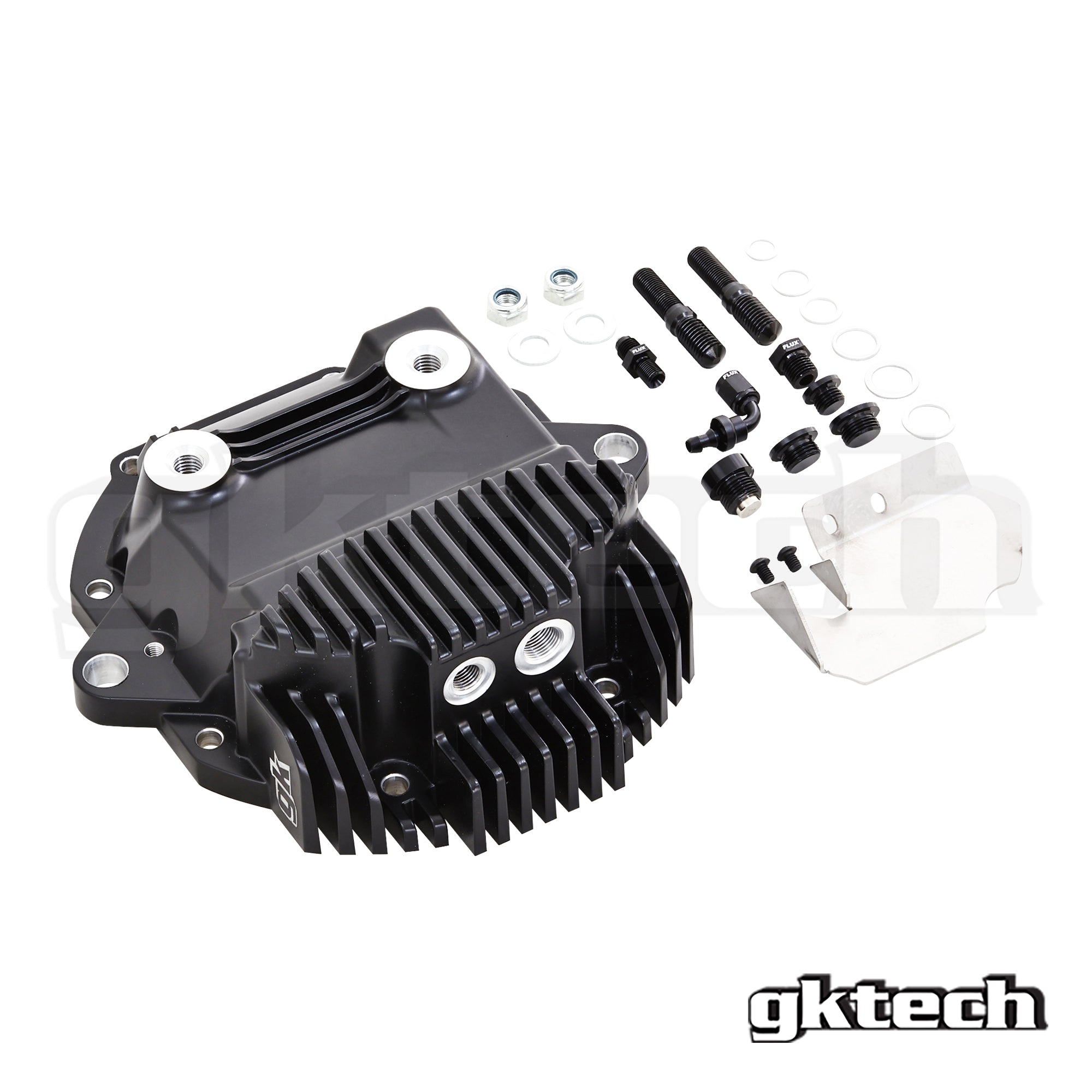

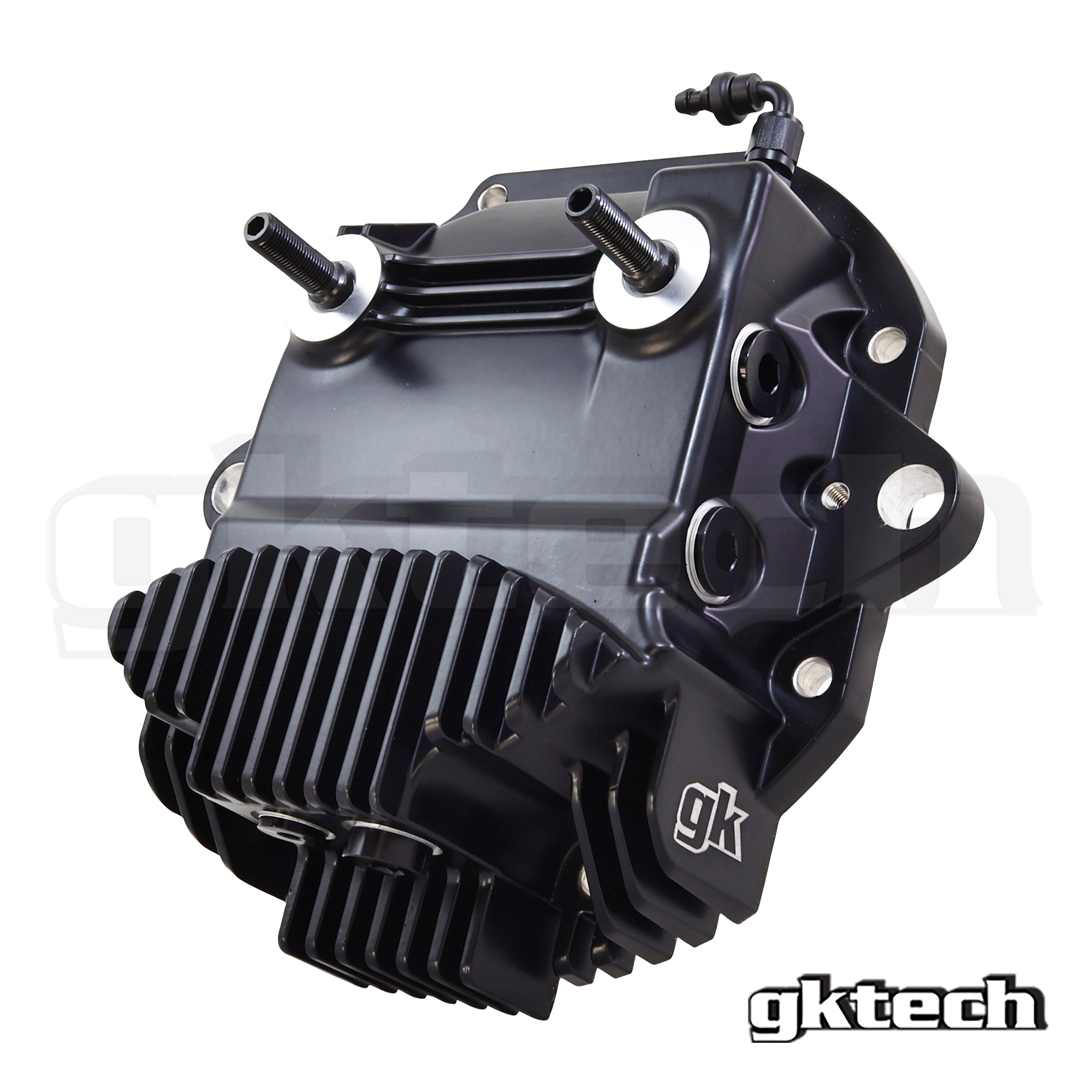

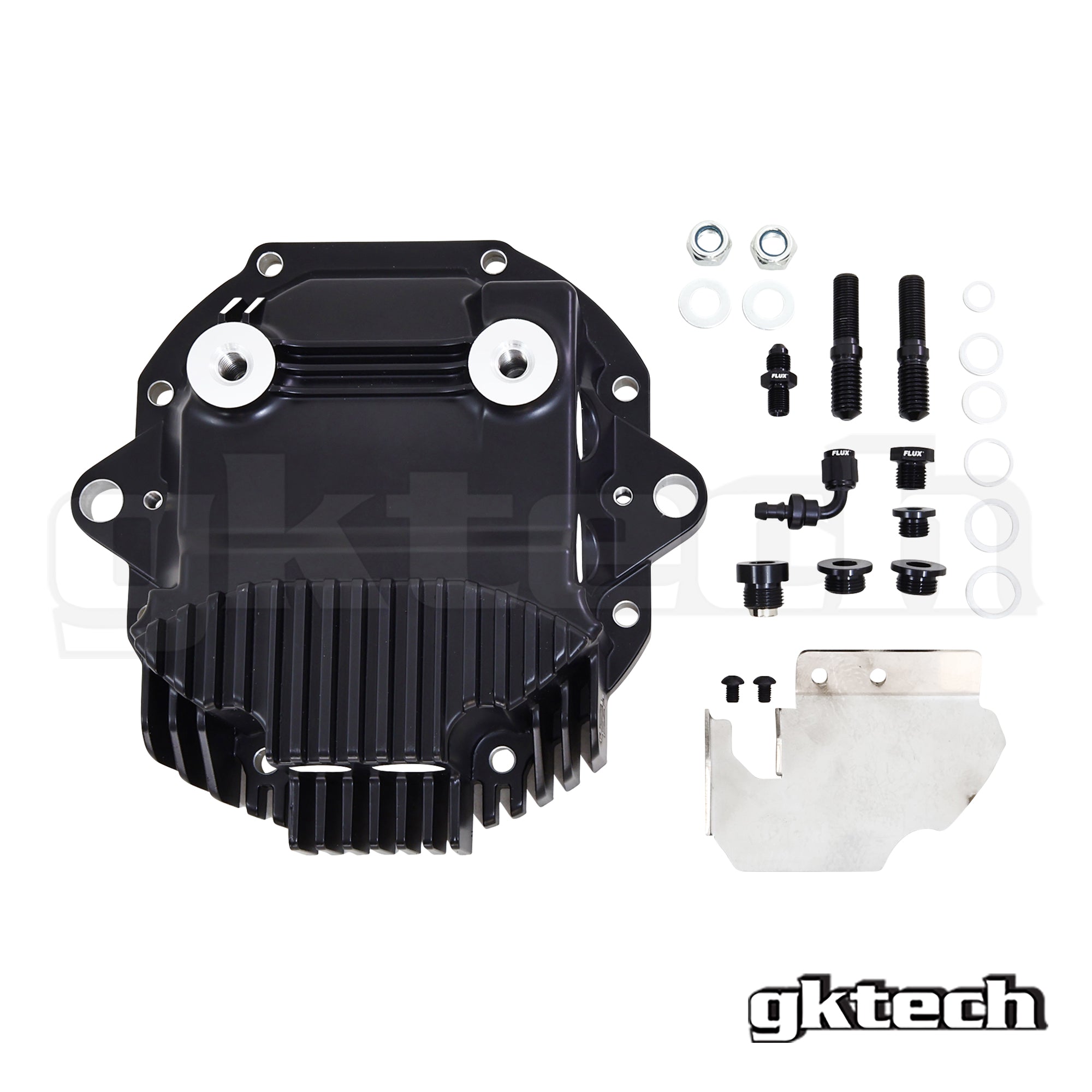

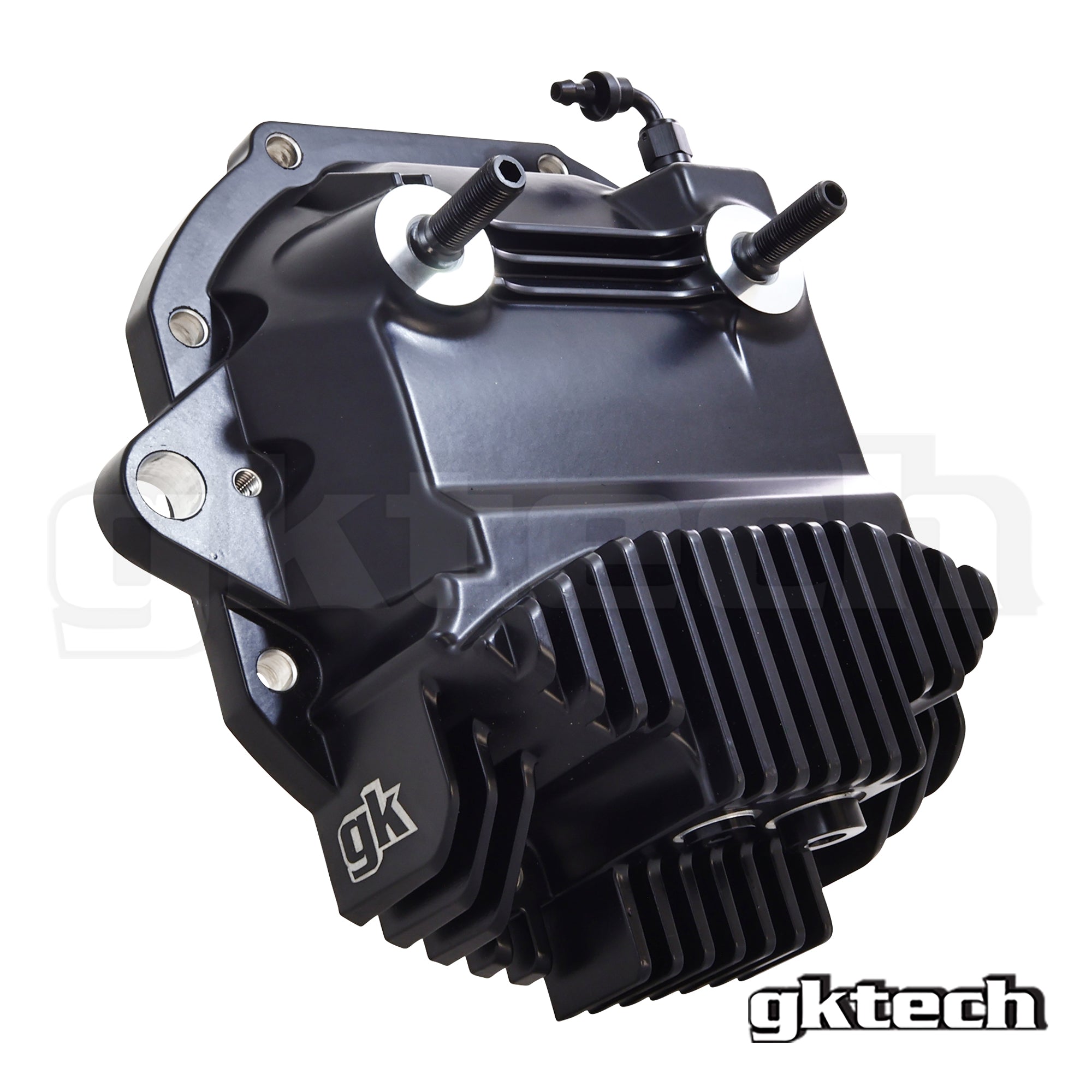

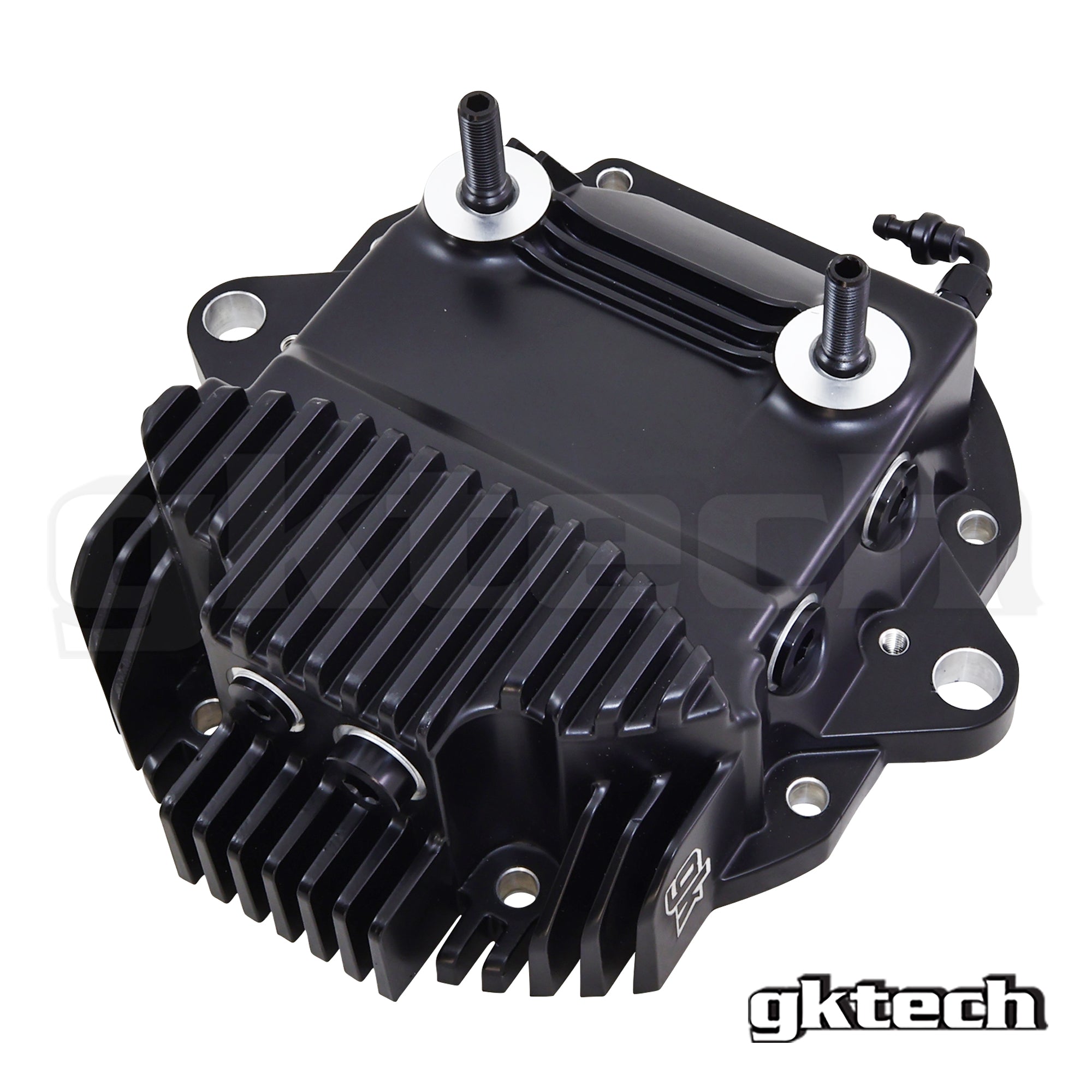

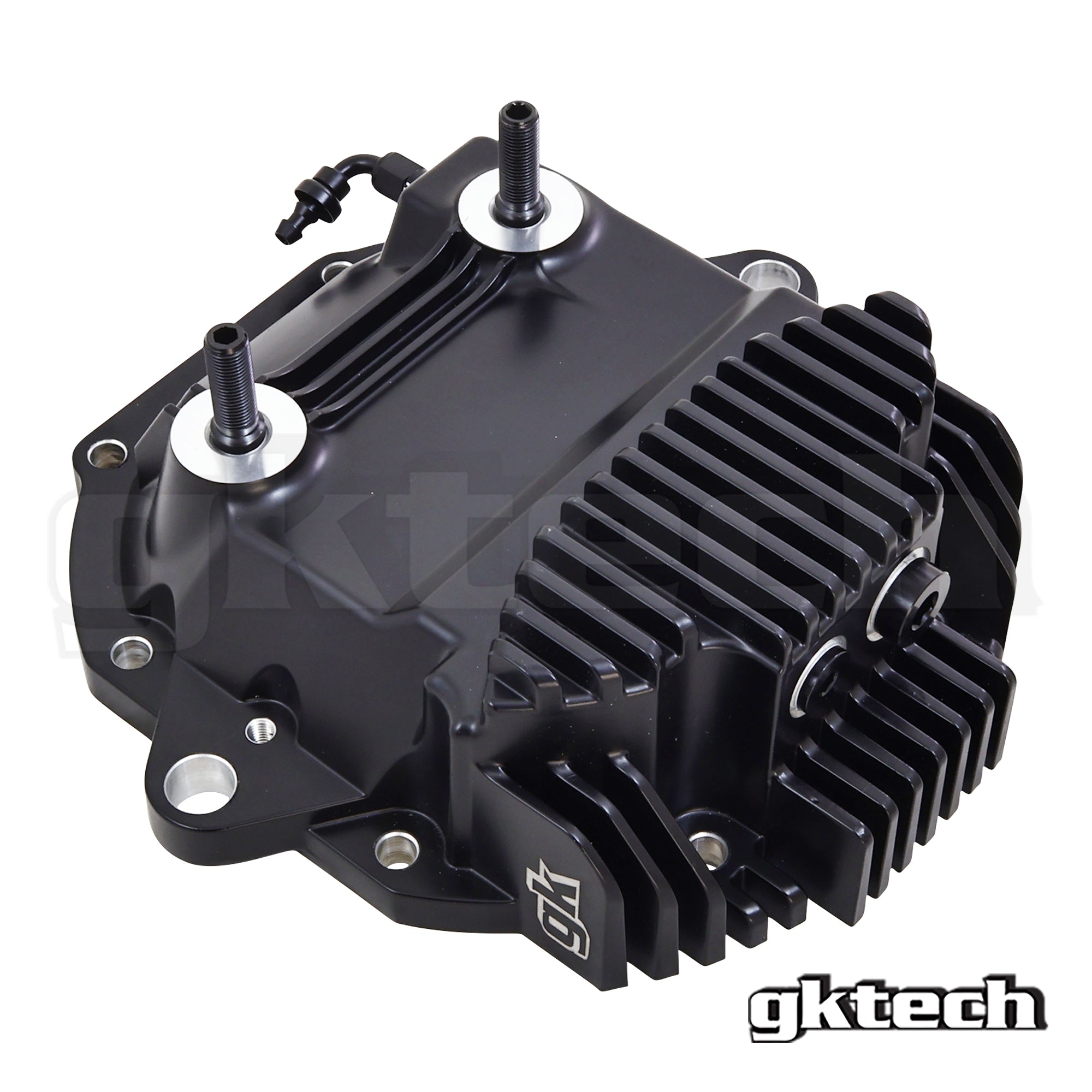

The GKTECH Z33 and Z34 dual stud diff covers were purpose designed in house for grip racing, drifting and drag racing. With the Z33 and Z34 OEM diff cover using a single stud at the rear it is incredibly prone to breakage in high grip/hp setups. We are confident this is the BEST aftermarket diff cover available!

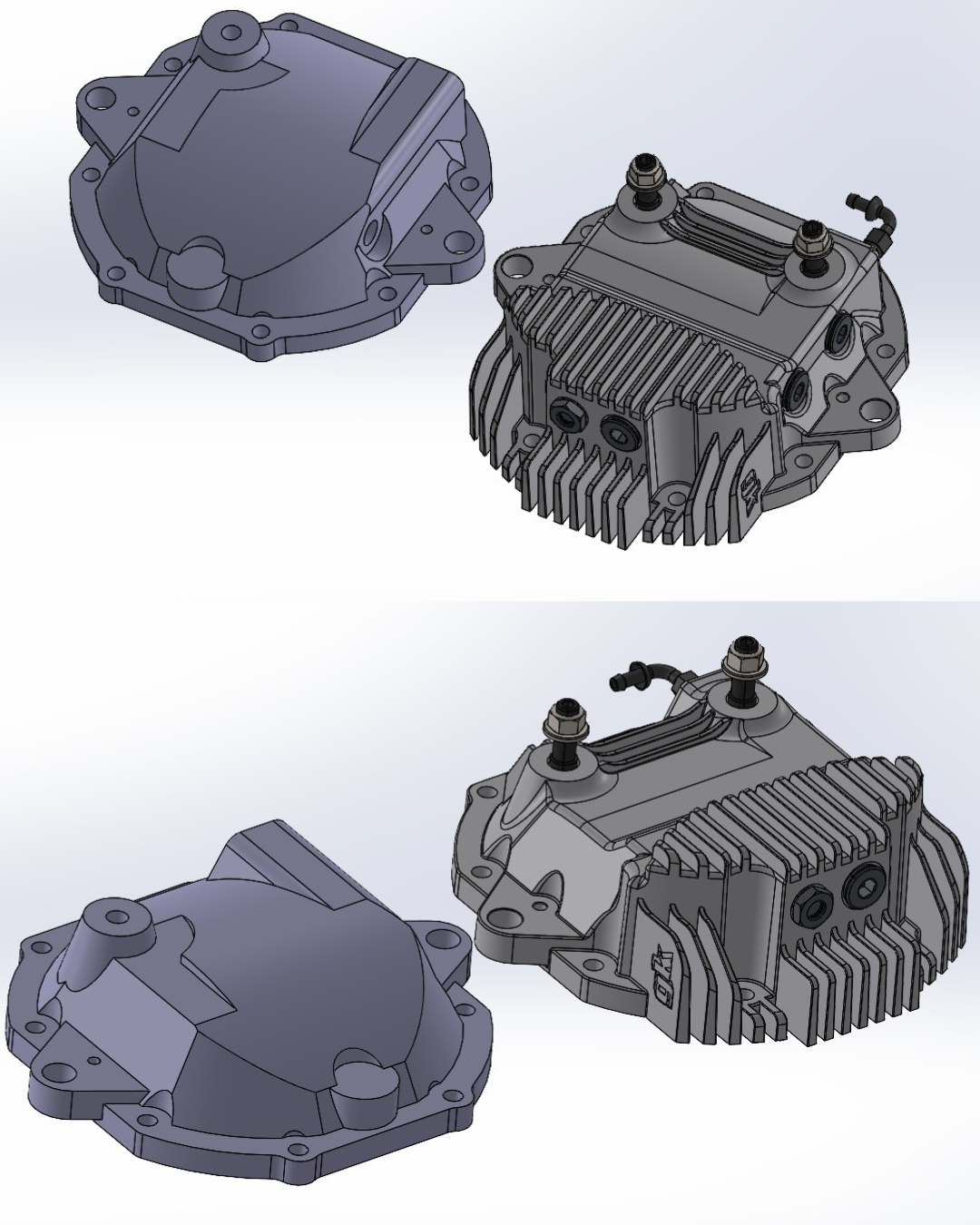

Through a lengthy design phase, destructive testing and a lot of real world drifting and drag car testing - this is the end result. It's no secret our billet dual stud diff covers were a popular piece, but by going down the route of proprietary Aluminium Alloy used for casting we've been able to make these more accessible and more affordable than EVER before.
Stronger than OEM in EVERY way possible, added stud mounting ribs, increased thickness, single and dual stud compatible, increased oil capacity, added cooling fins and much much more.
Check out the full list of benefits here:
- Increased overall thickness by 10%
- Increased oil capacity by 0.5L
Through a lengthy design phase, destructive testing and a lot of real world drifting and drag car testing - this is the end result. It's no secret our billet dual stud diff covers were a popular piece, but by going down the route of proprietary Aluminium Alloy used for casting we've been able to make these more accessible and more affordable than EVER before.
Stronger than OEM in EVERY way possible, added stud mounting ribs, increased thickness, single and dual stud compatible, increased oil capacity, added cooling fins and much much more.
Check out the full list of benefits here:
- Increased overall thickness by 10%
- Increased oil capacity by 0.5L

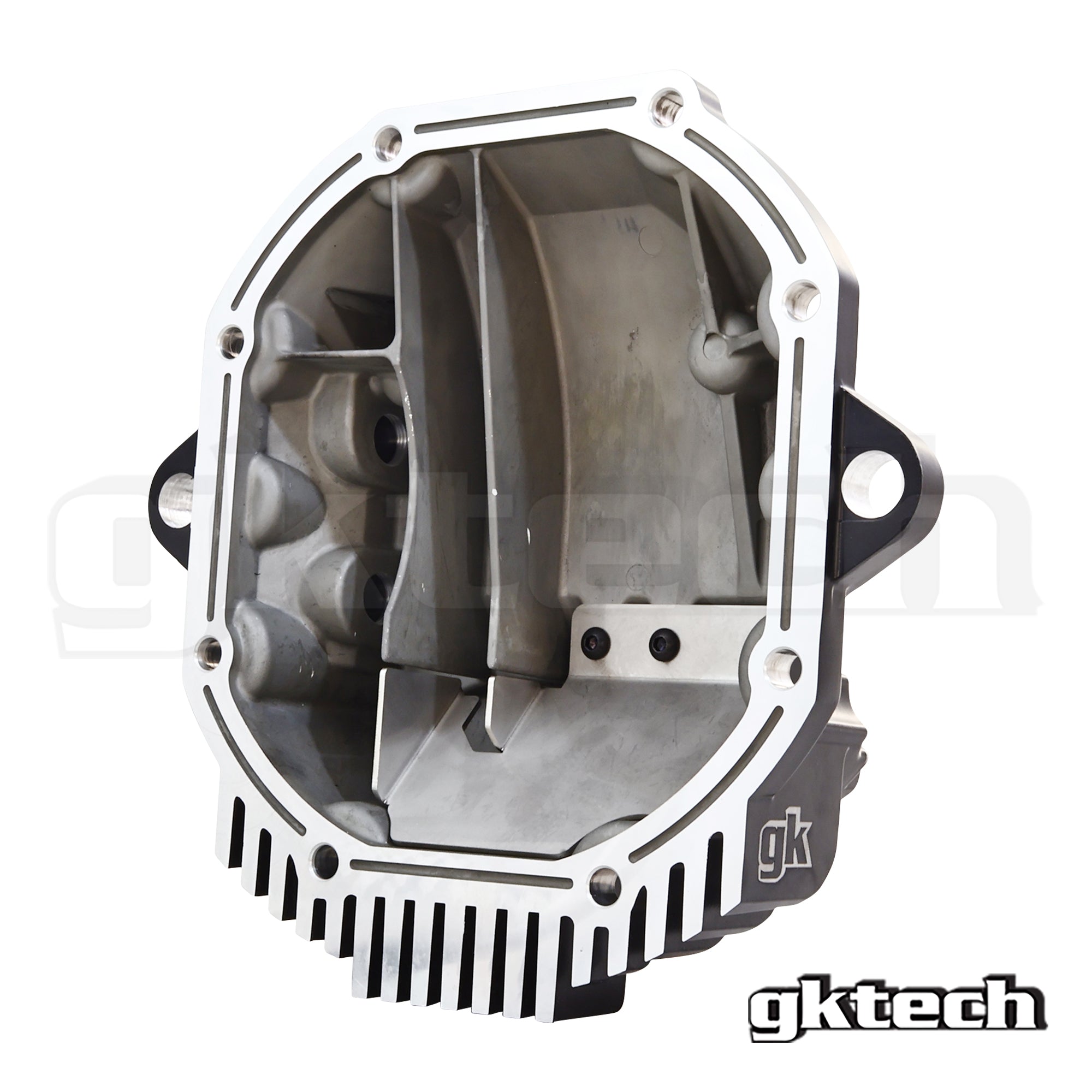

- Internal stainless steel baffle to replicate OEM fluid flow and distribution
- Proprietary Aluminium Alloy used for casting
- Added stud mounting support ribs
- Dual stud mounting options to suit everyone SOLD SEPARATELY

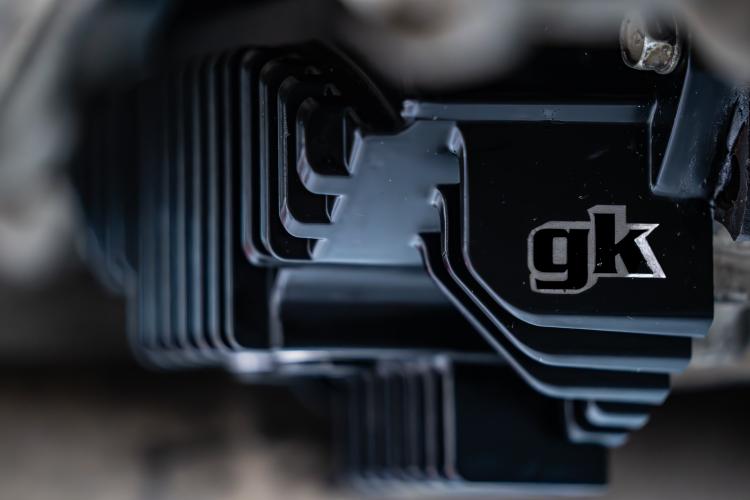

- Cooling fins for increased passive coolant efficiency
- Proprietary Aluminium Alloy used for casting
- Added stud mounting support ribs
- Dual stud mounting options to suit everyone SOLD SEPARATELY
- Cooling fins for increased passive coolant efficiency

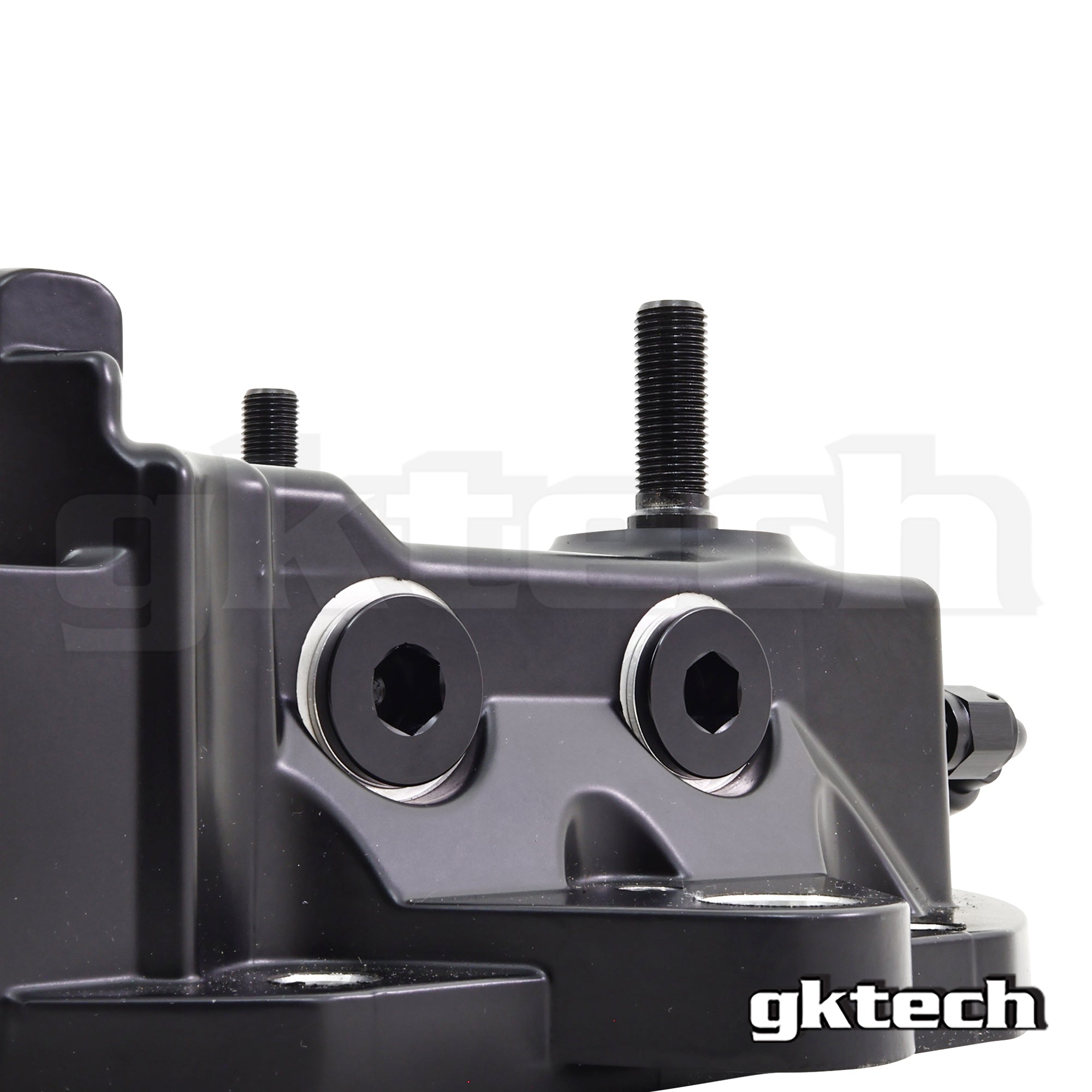

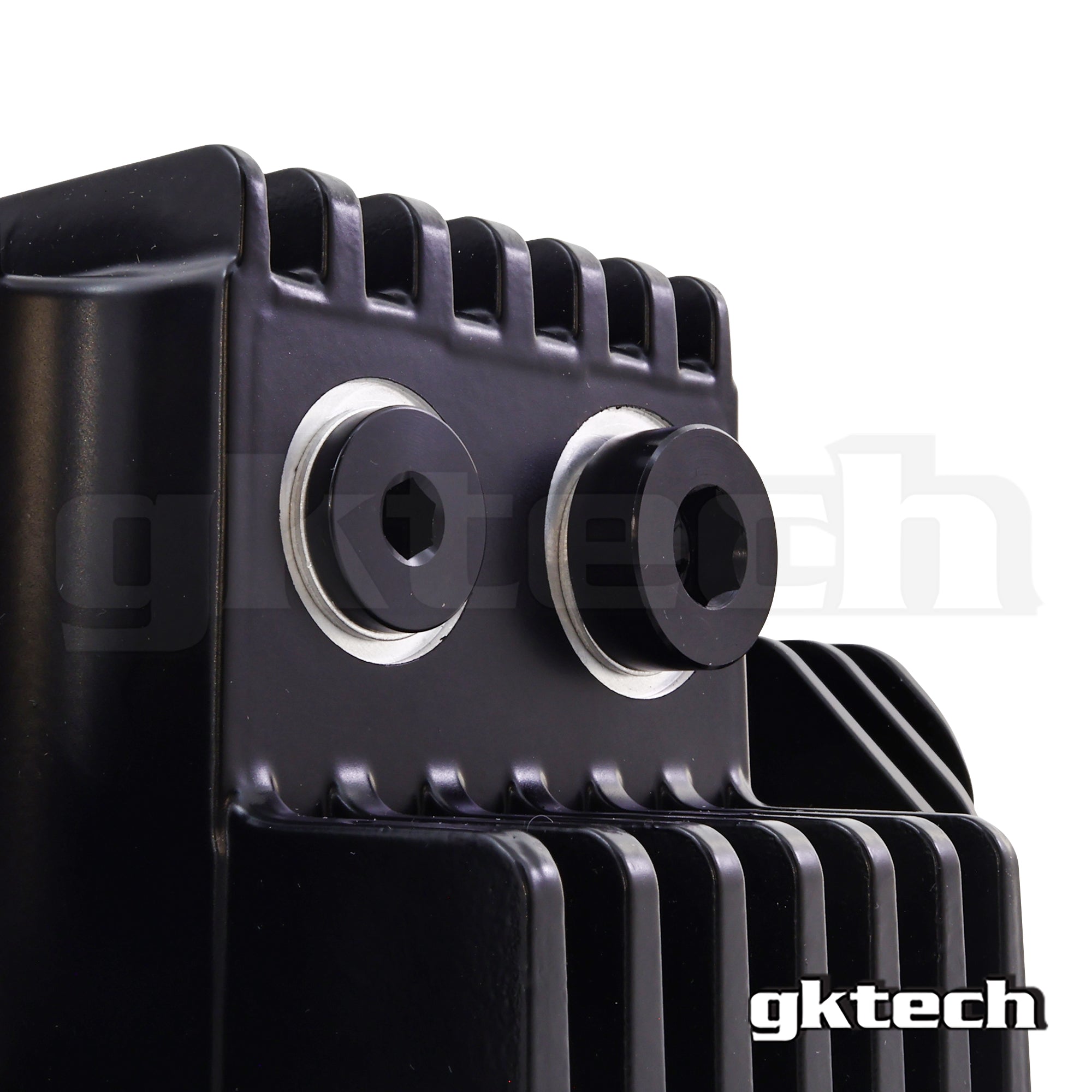

- Additional M18 x 1.5 port for use with external coolers
- Additional M14 x 1.5 port for compatibility with RZ34 OEM temperature sensor
- M14 x 1.5 to NPT adapter for aftermarket temperature sensors (non RZ34)
- Magnetic drain plug

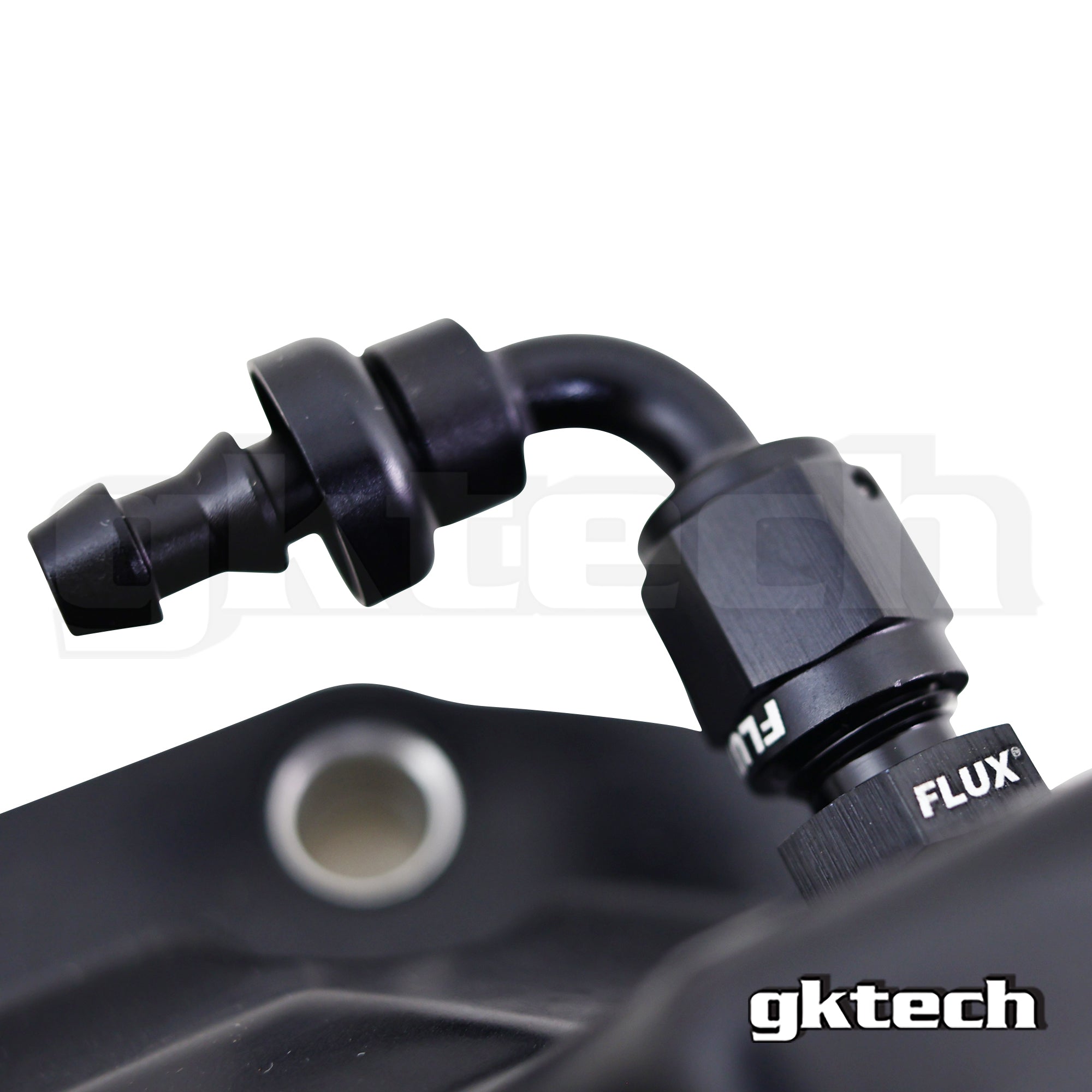

- Flux AN fittings throughout
- Durable black powder coating
To ensure our diff cover is stronger than OEM we did some in-house destructive testing, resulting in over a 20% strength increase in single stud application and even more in dual stud configuration: Breaking our 15 tonne hydraulic press.
To further make this more accessible for everyone, we've been working hard on ensuring a suitable mounting option for everyone - from solid bushing dual stud, polyurethane dual stud options, bolt in or weld in bushings etc. Even including diff bush removal tools when needed!
INSTALL KITS:
350Z / Z33: HERE
370Z / Z34 / RZ34: HERE
NOTE: Not compatible with the use of a diff brace, including our own. We strongly suggest using this cover in a dual stud format.
NOTE #2: INSTALL KITS SOLD SEPARATELY, SEE ABOVE LINKS.
NOTE #3: When used with the conversion bushes our dual stud diff covers are compatible with S/R chassis subframes. You can find the bushings HERE.
- M14 x 1.5 to NPT adapter for aftermarket temperature sensors (non RZ34)
- Magnetic drain plug
- Flux AN fittings throughout
- Durable black powder coating
To ensure our diff cover is stronger than OEM we did some in-house destructive testing, resulting in over a 20% strength increase in single stud application and even more in dual stud configuration: Breaking our 15 tonne hydraulic press.
To further make this more accessible for everyone, we've been working hard on ensuring a suitable mounting option for everyone - from solid bushing dual stud, polyurethane dual stud options, bolt in or weld in bushings etc. Even including diff bush removal tools when needed!
INSTALL KITS:
350Z / Z33: HERE
370Z / Z34 / RZ34: HERE
NOTE: Not compatible with the use of a diff brace, including our own. We strongly suggest using this cover in a dual stud format.
NOTE #2: INSTALL KITS SOLD SEPARATELY, SEE ABOVE LINKS.
NOTE #3: When used with the conversion bushes our dual stud diff covers are compatible with S/R chassis subframes. You can find the bushings HERE.
GKTECH
Z33 350z/Z34 370z & RZ34 Extended dual stud diff cover (Cover only)
What is a Backorder?
Q: What is backorder?
When a product is on backorder, it means that we have sold out and we are opening a back order due to popular demand. This is essentially a queue, when new stock arrives from production, we’ll send your order.Q: Will items in my order that are in stock be shipped out first?
We will send your order altogether once your backorder item is ready! You may wish to place separate orders if you want an item before the other is due back in stock.
Checking Dispatch Times...
*
We do aim to achieve this every day, but please note that this is not a guarantee and is subject to daily order volumes.
Fast Dispatch
Checking Dispatch Times...
*
We do aim to achieve this every day, but please note that this is not a guarantee and is subject to daily order volumes.
Checking Dispatch Times...
*
We do aim to achieve this every day, but please note that this is not a guarantee and is subject to daily order volumes.
Free Shipping + Express Post options available
Free shipping Australia wide on orders over $250
*
We offer FREE STANDARD POSTAGE* within Australia when you purchase $250 or more in a single order.
Store Pickup
Pickup available at Williamstown North
Order and get reward points
Earn 5% back in reward points, that is $20.45 worth!
The GKTECH Z33 and Z34 dual stud diff covers were purpose designed in house for grip racing, drifting and drag racing. With the Z33 and Z34 OEM diff cover using a single stud at the rear it is incredibly prone to breakage in high grip/hp setups. We are confident this is the BEST aftermarket diff cover available!
Through a lengthy design phase, destructive testing and a lot of real world drifting and drag car testing - this is the end result. It's no secret our billet dual stud diff covers were a popular piece, but by going down the route of proprietary Aluminium Alloy used for casting we've been able to make these more accessible and more affordable than EVER before.
Stronger than OEM in EVERY way possible, added stud mounting ribs, increased thickness, single and dual stud compatible, increased oil capacity, added cooling fins and much much more.
Check out the full list of benefits here:
- Increased overall thickness by 10%
- Increased oil capacity by 0.5L
Through a lengthy design phase, destructive testing and a lot of real world drifting and drag car testing - this is the end result. It's no secret our billet dual stud diff covers were a popular piece, but by going down the route of proprietary Aluminium Alloy used for casting we've been able to make these more accessible and more affordable than EVER before.
Stronger than OEM in EVERY way possible, added stud mounting ribs, increased thickness, single and dual stud compatible, increased oil capacity, added cooling fins and much much more.
Check out the full list of benefits here:
- Increased overall thickness by 10%
- Increased oil capacity by 0.5L
- Internal stainless steel baffle to replicate OEM fluid flow and distribution
- Proprietary Aluminium Alloy used for casting
- Added stud mounting support ribs
- Dual stud mounting options to suit everyone SOLD SEPARATELY
- Cooling fins for increased passive coolant efficiency
- Proprietary Aluminium Alloy used for casting
- Added stud mounting support ribs
- Dual stud mounting options to suit everyone SOLD SEPARATELY
- Cooling fins for increased passive coolant efficiency
- Additional M18 x 1.5 port for use with external coolers
- Additional M14 x 1.5 port for compatibility with RZ34 OEM temperature sensor
- M14 x 1.5 to NPT adapter for aftermarket temperature sensors (non RZ34)
- Magnetic drain plug
- Flux AN fittings throughout
- Durable black powder coating
To ensure our diff cover is stronger than OEM we did some in-house destructive testing, resulting in over a 20% strength increase in single stud application and even more in dual stud configuration: Breaking our 15 tonne hydraulic press.
To further make this more accessible for everyone, we've been working hard on ensuring a suitable mounting option for everyone - from solid bushing dual stud, polyurethane dual stud options, bolt in or weld in bushings etc. Even including diff bush removal tools when needed!
INSTALL KITS:
350Z / Z33: HERE
370Z / Z34 / RZ34: HERE
NOTE: Not compatible with the use of a diff brace, including our own. We strongly suggest using this cover in a dual stud format.
NOTE #2: INSTALL KITS SOLD SEPARATELY, SEE ABOVE LINKS.
NOTE #3: When used with the conversion bushes our dual stud diff covers are compatible with S/R chassis subframes. You can find the bushings HERE.
- M14 x 1.5 to NPT adapter for aftermarket temperature sensors (non RZ34)
- Magnetic drain plug
- Flux AN fittings throughout
- Durable black powder coating
To ensure our diff cover is stronger than OEM we did some in-house destructive testing, resulting in over a 20% strength increase in single stud application and even more in dual stud configuration: Breaking our 15 tonne hydraulic press.
To further make this more accessible for everyone, we've been working hard on ensuring a suitable mounting option for everyone - from solid bushing dual stud, polyurethane dual stud options, bolt in or weld in bushings etc. Even including diff bush removal tools when needed!
INSTALL KITS:
350Z / Z33: HERE
370Z / Z34 / RZ34: HERE
NOTE: Not compatible with the use of a diff brace, including our own. We strongly suggest using this cover in a dual stud format.
NOTE #2: INSTALL KITS SOLD SEPARATELY, SEE ABOVE LINKS.
NOTE #3: When used with the conversion bushes our dual stud diff covers are compatible with S/R chassis subframes. You can find the bushings HERE.
Choose options
Quantity:
Quantity:
FAQs
Will this fit my car?We can only confirm fitment for the vehicles listed above under "vehicle compatibility". Note that the difference between Z33 and Z34 specific versions is based on the subframe. Z33 350z version is to suit an aluminum subframe and the Z34 370z version is to suit a steel subframe.
Do you make these to suit other cars?
We unfortunately don't offer these for any other vehicles at present.
What's the advantage of using the GKTech extended diff cover?
This beautiful piece of engineering provides an extra 500cc capacity over the standard cover, incorporates a secondary diff stud and has the provision for an external cooler. This extra capacity helps regulate diff oil reducing wear of your LSD/bearings.
What modifications are required, is this hard to fit?
The secondary diff bush must be installed using our template. It's pretty straight forward and so long as you have a standard sized holesaw, and a welder if opting for the weld in bush, it's easy.
Is there anything else needed for installation?
No, the secondary diff bush will be included, diff studs are included along with all plugs, breather etc.
Will this diff cover work with a car that has 4WS?
No, this cover won't fit a 4WS subframe.
Can I use this cover in conjunction with the OEM diff bushing?
It is not recommended and we would advise strongly against it. Using a secondary diff stud is really advantegous in helping get power to the ground. If you were to have 1 bush solid mounted and the other as the OEM rubber bushing, the loads would be unqeual and would put unnecessary load on the cover. A Polyurethane bushing may be ok but we do recommend the use of a solid primary bush (which we do have available separately)
VEHICLE COMPATIBILITY
Nissan
RZ34 ZV35 SKYLINE
Z33 350Z
Z34 370Z
