4130 high tensile steel steering rack spacer set

AU$36.00

Availability: In stock

Ships today if ordered in the next 8 hours and 17 minutes!

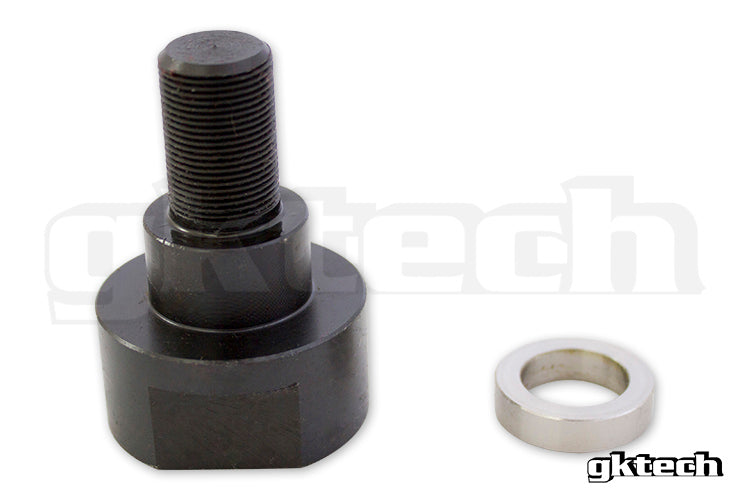

The GKTECH high tensile 4130 zinc coated tie rod extenders screw on to the end of either standard or aftermarket tie rods and allow the tie rods to travel further into the steering rack which creates more steering lock. Great for drift or getting out of parking spots. Can be used either with or without the extra washer (included) to offer a grand total of 19mm's extra lock without compromising on the amount of thread left in the steering rack.

- DIY installation (not as easy as the washer install but still not too hard)
- CNC machined high tensile zinc coated 4130 steel

Vehicle Compatibility:
- Nissan 180sx
- Nissan S13 Silvia
- Nissan S14 200SX
- Nissan S15 200SX
- Nissan Skyline R32 GTS-T (2WD)
- Nissan Skyline R33 GTS-T (2WD)
- Nissan Skyline R34 GTT (2WD)
- Nissan Cefiro A31
- Nissan Z32 300ZX
- Nissan Z33 350Z
- Nissan V35 Skyline

Description

The GKTECH high tensile 4130 zinc coated tie rod extenders screw on to the end of either standard or aftermarket tie rods and allow the tie rods to travel further into the steering rack which creates more steering lock. Great for drift or getting out of parking spots. Can be used either with or without the extra washer (included) to offer a grand total of 19mm's extra lock without compromising on the amount of thread left in the steering rack.

- DIY installation (not as easy as the washer install but still not too hard)
- CNC machined high tensile zinc coated 4130 steel

Vehicle Compatibility:
- Nissan 180sx
- Nissan S13 Silvia
- Nissan S14 200SX
- Nissan S15 200SX
- Nissan Skyline R32 GTS-T (2WD)
- Nissan Skyline R33 GTS-T (2WD)
- Nissan Skyline R34 GTT (2WD)
- Nissan Cefiro A31
- Nissan Z32 300ZX
- Nissan Z33 350Z
- Nissan V35 Skyline

FAQ's

Do I need to buy 1 of these rack spacers or 2?

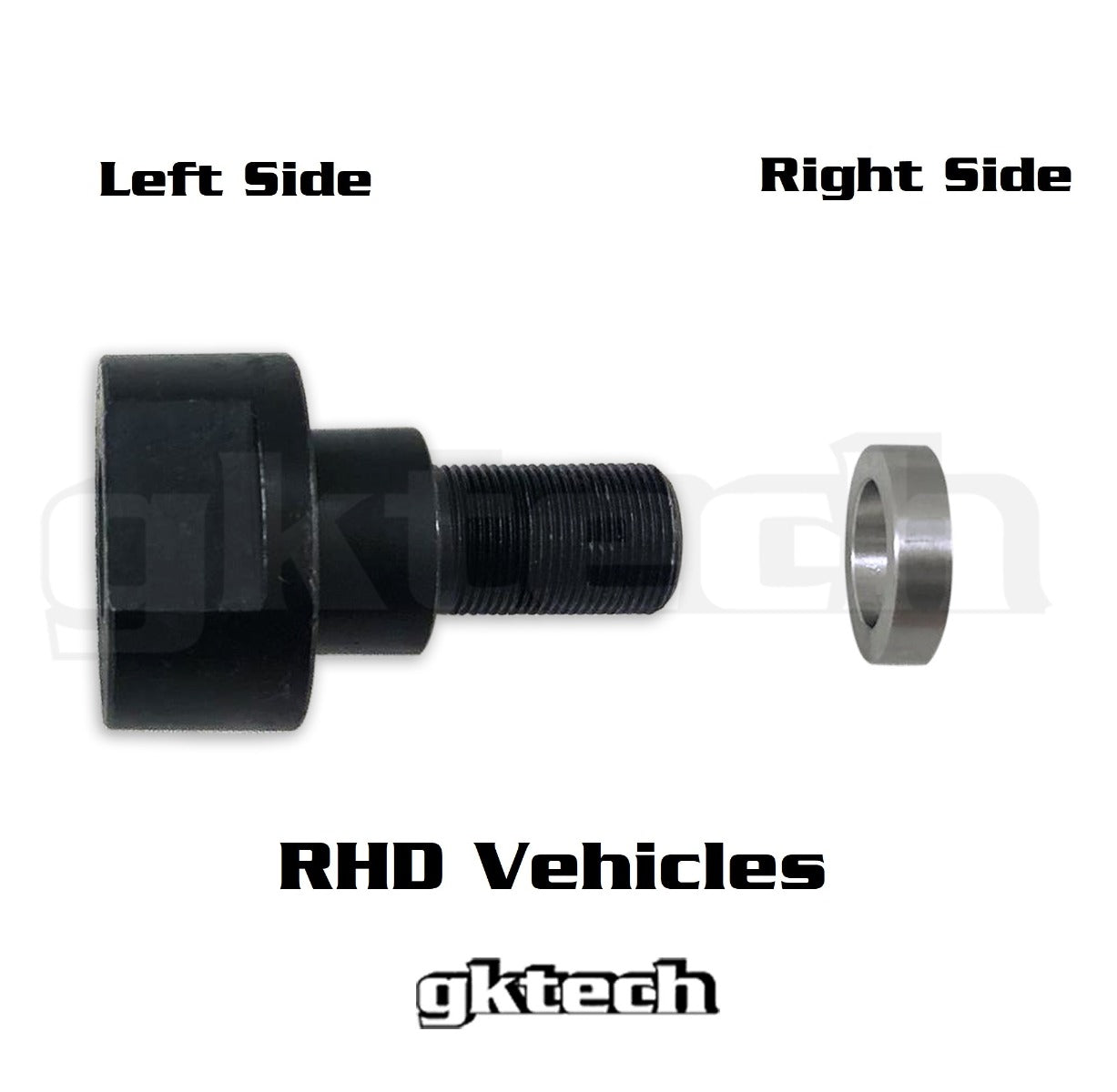

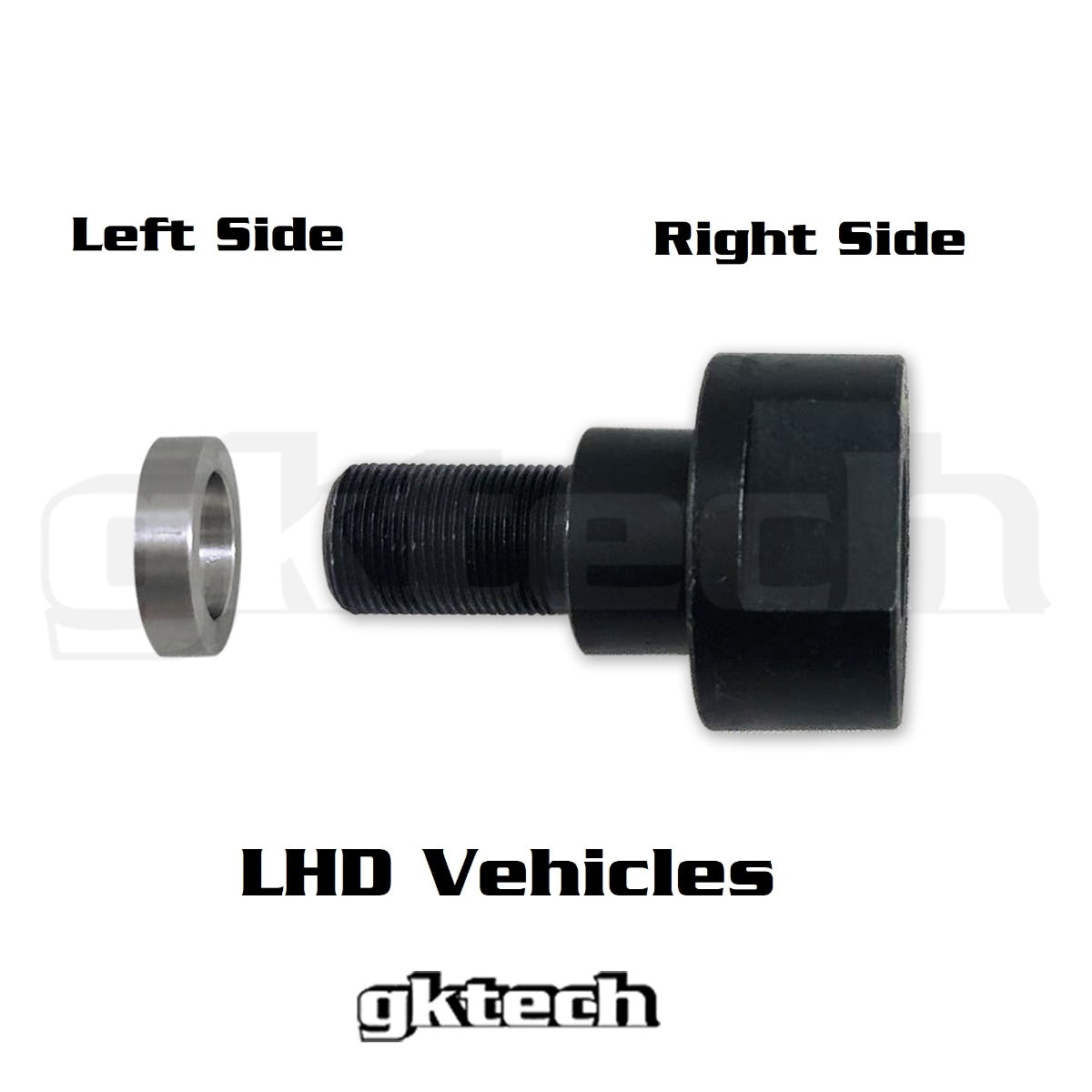

You only need to buy 1 as buying 2 offers no benefit to the improvement of the steering lock. The way that these work is that they take advantage of extra travel available within the steering rack (which does have a limit). Hence the 13mm bolt on the LH side of the rack and the 6mm washer on the RH side of the rack. Adding an extra rack spacer won't give more lock. In the event that your tie rod ends are too short then, in that case, using another bolt on rack spacer (on the RH side) would be okay but preferably you would use longer tie rods (like the ones we sell). Reducing the length of the tie rod does slightly increase bump steer, hence the reason we don't sell these in pairs.

How does this steering rack spacer work?
The steering rack spacer screws between the steering rack and your LH side tie rod. It allows the steering rack to travel an extra 13mm's while the washer which is to be installed on the RH side allows for an additional 6mm's of travel. Giving a grand total of 19mm's of additional steering rack travel = more lock.

I've installed the rack spacer and I've got a heap of toe in, what happened?

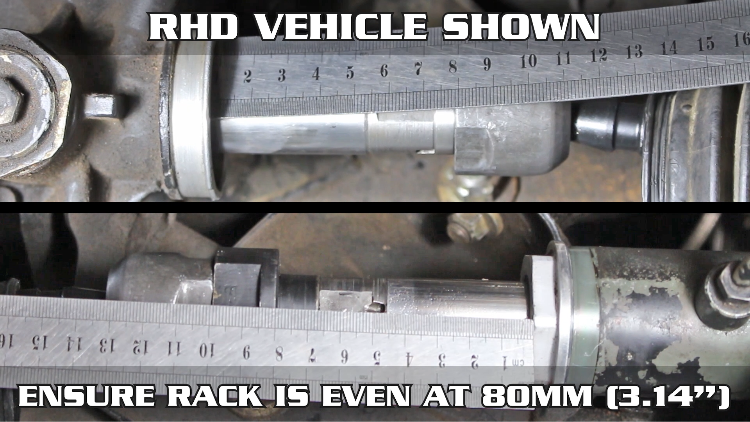

After you have centred your rack (this is CRUCIAL) you may need to trim your tie rod ends down to counteract the length that you've just put into the length of the rack. Whether you need to trim the tie rods down depends on your setup (Ie. if you've got longer LCA's or aftermarket knuckles you may not need to). Do NOT trim too much off or else you'll need to get a new tie rod and only trim down once you've centred the rack. Note that the LH side has a larger spacer so it will need the most attention.

What's the difference between this screw on steering rack spacer and the lock washers that you sell?
The steering rack spacer gives in total an additional 19mm's of travel whereas the lock washers only offer 12mm's of travel (6mm's each)

User Guide

No user install photos currently available.
