High misalignment S13/S14/S15/Skyline tie rod ends (12mm/14mm)
High misalignment S13/S14/S15/Skyline tie rod ends (12mm/14mm)
High misalignment S13/S14/S15/Skyline tie rod ends (12mm/14mm)
High misalignment S13/S14/S15/Skyline tie rod ends (12mm/14mm)
High misalignment S13/S14/S15/Skyline tie rod ends (12mm/14mm)

GKTECH

High misalignment S13/S14/S15/Skyline tie rod ends (12mm/14mm)

Sale price$239.00 AUD
SKU: M125-TROD
Tie rod ends (sold as a pair):12mm (S13/180SX/S15)
In stock
Quantity:

What is a Backorder?

Q: What is backorder?

When a product is on backorder, it means that we have sold out and we are opening a back order due to popular demand. This is essentially a queue, when new stock arrives from production, we’ll send your order.

Q: Will items in my order that are in stock be shipped out first?

We will send your order altogether once your backorder item is ready! You may wish to place separate orders if you want an item before the other is due back in stock.
Pickup available at Sunshine West, VIC 3020 Usually ready in 2 hours

High misalignment S13/S14/S15/Skyline tie rod ends (12mm/14mm)

12mm (S13/180SX/S15)

Sunshine West, VIC 3020

Pickup available, usually ready in 2 hours

Unit 11/94 Boundary Road
Sunshine West VIC 3020
Australia

📦

Free Shipping on orders over $250

Checking Dispatch Times...
* We do aim to achieve this everyday but please note that this is not a gurantee and is subject to daily order volumes.

Order and get upto 1195 reward points

Earn points by signing up for our rewards program

Product enquiry

The GKTECH high misalignment outer tie rods have 64 degrees of misalignment, 0.98" (25mm) of bump steer correction built-in and come with 3 different length shanks (to suit those with longer LCA's or aftermarket knuckles).

Although these may look pretty similar to other tie rod ends on the market, don't be fooled as they are different (in a good way). Almost all tie rod ends on the market that use heim joints are NOT using high misalignment bearings and wear out in no time at all.

OEM type tie rod ends provide around 60 degrees of misalignment and it is critical that around this level of misalignment is kept. Another common issue with most aftermarket style tie rod ends is that there is no protection from dust and dirt. We've developed dust boots specifically to suit the PCYML10T heim joints that we use in our kit. It's also pretty common for shanks to bend under high loads, our shanks have a tensile strength of 176ksi (class 12.9)

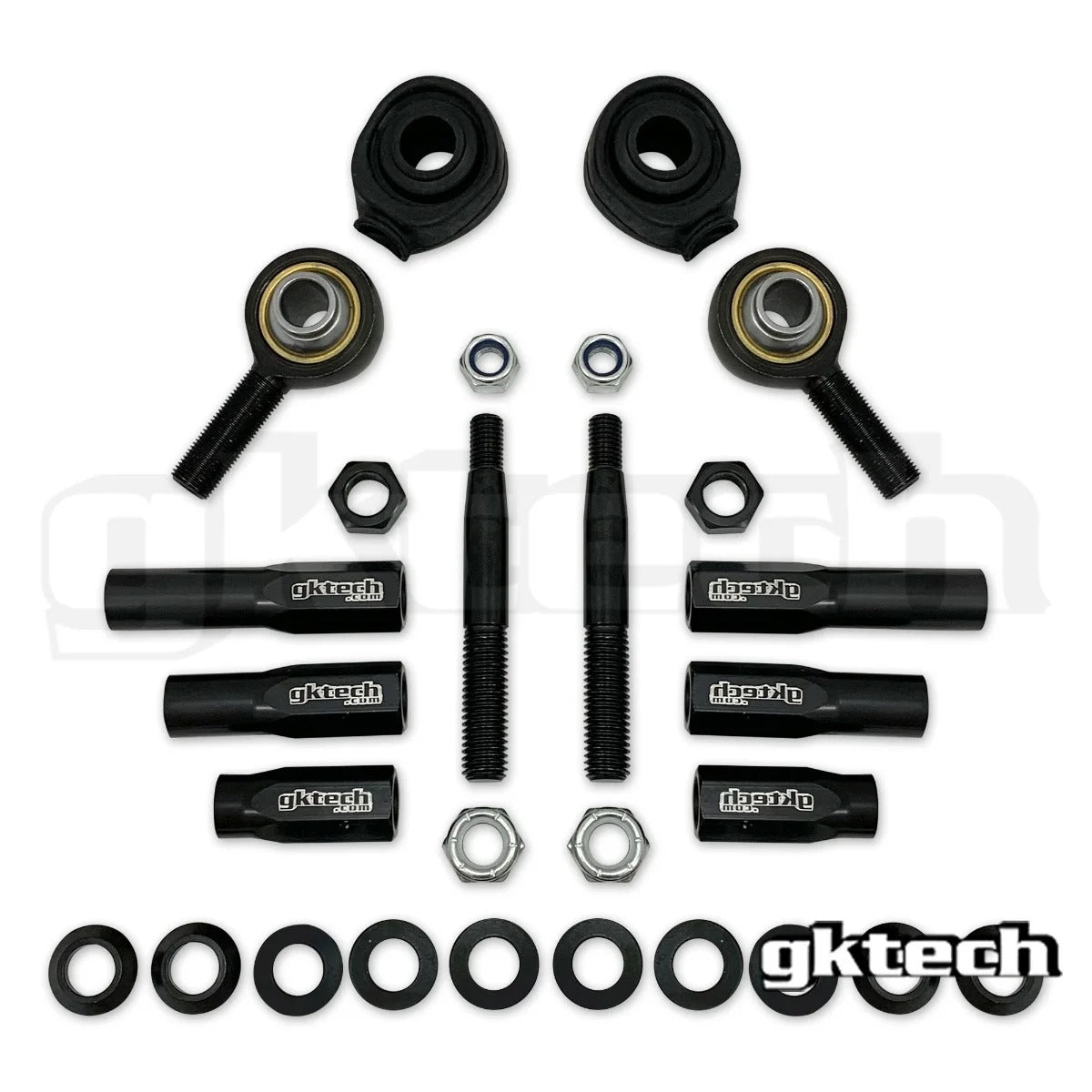

The 3 different length rods INCLUDED are: standard length, +0.59 (15mm) and +1.37" (35mm). Bump steer correction is altered through the use of 0.19" (5mm) shims, unlike others on the market ours are adjustable in height.

- Corrects bump steer up to 25mm
- Uses high quality PTFE lined 1 5/8" high misalignment rose joints
- 3 different length rods INCLUDED (standard length, 15mm and 35mm)
- Available in both 12mm and 14mm (specify at the time of ordering)
- Dust boots included

NOTE: If you intend on using our 14mm extended inner tie rods, you must also order the corresponding outer (being the 14mm even if you are using on an S13/180sx or an S15).

NOTE: When used with stock knuckles the tie rod thread may need to be cut down. We recommend using our adjustable inner tie rods (14mm) which offer more than enough thread either way as seen in the following link.
https://au.gktech.com/products/steering/

FAQs

How hard are these to install?
Remove your old tie rod ends and install these. It's a very self explanatory install and shouldn't take longer than 30 minutes.

Will this fit my car?
If your car is listed above then this is a straight fit.

Do I need a wheel alignment after installing these?
Unless you get the length spot on perfect, you will need a wheel alignment after installation.

Why do you include 3 different length rods?
As with our knuckles or with use with extended LCA's, the tie rod end position is moved and you'll need longer tie rods. Now with our kit, you can keep your standard tie rods and just use the corresponding rods that we supply in this kit.

Do you carry spare parts for this product?
Yes we carry the following spare parts for this product;

Do I need 12mm or 14mm?
Whilst the S13/180SX/S15 come factory with 12mm, we recommend measuring to be sure. Simply measure the outside diamater of the threaded section on your inner tie rod. If unsure, please reach out.

Are there any special tools required?
No, a spanner set will do the job which we do sell separately here - https://au.gktech.com/open-ended-spanners

VEHICLE COMPATIBILITY

Nissan

CEFIRO A31
R32 SKYLINE GTS-T
R33 SKYLINE GTS-T
R34 SKYLINE GT
R34 SKYLINE GT-T
S13 CA18 180SX
S13 CA18 SILVIA
S13 SR20 180SX
S13 SR20 SILVIA
S14 200SX/SILVIA
S15 200SX/SILVIA

USER GUIDE(S)

Customer Reviews

Based on 32 reviews
100%
(32)
0%
(0)
0%
(0)
0%
(0)
0%
(0)
J
Joshua A
Perfect!

Great products, excellent quality.
Well packaged and shipped very quickly!

Couldn't ask for anything more.

J
Jesse Hansen
Can't Complain.

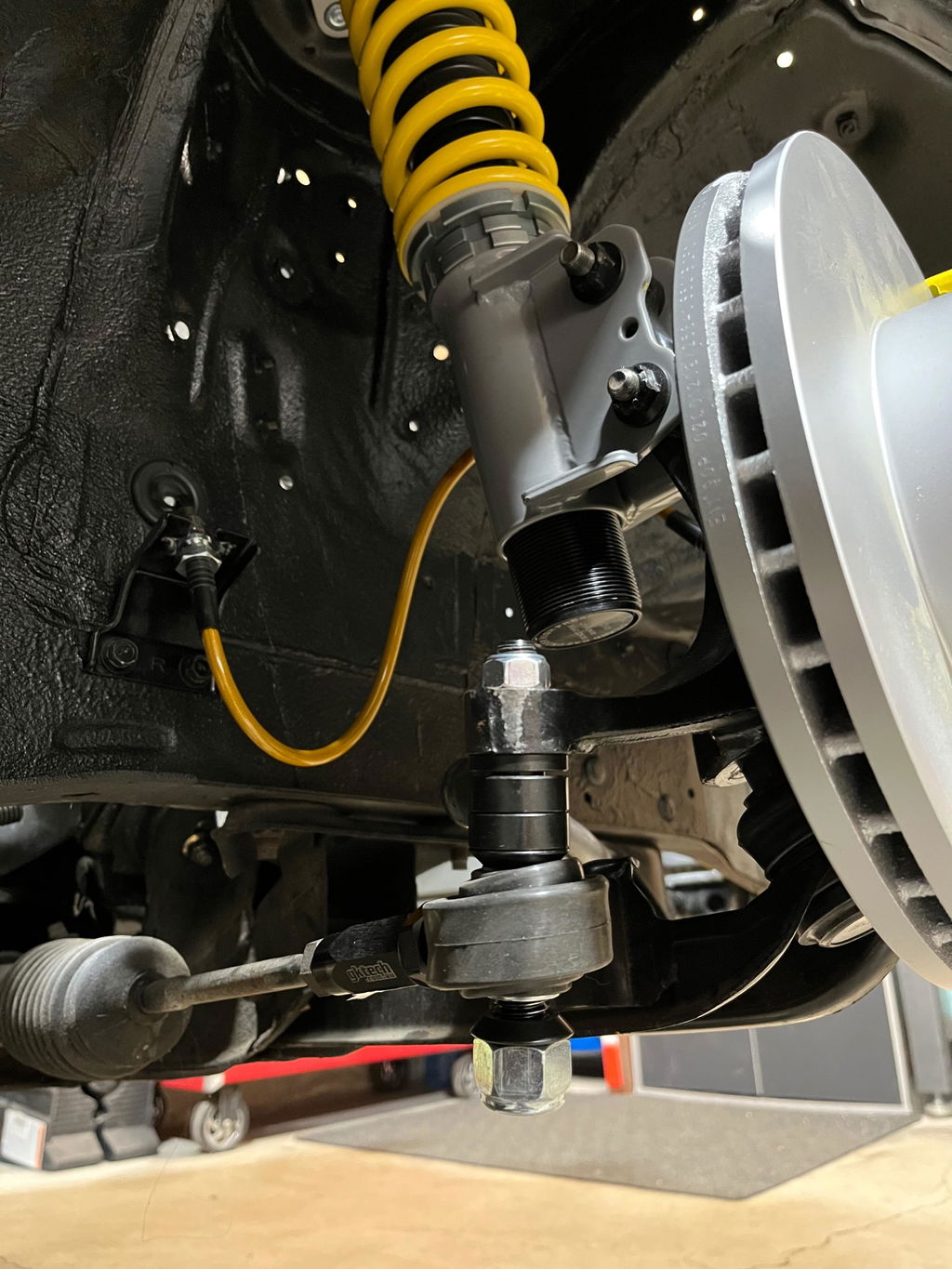

Installed on r33 gtst. pretty easy just had to trim down the tie rods a bit but otherwise good install. like that it comes with rubber dust protecters.

J
JEF GROFF
thumbs up

highly recommend! super beefy and well built

T
Thomas Schouten
All good with the goods 👌

Haven’t installed it yet 😅 but will do so soon. Will post on Instagram. I’m a returning customer and have purchased all sorts of GKTECH products. CD009 shifter, brakes hoses, R chassis to Z gearbox clutch line, R32 FUCA’s, axle spacers to make a few.

Z
Zacc Davies
LEGENDARY SERVICE

Ordered some parts, the team used common sense (which I have none) and called me to double check I had ordered the correct parts for my car as I had made a mix up on the order.

Top quality products but even better service. Props to the boys (and girls)

Will be purchasing again!
