4 to 5 stud wheel adapters
What is a Backorder?
Q: What is backorder?
When a product is on backorder, it means that we have sold out and we are opening a back order due to popular demand. This is essentially a queue, when new stock arrives from production, we’ll send your order.Q: Will items in my order that are in stock be shipped out first?
We will send your order altogether once your backorder item is ready! You may wish to place separate orders if you want an item before the other is due back in stock.Free Shipping on orders over $250
Checking Dispatch Times...
Order and earn 5% back in reward points
That's 845 for this item

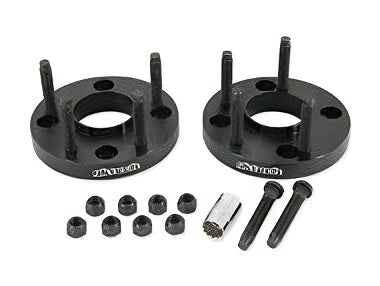

The GKTECH 4 to 5 stud wheel adapters allow a 4x114.3 stud car to fit 5x114.3 stud wheels.
Sold as a pair these wheel adapters bolt on to your standard hub just like a normal wheel spacer however 1 of your standard studs is then replaced with a longer stud which runs through the adapter and acts as the 5th stud.
The wheel adapters are hub centric to suit Nissans 66.1mm hub and are manufactured to the highest quality in T6061 Aluminium and then hard anodized to further increase the strength.
A super easy and cheap way to make your S13/180sx 5 stud.
- CNC machined aluminium T6-6061 construction
- Grade 10.9 studs - Hub centric to suit 66.1mm Nissan hubs
- 114.3mm PCD with M12 x 1.25 thread - 20mm thick wheel adapters
- Includes extra wheel studs required to install the adapters.
NOTE: Sold as a PAIR
FAQs
What's involved in installing these adapters?You will need to press a new stud (included) into the hub and then simply bolt on the wheel adapter. Once the wheel spacers are bolted on you will need to mark the standard wheel studs and trim accordingly.
The standard wheel studs are 26mm's in length and the spacers are 20mm's so that extra 6mm's needs to be trimmed off the standard studs.
Do you make different sized or PCD wheel spacers?
We only sell the items listed on our website. If it's not listed on our website then we don't make it and we can't help. Sorry.
Are these safe?
These are no different to any other wheel spacer. They are machined from T6-6061 aluminium and are hub centric with grade 10.9 studs. They're strong! That said, as with all wheel spacers or adapters they are not intended or legal for road use.
I damaged/lost my socket, do you sell replacements?
Yes, they can be found here - https://au.gktech.com/4-to-5-stud-wheel-adapter-socket
I damaged/lost my wheel nuts, do you sell replacements?
Yes, they can be found here - 4 to 5 spare nuts
What is the O.D of the spacer?
150mm
VEHICLE COMPATIBILITY
Nissan
R32 SKYLINE GTS-TR33 SKYLINE GTS-T
R34 SKYLINE GT-T
S13 CA18 180SX
S13 CA18 SILVIA
S13 SR20 180SX
S13 SR20 SILVIA
S14 200SX/SILVIA
S15 200SX/SILVIA
Customer Reviews
These are the 2nd set we've bought, we were so happy with the 1st set. Especially handy with the correct tool for the stud nuts.

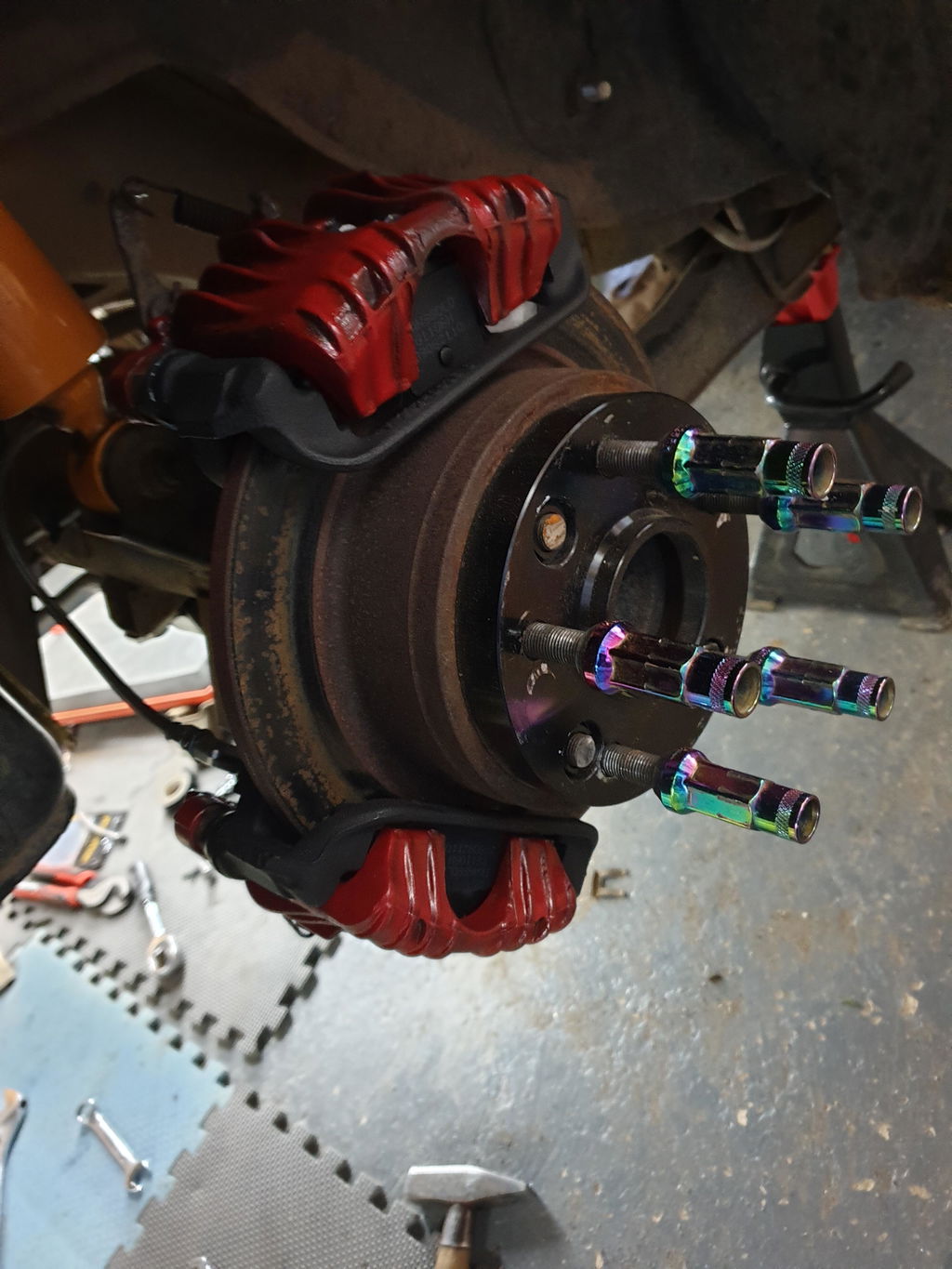

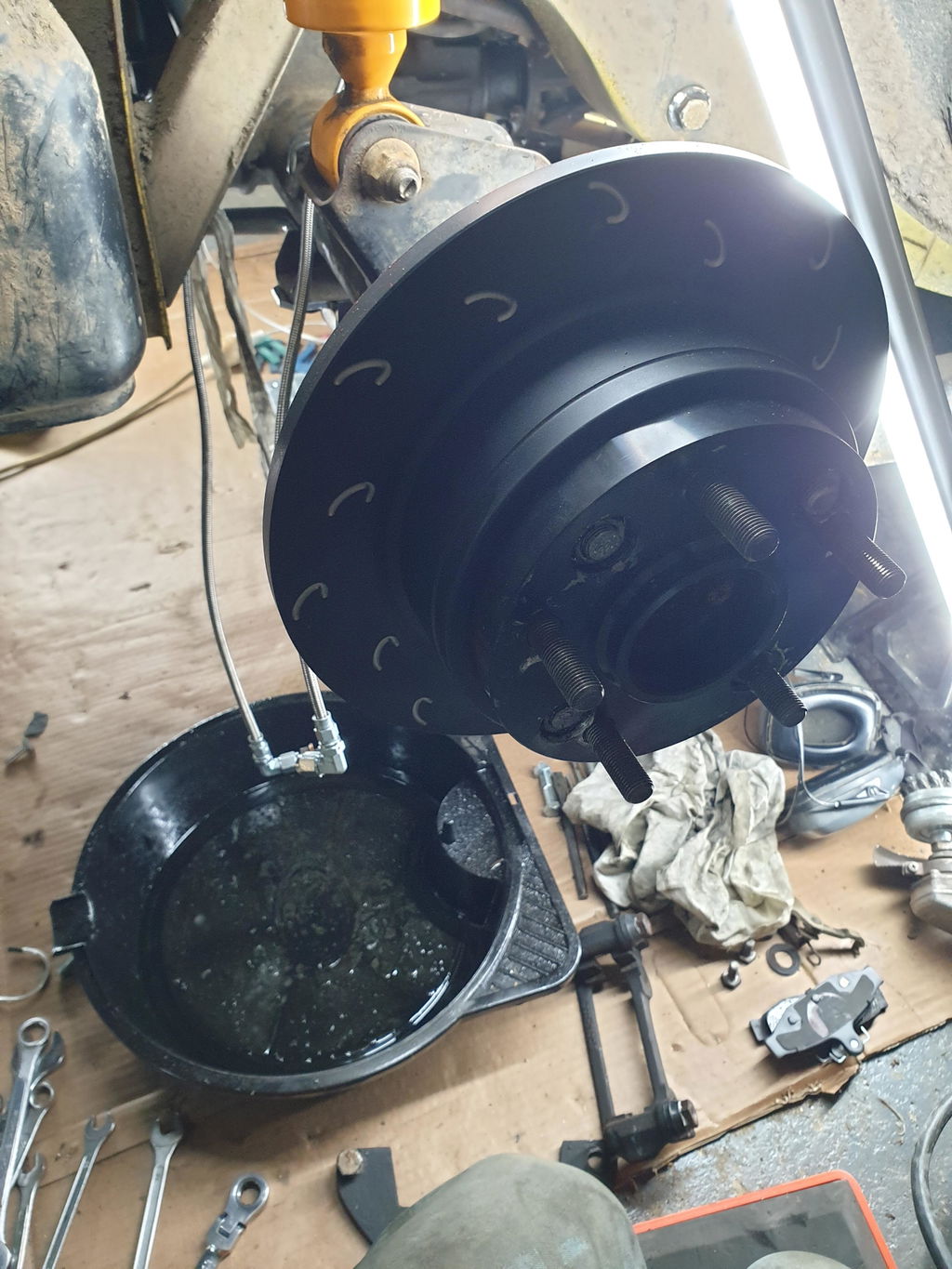

Overall a good quality item. Install was not as easy as I'd hoped, but wrapped it up in a weekend. Below are the two issues I ran in to. But again, good quality and would recommend for the right circumstances. It got the job done, I'm just being transparent in the hopes of being helpful.
First issue was with the provided long studs when installing to the front hubs. The diameter of the studs are off, and they slip in to the hub with plenty of slack. Was unable to torque until tacking a small amount of material on the studs to make up the difference. Rears were no problem. Second was with one of the pre-installed studs on the spacers stripping. Not a big issue, just cleaned it up and used a better lug nut.
I have bought about a dozen different items from GKtech and have never been disapointed and these adaptors are no different. They are the best possible quality at the best possible price for the quality. 10/10 would recommend.

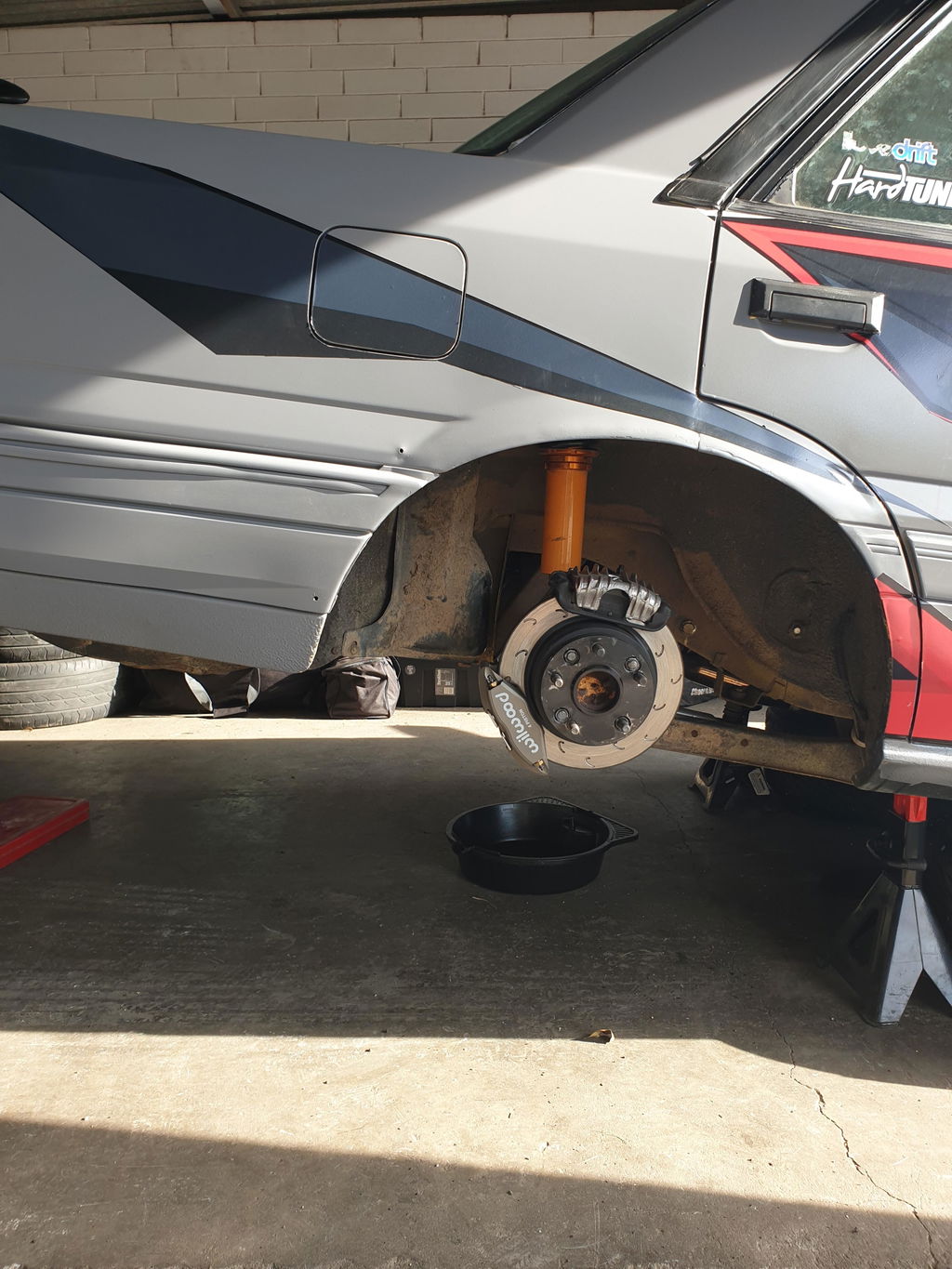

these 4x114.3 to 5x114.3 made it possible to do something unique with my foreign car that I thought impossible . These are thin unlike the 2” thick type these work within my fender wells ( well almost ) . i will have to flair the back fenders but that will only add to my finished look that im going for. Thank you Gktech for making these. Fast shipping and good product so far . This car is a project still so I cannot speak to road use yet . I will update it necessary.
If I did it again I would just buy hubs or normal bolt on spacers, the biggest problem was the thin nuts it comes with would want to strip almost straight away, they are probably stuck on forever now
Hi Matthew, thanks for the feedback. You do have to be careful with the 17mm nuts when installing to avoid stripping, not too dissimilar to any wheel spacer. With that said, we do sell spares should you ever need to replace them.
