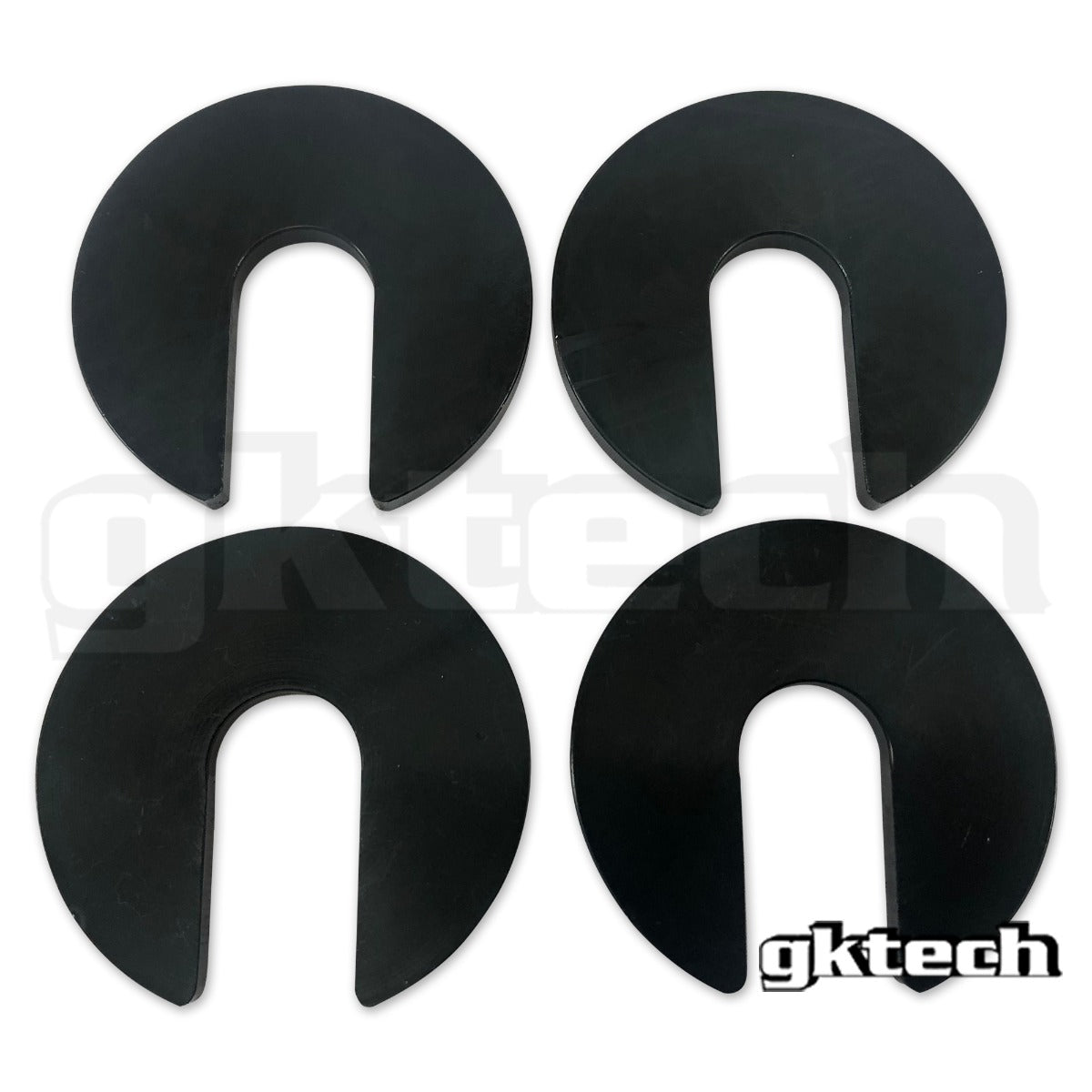

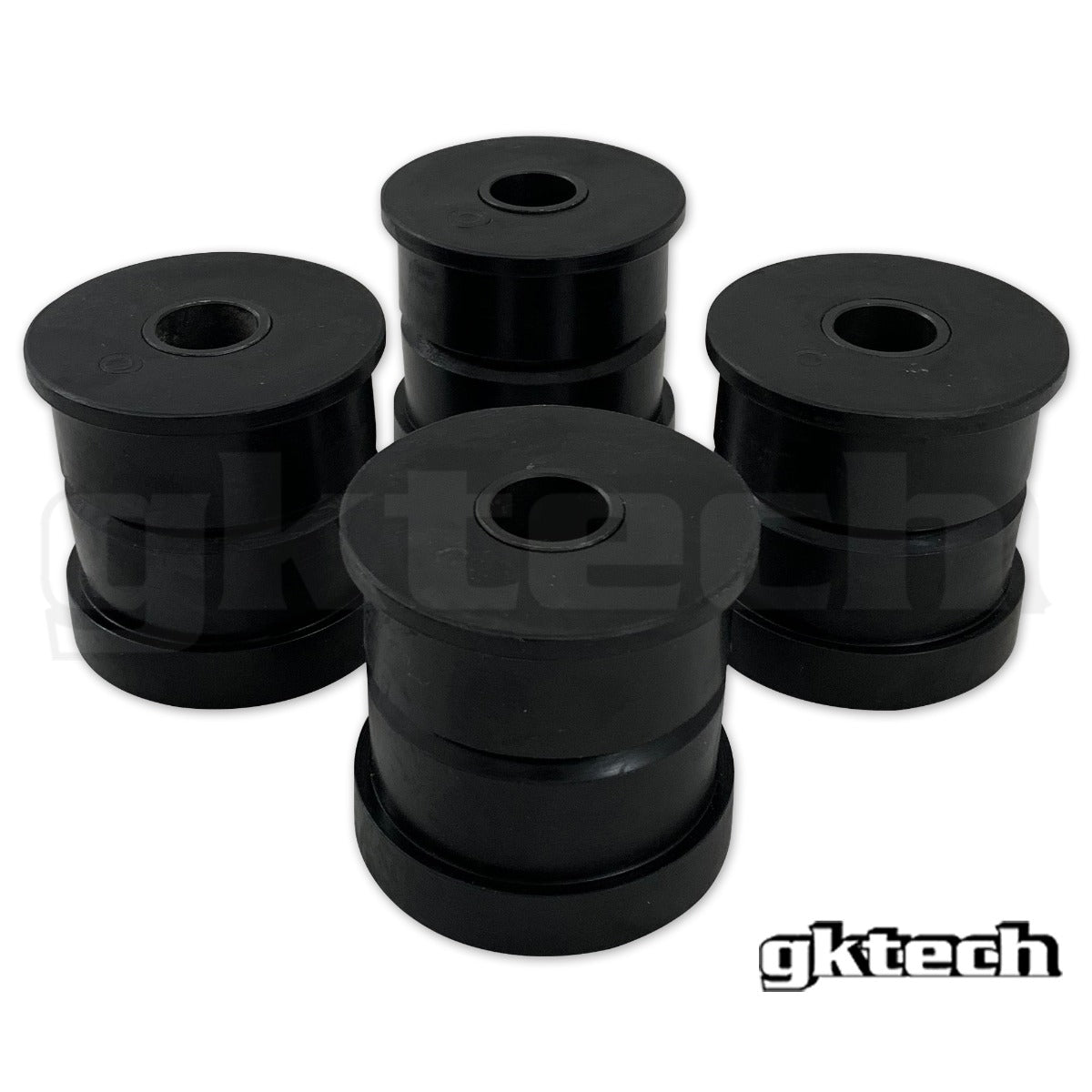

The R32 GTR / BNR32 SKYLINE GKTECH Solid Subframe Bushes are made from ShA 80 Polyurethane and are a direct replacement of the standard items and ensure that movement of the subframe is kept to a minimum. In this kit we also have the option for CNC machined 6061-T6 aluminium Spacer Shims which may be required when fitting the polyurethane bushes to a R32 GTR (Sold in packs of 4)
They eliminate axle tramp whilst also raising the subframe 10mm which helps to correct the roll center on lowered vehicles.
NOTE: Shims wills space your subframe down 6mm
NOTE 2: Stacking 2 sets of shims can be used to space the subframe down 12mm (Close to OEM height)
GKTECH
R32 GTR / BNR32 SKYLINE POLYURETHANE SUBFRAME BUSHES
What is a Backorder?
Q: What is backorder?
When a product is on backorder, it means that we have sold out and we are opening a back order due to popular demand. This is essentially a queue, when new stock arrives from production, we’ll send your order.Q: Will items in my order that are in stock be shipped out first?
We will send your order altogether once your backorder item is ready! You may wish to place separate orders if you want an item before the other is due back in stock.The R32 GTR / BNR32 SKYLINE GKTECH Solid Subframe Bushes are made from ShA 80 Polyurethane and are a direct replacement of the standard items and ensure that movement of the subframe is kept to a minimum. In this kit we also have the option for CNC machined 6061-T6 aluminium Spacer Shims which may be required when fitting the polyurethane bushes to a R32 GTR (Sold in packs of 4)
They eliminate axle tramp whilst also raising the subframe 10mm which helps to correct the roll center on lowered vehicles.
NOTE: Shims wills space your subframe down 6mm
NOTE 2: Stacking 2 sets of shims can be used to space the subframe down 12mm (Close to OEM height)
Choose options
FAQs
Will this fit my car?We can only confirm fitment for the vehicles listed above under vehicle compatibility. If your car is not listed there, then we don't know if it will fit.
Do you make these to suit other cars?
We only sell the parts listed on our website. If it's not listed on our website, then we don't sell it. Sorry.
However, we do sell the same bushes in solid aluminium, which can be seen:R32 GTR Solid subframe bushes
What's the advantage of using the GKTech polyurethane rear subframe bushes?
The polyurethane bushes offer a more solid rear end which equals to a better driver control and feel for the rear of the car. The Gktech polyurethane bushes also raise the subframe 10mm, improving roll centre correction.
What modifications are required, is this hard to fit?
The only modification is for the OEM front brace will need to be slightly bent to reach the mounting holes. Apart from that, no modifications are required. Simply just remove and refit the bushes.
Is there anything else needed for installation?
No, you can use your OEM hardware. In terms of the bushes themselves, they will arrive as shown in the product photo.
Can I install this myself? If so how long will installation take?
Yes, provided you have general mechanical knowledge they are relitively straightforward. Installation time should be around 1 hour once the subframe is out. However, being a suspension componentwe recommend only a trained professional to install this product.
Do these cause much vibration/noise in the cabin?
Not really. Obviously anything solid or more rigid is going to cause an increase in noise and vibration however, I'd hardly say that it's noticeable being Polyurethane. Chances are if you're installing these you've already got coilovers, your car is lowered, you've got an aftermarket exhaust etc. etc.
Do these bushes change the height of the subframe?
Yes, they raise the subframe 10mm, which improves roll center.Will I have to get a wheel alignment after installing these?Considering the subframe has been removed and refitted 10mm higher, this will change your alignment. If any suspension changes are made we do recommend a wheel alignment.
Do I need to remove the OEM inner sleeve when installing these bushes?
Yes, the OEM inner sleeve will need to be removed, which can be seen in the install video above. This needs to be done as the Gktech bushes are a direct replacement of both the inner sleeve and the bush.
VEHICLE COMPATIBILITY
Nissan
R32 SKYLINE GTRGoes with your build
