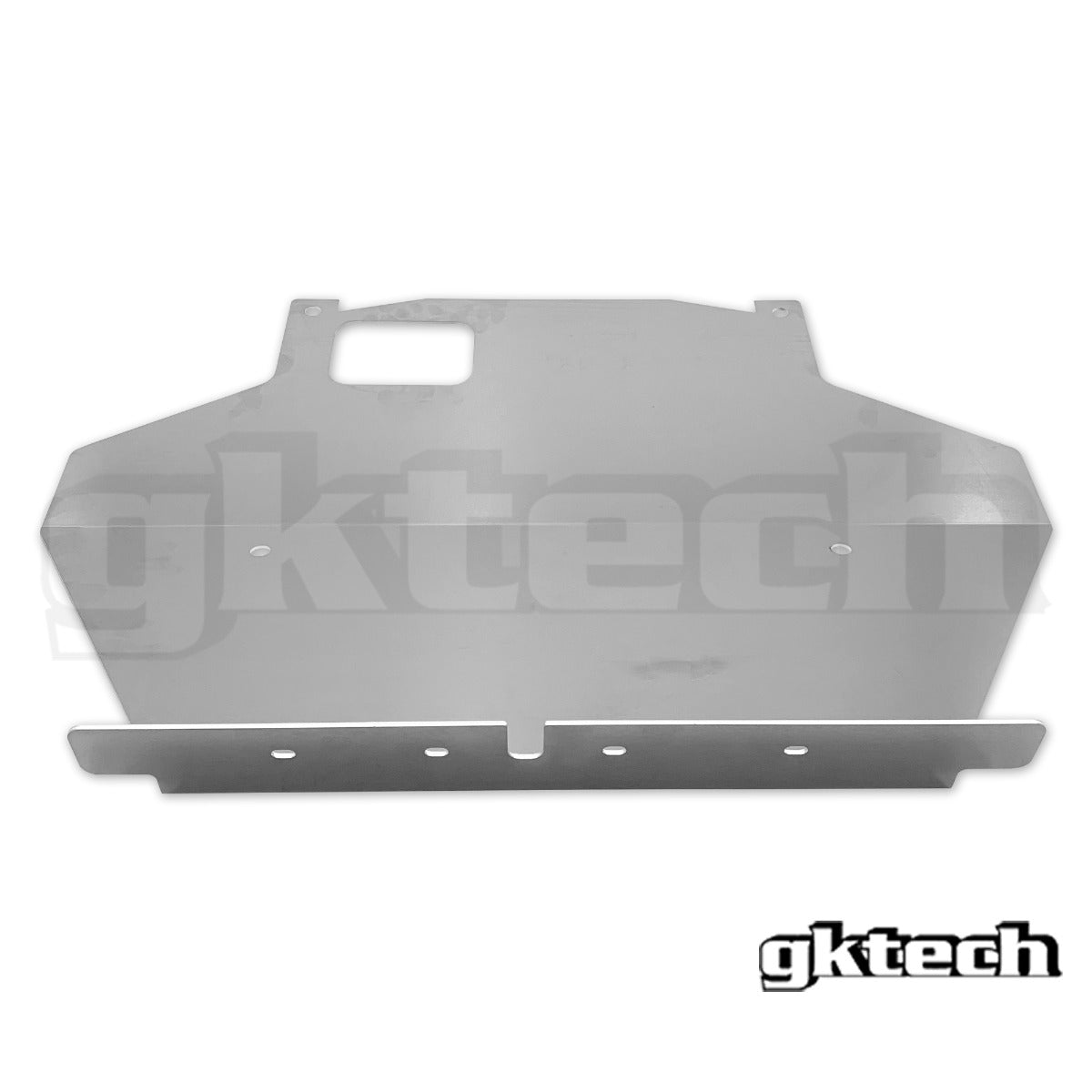

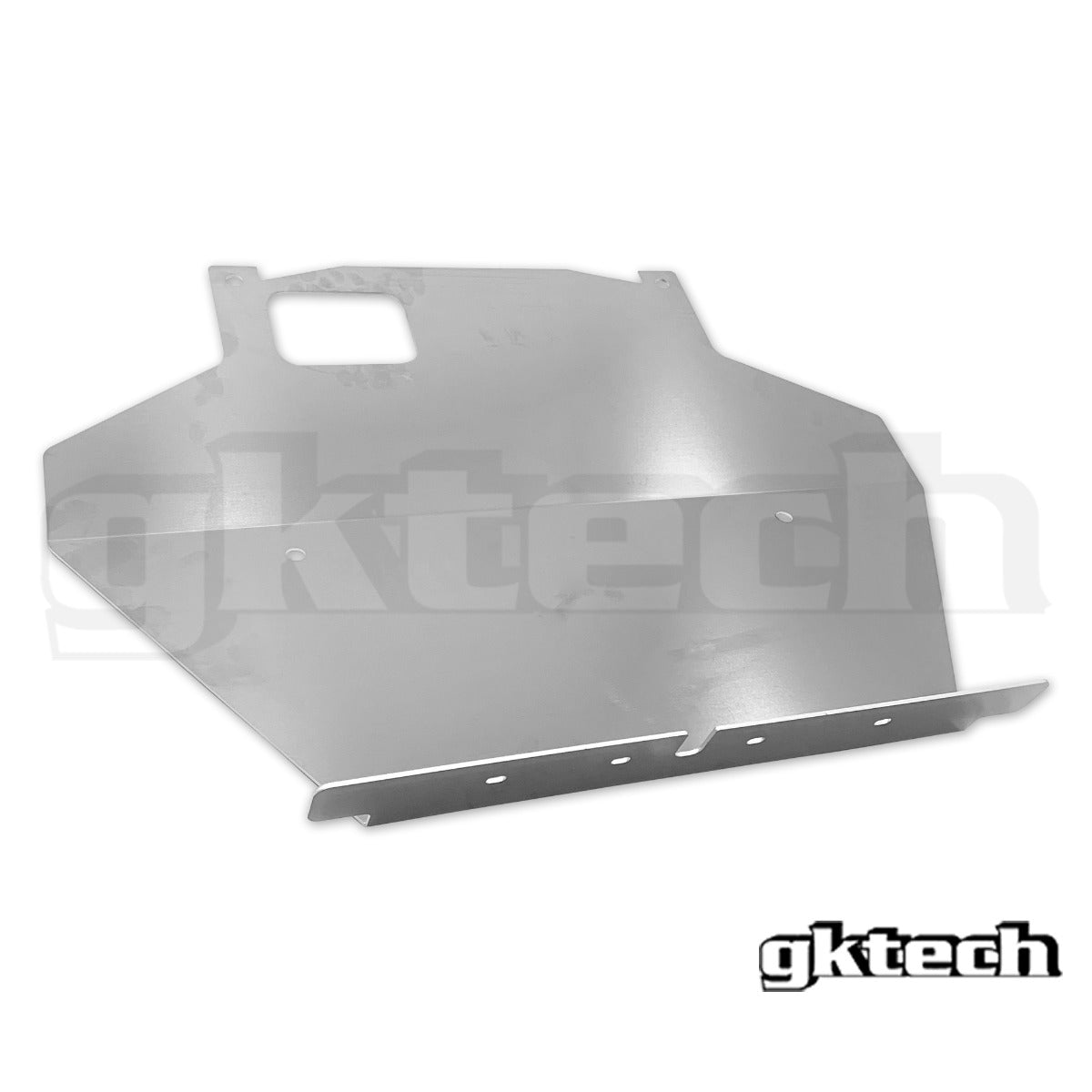

Save your sump and K frame with this under engine bash plate. This is designed with low cars in mind and will reduce the risk of damage. It will also help reduce turbulence and improve airflow.
- 3.0mm thick aluminium
- 100% bolt on to factory mounting points
- Fits both turbo and non turbo R32 2 or 4 door Skylines (RWD only)
We only sell the products listed on our website. If it's not listed on here, then we don't sell it. We don't do any custom work. Sorry.
Will this bash plate fit with my aftermarket sump?
Providing that your sump doesn't sit below the K frame then this bash plate will fit.
Will this bash plate fit with my aftermarket swaybar?
Providing that your swaybar doesn't sit higher than the level of the K frame (which is the line that the bash plate follows) then you'll be fine. Almost all swaybars sit below the level of the K frame however please check your vehicle before purchasing.
I'm running a different engine in my car, will this bash plate fit?
Providing that your sump doesn't sit below the K frame and that you're running the standard K frame meant for the vehicle that you're buying the bash plate for, then this bash plate will fit.
Do I need to modify anything for the bash plate to fit?
There shouldn't be any need for anything to be modified to fit the bash plate. If you're running an aftermarket intercooler then the brackets for that may bolt up to the lower radiator support and may get in the way but this can easily be resolved by using the bash plate as the mounting point.
Will I still be able to drain the oil from my sump with the bash plate fitted?
Yes, the bash plate has a provision for the stock oil drain position. If you're running an aftermarket sump it may be in a different position to the standard oil drain. Unfortunately it's not possible to cater for everyone and if you're using an aftermarket sump, please take this into consideration.
R32 SKYLINE GTS-T
