GKTECH

Skyline K-Frame/tension rod mount weld in reinforcement plates

Sale price$139.00 AUD
SKU: R32X-KFRM
R32 or R33?:R32 Skyline (RWD only)
In stock
Quantity:

What is a Backorder?

Q: What is backorder?

When a product is on backorder, it means that we have sold out and we are opening a back order due to popular demand. This is essentially a queue, when new stock arrives from production, we’ll send your order.

Q: Will items in my order that are in stock be shipped out first?

We will send your order altogether once your backorder item is ready! You may wish to place separate orders if you want an item before the other is due back in stock.
Pickup available at Sunshine West, VIC 3020 Usually ready in 2 hours

Skyline K-Frame/tension rod mount weld in reinforcement plates

R32 Skyline (RWD only)

Sunshine West, VIC 3020

Pickup available, usually ready in 2 hours

Unit 11/94 Boundary Road
Sunshine West VIC 3020
Australia

📦

Free Shipping on orders over $250

Checking Dispatch Times...

Product enquiry

The GKTech weld in K frame/tension rod plates has been designed to help brace one of, if not the most necessary area on your Skyline. Tension rods put an immense amount of load on the K frame and the K frame itself flexes under load a visually noticeable amount.

Our weld in plates will help eliminate this which will result in better overall handling and steering feedback.

The added benefit is that if you ride over a ripple strip at the race track (or a gutter on the street) the flat bottom of the K frame will help glide you over rather than you getting stuck and pulling half your car to pieces.

- CAD Designed
- CNC Laser Cut from 2mm C30 steel
- Dimple died for increased rigidity

FAQs

Will this fit my car?
We can only confirm fitment for the vehicles listed above under "vehicle compatibility". If your car is not listed there, then we don't know if it will fit.

Do you make these to suit other cars?
We only sell the parts listed on our website. If it's not listed on our website, then we don't sell it, sorry.

What's the advantage of using the GKTech weld reinforcement plates?
Although not as common as broken rear subframes, the front k-frame/tension rod brackets do break from flex from time to time. A simple but effective way to brace the front bracket ensuring no flex and better driving response through the front end.

What modifications are required, is this hard to fit?
No modifications are required, simply just remove the front k-frame/caster bracket and weld the plates in.

Is there anything else needed for installation?

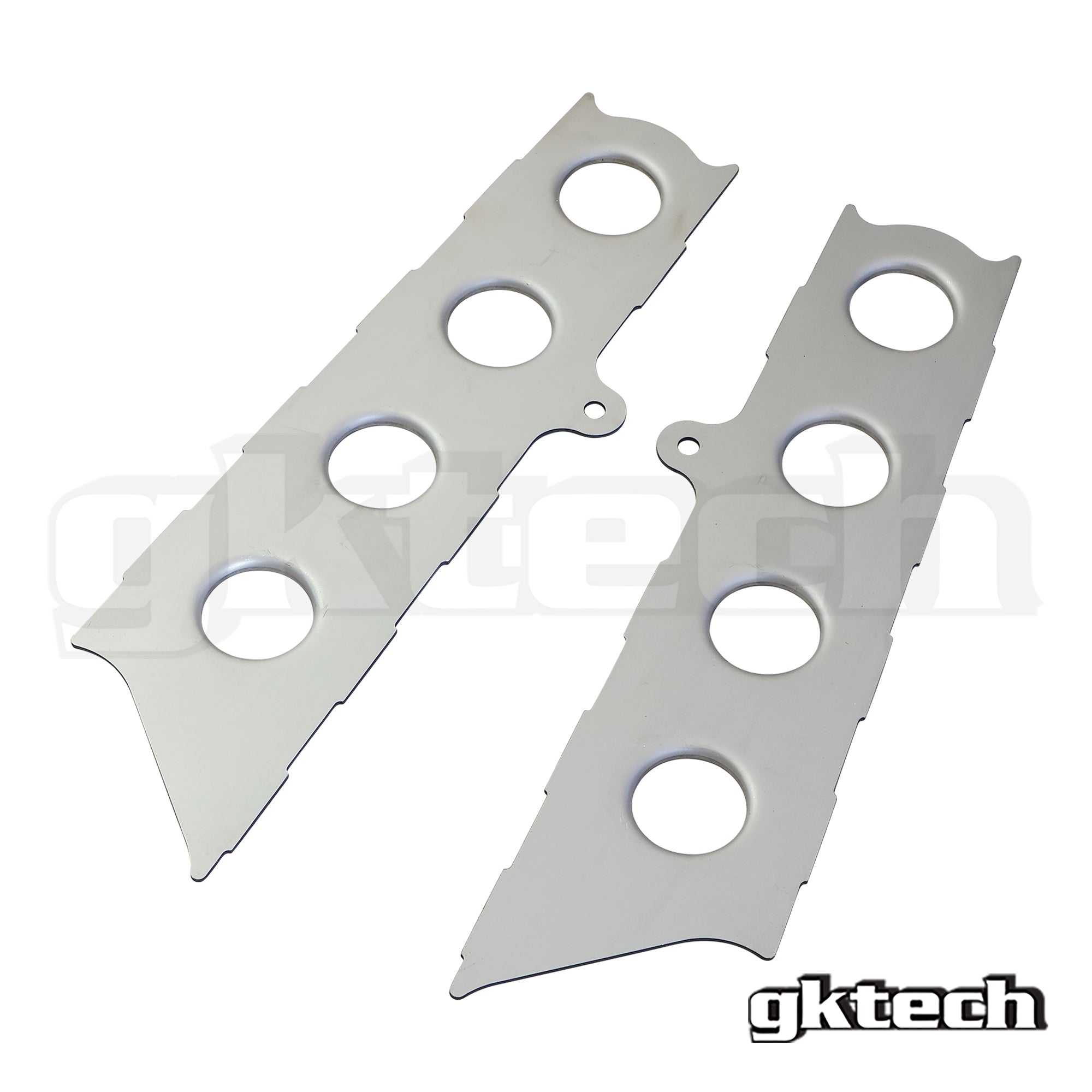

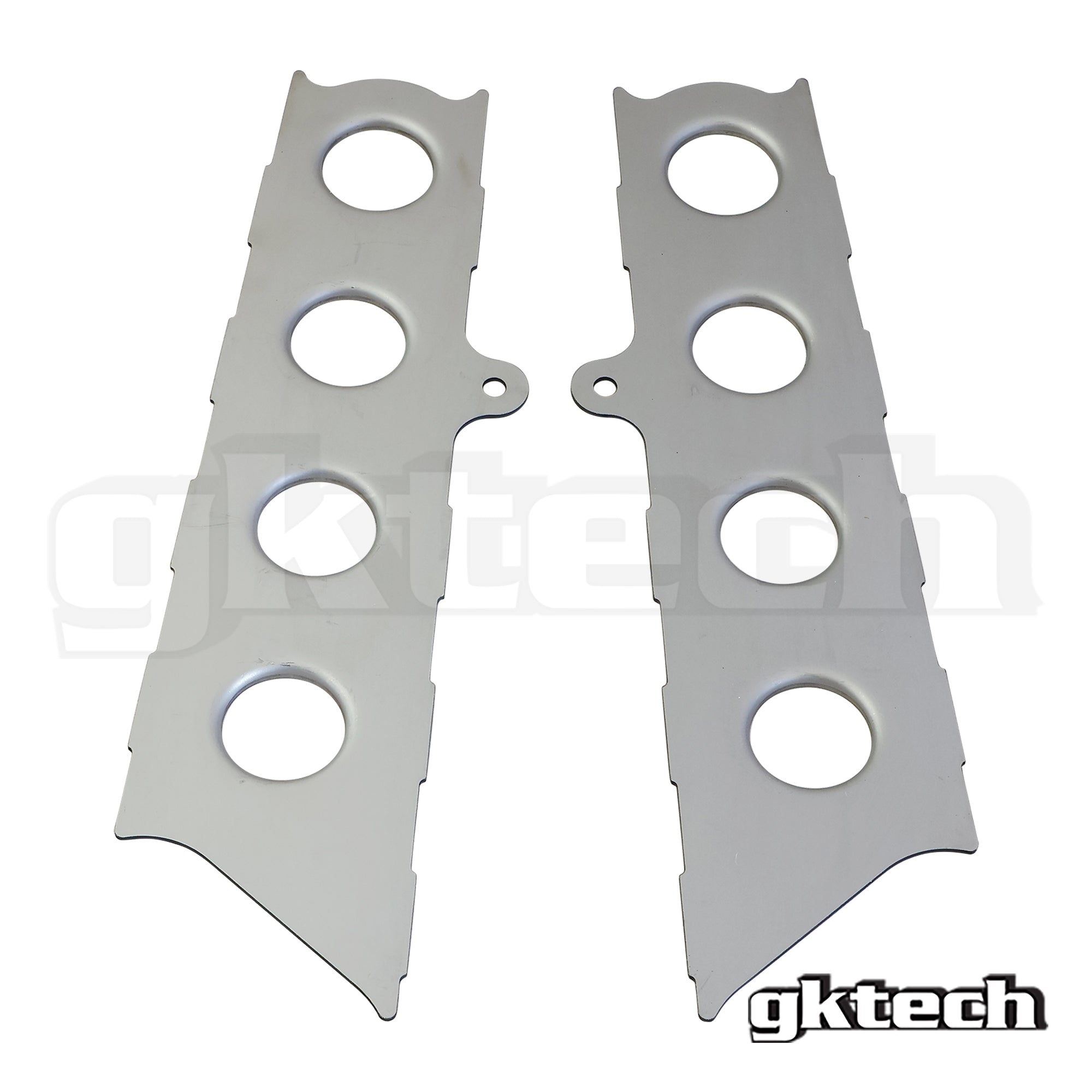

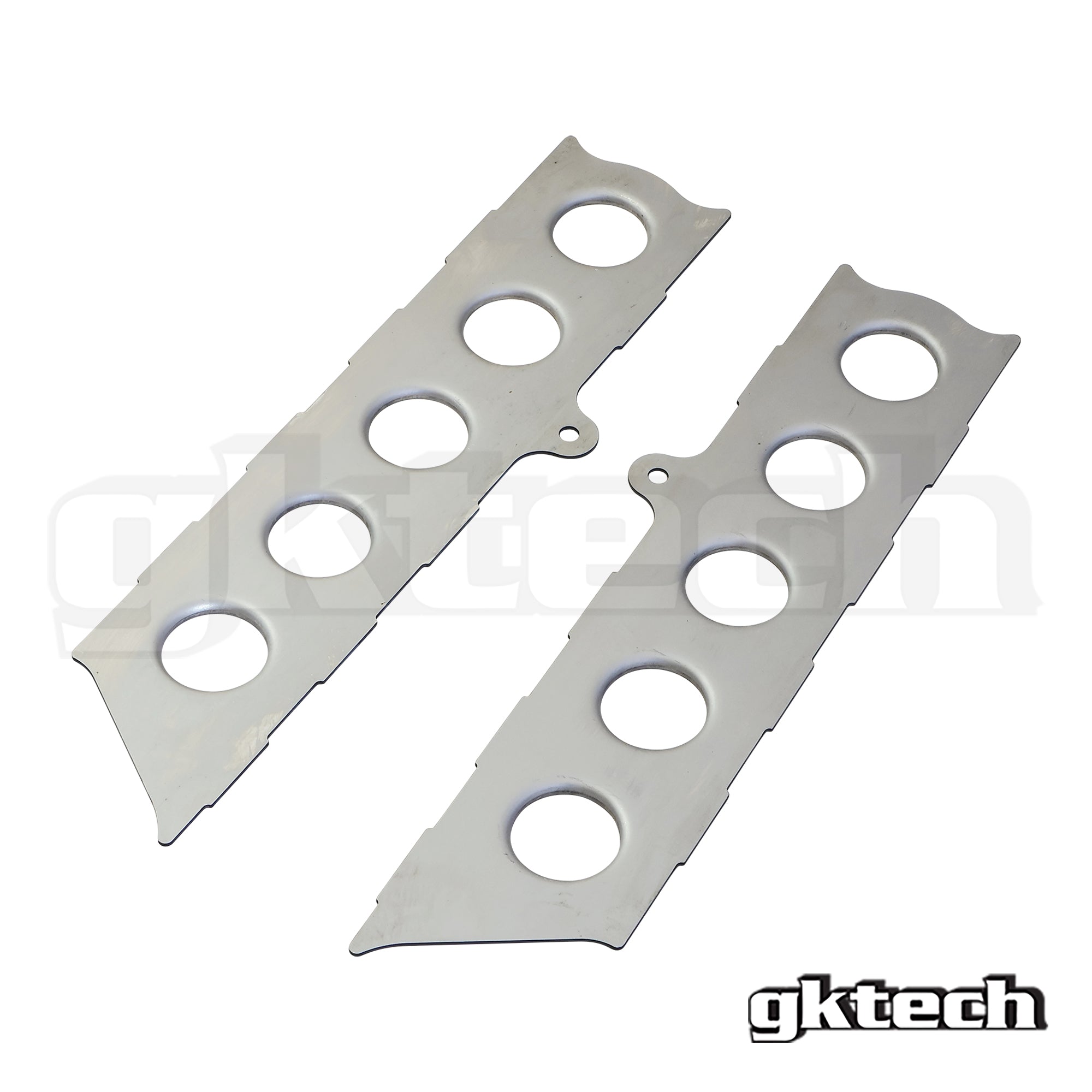

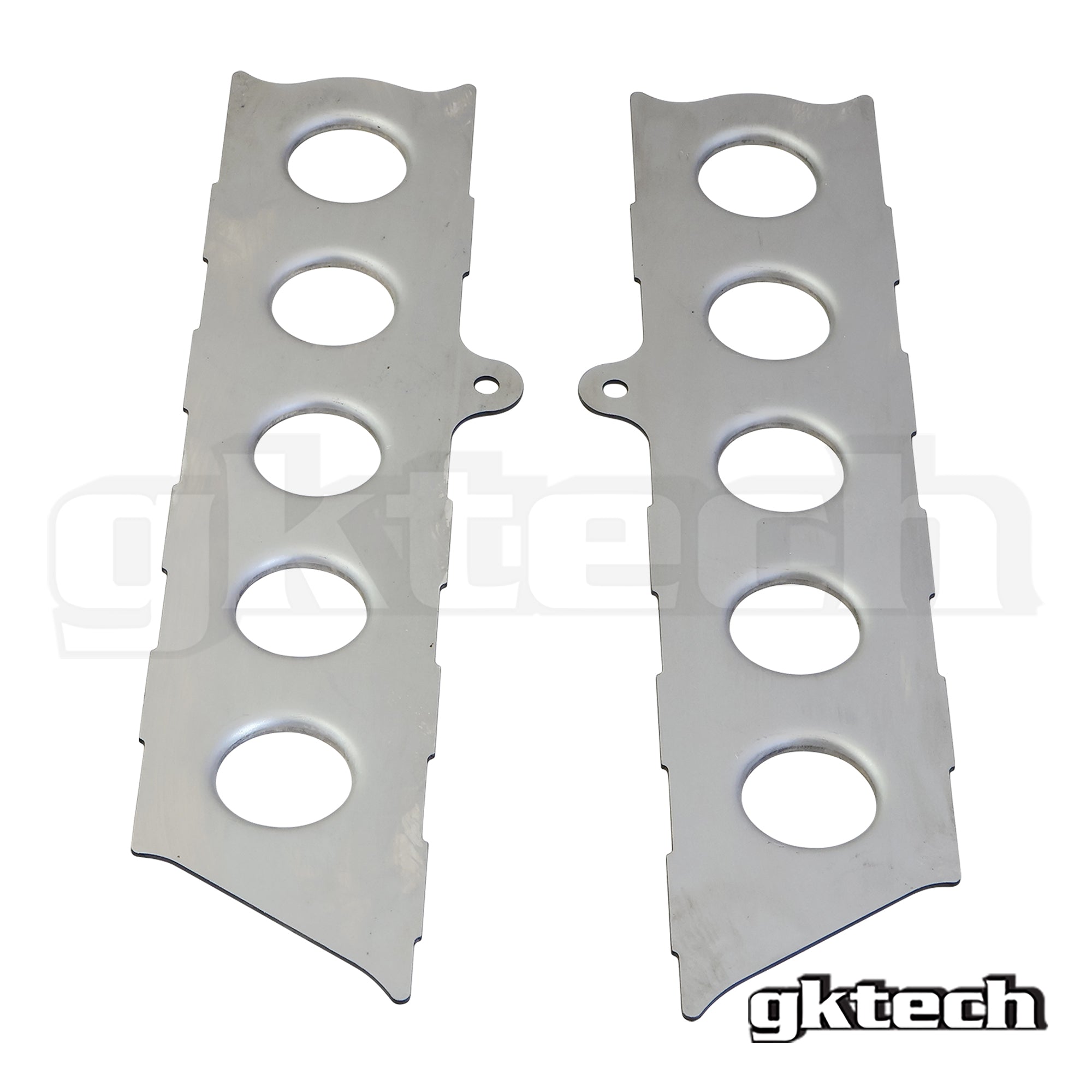

You will need a welder. In terms of the plates, they will arrive as shown in the product photo.

Can I install this myself? If so how long will installation take?
Yes, provided you have welding experience. Welding in of the kit should take around 15 minutes.

Can I use these plates in conjunction with your under engine bash plate?
Yes, you sure can. The K frame plates don't sit below the K frame so there is no issue at all.

VEHICLE COMPATIBILITY

NOTE: Will not fit 4WD cars. Will ONLY fit RWD cars

Nissan

R32 SKYLINE GTS-T
R33 SKYLINE GTS
R33 SKYLINE GTS-T

USER GUIDE(S)

Customer Reviews

Based on 5 reviews
100%
(5)
0%
(0)
0%
(0)
0%
(0)
0%
(0)
j
jeremy shannon
You need this mod

The K Arm on the R chassis and S chassis flexes on load, we have this mod on our R32,R33 and 180SX, wit the Karm brace bar. You’ll immediately feel how tight, predictable and snappy the front end becomes with this mod especially with a decent strut brace and some semis up front.

S
Steven Dexter
Great product, cut out perfectly

Great product, it was the last piece I needed to finish my power brace, perfect fit.

J
Jerry Barrett
Quality

These look legit. High quality & great fitment.

V
Vay Gin
just look nasty underneath

Umm.....very simple and very nice looking

R
Ryan Rubenack
Power brace plates

You guys are awesome! I def love buying stuff from you guys. I would love to ride for you guys someday! I’m building my 240 with a rb25 swap and I def need the parts. My ig is Ryan.mp3
